108293040001012 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 108293040001012

108293040001012: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Locking, Gray Insulator, Plug; CategoryThe connector The connector; File Size66KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

108293040001012 Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Locking, Gray Insulator, Plug

108293040001012 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	PANEL MOUNTABLE, POLARIZED
body width	0.331 inch
subject depth	0.482 inch
body length	3 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1050VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	8293
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Termination type	IDC
Total number of contacts	40
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

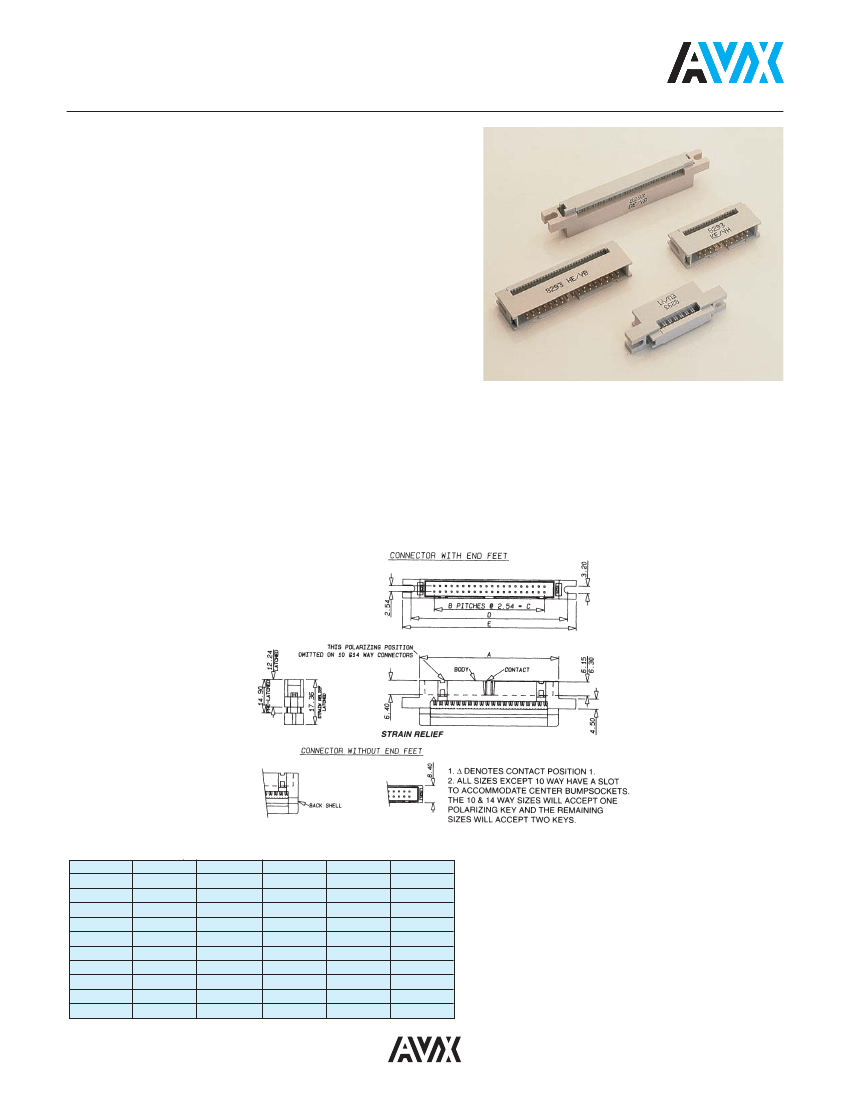

Male Plug Connector

Series 8293

Series 8293 IDC

male plug connectors are available in

industry standard sizes of 10 to 64 positions. They mate

with Series 8290 IDC sockets as well as other industry

compatible connectors. The housing gives full protection

to contact pins, and has the optional facility of fitting dual

height polarizing keys to prevent incorrect insertion of the

mating socket.

TECHNICAL SPECIFICATION

Material:

Molding - UL94VO rated glass filled grey

polyester

Contact - Phosphor bronze

Contact Plating:

Gold over nickel

Current Rating:

1 ampere at 70ºC maximum ambient

Voltage Rating:

350V DC or AC peak

Insulation Resistance:

>1000 megohms

Dielectric Withstanding Voltage:

1050 DC or AC peak

UL and CSA Approval pending

Operating Temperature:

-55ºC to +105ºC

Contact Resistance:

Initially, 10 milliohms max.

DIMENSIONS:

millimeters (inches)

No. of Ways

22.89 (0.901)

27.97 (1.101)

30.51 (1.201)

35.59 (1.401)

43.21 (1.701)

53.37 (2.101)

60.99 (2.401)

73.69 (2.091)

86.39 (3.401)

91.47 (3.601)

10.16 (0.400)

15.24 (0.600)

17.78 (0.700)

22.86 (0.900)

30.48 (1.200)

40.64 (1.600)

48.26 (1.900)

60.96 (2.400)

73.66 (2.900)

78.74 (3.100)

30.48 (1.200)

35.56 (1.400)

38.10 (1.500)

43.18 (1.700)

50.80 (2.000)

60.96 (2.400)

68.58 (2.700)

81.28 (3.200)

93.98 (3.700)

98.74 (3.900)

38.10 (1.500)

43.18 (1.700)

45.72 (1.800)

50.80 (2.000)

56.59 (2.228)

68.58 (2.700)

76.20 (3.000)

88.90 (3.500)

101.60 (4.000)

106.68 (4.200)
