CDMC104NP-R56MC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDMC104NP-R56MC

CDMC104NP-R56MC: Descriptionfixed inductors 0.56uh 21a smd pwr inductor; CategoryPassive components inductor; File Size127KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CDMC104NP-R56MC Overview

fixed inductors 0.56uh 21a smd pwr inductor

CDMC104NP-R56MC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
Reach Compliance Code	unknown
ECCN code	EAR99
core material	IRON
DC Resistance	0.00163 Ω
Nominal inductance(L)	0.56 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDMC104
Number of functions	1
Number of terminals	2
Maximum rated current	21 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

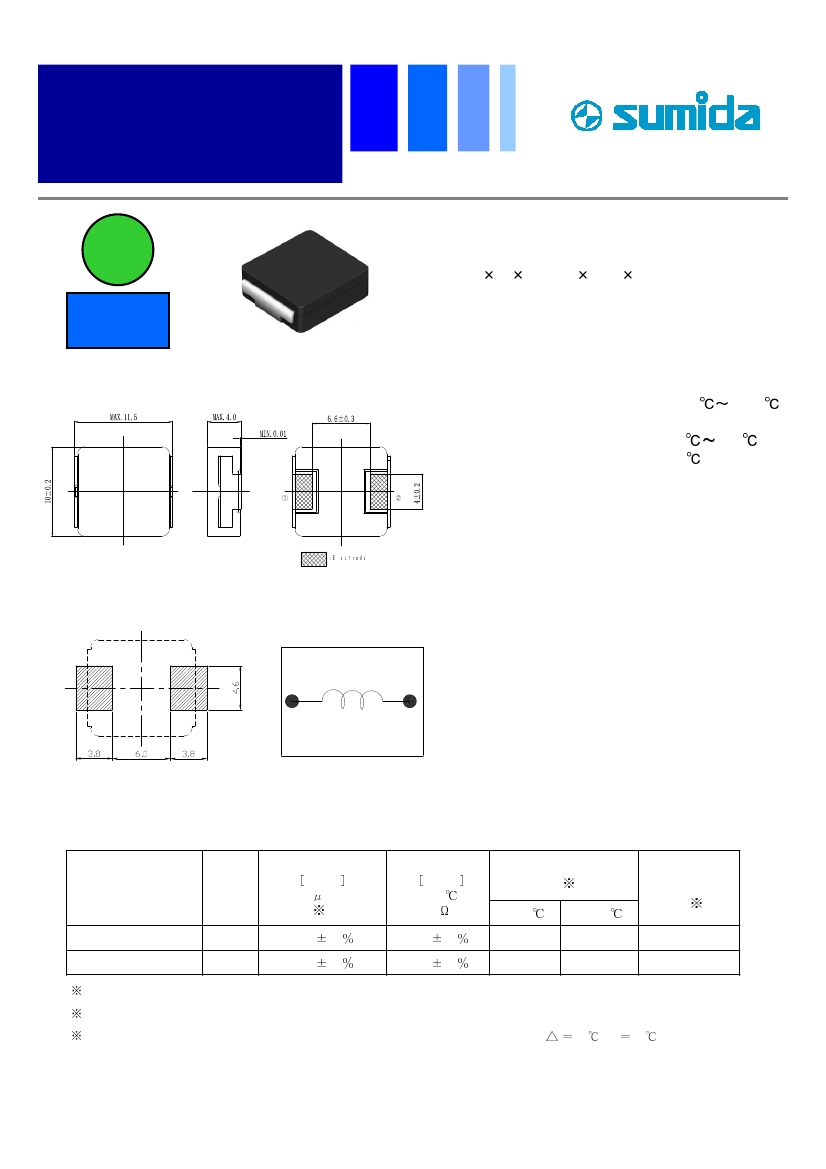

SMD Power Inductor

CDMC104

Description

• Metal compound molding type construction.

• Magnetically shielded.

• L W H: 11.5 10.2 4.0 mm Max.

• Product weight:2.5 g (Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

• Halogen Free available.

Environmental Data

• Operating temperature range: -40

+125

(including coil’s self temperature rise)

+85

• Storage temperature range: -40

• Solder reflow temperature: 260

peak.

Packaging

• Carrier tape and reel packaging.

• 13.0”diameter reel

• 500pcs per reel

RoHS

Halogen

Free

Dimension - [mm]

Land pattern and Schematics - [mm]

Applications

• Ideally used in low voltage-high current

laptop PC & sever power supply.

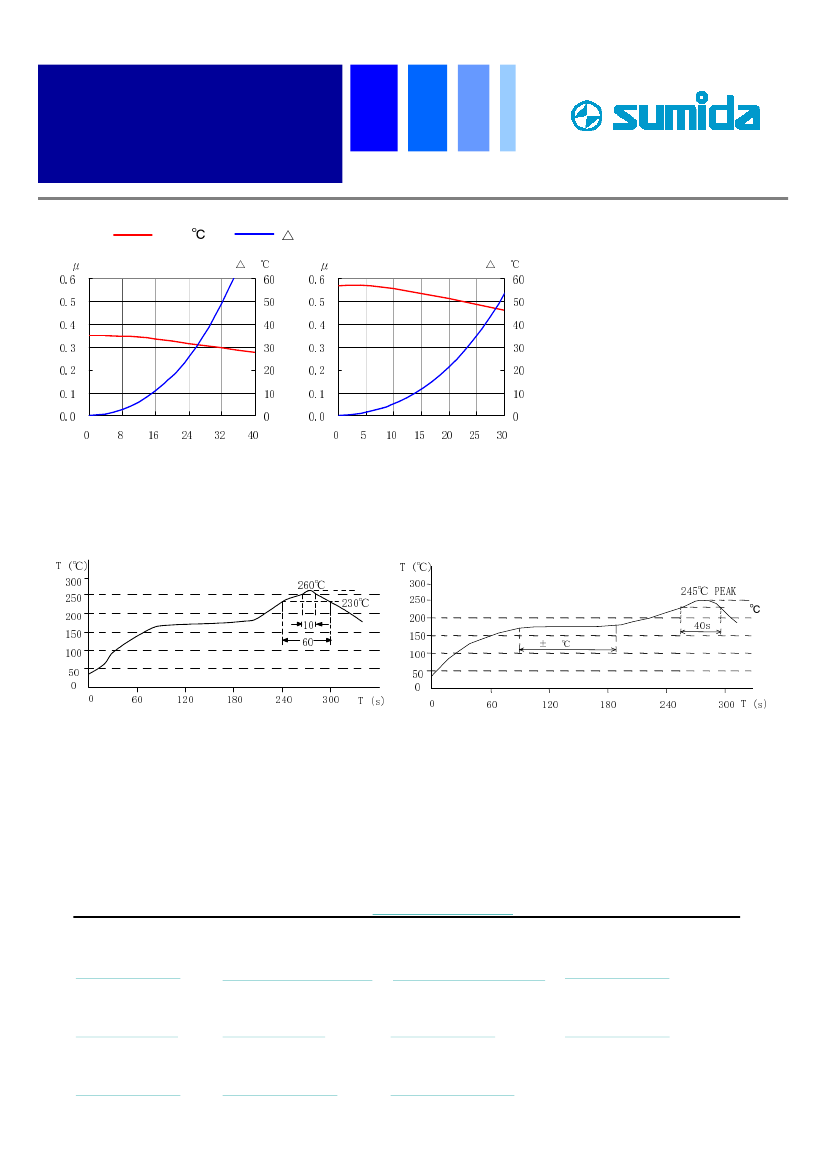

Electrical Characteristics

CDMC104NP-R36M

CDMC104NP-R56M

R36M

R56M

0.36 20

0.56 20

1.10 10

1.48 10

28.0

27.0

22.0

21.0

1. Measuring condition: at 1MHz.

2. Saturation current: The value of D.C. current when the inductance decreases to 80% of it’s nominal value.

Page 1 of 2

℃ ＝ ℃ ＝△

3. Temperature rise current: The value of D.C. current when the temperature rise is

t 40

(Ta

Revised: 19-Dec-13

℃

(at 20

)

(at 125

)

25.0

21.0

※

％ ±

℃

％ ±

※

Part No.

Stamp

※

［

Inductance

W ithin

( H)

D.C.R.

W ithin

(at 20 )

(m )

D.C. Saturation current

(A) 2

Temperature

rise current

(A) 3

℃

℃ ½℃

½℃

× ×

②

edortcelE:

［

①

※

CDMC104NP-R56MC Related Products

	CDMC104NP-R56MC	CDMC104NP-R36MC
Description	fixed inductors 0.56uh 21a smd pwr inductor	fixed inductors 0.36uh 25a smd pwr inductor
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	SUMIDA	SUMIDA
Reach Compliance Code	unknown	unknow
ECCN code	EAR99	EAR99
core material	IRON	IRON
DC Resistance	0.00163 Ω	0.00121 Ω
Nominal inductance(L)	0.56 µH	0.36 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDMC104	CDMC104
Number of functions	1	1
Number of terminals	2	2
Maximum rated current	21 A	25 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES
surface mount	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND
Test frequency	1 MHz	1 MHz
Tolerance	20%	20%
