Oscilent Corporation | 711
Page 1 of 3
Filters
Series Number
Package
Description
Last Modified
711
.
HC-49U / HC-49T
Monolithic Dip Type
Jan. 01 2002
Filter FEATURES
- Low loss
- High stability for wide temperature ranges
- Sharp cut offs
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS / PART NUMBER
GUIDE
GENERAL CHARACTERISTICS
Operating Temperature Range:
-20 ~ 70°C
Mode of Oscillation:
Fundamental

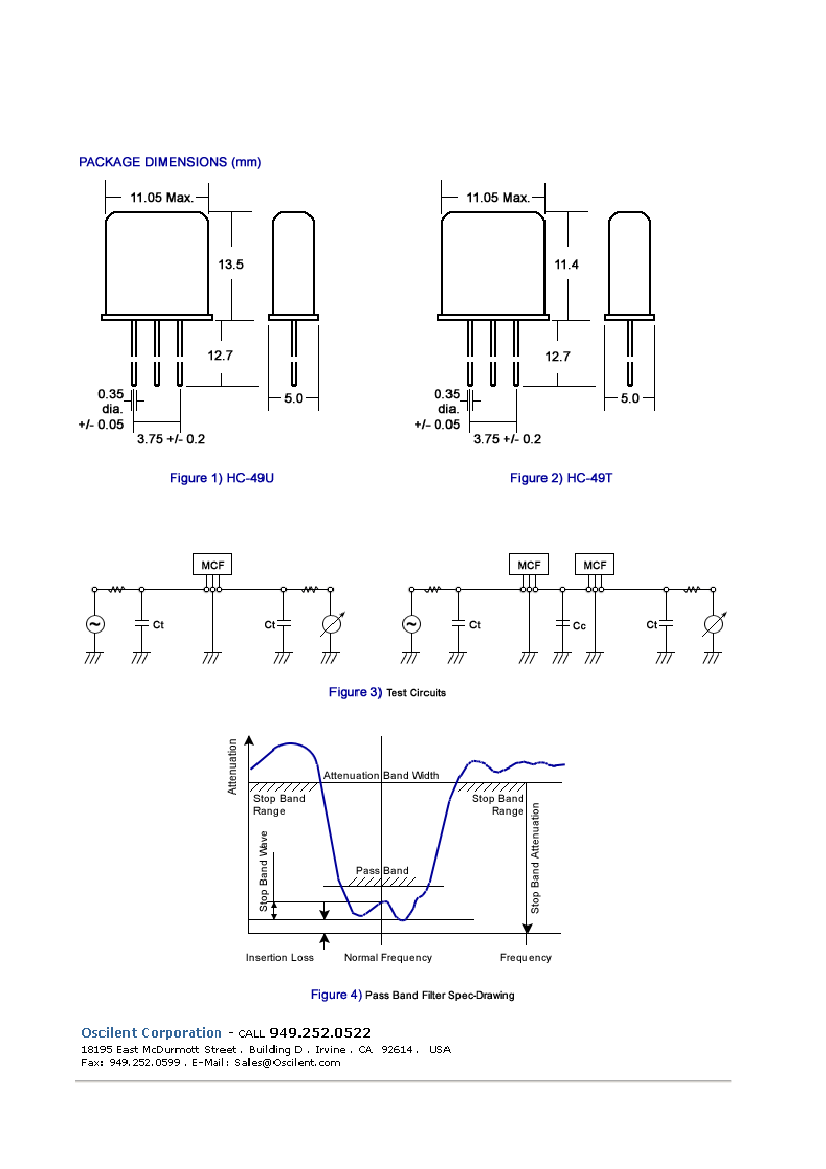

PART NO. (Figure)
HC-49U (1)
711-L07A-U
711-L15A-U
711-L20A-U
711-M07A1-U
711-M07A2-U
711-M12A-U
711-M15A-U
711-M20A-U
711-M30A-U
711-M07B1-U
711-M07B2-U
711-M12B-U
711-M15B1-U
711-M15B2-U
711-M15B3-U
711-M20B-U
711-M30B-U
HC-49T (2)
711-L07A-T
711-L15A-T
711-L20A-T
711-M07A1-T
711-M07A2-T
711-M12A-T
711-M15A-T
711-M20A-T
711-M30A-T
711-M07B1-T
711-M07B2-T
711-M12B-T
711-M15B1-T
711-M15B2-T
711-M15B3-T
711-M20B-T
711-M30B-T
Nominal
Frequency
MHz
10.695
10.695
10.695
10.70
10.70
10.70
10.70
10.70
10.70
10.70
10.70
10.70
10.70
10.70
10.70
10.70
10.70
Pass Band
Width
KHz/dB
±3.75/3
±7.5/3
±10/3
±3.75/3
±3.75/3
±6.0/3
±7.5/3
±10/3
±15/3
±3.75/3
±3.75/3
±6.0/3
±7.5/3
±7.5/3
±7.5/3
±10/3
±15/3
Stop Band
Width
KHz/dB
±20/20
±25/18
<70/18
±18/20
±20/20
±20/18
±25/18
<70/18
±50/18
±14/40
±15/40
±20/40
±25/40
±25/40
±27/40
±34/40
±50/40
Ripple
dB
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
1.0
1.0
1.0
1.0
1.0
1.5
2.0
1.0
Insertion
Loss
dB
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
Terminal
Impedance
Rt//Ct[ohm/pF]
1800//5
3000//2
2--3000
1800//5
1800//5
3000//3
3000//2
2--3000
5500//-
1800//4
1500//4
2800//1
3000//1
3000//2
2--3000
2--3000
5500//-1
Pole
-
2
2
2
2
2
2
2
2
4
4
4
4
4
4
4
4
4
NOTE:
Deviations on all parameters available. Please consult Oscilent for details.
DEFINITIONS:
Click on the characteristic names above, for definitions of the particular characteristic.
.
