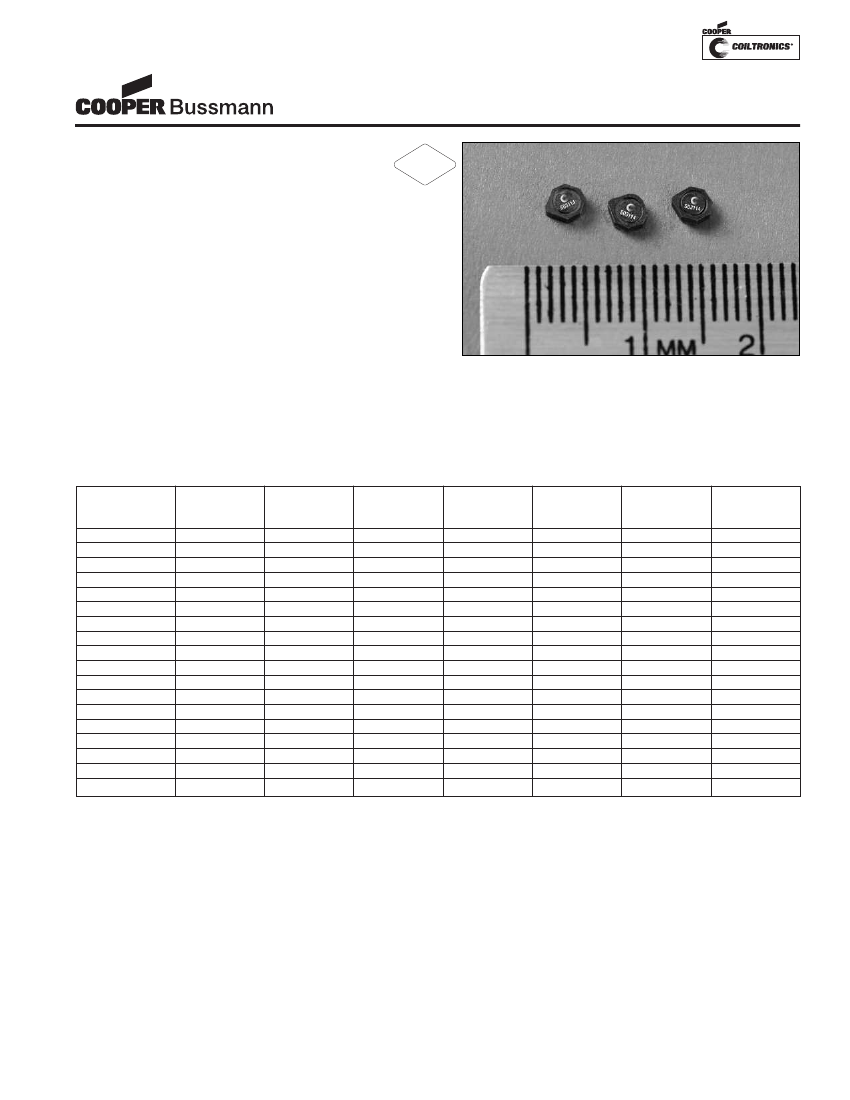

SD3114 Series
Low Profile Power Inductors
Description
RoHS
2002/95/EC
• 125°C maximum total temperature operation
• 3.1mm x 3.1mm x 1.4mm shielded drum core
• Ferrite core material
• Inductance range from 1.0uH to 330uH
• Current range from 2.59 Amps to 0.106 Amps
• Frequency range up to 4MHz
Applications
• Cellular phones, Digital cameras, CD players, PDA’s
• Small LCD displays
• LED driver and LED flash circuits
• Hard disk drives
• Backlighting
• EL panel
Environmental Data
• Storage temperature range: -40°C to +125°C
• Operating temperature range: -40°C to +125°C
(range is application specific)
• Solder reflow temperature: +260°C max. for 10 seconds
maximum
Part Number
Rated
Inductance
(µH)
1.0
1.5
2.2
3.3
4.7
6.8
8.2
10.0
15.0
22.0
33.0
47.0
68.0
82.0
100.0
150.0
220.0
330.0
OCL (1)
(µH)
1.16+/-30%
1.44+/-30%
2.12+/-30%
3.36+/-30%
4.90+/-30%
6.72+/-30%
8.10+/-30%
10.4+/-30%
14.9+/-20%
22.5+/-20%
33.1+/-20%
47.5+/-20%
68.6+/-20%
81.8+/-20%
101.1+/-20%
149.0+/-20%
220.9+/-20%
329.5+/-20%
Part
Marking
Designator
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
Packaging
• Supplied in tape and reel packaging, 4100 per reel
Irms (2)
Amperes
1.60
1.39
1.17
0.95
0.77
0.71
0.68
0.57
0.48
0.43
0.35
0.280
0.239
0.227
0.213
0.172
0.140
0.113
Isat (3)
Amperes
2.35
2.11
1.74
1.38
1.14
0.98
0.89
0.78
0.66
0.53
0.44
0.37
0.305
0.280
0.252
0.207
0.170
0.139
SD3114-1R0-R
SD3114-1R5-R
SD3114-2R2-R
SD3114-3R3-R
SD3114-4R7-R
SD3114-6R8-R
SD3114-8R2-R
SD3114-100-R
SD3114-150-R
SD3114-220-R
SD3114-330-R
SD3114-470-R
SD3114-680-R
SD3114-820-R
SD3114-101-R
SD3114-151-R
SD3114-221-R
SD3114-331-R
DCR (Ω)
typ. @
20°C
0.058
0.077
0.110
0.167
0.251
0.296
0.329
0.458
0.650
0.821
1.23
1.86
2.62
2.91
3.30
5.07
7.67
11.78
K-factor
(4)
98
79
67
54
45
37
34
30
25
21
17
14
12
11
10
8
6
5
(1) Open Circuit Inductance Test Parameters: 100kHz, 0.1V, 0.0Adc.
(2) Irms: DC current for an approximate DT of 40°C without core loss. Derating is
necessary for AC currents. PCB layout, trace thickness and width, air-flow, and
proximity of other heat generating components will affect the temperature rise. It
is recommended that the temperature of the part not exceed 125°C under worst
case operating conditions verified in the end application.
(3) Isat Amperes peak for approximately 30% rolloff (@20°C)
(4) K-factor: Used to determine B p-p for core loss (see graph).
B p-p = K*L*∆I, B p-p(mT), K: (K factor from table), L: (Inductance in uH),
∆I
(Peak to peak ripple current in Amps).
SD3114 Series
Low Profile Power Inductors

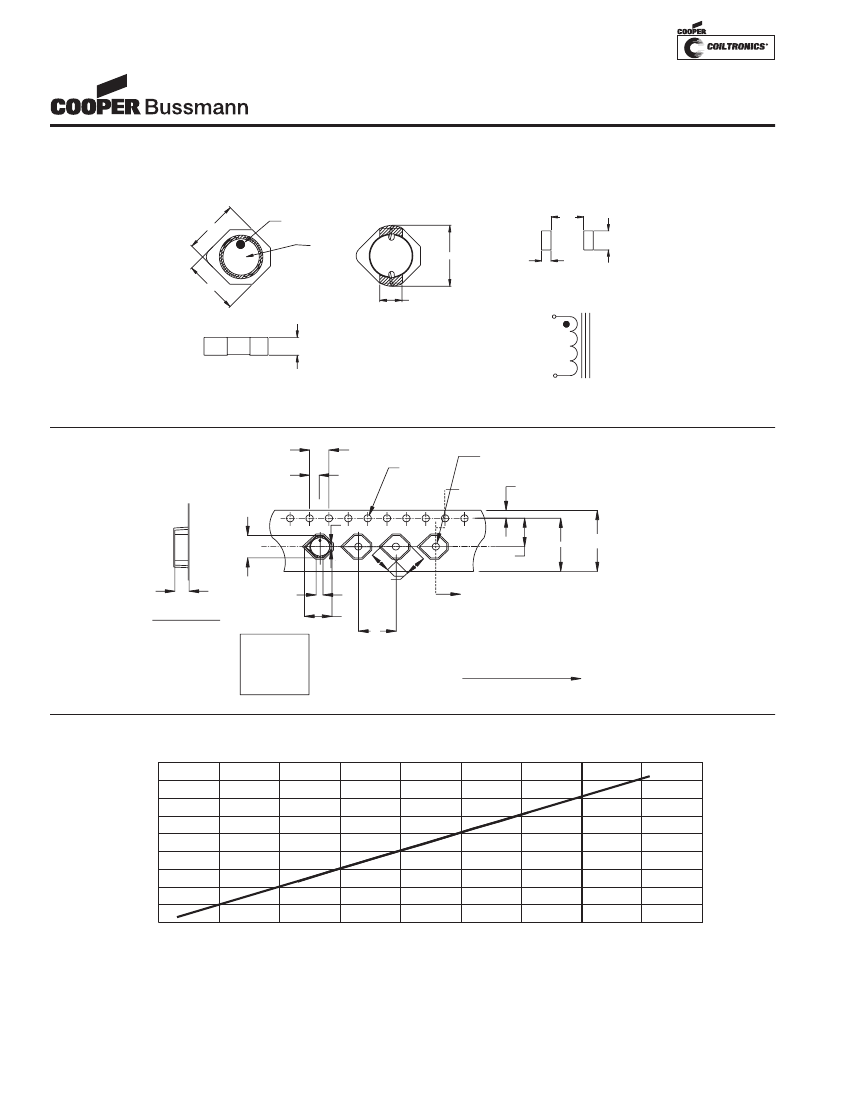

Mechanical Diagrams
TOP VIEW
BOTTOM VIEW
RECOMMENDED PCB LAYOUT
2.40
1.40
3.1 max.
Pin #1 indicator
Marking
XX X
3.1 ma
x.
3.7 m
ax
0.70
1.2 typical
SIDE VIEW
1
SCHEMATI C
1.4 max
2
Dimensions are in millimeters.
Part Marking:
3 Digit Marking: (1st digit: Indicates inductance value per letter in Part Marking Designator); (2nd digit: Bi-weekly production date code); (3rd digit: Last digit of the year produced).
Packaging Information
4. 0 0
2.00
¡À0 . 0 5
1.5 Dia.
+0.1/-0.0
1.2 Dia
min.
A
1.75
1
B1
10.25
5.50
12.0
+/-0.3
B o
2
3.2
Ko
A1
Ao
8.0
3.2
A
SECTION A -A
Ao = 3.9 mm
A1 = 0.93 mm
Bo = 3.60 mm
B1 = 1.25 mm
Ko = 1.60 mm
Direction of feed
Parts packaged on 13" Diameter reel,
4,100 parts per reel.
DC Current vs. Temperature
90
80
70
60
50
40
30
20
10
0
0
0. 05
0. 1
0. 15
0. 2
0. 25
0. 3
0. 35
0. 4
0. 45
Total Loss(W)
Temp. Rise (°C)
SD3114 Series
Low Profile Power Inductors

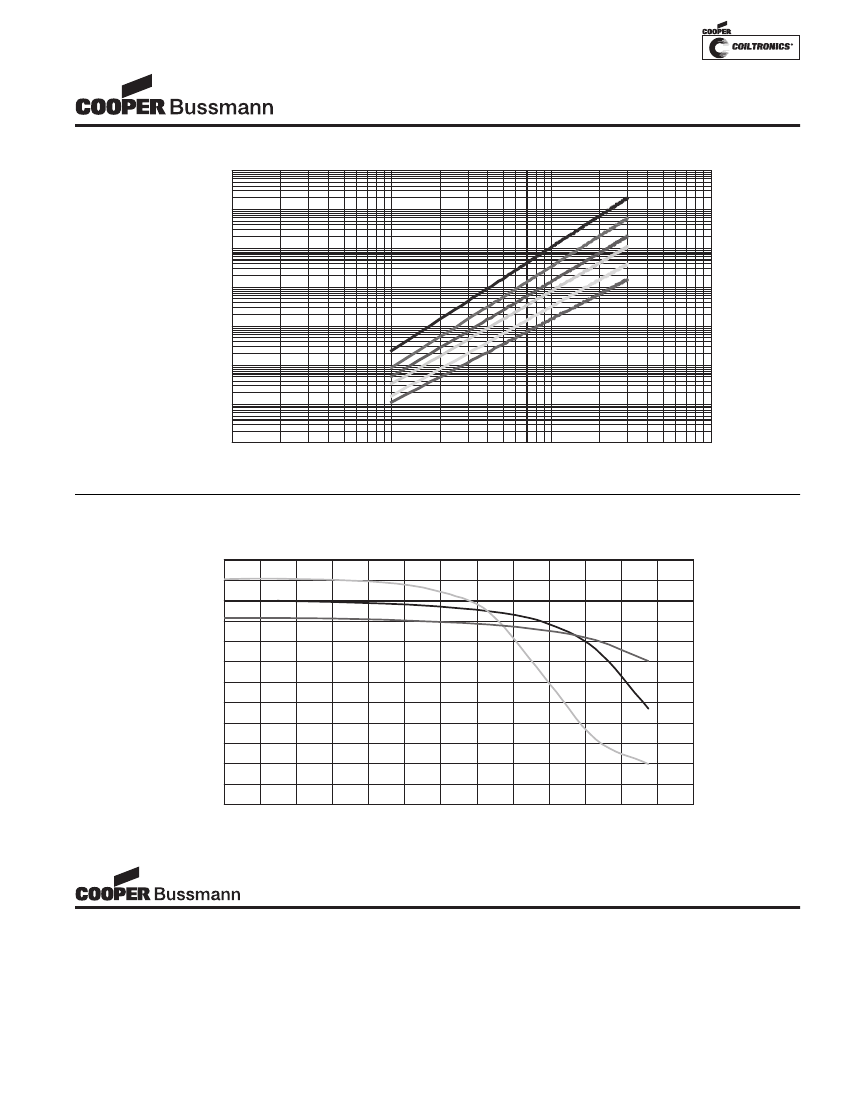

Core Loss
10
1 MH z
1
50 0kH z
300k H z
20 0kH z
10 0kH z
Core Loss (W)
0 .01
50kH z
0 .1
0.0 01
0 .00 01
0 .000 01
0.0 00001
1
10
B p-p (mT )
100
100 0
Inductance Characteristics
OCL vs. Isat
120%
110%
100%
90%
80%
% of L initial
70%
60%
50%
40%
30%
20%
10%
0%
0%
10%
20%
30%
40%
50%
60%
70%
80%
-40°C
25°C
85°C
90% 100% 110% 120% 130%
PM-4128 3/07
© Cooper Electronic
Technologies 2007
