GRM2167U1H680FZ01D datasheet, PDF

Datasheet> All Categories > Passive components> GRM2167U1H680FZ01D

GRM2167U1H680FZ01D: Descriptionmultilayer ceramic capacitors mlcc - smd/smt 68pf 50volts u2j 1%; CategoryPassive components; File Size328KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

GRM2167U1H680FZ01D Overview

multilayer ceramic capacitors mlcc - smd/smt 68pf 50volts u2j 1%

GRM2167U1H680FZ01D Parametric

Parameter Name	Attribute value
Manufacture	Mu
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
RoHS	Yes
Capacitance	68 pF
Voltage Rating	50 V
Tolerance	1 %
Temperature Coefficient / Code	U2J
Case Code - i	0805
Case Code - mm	2012
Operating Temperature Range	- 55 C to + 125 C
Produc	General Type MLCCs
Case Heigh	0.6 mm
Case Length	2 mm
Case Width	1.25 mm
Package / Case	0805 (2012 metric)
Packaging	Reel
Factory Pack Quantity	4000
Termination Style	SMD/SMT
Type	General Purpose MLCC

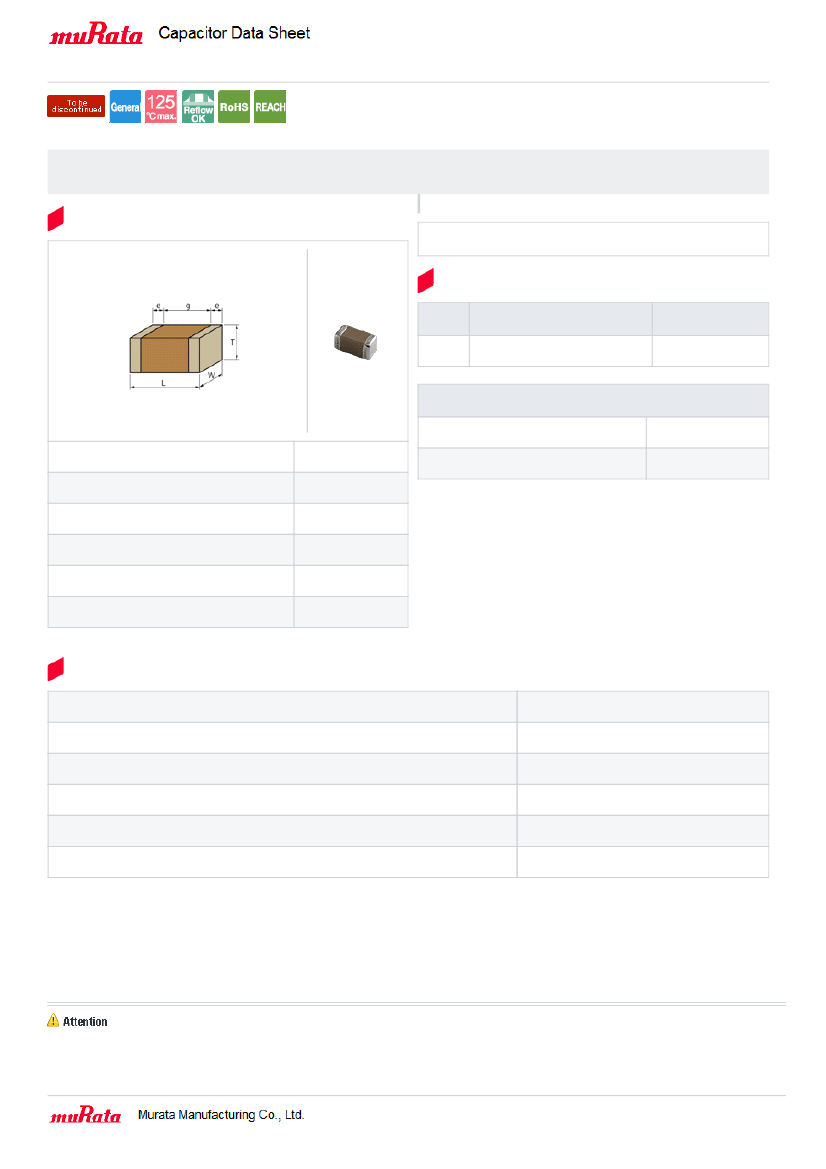

Preview

Download Datasheet

View All

GRM0225C1C1R0WD05#

Deadline for last orders: 30 Sep 2018

< List of part numbers with package codes >

“#” indicates a package specification code.

Date of discontinuation: 31 Dec 2018

GRM0225C1C1R0WD05L

Shape

Notes

Please use replacements or Recommended.

References

Packaging

Specifications

φ180mm

Embossed taping

Minimum quantity

40000

Mass (typ.)

1 piece

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

0.4 ±0.02mm

0.2 ±0.02mm

0.07 to 0.14mm

0.13mm min.

01005 (0402M)

φ180mm

Reel

0.09mg

198g

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

1.0pF ±0.05pF

16Vdc

C0G(EIA)

0±30ppm/℃

25 to 125℃

-55 to 125℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2017/09/07
