Film capacitors – AC capacitors
B33364

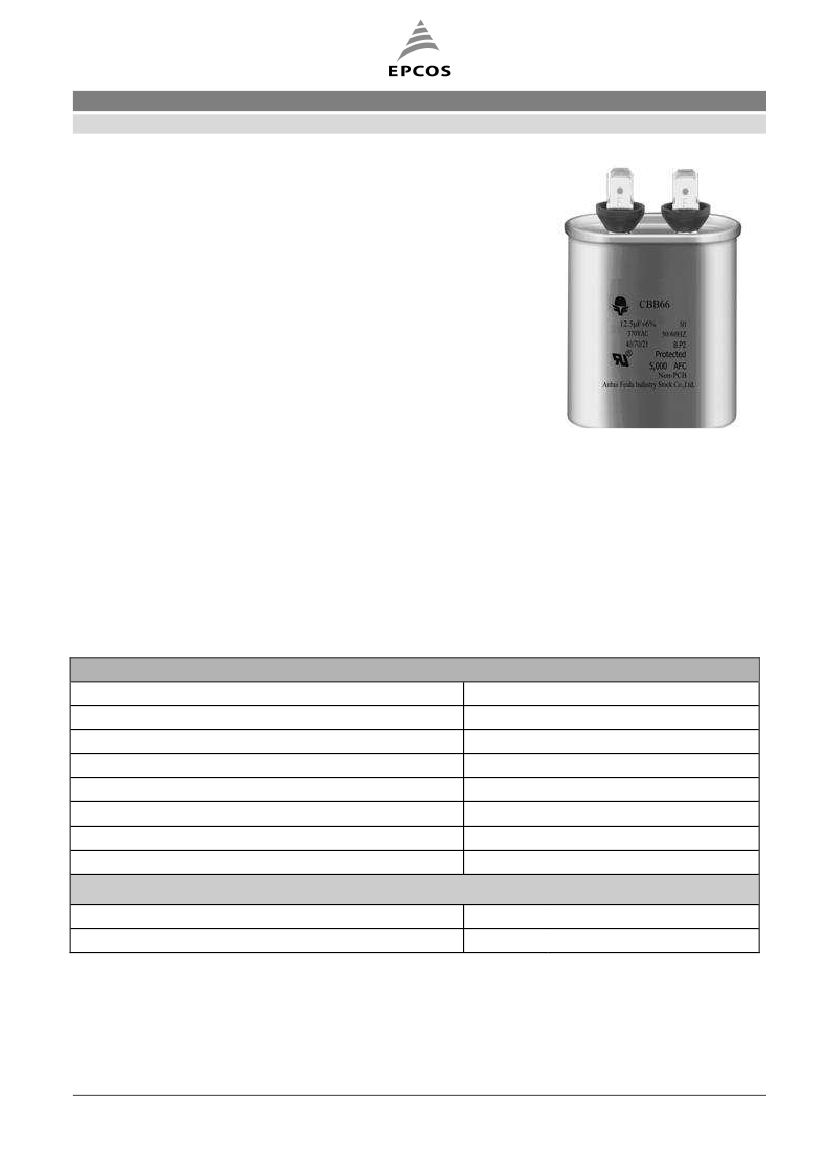

EPCOS Feida Motor Run CapacitorsCBB66 - Single Capacitor P2 Aluminum Can Oval
Construction
Dielectric: polypropylene film
Electrode: Metallized film
Aluminum can, metal top
Filling material: Vegetable oil, PCB free
Insulator material as per IEC 60335-1
Features
Self-healing properties
Low dissipation factor
Overpressure disconnection device
Highest safety level P2 to IEC 60252-1 2001-02
High insulation resistance
IEC/EN 60335 compatible
Typical applications
For general sine wave applications,
mainly as motor run capacitor
Terminals
4+4 fast-on terminal #250 style
Technical data and specifications
Reference standards
Safety class to IEC 60252-1 2001-02
Life expectancy to IEC 60252 2001
Life expectancy to EIA 456 A Jan. 89
Rated capacitance C
R
Tolerance
Rated voltage V
R
Rated frequency f
R
Maximum ratings
Maximum permissible voltage V
max
Maximum permissible current I
max
1.1
·
V
R
1.3
·
I
R
(V
R
= Rated voltage)
(I
R
= Rated current)
UL 810 / IEC 60252-1 / EIA 456 A Jan.89
P2
370V, 440V:
10 000h (Class B)
60 000 hours at 95% survival rate
3…..50µF
±5%
other tolerances on request
370Vac, 440 Vac
50/60 Hz
NG FK PE
Please read Cautions and warnings and
Important notes at the end of this document.
Page 2 of 7
March. 2010
Film capacitors – AC capacitors
B33364
EPCOS Feida Motor Run CapacitorsCBB66 - Single Capacitor P2 Aluminum Can Oval
Test data
AC test voltage terminal to terminal V
TT
Insulation voltage terminals to case
Insulation resistance R
ins
or time constant
τ
at 20 ° rel. Humidity
≤
65%
C,
(minimum as-delivered values)
Dissipation factor tan
δ
at 20 °
C
Maximum rate of voltage rise dV/dt
max
Climatic data
Climatic category
Lower category T
min
Upper category T
max
Damp heat test t
test
Ball pressure test to IEC 60309-1 sec. 27.3
UL 94 specification
Glow wire test to IEC60335-1 / IEC 60695-2-1/1
Test temperature 550 ° for I
R
≤0.5A
and 750 ° for
C
C
I
R
＞0.5A
Compatibility to RoHS
Compliance to directive 2002/95/EC
40/070/21
-40 °
C
+70 °
C
21 days
2.0
·
V
R
, 10 s
3000 V AC, 2 s
10000 MΩ•μF
≤
2.0
·
10 (100 Hz)
-3
10 V/µs
Mechanical and thermal properties of insulation terminal material
20 N at 125°
C
V0 compatible
Self-extinguishing within 2 seconds of
withdrawing glow wire
Approvals: See table for approved ratings
C
US UL 810 files E241095
250/300/370/400450Vac
Protected up to 5000 AFC
-10,000 AFC under approval
NG FK PE
Please read Cautions and warnings and
Important notes at the end of this document.
Page 3 of 7
March. 2010
Film capacitors – AC capacitors
B33364
EPCOS Feida Motor Run CapacitorsCBB66 - Single Capacitor P2 Aluminum Can Oval

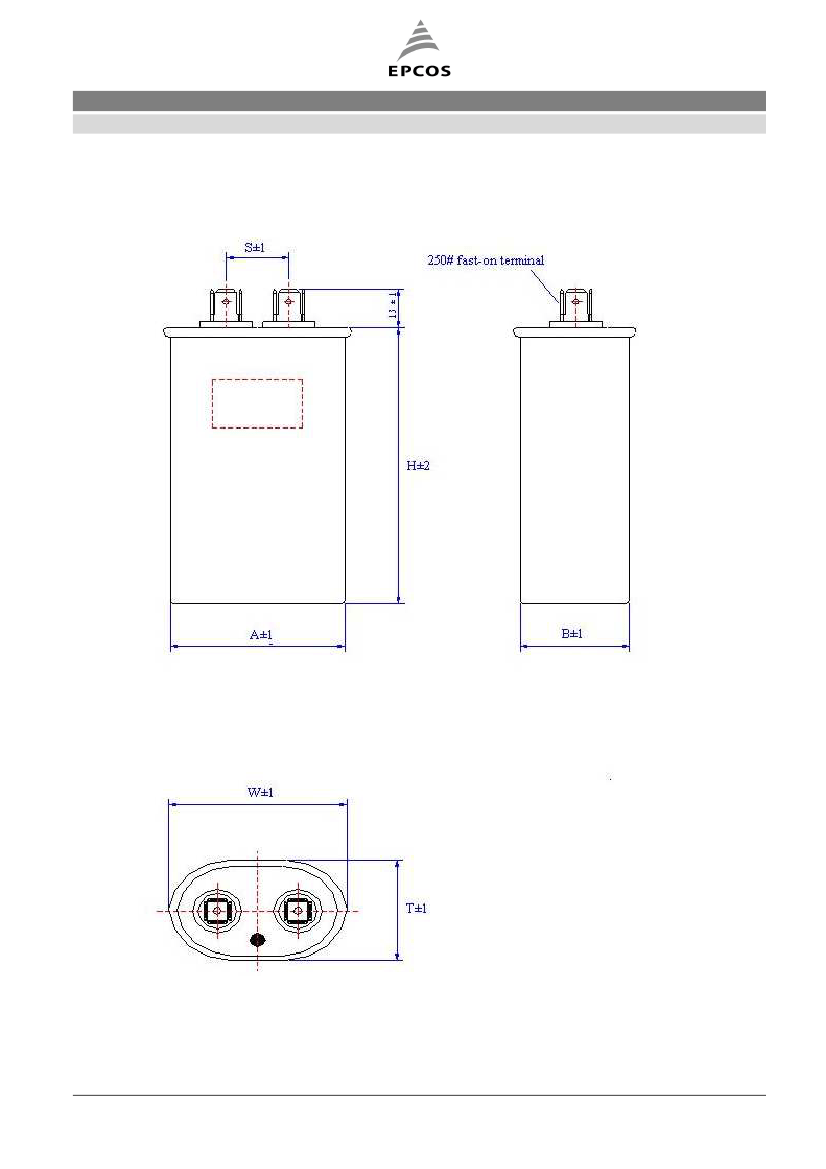

Dimensional drawings CBB 66 (B33364) series
Marking
NG FK PE
Please read Cautions and warnings and
Important notes at the end of this document.
Page 4 of 7
March. 2010
Film capacitors – AC capacitors
B33364
EPCOS Feida Motor Run CapacitorsCBB66 - Single Capacitor P2 Aluminum Can Oval
Ordering codes and packing units
V
R
V AC
C
R
µF
3
4
5
6
7
7.5
8
10
12
12.5
15
20
25
30
35
40
45
50
W
mm
54.5
54.5
54.5
54.5
54.5
54.5
54.5
54.5
54.5
54.5
54.5
73
73
73
73
73
73
73
54.5
54.5
54.5
54.5
54.5
54.5
54.5
54.5
54.5
54.5
73
73
73
73
73
73
T
mm
34.5
34.5
34.5
34.5
34.5
34.5
34.5
34.5
34.5
34.5
34.5
48
48
48
48
48
48
48
34.5
34.5
34.5
34.5
34.5
34.5
34.5
34.5
34.5
34.5
48
48
48
48
48
48
S
mm
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
Dimensions
B×A×H
mm
31.5×51.5×55
31.5×51.5×55
31.5×51.5×55
31.5×51.5×55
31.5×51.5×55
31.5×51.5×55
31.5×51.5×55
31.5×51.5×65
31.5×51.5×65
31.5×51.5×75
31.5×51.5×75
45×70×65
45×70×65
45×70×75
45×70×75
45×70×85
45×70×100
45×70×100
31.5×51.5×55
31.5×51.5×55
31.5×51.5×55
31.5×51.5×55
31.5×51.5×65
31.5×51.5×65
31.5×51.5×65
31.5×51.5×75
31.5×51.5×75
31.5×51.5×75
45×70×65
45×70×65
45×70×75
45×70×85
45×70×100
45×70×100
Ordering code
B33364-A3305-J050
B33364-A3405-J050
B33364-A3505-J050
B33364-A3605-J050
B33364-A3705-J050
B33364-A3755-J050
B33364-A3805-J050
B33364-A3106-J050
B33364-A3126-J050
B33364-A3126-J550
B33364-A3156-J050
B33364-A3206-J050
B33364-A3256-J050
B33364-A3306-J050
B33364-A3356-J050
B33364-A3406-J050
B33364-A3456-J050
B33364-A3506-J050
B33364-A5305-J050
B33364-A5405-J050
B33364-A5505-J050
B33364-A5605-J050
B33364-A5705-J050
B33364-A5755-J050
B33364-A5805-J050
B33364-A5106-J050
B33364-A5126-J050
B33364-A5126-J550
B33364-A5156-J050
B33364-A5206-J050
B33364-A5256-J050
B33364-A5306-J050
B33364-A5356-J050
B33364-A5406-J050
370
440
3
4
5
6
7
7.5
8
10
12
12.5
15
20
25
30
35
40
Pack-
ing
units
pcs
120
120
120
120
120
120
120
120
120
120
120
60
60
60
60
60
60
60
120
120
120
120
120
120
120
120
120
120
60
60
60
60
60
60
UL
NG FK PE
Please read Cautions and warnings and
Important notes at the end of this document.
Page 5 of 7
