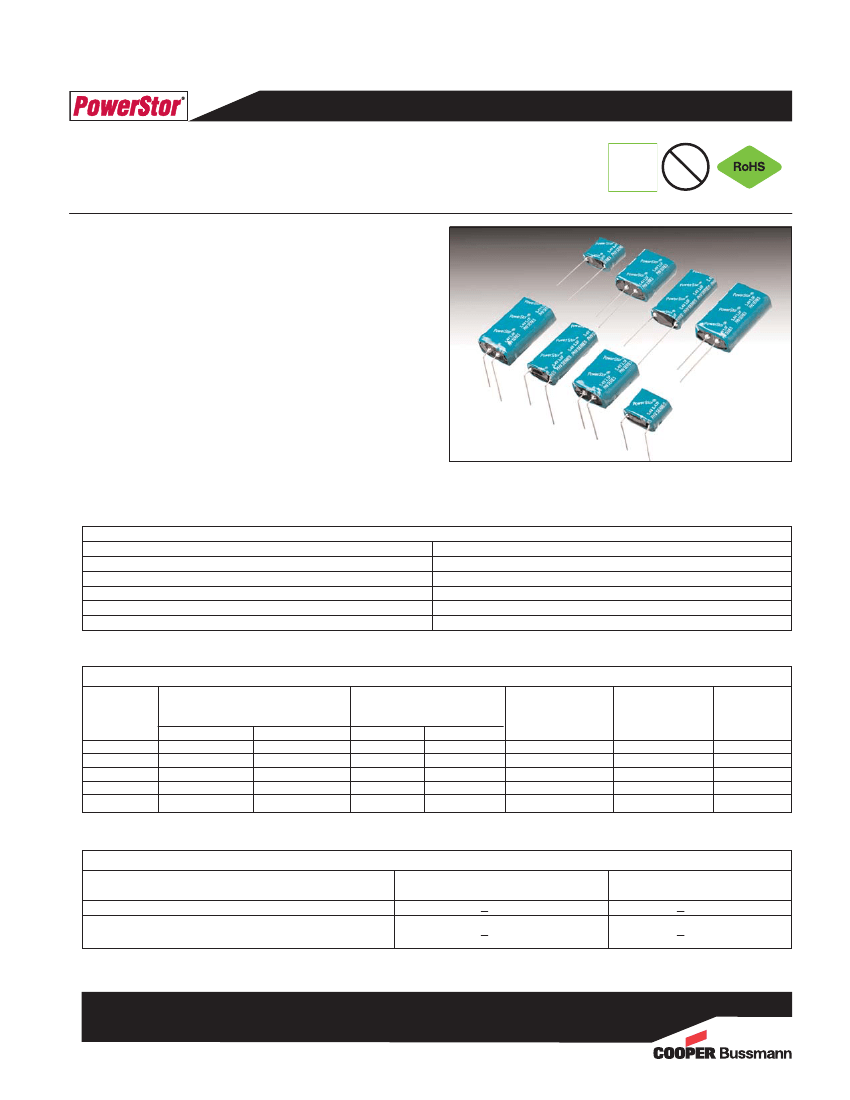

Supercapacitors
PHV Series
Description
Cooper Bussmann PowerStor supercapacitors are unique, ultra-high
capacitance devices utilizing electrochemical double layer capacitor (EDLC)
construction combined with new, high performance materials. This
combination of advanced technologies allows Cooper Bussmann to offer a
wide variety of capacitor solutions tailored to specific applications that range
from a few micro-amps for several days to several amps for milliseconds.
HF
Pb
FREE
HALOGEN
Features & Benefits
Applications
• Large capacitance for high
• Pulse Power
energy density
• Bridging or hold-up power
• Ultra Low ESR for high power density
Leaded Cylindrical Device
Specifications
Working Voltage (Maximum)
Surge Voltage
Nominal Capacitance Range
Capacitance Tolerance
Operating Temperature Range
Extended Operating Temperature Range
5.4V
6.0V
0.47F to 5F
-10% to +30% (20°C)
-40°C to 65°C
-40°C to 85°C (with linear voltage derating to 4.0V @ 85°C)
Standard Product
Nominal
Capacitance (F)
0.47
1.5
2.5
3.0
5.0
Part Number
Vertical
Horizontal
PHV-5R4V474-R
PHV-5R4H474-R
PHV-5R4V155-R
PHV-5R4H155-R
PHV-5R4V255-R
PHV-5R4H255-R
PHV-5R4V305-R
PHV-5R4H305-R
PHV-5R4V505-R
PHV-5R4H505-R
Maximum ESR (Ω)
(Equivalent Series Resistance)
Measured @
1kHz
100Hz
0.300
0.40
0.120
0.16
0.075
0.08
0.075
0.08
0.065
0.07
Nominal
Leakage Current (μA)
After 100 Hrs.
@ 5V, 20°C
13
18
24
25
28
Nominal
Dimensions (mm)
8.5 x 16.8 x 14.0
8.5 x 16.8 x 21.5
10.5 x 20.8 x 22.5
8.5 x 16.8 x 31.5
10.5 x 20.8 x 32
Typical Mass
(grams/piece)
2.6
3.0
4.5
4.8
6.8
Performance
Parameter
Life (1000 hrs @ 65°C @ 5.4Vdc)
Storage - Low and High Temperature
(1000 hrs @ -40°C and 85°C)
Capacitance Change
(% of initial specified value)
<
30 %
<
30 %
ESR
(% of initial specified value)
<
200 %
<
200 %
0111
BU-SB11022
Page 1 of 2
Data Sheet: 4403
Dimensions (mm)
Vertical Part#
Horizontal Part#
PHV-5R4V474-R PHV-5R4H474-R
PHV-5R4V155-R PHV-5R4H155-R
PHV-5R4V255-R PHV-5R4H255-R
PHV-5R4V305-R PHV-5R4H305-R
PHV-5R4V505-R PHV-5R4H505-R
Tolerances
Note: Longer lead is positive.
A
9.0
9.0
11.0
9.0
11.0
B
17.3
17.3
21.3
17.3
21.3
Maximum
C
14.5
22.0
23.0
32.5
32.5
d’
0.5
0.5
0.6
0.5
0.6
± 0.02
D
20
20
20
20
20
D’
15
15
15
15
15
E
25
25
25
25
25
Minimum
E’
20
20
20
20
20
F
2.0
2.0
2.0
2.0
2.0
P
11.8
11.8
5.3
11.8
5.3
± 0.5
B
B
C
F
C
A
A
d
d’
C
C
d’
d
A
A
D’
D
D
E
E’
E
P
F
P
Vertical
P
Horizontal
Part Numbering System
P
Series
Code
P = Pack
HV
Version
-
5
R
4
Voltage (V)
R = Decimal
5R4 = 5.4V
-
Configuration
V = Vertical
H = Horizontal
Capacitance (μF)
Value
Multiplier
Example: 155 = 15 x 10
5
µF or 1.5F
R
RoHS
Compliant
Packaging Information
Standard packaging: Bulk, 100 units per package.
Large, bulk packaging available upon request.
Part Marking
Manufacturer
Capacitance (F)
Max. Operating Voltage (V)
Series Code (or part number)
Polarity
North America
Cooper Bussmann
1225 Broken Sound Parkway NW
Suite F
Boca Raton, FL 33487-3533
Tel: 1-561-998-4100
Fax: 1-561-241-6640
Toll Free: 1-888-414-2645
Cooper Bussmann
P.O. Box 14460
St. Louis, MO 63178-4460
Tel: 1-636-394-2877
Fax: 1-636-527-1607
Europe
Cooper Bussmann
Cooper (UK) Limited
Burton-on-the-Wolds
Leicestershire • LE12 5TH UK
Tel: +44 (0) 1509 882 737
Fax: +44 (0) 1509 882 786
Cooper Bussmann
Avda. Santa Eulalia, 290
08223
Terrassa, (Barcelona), Spain
Tel: +34 937 362 812
+34 937 362 813
Fax: +34 937 362 719
Asia Pacific
Cooper Bussmann
1 Jalan Kilang Timor
#06-01 Pacific Tech Centre
Singapore 159303
Tel: +65 278 6151
Fax: +65 270 4160
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life sup-
port systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result
in significant injury to the user.
© 2011 Cooper Bussmann
www.cooperbussmann.com
0111
BU-SB11022
Page 2 of 2
Data Sheet: 4403
