6630S0A-B28-R502

Description
Precision Potentiometers 5Kohm 15%
CategoryPassive components
File Size346KB,3 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Environmental Compliance
Download Datasheet Parametric Compare View All

6630S0A-B28-R502 Online Shopping

Suppliers Part Number Price MOQ In stock
6630S0A-B28-R502 - - View Buy Now

6630S0A-B28-R502 Overview

Precision Potentiometers 5Kohm 15%

6630S0A-B28-R502 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerBourns
Product CategoryPrecision Potentiometers
RoHSDetails
Termination StyleSolder Lug
ProductPrecision Potentiometers
TypeRotary Metal
Mounting StylePanel
Number of Turns1 Turn
Number of Gangs1 Gang
Resistance5 kOhms
Element TypeConductive Plastic
Shaft TypeSlotted
Tolerance15 %
PackagingBulk
Power Rating1 W
Factory Pack Quantity25
Unit Weight0.846575 oz
NT
Features
n
Lower profile than Model 6639
n
Essentially infinite resolution
n
Excellent rotational life
n
High quality, rugged construction
n
Recommended for HMI applications
F
RE
E
PL
IA
C
OM
n
Optional anti-rotation lug
n
Optional mechanical stop
*R
oH
S
n
Cost and space saving
LE
AD

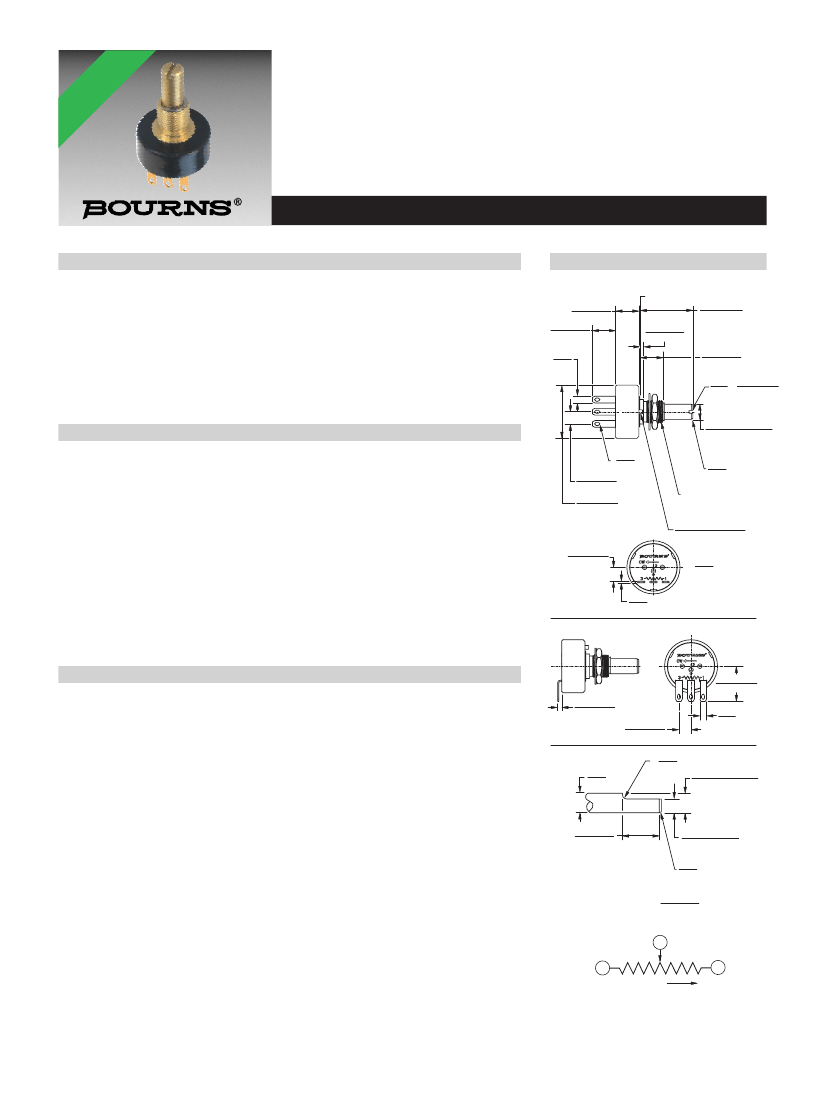

6630 - Precision Potentiometer
Product Dimensions
Electrical Characteristics
1
Standard Resistance Range....................................................................................... 1K to 20K ohms
Total Resistance Tolerance..........................................................................................................±15 %
Independent Linearity .................................................................................................................±2.0 %
Effective Electrical Angle .......................................................................................................340 ° +3 °
End Voltage ................................................................................................................. 0.5 % maximum
Output Smoothness ......................................................................................................................0.1 %
Dielectric Withstanding Voltage (MIL-STD-202, Method 301)
Sea Level .......................................................................................................... 750 VAC minimum
Power Rating (Voltage Limited By Power Dissipation or 300 VAC, Whichever is Less)
+70 °C ................................................................................................................................ 1.0 watt
+125 °C ................................................................................................................................. 0 watt
Insulation Resistance (500 VDC) ..................................................................... 10 megohms minimum
Resolution................................................................................................................. Essentially infinite
Operating Temperature Range ................................................................................. -40 °C to +125 °C
Storage Temperature Range .................................................................................... -65 °C to +125 °C
Temperature Coefficient .................................................................................. ±500 ppm/°C maximum
Vibration ........................................................................................................................................ 15 G
Wiper Bounce ......................................................................................... 0.1 millisecond maximum
Total Resistance Shift ..............................................................................................................±5 %
Voltage Ratio Shift ................................................................................................................±0.5 %
Shock............................................................................................................................................. 50 G
Wiper Bounce ......................................................................................... 0.1 millisecond maximum
Total Resistance Shift ..............................................................................................................±5 %
Voltage Ratio Shift ................................................................................................................±0.5 %
Load Life ................................................................................................................. 1,000 hours, 1 watt
Total Resistance Shift ............................................................................................................±10 %
Rotational Life (No Load)............................................................................5,000,000 shaft revolutions
Total Resistance Shift ........................................................................................... ±10 % maximum
Moisture Resistance (MIL-STD-202, Method 106)
Total Resistance Shift ............................................................................................................±15 %
IP Rating ........................................................................................................................................IP 40
Moisture Sensitivity Level ....................................................................................................................1
ESD Classification (HBM)................................................................................................................ N/A
Ro VE LEA
HS RS D
C ION FRE
OM S E
PL AR
IA E
NT
*
Axial Leaded
9.73 ± 0.38
(.383 ± .015)
9.65 ± 0.50
(.380 ± .020)
3 PLCS.
2.79
(.110)
MOUNTING SURFACE
22.23 ± 0.79
(.875 ± .031)
1.57 ± 0.05
(.062 ± .002)
9.53 ± 0.38
(.375 ± .015)
SLOT
1.19
1.60 ± 0.25
X
(.047) (.063 ± .010)
DIA.
6.342+.000/-.013
(.2497+.0000/-.0005)
CHAMFER
0.64
X 30 ° ± 10 °
(.025)
3/8 " - 32 UNEF- 2A-THD.
Environmental Characteristics
1
3
2
1
R
0.66
TYP.
(.026)
5.08 ± 0.38
TYP.
(.200 ± .015)
22.23 ± 0.38
DIA.
(.875 ± .015)
5.87 ± 0.38
(.231 ± .015)
OPTIONAL
ANTI-ROTATIONAL PIN
1.587 ± .025 X 1.143
DIA.
(.0625 ± .0010 X .045)
FROM MOUNTING
SURFACE ON
7.93
RADIUS
(.312)
0.51
(.020)
Radial Leaded
Mechanical Angle .......................................................... Continuous, Stops (340 ° +8 °, -0 °) available
Torque (Starting & Running)
2
................................................................... 0.40 N-cm (0.5 oz.-in.) max.
Mounting............................................................................ 170-200 N-cm (15-18 lb.-in.) maximum
Shaft Runout................................................................................................. 0.13 mm (0.005 in.) T.I.R.
Shaft End Play .............................................................................................. 0.13 mm (0.005 in.) T.I.R.
Shaft Radial Play .......................................................................................... 0.13 mm (0.005 in.) T.I.R.
Backlash ........................................................................................................................0.1 º maximum
Weight ........................................................18 gm (6539 Servo Mount), 24 gm (6639 Bushing Mount)
Terminals ....................................................................................................Axial and radial solder lugs
Soldering Condition ................... Recommended hand soldering using Sn95/Ag5 no clean solder,
0.025 ” wire diameter. Maximum temperature 399°C (750 °F) for 3 seconds.
No wash process to be used with no clean flux.
Marking ..................................................Manufacturer’s name and part number, resistance value and
tolerance, linearity tolerance, wiring diagram, and date code.
Ganging (Multiple Section Pots) .................................................................................. 1 cup maximum
Hardware .................................................... One lockwasher (H-37-2) and one mounting nut (H-38-2)
is shipped with potentiometer.
1
At room ambient: +25 °C nominal and 50 % relative humidity, except as noted.
2
2.82 N-cm (4.0 oz.-in.) max. at -40 °C.
Mechanical Characteristics
1
14.78 ± 1.00
(.582 ± .040)
1.70 ± 0.38
(.067 ± .015)
5.08 ± .25
TYP.
(.200 ± .010)
2.79
(.110)
3 PLCS.
Flatted Shaft
6.35
DIA.
(.250)
R
0.38
MAX.
(.015)
DIA.
6.342+.000/-.013
(.2497+.0000/-.0005)
9.65 ± 0.25
(.380 ± .010)
5.54 +0.00/-0.25
(.218 +.000/-.010)
CHAMFER
0.64
X 30 ° ± 10 °
(.025)
MM
DIMENSIONS:
(INCHES)
2
CCW
WIPER
1
CLOCKWISE
3
CW
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.

6630S0A-B28-R502 Related Products

6630S0A-B28-R502 6630S0D-B28-A102 6630S0D-B28-A103 6630S0D-B28-A202 6630S0D-B28-A203 6630S0D-B28-R102 6630S0D-B28-R103 6630S0D-B28-A502 6630S0D-B28-R203 6630S1A-B28-R203
Description Precision Potentiometers 5Kohm 15% Precision Potentiometers 1K 15% Axial Precision Pot Precision Potentiometers 10K 15% Axial Precision Pot Precision Potentiometers 2K 15% Axial Precision Pot Precision Potentiometers 20K 15% Axial Precision Pot Precision Potentiometers 1K 15% Radial Precision Pot Precision Potentiometers 10K 15% Radial Precision Pot Precision Potentiometers 5K 15% Axial Precision Pot Precision Potentiometers 7/8" PREC POT 20K 22MM 1TURN Precision Potentiometers PRECISION POT-7/8" 22MM 1 TURN CP
Tolerance 15 % 15% 15% 15% 15% - 15% 15% 15% -
Is it Rohs certified? - conform to conform to conform to conform to conform to conform to conform to conform to -
Maker - Bourns Bourns Bourns Bourns Bourns Bourns Bourns Bourns -
Reach Compliance Code - not_compliant not_compliant not_compliant not_compliant not_compliant not_compliant not_compliant not_compliant -
ECCN code - EAR99 EAR99 EAR99 EAR99 - EAR99 EAR99 EAR99 -
structure - Rugged Rugged Rugged Rugged - Rugged Rugged Rugged -
Maximum operating temperature - 125 °C 125 °C 125 °C 125 °C - 125 °C 125 °C 125 °C -
Minimum operating temperature - -40 °C -40 °C -40 °C -40 °C - -40 °C -40 °C -40 °C -
Package diameter - 22.23 mm 22.23 mm 22.23 mm 22.23 mm - 22.23 mm 22.23 mm 22.23 mm -
Package length - 9.73 mm 9.73 mm 9.73 mm 9.73 mm - 9.73 mm 9.73 mm 9.73 mm -
Package form - Panel Mount Panel Mount Panel Mount Panel Mount - Panel Mount Panel Mount Panel Mount -
Rated power dissipation(P) - 1 W 1 W 1 W 1 W - 1 W 1 W 1 W -
resistance - 1000 Ω 10000 Ω 2000 Ω 20000 Ω - 10000 Ω 5000 Ω 20000 Ω -
Resistor type - POTENTIOMETER POTENTIOMETER POTENTIOMETER POTENTIOMETER - POTENTIOMETER POTENTIOMETER POTENTIOMETER -
rotation angle - 340 deg 340 deg 340 deg 340 deg - 340 deg 340 deg 340 deg -
technology - CONDUCTIVE PLASTIC CONDUCTIVE PLASTIC CONDUCTIVE PLASTIC CONDUCTIVE PLASTIC - CONDUCTIVE PLASTIC CONDUCTIVE PLASTIC CONDUCTIVE PLASTIC -
Temperature Coefficient - -500,500 ppm/°C -500,500 ppm/°C -500,500 ppm/°C -500,500 ppm/°C - -500,500 ppm/°C -500,500 ppm/°C -500,500 ppm/°C -
