RGC1/16T22670.5%R datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RGC1/16T22670.5%R

RGC1/16T22670.5%R: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.1W, 267ohm, 50V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size85KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

RGC1/16T22670.5%R Overview

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 267ohm, 50V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT

RGC1/16T22670.5%R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1613169855
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SEMI-PRECISION
JESD-609 code	e3
Manufacturer's serial number	RGC
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TAPE, PAPER
Rated power dissipation(P)	0.1 W
Rated temperature	70 °C
resistance	267 Ω
Resistor type	FIXED RESISTOR
size code	0603
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	50 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	0.5%
Operating Voltage	50 V

Preview

Download Datasheet

View All

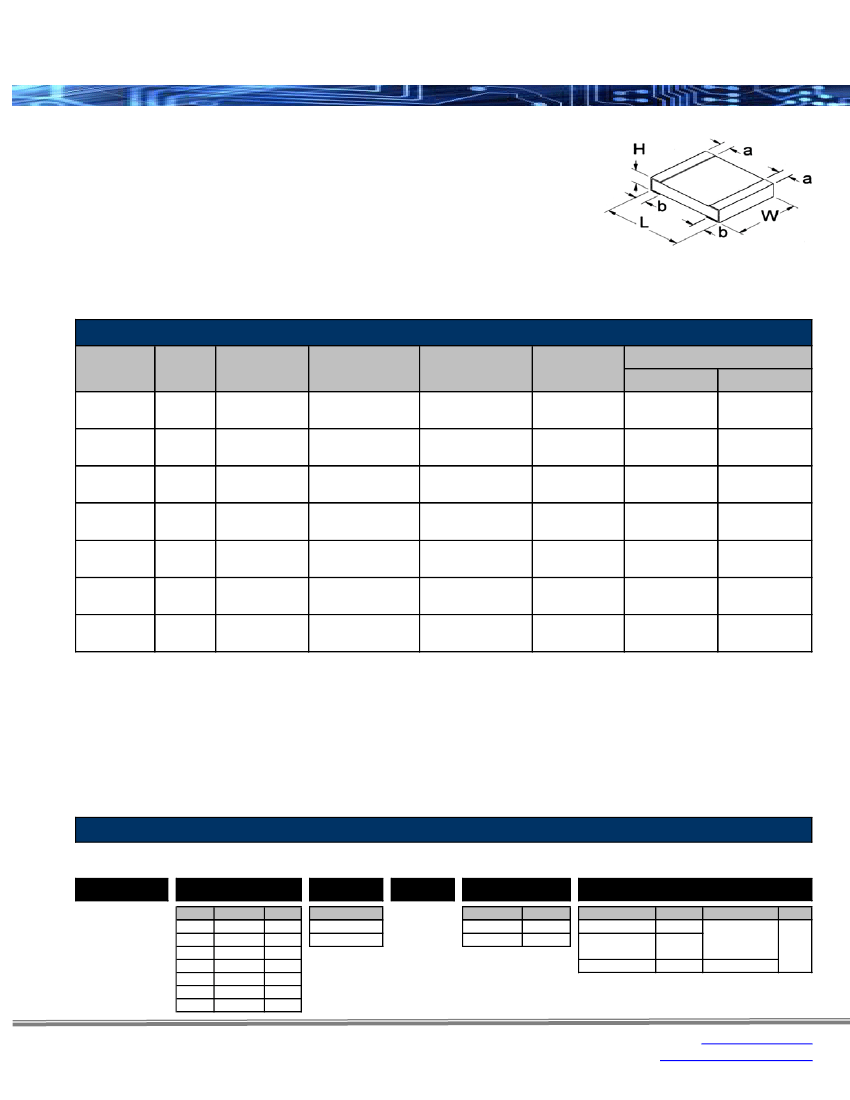

RGC Series

Semi-Precision Thick Film Chip Resistors

Stackpole Electronics, Inc.

Resistive Product Solutions

Features:

•

Precision performance

Tolerances of +0.5% and ±1%

RoHS compliant / lead-free

Less sensitive to ESD discharges than comparable

thin film devices

Highly stable performance over time

Power derating from 100% at 70ºC to zero at 150ºC

Temperature coefficient of resistance of ±50ppm/ºC

and ±100ppm/ºC

Electrical Specifications

Type / Code

Package

Type

0402

0603

0805

1206

1210

2010

2512

Power Rating

(Watts) @ 70ºC

0.063W

0.100W

0.125W

0.250W

0.330W

0.750W

1.000W

Maximum Working

Voltage (1)

50V

150V

200V

Maximum Overload

Voltage

100V

300V

400V

Resistance

Temperature

Coefficient

± 50 ppm/ºC

± 100 ppm/ºC

± 50 ppm/ºC

± 100 ppm/ºC

± 50 ppm/ºC

± 100 ppm/ºC

± 50 ppm/ºC

± 100 ppm/ºC

± 50 ppm/ºC

± 100 ppm/ºC

Ohmic Range (Ω) and Tolerance

0.5%

100 - 1M

10 - 97.6

100 - 1M

10 - 10M

10 - 1M

10 - 10M

10 - 1M

10 - 10M

10 - 1M

100 - 1M

10 - 97.6

100 - 1M

10 - 10M

10 - 1M

10 - 10M

10 - 1M

10 - 10M

10 - 1M

RGC 1/16S

RGC 1/16

RGC 1/10

RGC 1/8

RGC 1/4

RGC 1/2

RGC 1

(1) Lesser of

√PR

or maximum working voltage.

How to Order

SEI Type

Code

TCR

Nominal

Resistance

Tolerance

Packaging

RGC

1/16

Code Wattage

1/16S 0.063W

1/16 0.100W

1/10 0.125W

1/8

0.250W

1/4

0.330W

1/2

0.750W

1.000W

Size

0402

0603

0805

1206

1210

2010

2512

TCR

T1 = 100ppm

T2 = 50ppm

4.7K

Tolerance

0.5%

Values

E96

SEI Types

Pkg Qty

1/16S

10,000

1/16, 1/10, 1/8,

5,000

1/4

1/2, 1

4,000

Description

Paper

Plastic

Code

Rev Date: 01/06/2010

This specification may be changed at any time without prior notice.

Please confirm technical specifications before you order and/or use.

www.seielect.com
