SMD Quartz Crystal · JXS53
- 4 pad version, 5.0 x 3.2 mm
- seam sealed ceramic/metal package
- extended temperature ranges available
- high mechanical reliability type available
- for automotive type, see automotive datasheet
2011/65/EC
RoHS
RoHS compliant
Pb free
actual size
REACH
compliant
Conflict
mineral free
GENERAL DATA
TYPE
frequency range
JXS53
8.0 ~ 56.0 MHz
50.0 ~ 125.0 MHz
frequency tolerance at 25 °C
load capacitance C
L
shunt capacitance C
O
storage temperature
drive level max.
aging
(fund. AT-cut)
(3rd OT AT-cut)
ESR (SERIES RESISTANCE RS)
frequency
in MHz
8.0 ~
9.999
vibration
mode
fund. - AT
fund. - AT
fund. - AT
fund. - AT
fund. - AT
fund. - AT
fund. - AT
3rd OT - AT
3rd OT - AT
ESR max.
in ½
100
50
40
40
40
30
40
100
80
ESR typ.
in ½
50
30
25
20
15
15
20
60
60
± 10 ppm / ± 30 ppm / ± 50 ppm
12 pF standard (option 8 pF ~ 32 pF / series)
< 7 pF
-40 °C ~ +125 °C
100 μW
< ± 3 ppm first year
(option: < ± 1 ppm first year for tol. ± 10 ppm)
10.0 ~ 10.999
11.0 ~ 11.999
12.0 ~ 21.999
22.0 ~ 24.999
25.0 ~ 49.999
50.0 ~ 56.000
50.0 ~ 79.999
80.0 ~ 125.000
TABLE 1: FREQUENCY STABILITY VS. TEMPERATURE
± 10
ppm
±15
ppm
MARKING
±30
ppm
±20
ppm
±50
ppm
±100
ppm
frequency with load capacitance code
company code / date code / internal code
date code: year/month; A ~ M: Jan. - Dec.; example: 8A = 2018 January
7: 2017
8: 2018
9: 2019
0: 2020
1: 2021
2: 2022
Jan.
A
July
G
Febr.
B
Aug.
H
Mar.
C
Sept.
J
Apr.
D
Oct.
K
May
E
Nov.
L
June
F
Dec.
M
-20 °C ~ +70 °C
-40 °C ~ +85 °C
-40 °C ~ +105 °C
-40 °C ~ +125 °C
available
STD.
T1
T2
T3
DIMENSIONS
5.0
±0.15
0.8 max.
1.4
±0.1
#4
3.2
±0.15
#3
#3
2.4
±0.1
#4
0.9
±0.1
#4
#3
2.3
±0.1
1.3
±0.1
3.8
±0.1
1.6
±0.1
#1
#2
#2
#1
1.3
±0.1
#1
#2
top view
ORDER INFORMATION
side view
bottom view
#2–#4: connected to lid
preferably connect to GND
crystal connection
pad layout
in mm
Q
Quartz
frequency
8.0 ~ 125.0 MHz
type
JXS53
load capacitance
12 pF standard
8 pF ~ 32 pF available
S for series
tolerance at
25 °C
10 = ± 10 ppm
30 = ± 30 ppm
50 = ± 50 ppm
stability vs.
temp. range
10 = ± 10 ppm
15 = ± 15 ppm
20 = ± 20 ppm
30 = ± 30 ppm
50 = ± 50 ppm
100 = ± 100 ppm
option
blank = -20 °C ~ +70 °C
T1 = -40 °C ~ +85 °C
T2 = -40 °C ~ +105 °C
T3 = -40 °C ~ +125 °C
FU = for fundamental
frequencies ≥ 20 MHz
3OT = 3rd overtone
HMR = high mechanical reliability
(3000g/half sine wave/0.3ms)
Example: Q 30.0-JXS53-12-30/30-FU-LF
(Suffix LF = RoHS compliant / Pb free)
13092018
Jauch Quartz GmbH • e-mail: info@jauch.de • full data can bedata can be found under:
info@jauch.com
full found under: www.jauch.com
All specifications are subject to change without notice
www.jauch.de | www.jauch.co.uk | www.jauch.fr | www.jauchusa.com
SMD Quartz Crystal · JXS53

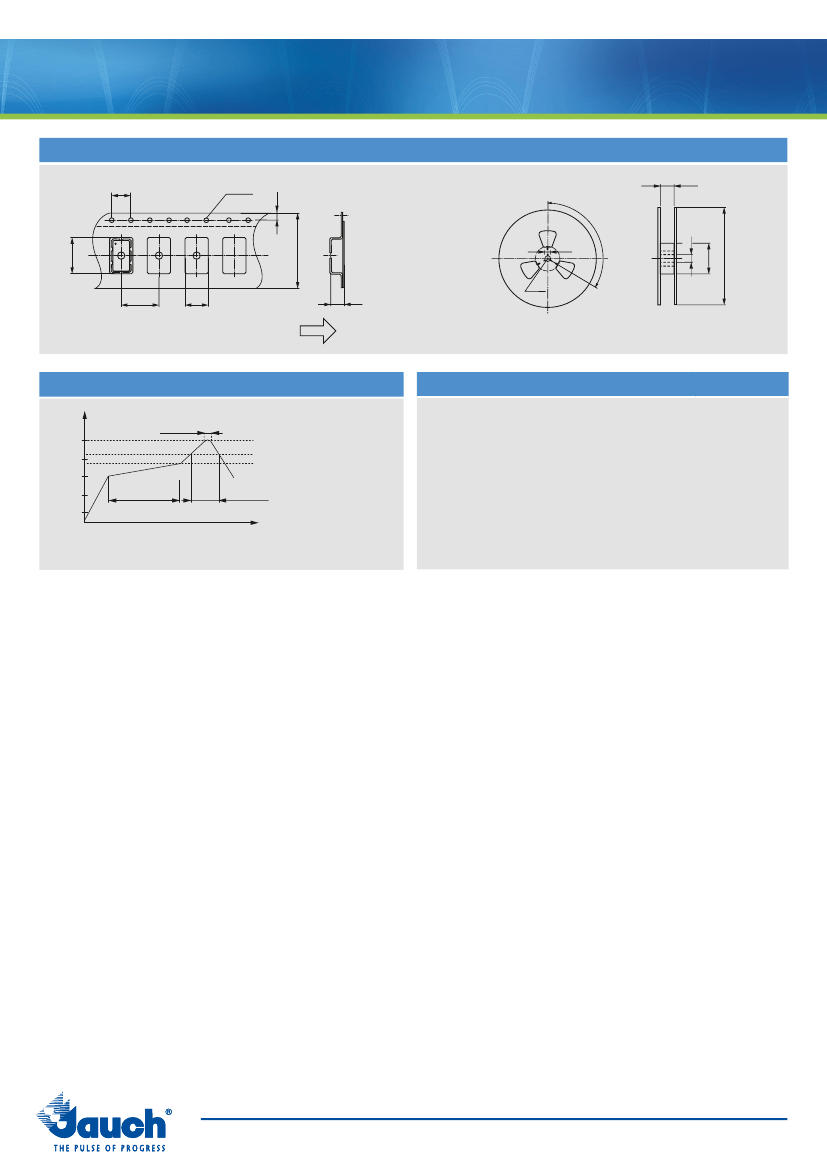

TAPING SPECIFICATION
4.0
ø 1.5
12.4
1.75
120
ø 13
12.0
ø 21
8.0
3.6
Feeding
1.1
1000 pcs per reel
ø 80
ø 178
5.5
2.0
in mm
REFLOW SOLDERING PROFILE
temperature (°C)
10 s max.
260
200
150
100
50
60 ~ 180 s
60 s max.
LOAD CAPACITANCE CODES
8 pf: k
9 pF: n
10 pf: h
11 pF: l
12 pF: a
13 pF: v
14 pF: x
15 pF: j
16 pF: b
17 pF: t
18 pF: f
20 pF: c
22 pF: g
24 pF: d
25 pF: r
27 pF: w
30 pF: .
series: s
T: 3rd OT
260 °C max.
220 5 °C
180 5 °C
time (s)
note: parts are also suitable for soldering systems with lead (Pb) content
example 20.0 MHz / 12 pF: 20a00
13092018
Jauch Quartz GmbH • e-mail: info@jauch.com • full data can bedata can be found under:
info@jauch.de
full found under: www.jauch.com
All specifications are subject to change without notice
www.jauch.de | www.jauch.co.uk | www.jauch.fr | www.jauchusa.com
