1N5624 THRU 1N5627
GLASS PASSIVATED JUNCTION RECTIFIER
Reverse Voltage -
200 to 800 Volts
D
*
CASE STYLE G3
Forward Current -
3.0 Amperes
FEATURES
♦
Glass passivated cavity-free junction
♦
High temperature metallurgically bonded
constructed
♦
Hermetically sealed package
♦
Capable of meeting
environmental
standards of
MIL-S-19500
♦
Typical I
R
less than 0.1µA
♦
3.0 Ampere operation at T
A
=70°C with no thermal
runaway
♦
High temperature soldering guaranteed:
350°C/10 seconds, 0.375" (9.5mm) lead length,
5 lbs. (2.3kg) tension
P
A
T
E
N
T
E
1.0 (25.4)
MIN
0.250 (6.3)
0.170 (4.3)
DIA.
0.300 (7.6)
MAX.
0.052 (1.32)
0.048 (1.22)
DIA.
1.0 (25.4)
MIN
MECHANICAL DATA
Case:
Solid glass body
Terminals:
Solder plated axial leads, solderable per
MIL-STD-750, Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
0.04 ounce, 1.1 grams
Dimensions in inches and (millimeters)
*
Brazed-lead assembly is covered by Patent No. 3,930,306
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS
1N5624
1N5625
1N5626
1N5627
UNITS
*Maximum repetitive peak reverse voltage
Maximum RMS voltage
*Maximum DC blocking voltage
*Maximum average forward rectified current
0.375" (9.5mm) lead length at T
A
=70°C
Peak forward surge current 8.3ms single half sine-wave
superimposed on rated load (JEDEC Method)
*Maximum instantaneous forward voltage at 3.0A
T
A
=25°C
T
A
=70°C
*Maximum DC reverse current
at rated DC blocking voltage
T
A
=25°C
T
A
=175°C
V
RRM
V
RMS
V
DC
I
(AV
I
FSM
200
140
200
400
280
400
3.0
125.0
600
420
600
800
560
800
Volts
Volts
Volts
Amps
Amps
V
F
1.0
0.95
5.0
300.0
150.0
40.0
20.0
10.0
-65 to +175
-65 to +200
200.0
100.0
Volts
µA
µA
pF
°C/W
°C
°C
I
R
I
R(AV)
C
J
R
ΘJA
R
ΘJL
T
J
T
STG
*Maximum full load reverse current, full cycle average,
0.375" (9.5mm) lead length at T
A
=70°C
Typical junction capacitance
(NOTE 1)
Typical thermal resistance
(NOTE 2)
*Operating junction temperature range
*Storage temperature range
NOTES:
(1) Measured at 1.0 MH
Z
and applied reverse voltage of 4.0 Volts
(2) Thermal resistance from junction to ambient and from junction to lead at 0.375" (9.5mm) lead length,
with both leads attached between heatsinks
*JEDEC registered values
4/98

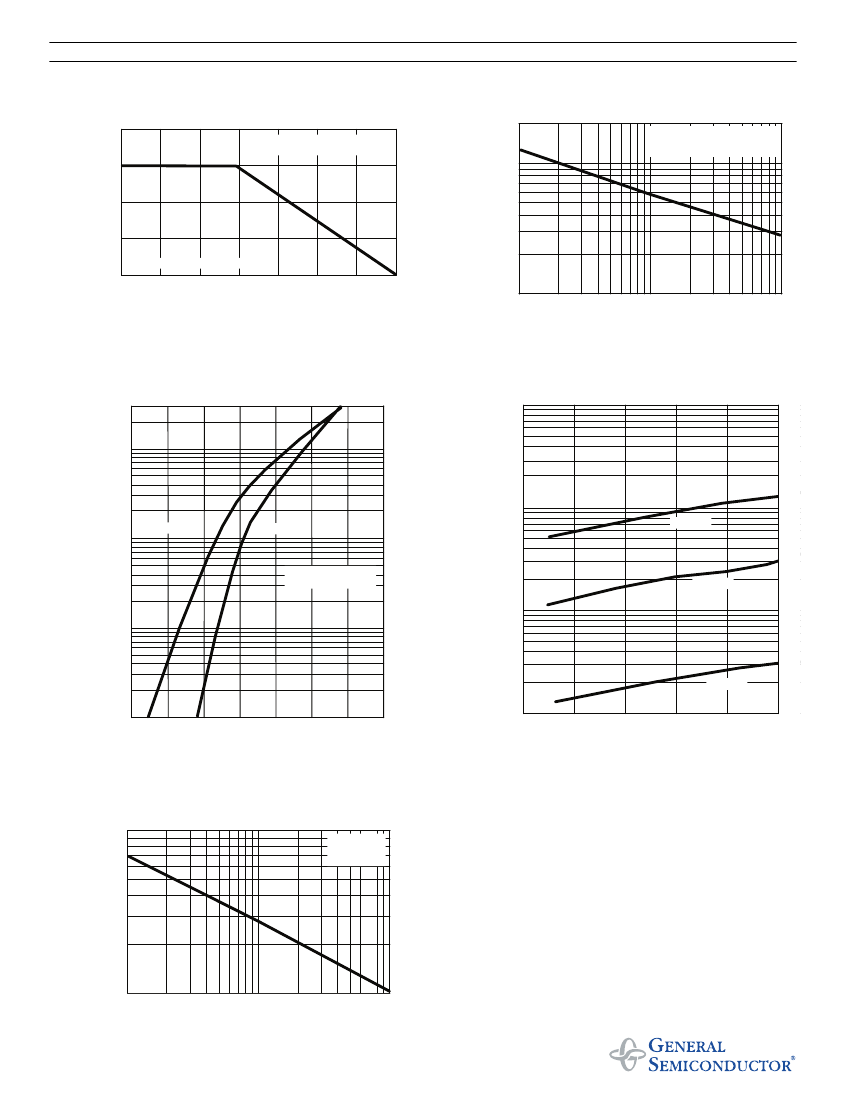

RATINGS AND CHARACTERISTIC CURVES 1N5624 THRU 1N5627
FIG. 2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
AVERAGE FORWARD RECTIFIED CURRENT,
AMPERES
FIG. 1 - FORWARD CURRENT DERATING CURVE
60 H
Z
RESISTIVE OR INDUCTIVE LOAD
AVERAGE FORWARD CURRENT,
AMPERES
4.0
3.0
2.0
1.0
0.375" (9.5mm) LEAD LENGTH
200
T
J
=T
J
max.
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
100
0
0
25
50
75
100
125
150
175
AMBIENT TEMPERATURE,°C
10
1
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 3 - TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
FIG. 4 - TYPICAL REVERSE CHARACTERISTICS
30
10.0
10
INSTANTANEOUS FORWARD CURRENT,
AMPERES
AVERAGE FORWARD CURRENT,
MICROAMPERES
1
T
J
=100°C
T
J
=150°C
T
J
=25°C
1
PULSE WIDTH=300µs
1% DUTY CYCLE
T
J
=75°C
0.1
0.1
T
J
=25°C
0.01
0.2
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
0
20
40
60
80
100
INSTANTANEOUS FORWARD REVERSE VOLTAGE,
VOLTS
PERCENT OF RATED PEAK REVERSE VOLTAGE, %
FIG. 5 - TYPICAL JUNCTION CAPACITANCE
100
JUNCTION CAPACITANCE, pF
T
J
=25°C
f=1.0 MHz
Vsig=50mVp-p
10
1
10
REVERSE VOLTAGE, VOLTS
100
