MPXQS22K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> MPXQS22K

MPXQS22K: Descriptionfilm capacitors .022uf 250vac; CategoryPassive components; File Size121KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

MPXQS22K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MPXQS22K	-	-	View	Buy Now

MPXQS22K Overview

film capacitors .022uf 250vac

MPXQS22K Parametric

Parameter Name	Attribute value
Manufacture	Cornell Dubilie
Product Category	Film Capacitors
RoHS	Yes
Produc	Suppression Film Capacitors
Dielectric	Polypropylene (PP)
Capacitance	0.022 uF
Voltage Rating AC	250 V/275 V
Tolerance	10 %
Termination Style	Radial
Lead Spacing	10 mm
Case Heigh	11 mm
Case Length	13 mm
Case Width	5 mm
Dissipation Factor DF	0.1
Lead Diamete	0.6 mm
Packaging	Bulk
Factory Pack Quantity	500

Preview

Download Datasheet

View All

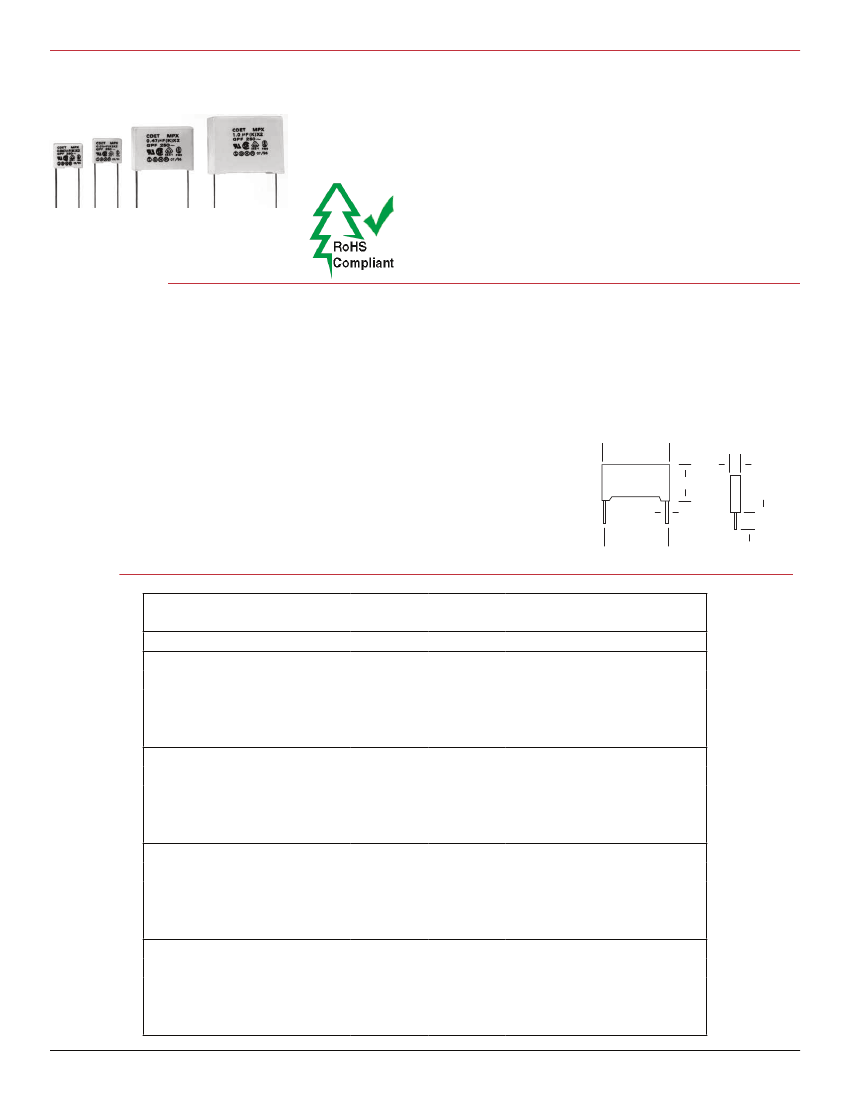

Type MPX

Polypropylene Film Capacitors

Metallized

Box Style, Vac Rated

Interference Suppression and Across-the-Line VAC Applications

The Type MPX metallized, polypropylene class X2 film capacitors are

ideal for across-the-line and interference suppression circuit applications.

This series features the self-healing capabilities associated with metallized

polypropylene, compact design, and flame retardant construction. Tape and

reel packaging are available for ratings with a pitch of 10 mm to 32.5 mm.

Specifications

Complies with the EU Directive 2002/95/EC requirement restricting the use of Lead

(Pb), Mercury (Hg), Cadmium (Cd), Hexavalent chromium (Cr(VI)), PolyBrominated

Biphenyls (PBB) and PolyBrominated Diphenyl Ethers (PBDE).

20 MIN.

➝

Ratings

Cap.

(µF)

Catalog

Part Number

T ±.020 (0.5)

Inches (mm)

H ±.020 (0.5)

Inches (mm)

.433 (11.0)

.472 (12.0)

.433 (11.0)

.472 (12.0)

.531 (13.5)

.571 (14.5)

.650 (16.5)

.669 (17.0)

.748 (19.0)

.787 (20.0)

.984 (25.0)

1.181 (30.0)

1.42 (29.0)

L ±.020 (0.5)

Inches (mm)

.512 (13.0)

.709 (18.0)

1.043 (26.5)

1.043 (26.5 )

1.260 (32.0)

1.457 (37.0)

S ±.040 (1.0)

Inches (mm)

.394 (10.0)

.591 (15.0)

.886 (22.5)

1.083 (27.5)

1.280 (32.5)

dV/dt

Inches (mm) V/µs

275 Vac

0.0047

0.0068

0.010

0.015

0.022

0.033

0.047

0.068

0.100

0.150

0.220

0.330

0.47

0.560

0.680

1.000

1.200

1.500

1.800

2.200

MPXQD47K

MPXQD68K

MPXQS1K

MPXQS15K

MPXQS22K

MPXQS33K

MPXQS47K

MPXQS68K

MPXQP1K

MPXQP15K

MPXQP22K

MPXQP33K

MPXQP47K

MPXQP56K

MPXQP68K

MPXQW1K

MPXQW1P2K

MPXQW1P5K

MPXQW1P8K

MPXQW2P2K

.197 (5.0)

.236 (6.0)

.197 (5.0)

.236 (6.0)

.335 (8.5)

.276 (7.0)

.335 (8.5)

.394 (10.0)

.433 (11.0)

.551 (14.0)

.590 (15.0)

.748 (19.0)

.024 (.6)

.032 (.8)

100

CDE Cornell Dubilier•1605 E. Rodney French Blvd•New Bedford, MA 02744•Phone: (508)996-8561•Fax: (508)996-3830•www.cde.com

➝

Voltage Range:

250 Vac, 60 Hz (UL and CSA)

275 Vac, 60 Hz (VDE and ENCE)

Capacitance Range:

.0047– 2.2 μF

(.0047 – 1.0 µF on UL/CSA Spec.)

Capacitance Tolerance:

±10% (K) standard

±5% (J)

Operating Temperature Range:

–40 °C to +100 °C

(85 ºC on UL/CSA Spec.)

Dielectric Strength:

2100 Vdc (1 minute)

Dissipation Factor:

.10% Max. (25°C, 1kHz)

Insulation Resistance:

10,000 mOhms x μF min.,

not to exceed 30,000 mOhms min.

Agency Approvals:

CSA

VDE

ENCE

E171988

LR701482

40017879

➝

MPXQS22K Related Products

	MPXQS22K	MPXQS47K	MPXQS33K	MPXQP22K	MPXQP15K	MPXQS15K	MPXQD68K	MPXQS68K	MPXQP68K
Description	film capacitors .022uf 250vac	film capacitors .047uf 250vac	film capacitors .033uf 250vac	film capacitors .220uf 250vac	film capacitors .150uf 250vac	film capacitors .015uf 250vac cap	film capacitors .0068uf 250vac	film capacitors .068uf 250vac	film capacitors .68uf 250vac
Manufacture	Cornell Dubilie	Cornell Dubilie	Cornell Dubilie	Cornell Dubilie	Cornell Dubilie	Cornell Dubilie	Cornell Dubilie	Cornell Dubilie	Cornell Dubilie
Product Category	Film Capacitors	Film Capacitors	Film Capacitors	Film Capacitors	Film Capacitors	Film Capacitors	Film Capacitors	Film Capacitors	Film Capacitors
RoHS	Yes	Yes	Yes	Yes	Yes	N	Yes	Yes	Yes
Produc	Suppression Film Capacitors	Suppression Film Capacitors	Suppression Film Capacitors	Suppression Film Capacitors	Suppression Film Capacitors	Suppression Film Capacitors	Suppression Film Capacitors	Suppression Film Capacitors	Suppression Film Capacitors
Dielectric	Polypropylene (PP)	Polypropylene (PP)	Polypropylene (PP)	Polypropylene (PP)	Polypropylene (PP)	Polypropylene (PP)	Polypropylene (PP)	Polypropylene (PP)	Polypropylene (PP)
Capacitance	0.022 uF	0.047 uF	0.033 uF	0.22 uF	0.15 uF	0.015 uF	6800 pF	0.068 uF	0.68 uF
Voltage Rating AC	250 V/275 V	250 V/275 V	250 V/275 V	250 V/275 V	250 V/275 V	250 V/275 V	250 V/275 V	250 V/275 V	250 V/275 V
Tolerance	10 %	10 %	10 %	10 %	10 %	10 %	10 %	10 %	10 %
Termination Style	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial
Lead Spacing	10 mm	15 mm	10 mm	22.5 mm	15 mm	10 mm	10 mm	15 mm	27.5 mm
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Factory Pack Quantity	500	1000	500	1000	1000	1000	1000	1000	1000
Case Heigh	11 mm	11 mm	12 mm	16.5 mm	-	11 mm	-	-	20 mm
Case Length	13 mm	18 mm	13 mm	26.5 mm	-	13 mm	-	-	32 mm
Case Width	5 mm	5 mm	-	7 mm	-	5 mm	-	-	11 mm
Dissipation Factor DF	0.1	0.1	0.1	0.1	-	0.1	-	-	10
Lead Diamete	0.6 mm	0.8 mm	0.6 mm	0.8 mm	0.8 mm	0.6 mm	0.6 mm	0.8 mm	-
