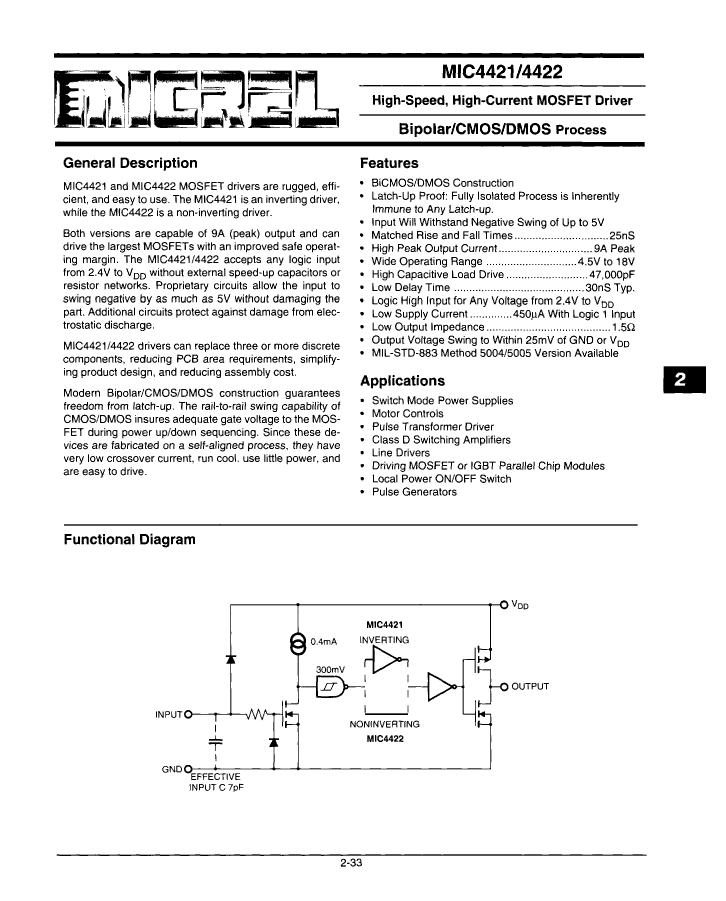

Buffer/Inverter Based MOSFET Driver, 9A, BICMOS, CDIP8, CERDIP-8

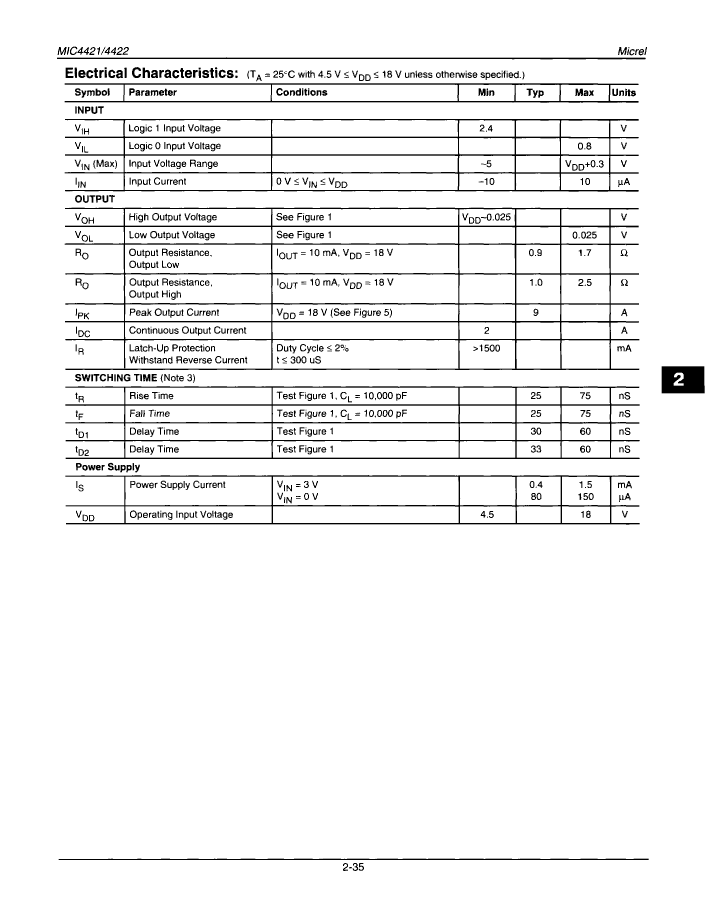

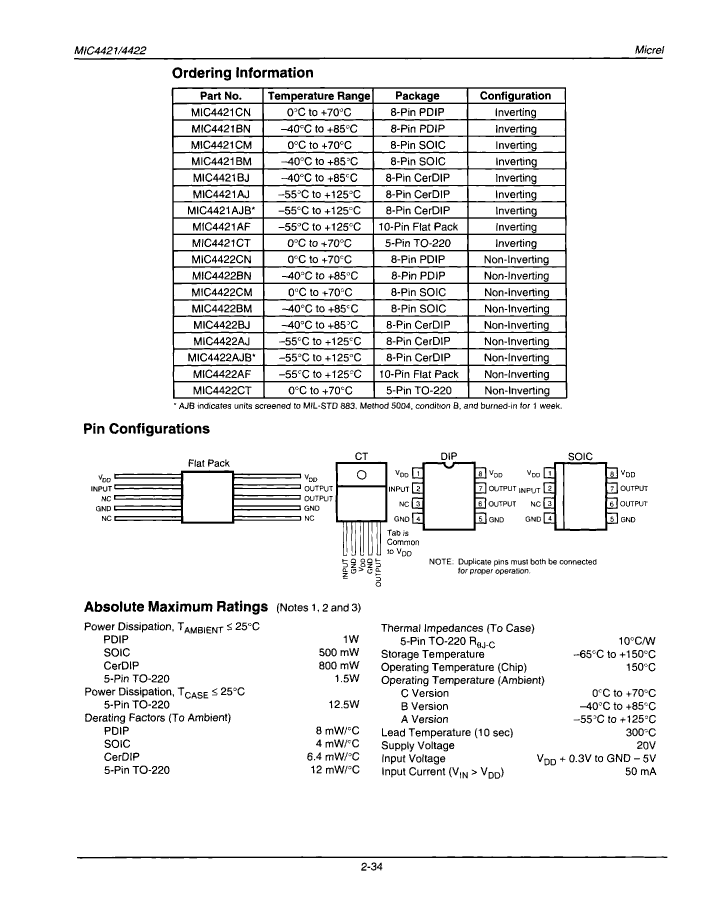

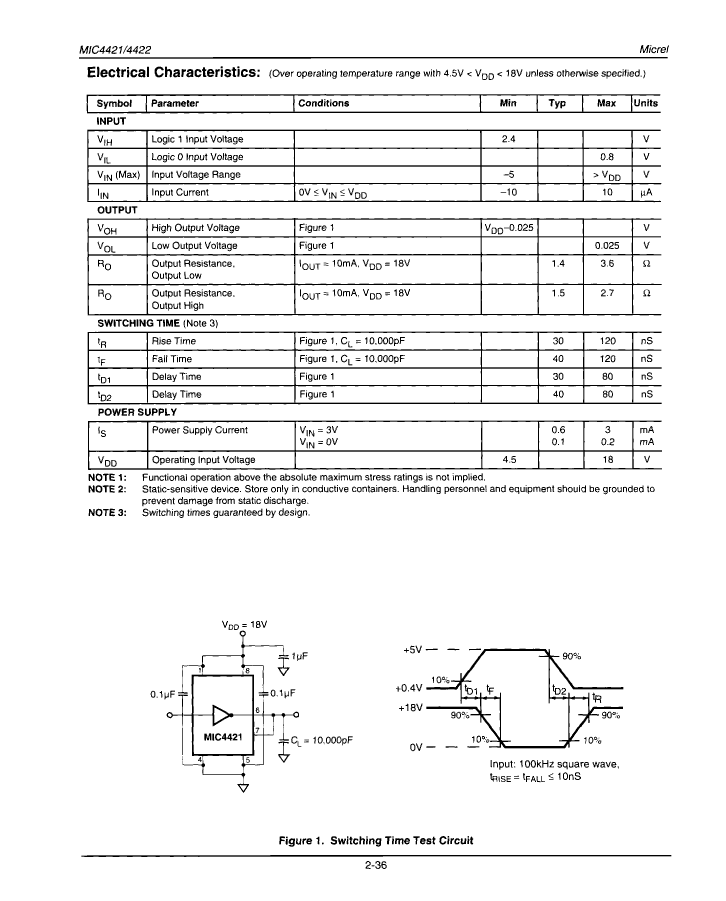

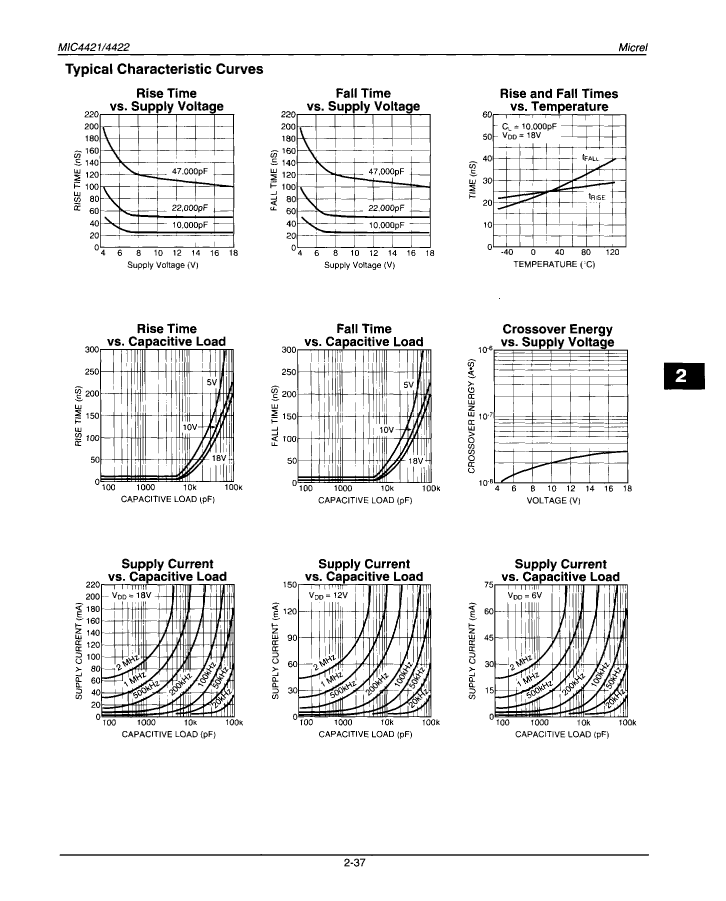

| Parameter Name | Attribute value |
| Maker | Microchip |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 8 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| high side driver | NO |
| Input properties | SCHMITT TRIGGER |
| Interface integrated circuit type | BUFFER OR INVERTER BASED MOSFET DRIVER |
| JESD-30 code | R-GDIP-T8 |
| length | 9.7155 mm |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | TOTEM-POLE |
| Nominal output peak current | 9 A |
| Output polarity | TRUE |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| Maximum slew rate | 3 mA |
| Maximum supply voltage | 18 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 18 V |
| surface mount | NO |
| technology | BICMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Disconnect time | 0.08 µs |
| connection time | 0.08 µs |
| width | 7.62 mm |
| MIC4422BJ | MIC4421AJBQ | MIC4422AJBQ | MIC4421BJ | |
|---|---|---|---|---|
| Description | Buffer/Inverter Based MOSFET Driver, 9A, BICMOS, CDIP8, CERDIP-8 | Buffer/Inverter Based MOSFET Driver, 9A, BICMOS, CDIP8, CERDIP-8 | Buffer/Inverter Based MOSFET Driver, 9A, BICMOS, CDIP8, CERDIP-8 | Buffer/Inverter Based MOSFET Driver, 9A, BICMOS, CDIP8, CERDIP-8 |
| Parts packaging code | DIP | DIP | DIP | DIP |
| package instruction | DIP, | DIP, | DIP, | DIP, |
| Contacts | 8 | 8 | 8 | 8 |
| Reach Compliance Code | unknow | unknown | unknown | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| high side driver | NO | NO | NO | NO |
| Input properties | SCHMITT TRIGGER | SCHMITT TRIGGER | SCHMITT TRIGGER | SCHMITT TRIGGER |
| Interface integrated circuit type | BUFFER OR INVERTER BASED MOSFET DRIVER | BUFFER OR INVERTER BASED MOSFET DRIVER | BUFFER OR INVERTER BASED MOSFET DRIVER | BUFFER OR INVERTER BASED MOSFET DRIVER |
| JESD-30 code | R-GDIP-T8 | R-GDIP-T8 | R-GDIP-T8 | R-GDIP-T8 |
| length | 9.7155 mm | 9.7155 mm | 9.7155 mm | 9.7155 mm |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 85 °C | 125 °C | 125 °C | 85 °C |
| Minimum operating temperature | -40 °C | -55 °C | -55 °C | -40 °C |
| Output characteristics | TOTEM-POLE | TOTEM-POLE | TOTEM-POLE | TOTEM-POLE |
| Nominal output peak current | 9 A | 9 A | 9 A | 9 A |
| Output polarity | TRUE | INVERTED | TRUE | INVERTED |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DIP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.08 mm | 5.08 mm | 5.08 mm | 5.08 mm |
| Maximum slew rate | 3 mA | 3 mA | 3 mA | 3 mA |
| Maximum supply voltage | 18 V | 18 V | 18 V | 18 V |
| Minimum supply voltage | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 18 V | 18 V | 18 V | 18 V |
| surface mount | NO | NO | NO | NO |
| technology | BICMOS | BICMOS | BICMOS | BICMOS |
| Temperature level | INDUSTRIAL | MILITARY | MILITARY | INDUSTRIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Disconnect time | 0.08 µs | 0.08 µs | 0.08 µs | 0.08 µs |
| connection time | 0.08 µs | 0.08 µs | 0.08 µs | 0.08 µs |
| width | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm |
| Maker | Microchip | - | Microchip | Microchip |
