OC-192/STM-64 SERDES Transceiver module Specification; OAT1041x-V5-z-yy
Document NO: QPS-0302-020
OKI Confidential
Rev. DRAFT 0.5
OAT1041x-V5-z-yy(for 12km)
OC-192/STM-64 SERDES Transceiver Module
Document Number: QPS-0302-020
Revision:
DRAFT 0.5
DATE:
Oct.17.2002
T.ITOU
Author:
T. ITOU
Project Manager:
Modification History
Rev.
DRAFT0.1
DRAFT0.2
DRAFT0.3
DRAFT0.4
DRAFT0.4
Date
Aug.16.2002
Sep.05.2002
Sep.25.2002
Oct.2.2002
Oct.17.2002
Originator
T.Itou
T.Itou
T.Itou
T.Itou
T.Itou
Comment
Revision of Absolute maximum of VEE
Additional of I2C diagnostic monitor
Change of Distance
Features ;
•
10G SFF Transceiver
•
SONET/SDH 9.953Gbps operation
⋅
SR-1/I64.1 @ OAT1041x-V5-A-yy
•
Support 10.3Gbps(10GbE), 10.66Gbps(FEC)
and 10.7Gbps(OTN) rate
•
Wavelength : 1310nm band
•
Transmission Distance :
⋅1
2km(40ps/nm) @OAT1041x-V5-A-yy
•
Dispersion Penalty : <1dB
•
16-bit parallel 622.08Mbps(equivalent FEC rate)
LVDS data interface
•
SERDES Timing compliant with OIF1999.102.8
SFI-4 interface
•
Jitter filter built-in (OAT1041x-V5-C-yy, Multi-rate
type removes)
•
TxREFCLK frequency of 622MHz is standard.
(OAT1041x-V5-C-yy, Multi-rate type removes)
•
Compact size: 50.8 x 76.2 x 11.5 (mm)
•
Supply voltage : +3.3V , +1.8V and -5.2V
•
Low power consumption: <4.8W max.(3.8W typ.)
•
I2C compatible bus for simple status data monitor
Application ;
•
Metro network SONET/SDH system
•
10 Gigabit Ethernet system
•
Forward Error Correction system
•
Optical Transport Network (OTN) System
OKI Electric Industry Co., Ltd Optical Components Company
1
OC-192/STM-64 SERDES Transceiver module Specification; OAT1041x-V5-z-yy
Document NO: QPS-0302-020
OKI Confidential
Rev. DRAFT 0.5
1.Block
diagram
1.
LsENABLE
TxDIN[0:15]P/N
TxPICLKP/N
TxREFCLKP/N
TxREFSEL
TxRESET
TxFIFORES
TxRATESEL0/1
TxPCLKP/N
TxMCLKP/N
TxLOCKERR
TxFIFOERR
RxDOUT[0:15]P/N
RxPOCLKP/N
RxMCLKP/N
RxREFCLKP/N
RxREFSEL
RxLCKREF
RxRATESEL0/1
RxLOCKERR
RxMUTEPOCLK
RxMUTEMCLK
RxMUTEDOUT
16
16
APC
LsPOWMON
LsBIASMON
LsPOWALM
LsBIASALM
OC-192
Optical Output
MUX
with CMU
Driver
TX E-O
Serial
Monitor
I2CCLOCK
I2CCLOCK
CDR
with DEMUX
RX O-E
OC-192
Optical Input
Opt Mon
RxPOWMON
RxPOWALM
+3.3V +1.8V -5.2V GND
∗
TxREFSEL,TxRATESEL0/1
are available for multi-rate type, OAT1041x-V5-C-yy.

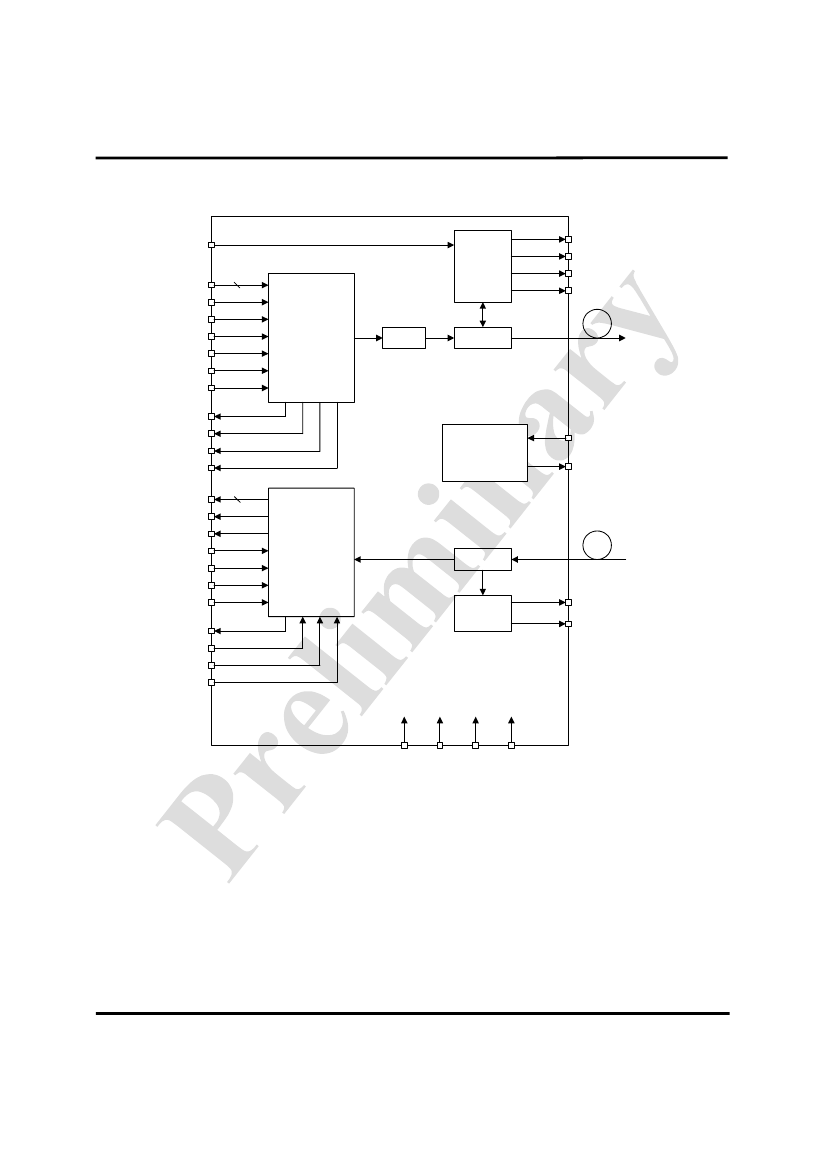

Figure 1 Block diagram
OKI Electric Industry Co., Ltd Optical Components Company
2
OC-192/STM-64 SERDES Transceiver module Specification; OAT1041x-V5-z-yy
Document NO: QPS-0302-020
OKI Confidential
Rev. DRAFT 0.5
2.Absolute
Maximum Ratings
2.
Stresses in excess of the Absolute Maximum Ratings can cause permanent damage to the device.
Table 2 Absolute Maximum Ratings
Parameter
Supply Voltage
Symbol
V
DD1
V
DD2
V
EE
Pin_max
Tstg
Min.
-0.5
-0.5
-6.0
0
0
30
-40
Max.
3.6
2.0
+0.5
2.7
3.6
50
-50
3
500
85
Units
V
V
V
V
V
mA
mA
dBm
g
mm
degC
LVDS input pin
LVTTL input pin
LVTTL output sink current
LVTTL output source current
Optical Input Power
Tension of fiber
Fiber Bend Radius
Storage Temperature
3.Operating Environment
Electrical and optical characteristics below are defined under this operating environment, unless otherwise specified.
Table 3 Operating Environment
Parameter
Supply Voltage
Symbol
V
DD1
V
DD2
V
EE
I
DD1
I
DD2
I
EE
Tc
Min.
3.13
1.71
-4.94
Typ.
3.3
1.8
-5.2
Max.
3.46
1.89
-5.46
0.4
1.2
0.5
70
4.8
Units
V
Supply Current
A
Case Temperature
Power consumption
0
3.8
degC
W
OKI Electric Industry Co., Ltd Optical Components Company
3
OC-192/STM-64 SERDES Transceiver module Specification; OAT1041x-V5-z-yy
Document NO: QPS-0302-020
OKI Confidential
Rev. DRAFT 0.5
4.Specifications
4.
4-1 Optical interface specifications
Table 4.1
Optical
Parts Number
Parameter
Bit rate
Transmitter
Optical output power
Optical waveform
Center wavelength
Extinction ratio
Spectral maximum –20dB Width
Side mode suppression ratio
interface specifications
1041x-V5-A-yy
Min
Max
9.95328
-6
-1
Symbol
Units
Gbit/s
dBm
Note
Po
OC-192/STM-64
Unamplified Mask standard
λc
Er
∆λ
20
SMSR
Pin
Pin
λc_rx
1290
6.0
30
-1
1280
27
1330
1.0
-14
1580
nm
dB
nm
dB
dBm
dBm
nm
dB
UIp-p
Figure 4.1
G.693
Receiver
Minimum sensitivity
Minimum overload
Input wavelength
Rx Return loss
Jitter performance
Jitter Generation
Jitter Tolerance and Transfer
Optical path
Dispersion
Optical Path Penalty
BER@1x10
-12
0.1
Compliant with GR-253
D
Lrmax
40
1
ps/nm
dB
Bandpass filter;
50k to 80MHz
Figure 4.2,4.3
Condition; Case temperature: 0
to 70degC, NRZ,PRBS2
31
-1
, Mark ratio: 1/2,
Supply voltage:+3.3V,+1.8V,-5.2V each +/-5%
OKI Electric Industry Co., Ltd Optical Components Company
4
OC-192/STM-64 SERDES Transceiver module Specification; OAT1041x-V5-z-yy
Document NO: QPS-0302-020
OKI Confidential
Rev. DRAFT 0.5
1.4
1
0.75
Amplitude
Logic 1
0.25
0
-0.25
0
Time(UI)
1
0.2
Logic 0
Comply GR693

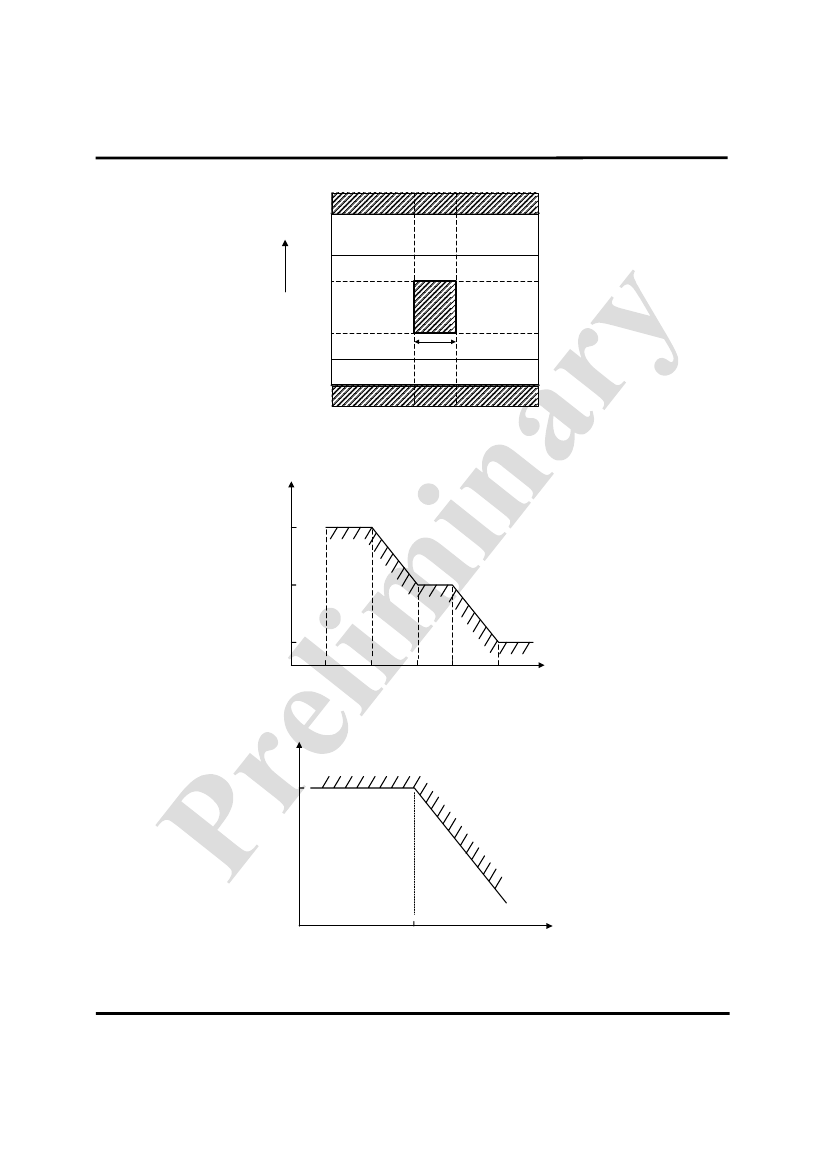

Figure 4.1 Eye pattern mask
Input Jitter Amplitude [UIpp]
15
Acceptable Range
slope=-20dB/decade
1.5
slope=-20dB/decade
0.15
10
2k
20k
400k
4M
Jitter Frequency [Hz]
Figure 4.2 Jitter
Tolerance mask
0.1
Jitter Gain [dB]
slope=-20dB/decade
Acceptable Range
120k
Frequency [Hz]
Figure 4.3
Jitter Transfer mask
OKI Electric Industry Co., Ltd Optical Components Company
5
