The CY7B9911 High Speed Programmable Skew Clock Buffer
(PSCB) offers user selectable control over system clock
functions. This multiple output clock driver provides the system
integrator with functions necessary to optimize the timing of high
performance computer systems. Each of the eight individual TTL
drivers, arranged in four pairs of user controllable outputs, can
drive terminated transmission lines with impedances as low as
50Ω. They deliver minimal and specified output skews and full
swing logic levels.
Each output is hardwired to one of nine delay or function config-
urations. Delay increments of 0.6 to 1.5 ns are determined by the
operating frequency with outputs able to skew up to ±6 time units
from their nominal “zero” skew position. The completely
integrated PLL allows cancellation of external load and trans-
mission line delay effects. When this “zero delay” capability of the
PSCB is combined with the selectable output skew functions,
you can create output-to-output delays of up to ±12 time units.
Divide-by-two and divide-by-four output functions are provided
for additional flexibility in designing complex clock systems.
When combined with the internal PLL, these divide functions
enable distribution of a low frequency clock that is multiplied by
two or four at the clock destination. This facility minimizes clock
distribution difficulty enabling maximum system clock speed and
flexibility.
All output pair skew <100 ps typical (250 max)
3.75 to 100 MHz output operation
User selectable output functions
❐
Selectable skew to 18 ns
❐
Inverted and non-inverted
❐
Operation at ½ and ¼ input frequency
❐
Operation at 2x and 4x input frequency (input as low as 3.75
MHz)
Zero input to output delay
50% duty cycle outputs
Outputs drive 50Ω terminated lines
Low operating current
32-pin PLCC/LCC package
Jitter < 200 ps peak-to-peak (< 25 ps RMS)
■
■
■
■
■
■

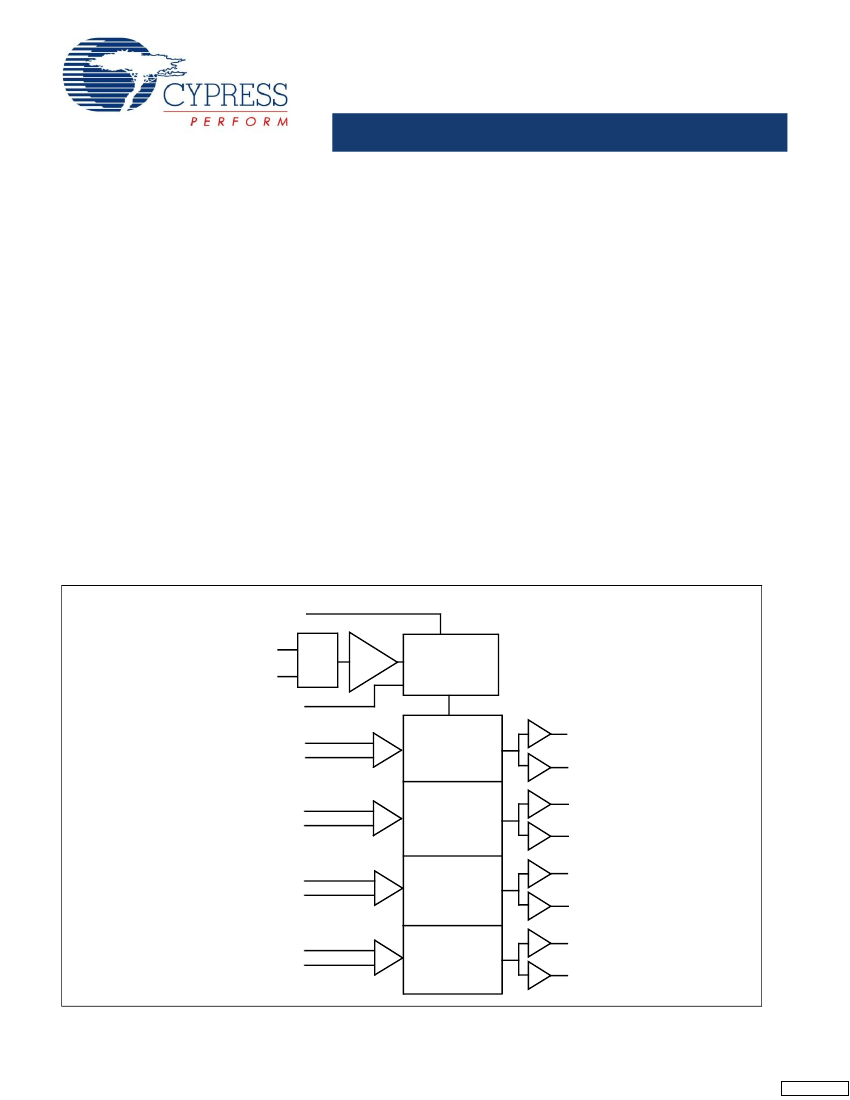

Logic Block Diagram
TEST
FB
REF
FS
4F0
4F1
4Q0
SELECT
INPUTS
(THREE
LEVEL)
4Q1
SKEW
3Q0
3Q1
2Q0
MATRIX
2Q1
1Q0
1Q1
PHASE
FREQ
DET
VCO AND
TIME UNIT
GENERATOR
FILTER
3F0
3F1
SELECT
2F0
2F1
1F0
1F1
Cypress Semiconductor Corporation
Document Number: 38-07209 Rev. *C
•
198 Champion Court
•
San Jose
,
CA 95134-1709
•
408-943-2600
Revised October 20, 2008
[+] Feedback
CY7B9911
RoboClock+™
Pin Configuration
PLCC/LCC
TEST
V
CCQ
GND
REF
3F0
2F1
FS
3
3F1
4F0
4F1
V
CCQ
V
CCN
4Q1
4Q0
GND
GND
5
6
7
8
9
10
11
12
4
2
1
32 31 30
29
28
27
2F0
GND
1F1
1F0
V
CCN
1Q0
1Q1
GND
GND
CY7B9911
26
25
24
23
22
13
21
14 15 16 17 18 19 20
3Q1
3Q0
FB
2Q1
V
CCN
V
CCN
2Q0
Pin Definitions
Signal Name
REF
FB
FS
1F0, 1F1
2F0, 2F1
3F0, 3F1
4F0, 4F1
TEST
1Q0, 1Q1
2Q0, 2Q1
3Q0, 3Q1
4Q0, 4Q1
V
CCN
V
CCQ
GND
IO
I
I
I
I
I
I
I
I
O
O
O
O
PWR
PWR
PWR
Description
Reference frequency input. This input supplies the frequency and timing against which all functional
variation is measured.
PLL feedback input (typically connected to one of the eight outputs).
Three level frequency range select. See
Table 1.
Three level function select inputs for output pair 1 (1Q0, 1Q1). See
Table 2.
Three level function select inputs for output pair 2 (2Q0, 2Q1). See
Table 2
Three level function select inputs for output pair 3 (3Q0, 3Q1). See
Table 2
Three level function select inputs for output pair 4 (4Q0, 4Q1). See
Table 2
Three level select. See test mode section under the block diagram descriptions.
Output pair 1. See
Table 2.
Output pair 2. See
Table 2.
Output pair 3. See
Table 2.
Output pair 4. See
Table 2.
Power supply for output drivers.
Power supply for internal circuitry.
Ground.
Document Number: 38-07209 Rev. *C
Page 2 of 13
[+] Feedback
CY7B9911
RoboClock+™
Block Diagram Description
Phase Frequency Detector and Filter
The Phase Frequency Detector and Filter blocks accept inputs
from the reference frequency (REF) input and the feedback (FB)
input. They generate correction information to control the
frequency of the Voltage controlled Oscillator (VCO). These
blocks, along with the VCO, form a Phase Locked Loop (PLL)
that tracks the incoming REF signal.
Skew Select Matrix
The skew select matrix contains four independent sections. Each
section has two low skew, high fanout drivers (xQ0, xQ1), and
two corresponding three level function select (xF0, xF1) inputs.
Table 2
shows the nine possible output functions for each section
as determined by the function select inputs. All times are
measured with respect to the REF input assuming that the output
connected to the FB input has 0t
U
selected.
Table 2. Programmable Skew Configurations
[1]
Function Selects
1F1, 2F1,
3F1, 4F1
LOW
LOW
LOW
MID
MID
MID
HIGH
HIGH
HIGH
1F0, 2F0,
3F0, 4F0
LOW
MID
HIGH
LOW
MID
HIGH
LOW
MID
HIGH
Output Functions
1Q0, 1Q1,
2Q0, 2Q1
–4t
U
–3t
U
–2t
U
–1t
U
0t
U
+1t
U
+2t
U
+3t
U
+4t
U
3Q0, 3Q1
–6t
U
–4t
U
–2t
U
0t
U
+2t
U
+4t
U
+6t
U
Divide by 4
4Q0, 4Q1
–6t
U
–4t
U
–2t
U
0t
U
+2t
U
+4t
U
+6t
U
Inverted
VCO and Time Unit Generator
The VCO accepts analog control inputs from the PLL filter block
and generates a frequency that is used by the time unit generator
to create discrete time units that are selected in the skew select
matrix. The operational range of the VCO is determined by the
FS control pin. The time unit (t
U
) is determined by the operating
frequency of the device and the level of the FS pin as shown in
Table 1.
Table 1. Frequency Range Select and t
U
FS
[2,3]
LOW
MID
HIGH
f
NOM
(MHz)
Min
15
25
40
Max
30
50
100
Calculation
[1]
Divide by 2 Divide by 2
1
Approximate
-
t
U
=
-----------------------
f
NOM
×
N
Frequency (MHz) At
where N =
44
26
16
Which t
U
= 1.0 ns
22.7
38.5
62.5
Notes
1. For all three state inputs, HIGH indicates a connection to VCC, LOW indicates a connection to GND, and MID indicates an open connection. Internal termination
circuitry holds an unconnected input to VCC/2.
2. The level to be set on FS is determined by the “normal” operating frequency (fNOM) of the VCO and Time Unit Generator (see
Logic Block Diagram).
Nominal
frequency (fNOM) always appears at 1Q0 and the other outputs when they are operated in their undivided modes (see
Table 2).
The frequency appearing at the REF
and FB inputs will be fNOM when the output connected to FB is undivided. The frequency of the REF and FB inputs will be fNOM/2 or fNOM/4 when the part is
configured for a frequency multiplication by using a divided output as the FB input.
3. When the FS pin is selected HIGH, the REF input must not transition upon power-up until VCC has reached 4.3V.
Document Number: 38-07209 Rev. *C
Page 3 of 13
[+] Feedback
CY7B9911
RoboClock+™
Figure 1. Typical Outputs with FB Connected to a Zero-Skew Output
[4]
t
0
– 6t
U
t
0
– 5t
U
t
0
– 4t
U
t
0
– 3t
U
t
0
– 2t
U
t
0
– 1t
U
U
U
U
U
U
t
0
+1t
t
0
+2t
t
0
+3t
t
0
+4t
t
0
+5t
FB Input
REF Input
1Fx
2Fx
(N/A)
LL
LM
LH
ML
MM
MH
HL
HM
HH
(N/A)
(N/A)
(N/A)
3Fx
4Fx
LM
LH
(N/A)
ML
(N/A)
MM
(N/A)
MH
(N/A)
HL
HM
LL/HH
HH
– 6t
U
– 4t
U
– 3t
U
– 2t
U
– 1t
U
0t
U
+1t
U
+2t
U
+3t
U
+4t
U
+6t
U
DIVIDED
INVERT
Test Mode
The TEST input is a three level input. In normal system
operation, this pin is connected to ground, enabling the
CY7B9911 to operate as explained in the previous section (for
testing purposes). Any of the three level inputs can have a
removable jumper to ground or be tied LOW through a 100Ω
resistor. This enables an external tester to change the state of
these pins.
If the TEST input is forced to its MID or HIGH state, the device
operates with its internal phase locked loop disconnected, and
input levels supplied to REF directly control all outputs. Relative
output to output functions are the same as in normal mode.
In contrast with normal operation (TEST tied LOW), all outputs
function based only on the connection of their own function
select inputs (xF0 and xF1) and the waveform characteristics of
the REF input.
Note
4. FB connected to an output selected for “zero” skew (i.e., xF1 = xF0 = MID).
Maximum Ratings
Operating outside these boundaries may affect the performance
and life of the device. These user guidelines are not tested.
Storage Temperature ................................. –65
°
C to +150
°
C
Ambient Temperature with
Power Applied ............................................ –55
°
C to +125
°
C
Supply Voltage to Ground Potential................–0.5V to +7.0V
DC Input Voltage ............................................–0.5V to +7.0V
Output Current into Outputs (LOW)............................. 64 mA
Latch Up Current ..................................................... >200 mA
Document Number: 38-07209 Rev. *C
t
0
+6t
t
0
U
Page 4 of 13
[+] Feedback
CY7B9911
RoboClock+™
Operating Range
Range
Commercial
Ambient
Temperature
0
°
C to +70
°
C
V
CC
5V
±
10%
Electrical Characteristics
Over the Operating Range
CY7B9911
Parameter
V
OH
V
OL
V
IH
V
IL
V
IHH
V
IMM
V
ILL
I
IH
I
IL
I
IHH
I
IMM
I
ILL
I
OS
I
CCQ
I
CCN
PD
Description
Output HIGH Voltage
Output LOW Voltage
Input HIGH Voltage
(REF and FB inputs only)
Input LOW Voltage
(REF and FB inputs only)
Three Level Input HIGH
Voltage (Test, FS, xFn)
[5]
Three Level Input MID
Voltage (Test, FS, xFn)
[5]
Three Level Input LOW
Voltage (Test, FS, xFn)
[5]
Input HIGH Leakage Current (REF and
FB inputs only)
Input LOW Leakage Current (REF and
FB inputs only)
Input HIGH Current
(Test, FS, xFn)
Input MID Current
(Test, FS, xFn)
Input LOW Current
(Test, FS, xFn)
Output Short Circuit
Current
[5]
Operating Current Used by
Internal Circuitry
Output Buffer Current per
Output Pair
[6]
Power Dissipation per
Output Pair
[8]
Min £ V
CC
£ Max
Min £ V
CC
£ Max
Min £ V
CC
£ Max
V
CC
= Max, V
IN
= Max.
V
CC
= Max, V
IN
= 0.4V
V
IN
= V
CC
V
IN
= V
CC
/2
V
IN
= GND
V
CC
= Max, V
OUT
= GND (25
×
C only)
V
CCN
= V
CCQ
= Max, Com’l
All Input
Selects Open
V
CCN
= V
CCQ
= Max,
I
OUT
= 0 mA
Input Selects Open, f
MAX
V
CCN
= V
CCQ
= Max,
I
OUT
= 0 mA
Input Selects Open, f
MAX
–50
–500
200
50
–200
–250
85
Test Conditions
V
CC
= Min, I
OH
= –16 mA
V
CC
= Min, I
OH
=–40 mA
V
CC
= Min, I
OL
= 46 mA
V
CC
= Min, I
OL
= 46 mA
2.0
–0.5
V
CC
– 0.85
V
CC
/2 – 500 mV
0.0
V
CC
0.8
V
CC
V
CC
/2 + 500 mV
0.85
10
V
V
V
V
V
µA
µA
µA
µA
µA
mA
mA
0.45
V
2.4
Min
Max
Unit
V
14
mA
78
mW
Notes
5. These inputs are normally wired to VCC, GND, or left unconnected (actual threshold voltages vary as a percentage of VCC). Internal termination resistors
hold unconnected inputs at VCC/2. If these inputs are switched, the function and timing of the outputs glitch and the PLL requires an additional tLOCK time
before all datasheet limits are achieved.
6. CY7B9911 must be tested one output at a time, output shorted for less than one second, less than 10% duty cycle. Room temperature only.
7. Total output current per output pair is approximated by the following expression that includes device current plus load current:
Where F = frequency in MHz; C = capacitive load in pF; Z = line impedance in ohms; N = number of loaded outputs; 0, 1, or 2; FC = F * C.
8. Total power dissipation per output pair is approximated by the following expression that includes device power dissipation plus power dissipation due to the
This window is the project property window in Keil. Through this window, you can detect whether there is an STM32 chip. If there is, it will be displayed in the red box:And this is the J_Link debug in...
Program features: 1: The program uses 430launchpad+ccs5, no additional circuits are required, no external crystal oscillator is needed, just a 2553, just a speaker or headphone connected to P2.4 and P...
[i=s]This post was last edited by jinglixixi on 2021-4-4 17:36[/i]1. First acquaintance
The long-awaited AT32F421 development board arrived as promised. The transparent outer packaging is still the sa...
[size=3][font=微软雅黑, 宋体] The circuit whose output voltage is in a differential relationship with the input voltage is a differential circuit, which is usually composed of a capacitor and a resistor; th...
As the most popular and universal interface on PC, USB interface can connect various types of devices, has simple connection, plug and play, supports hot plug, does not need to provide independent pow...
stm32/stm8
京公网安备 11010802033920号
EEWORLD
