PSoC
®
3: CY8C32 Family
Data Sheet
Programmable System-on-Chip (PSoC
®
)
General Description
With its unique array of configurable blocks, PSoC
®
3 is a true ystem level solution providing microcontroller unit (MCU), memory,
analog, and digital peripheral functions in a single chip. The CY8C32 family offers a modern method of signal acquisition, signal
processing, and control with high accuracy, high bandwidth, and high flexibility. Analog capability spans the range from thermocouples
(near DC voltages) to ultrasonic signals. The CY8C32 family can handle dozens of data acquisition channels and analog inputs on
every general-purpose input/output (GPIO) pin. The CY8C32 family is also a high-performance configurable digital system with some
part numbers including interfaces such as USB, and multimaster inter-integrated circuit (I
2
C). In addition to communication interfaces,
the CY8C32 family has an easy to configure logic array, flexible routing to all I/O pins, and a high-performance single cycle 8051
microprocessor core. You can easily create system-level designs using a rich library of prebuilt components and boolean primitives
using PSoC Creator™, a hierarchical schematic design entry tool. The CY8C32 family provides unparalleled opportunities for analog
and digital bill of materials integration while easily accommodating last minute design changes through simple firmware updates.
Features
Single cycle 8051 CPU core
DC to 50 MHz operation
Multiply and divide instructions
Flash program memory, up to 64 KB, 100,000 write cycles,
20 years retention, and multiple security features
Up to 8-KB flash error correcting code (ECC) or configuration
storage
Up to 8 KB SRAM
Up to 2 KB electrically erasable programmable read-only
memory (EEPROM), 1 M cycles, and 20 years retention
24-channel direct memory access (DMA) with multilayer
AHB
[1]
bus access
• Programmable chained descriptors and priorities
• High bandwidth 32-bit transfer support
Low voltage, ultra low-power
Wide operating voltage range: 0.5 V to 5.5 V
High efficiency boost regulator from 0.5-V through 1.8-V to
5.0-V output
0.8 mA at 3 MHz, 1.2 mA at 6 MHz, and 6.6 mA at 50 MHz
Low-power modes including:
• 1-µA sleep mode with real-time clock (RTC) and
low-voltage detect (LVD) interrupt
• 200-nA hibernate mode with RAM retention
Versatile I/O system
28 to 72 I/O (62 GPIOs, eight special input/outputs (SIO),
two USBIOs
[2]
)
Any GPIO to any digital or analog peripheral routability
LCD direct drive from any GPIO, up to 46×16 segments
[2]
CapSense
®
support from any GPIO
[3]
1.2-V to 5.5-V I/O interface voltages, up to four domains
Maskable, independent IRQ on any pin or port
Schmitt-trigger transistor-transistor logic (TTL) inputs
All GPIO configurable as open drain high/low,
pull-up/pull-down, High Z, or strong output
Configurable GPIO pin state at power-on reset (POR)
25 mA sink on SIO
Digital peripherals
16 to 24 programmable PLD based universal digital
blocks (UDB)
Full-speed (FS) USB 2.0 12 Mbps using internal oscillator
[2]
Up to four 16-bit configurable timer, counter, and PWM blocks
Library of standard peripherals
• 8-, 16-, 24-, and 32-bit timers, counters, and PWMs
• Serial peripheral interface (SPI), universal asynchronous
transmitter receiver (UART), and I
2
C
• Many others available in catalog
Library of advanced peripherals
• Cyclic redundancy check (CRC)
• Pseudo random sequence (PRS) generator
• Local interconnect network (LIN) bus 2.0
• Quadrature decoder
Analog peripherals (1.71 V
≤
V
DDA
≤
5.5 V)
1.024 V ±0.9-percent internal voltage reference across –40°C
to +85°C (14 ppm/°C)
Configurable delta-sigma ADC with 8- to12-bit resolution
• Programmable gain stage: ×0.25 to ×16
• 12-bit mode, 192-ksps, 66-dB signal to noise and distortion
ratio (SINAD), ±1-bit INL/DNL
One 8-bit, 8-Msps IDAC or 1-Msps VDAC
Two comparators with 95 ns response time
CapSense support
Programming, debug, and trace
JTAG (4-wire), serial wire debug (SWD) (2-wire), and single
wire viewer (SWV) interfaces
Eight address and one data breakpoint
4-KB instruction trace buffer
Bootloader programming supportable through I
2
C, SPI,
UART, USB, and other interfaces
Precision, programmable clocking
3- to 24-MHz internal oscillator over full temperature and
voltage range
4- to 25-MHz crystal oscillator for crystal PPM accuracy
Internal PLL clock generation up to 50 MHz
32.768-kHz watch crystal oscillator
Low-power internal oscillator at 1, 33, and 100 kHz
Temperature and packaging
–40°C to +85°C degrees industrial temperature
48-pin SSOP, 48-pin QFN, 68-pin QFN, and 100-pin TQFP
package options
Notes
1. AHB – AMBA (advanced microcontroller bus architecture) high-performance bus, an ARM data transfer bus
2. This feature on select devices only. See
Ordering Information
on page 106 for details.
3. GPIOs with opamp outputs are not recommended for use with CapSense.
Cypress Semiconductor Corporation
Document Number: 001-56955 Rev. *J
•
198 Champion Court
•
San Jose
,
CA 95134-1709
•
408-943-2600
Revised March 30, 2011
[+] Feedback
PSoC
®
3: CY8C32 Family
Data Sheet
Contents
1. Architectural Overview ..................................................... 3
2. Pinouts ............................................................................... 5
3. Pin Descriptions .............................................................. 10
4. CPU ................................................................................... 11
4.1 8051 CPU ................................................................. 11
4.2 Addressing Modes .................................................... 11
4.3 Instruction Set .......................................................... 12
4.4 DMA and PHUB ....................................................... 16
4.5 Interrupt Controller ................................................... 18
5. Memory ............................................................................. 22
5.1 Static RAM ............................................................... 22
5.2 Flash Program Memory ............................................ 22
5.3 Flash Security ........................................................... 22
5.4 EEPROM .................................................................. 22
5.5 Nonvolatile Latches (NVLs) ...................................... 23
5.6 External Memory Interface ....................................... 24
5.7 Memory Map ............................................................ 24
6. System Integration .......................................................... 26
6.1 Clocking System ....................................................... 26
6.2 Power System .......................................................... 29
6.3 Reset ........................................................................ 33
6.4 I/O System and Routing ........................................... 34
7. Digital Subsystem ........................................................... 40
7.1 Example Peripherals ................................................ 41
7.2 Universal Digital Block .............................................. 44
7.3 UDB Array Description ............................................. 47
7.4 DSI Routing Interface Description ............................ 47
7.5 USB .......................................................................... 49
7.6 Timers, Counters, and PWMs .................................. 49
7.7 I
2
C ............................................................................ 49
8. Analog Subsystem .......................................................... 51
8.1 Analog Routing ......................................................... 52
8.2 Delta-sigma ADC ...................................................... 54
8.3 Comparators ............................................................. 55
8.4 LCD Direct Drive ...................................................... 57
8.5 CapSense ................................................................. 57
8.6 Temp Sensor ............................................................ 57
8.7 DAC .......................................................................... 58
9. Programming, Debug Interfaces, Resources ................ 59
9.1 JTAG Interface ......................................................... 59
9.2 Serial Wire Debug Interface ..................................... 59
9.3 Debug Features ........................................................ 59
9.4 Trace Features ......................................................... 59
9.5 Single Wire Viewer Interface .................................... 60
9.6 Programming Features ............................................. 60
9.7 Device Security ........................................................ 60
10. Development Support ................................................... 61
10.1 Documentation ....................................................... 61
10.2 Online ..................................................................... 61
10.3 Tools ....................................................................... 61
11. Electrical Specifications ............................................... 62
11.1 Absolute Maximum Ratings .................................... 62
11.2 Device Level Specifications .................................... 63
11.3 Power Regulators ................................................... 67
11.1 Inputs and Outputs ................................................. 71
11.2 Analog Peripherals ................................................. 79
11.3 Digital Peripherals .................................................. 91
11.4 Memory .................................................................. 94
11.5 PSoC System Resources ..................................... 100
11.6 Clocking ................................................................ 102
12. Ordering Information ................................................... 106
12.1 Part Numbering Conventions ............................... 108
13. Packaging ..................................................................... 109
14. Acronyms ..................................................................... 112
15. Reference Documents ................................................. 113
16. Document Conventions .............................................. 114
16.1 Units of Measure .................................................. 114
17. Revision History .......................................................... 115
18. Sales, Solutions, and Legal Information ................... 119
Document Number: 001-56955 Rev. *J
Page 2 of 119
[+] Feedback
PSoC
®
3: CY8C32 Family
Data Sheet
1. Architectural Overview
Introducing the CY8C32 family of ultra low-power, flash Programmable System-on-Chip (PSoC
®
) devices, part of a scalable 8-bit
PSoC 3 and 32-bit PSoC 5 platform. The CY8C32 family provides configurable blocks of analog, digital, and interconnect circuitry
around a CPU subsystem. The combination of a CPU with a flexible analog subsystem, digital subsystem, routing, and I/O enables
a high level of integration in a wide variety of consumer, industrial, and medical applications.

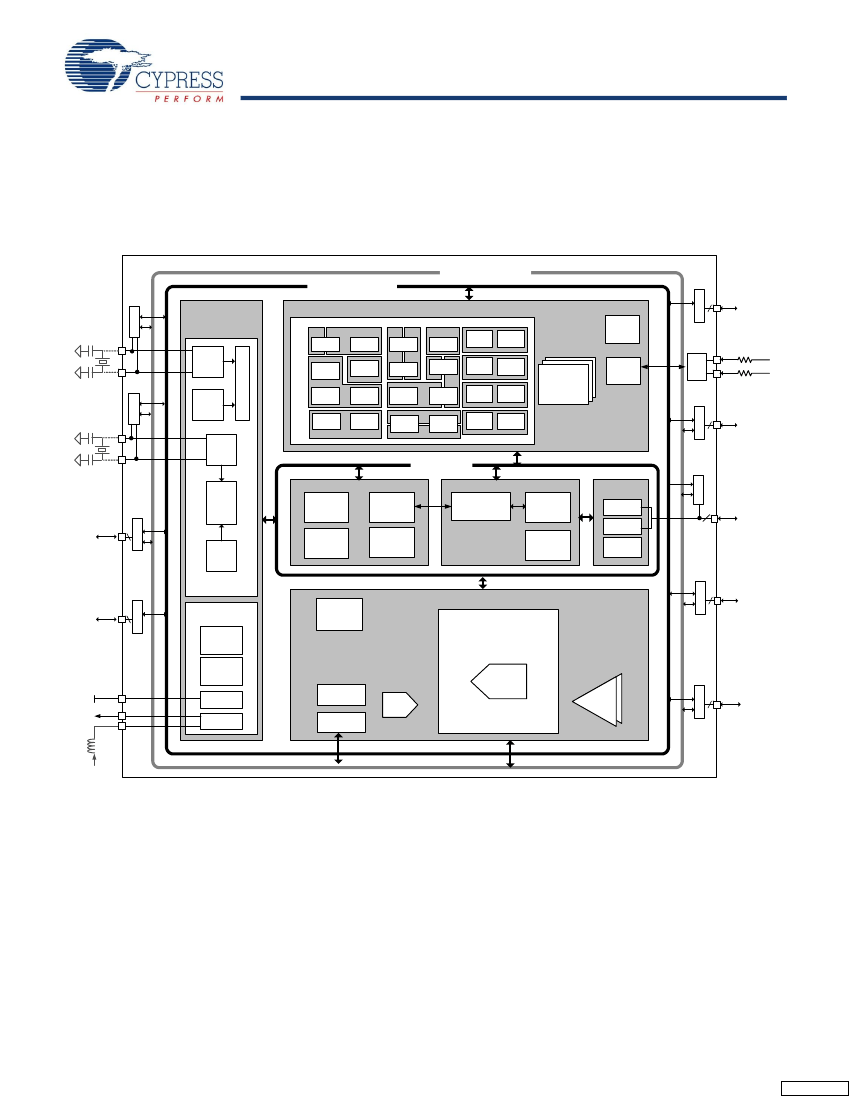

Figure 1-1. Simplified Block Diagram
Analog Interconnect
Digital Interconnect
SIO
GPIOs
Usage Example for UDB
Sequencer
4- 33 MHz
( Optional
)
System Wide
Resources
Xtal
Osc
Digital System
Universal Digital Block Array ( 24 x UDB)
8- Bit
Timer
UDB
Quadrature Decoder
UDB
16- Bit
PWM
UDB
16- Bit PRS
UDB
UDB
UDB
I2C
Master
/
Slave
22
Ω
UDB
UDB
8- Bit
Timer
Logic
UDB
UDB
UDB
UDB
I2C Slave
UDB
UDB
8- Bit SPI
12- Bit SPI
UDB
UDB
GPIOs
UDB
UDB
IMO
4x
Timer
Counter
PWM
FS USB
2.0
USB
PHY
Clock Tree
Logic
UDB
UART
UDB
UDB
12- Bit PWM
UDB
UDB
UDB
GPIOs
32. 68 KHz
7
( Optional
)
RTC
Timer
System Bus
WDT
and
Wake
GPIOs
Memory System
EEPROM
SRAM
CPU System
8051 or
Cortex M3
CPU
Interrupt
Controller
Program &
Debug
Program
Debug &
Trace
GPIOs
EMIF
ILO
Clocking System
FLASH
PHUB
DMA
Boundary
Scan
GPIOs
SIOs
Power Management
System
Analog System
LCD Direct
Drive
POR and
LVD
Sleep
Power
1.71 to
5.5V
1.8V LDO
SMP
Temperature
Sensor
CapSense
ADC
Del Sig
ADC
DAC
2x
CMP
+
GPIOs
-
0. 5 to 5.5V
( Optional
)
Figure 1-1
illustrates the major components of the CY8C32
family. They are:
8051 CPU subsystem
Nonvolatile subsystem
Programming, debug, and test subsystem
Inputs and outputs
Clocking
Power
Digital subsystem
Analog subsystem
Document Number: 001-56955 Rev. *J
PSoC’s digital subsystem provides half of its unique
configurability. It connects a digital signal from any peripheral to
any pin through the Digital System Interconnect (DSI). It also
provides functional flexibility through an array of small, fast,
low-power UDBs. PSoC Creator provides a library of prebuilt and
tested standard digital peripherals (UART, SPI, LIN, PRS, CRC,
timer, counter, PWM, AND, OR, and so on) that are mapped to
the UDB array. You can also easily create a digital circuit using
boolean primitives by means of graphical design entry. Each
UDB contains programmable array logic (PAL)/programmable
logic device (PLD) functionality, together with a small state
machine engine to support a wide variety of peripherals.
Page 3 of 119
[+] Feedback
PSoC
®
3: CY8C32 Family
Data Sheet
In addition to the flexibility of the UDB array, PSoC also provides
configurable digital blocks targeted at specific functions. For the
CY8C32 family these blocks can include four 16-bit timers,
counters, and PWM blocks; I
2
C slave, master, and multimaster;
and FS USB.
For more details on the peripherals see the
“Example
Peripherals”
section on page 41 of this datasheet. For
information on UDBs, DSI, and other digital blocks, see the
“Digital Subsystem”
section on page 40 of this datasheet.
PSoC’s analog subsystem is the second half of its unique
configurability. All analog performance is based on a highly
accurate absolute voltage reference with less than 0.9-percent
error over temperature and voltage. The configurable analog
subsystem includes:
Analog muxes
Comparators
Voltage references
ADC
DAC
All GPIO pins can route analog signals into and out of the device
using the internal analog bus. This allows the device to interface
up to 62 discrete analog signals. The heart of the analog
subsystem is a fast, accurate, configurable delta-sigma ADC
with these features:
Less than 100 µV offset
A gain error of 0.2 percent
INL less than ±1 LSB
DNL less than ±1 LSB
SINAD better than 66 dB
This converter addresses a wide variety of precision analog
applications, including some of the most demanding sensors.
A high-speed voltage or current DAC supports 8-bit output
signals at an update rate of 8 Msps in current DAC (IDAC) and
1 Msps in voltage DAC (VDAC). It can be routed out of any GPIO
pin. You can create higher resolution voltage PWM DAC outputs
using the UDB array. This can be used to create a pulse width
modulated (PWM) DAC of up to 10 bits, at up to 48 kHz. The
digital DACs in each UDB support PWM, PRS, or delta-sigma
algorithms with programmable widths.
In addition to the ADC and DAC, the analog subsystem provides
multiple comparators.
See the
“Analog Subsystem”
section on page 51 of this
datasheet for more details.
PSoC’s 8051 CPU subsystem is built around a single cycle
pipelined 8051 8-bit processor running at up to 50 MHz. The
CPU subsystem includes a programmable nested vector
interrupt controller, DMA controller, and RAM. PSoC’s nested
vector interrupt controller provides low latency by allowing the
CPU to vector directly to the first address of the interrupt service
routine, bypassing the jump instruction required by other
architectures. The DMA controller enables peripherals to
exchange data without CPU involvement. This allows the CPU
to run slower (saving power) or use those CPU cycles to improve
the performance of firmware algorithms. The single cycle 8051
CPU runs ten times faster than a standard 8051 processor. The
processor speed itself is configurable, allowing you to tune active
power consumption for specific applications.
PSoC’s nonvolatile subsystem consists of flash, byte-writeable
EEPROM, and nonvolatile configuration options. It provides up
to 64 KB of on-chip flash. The CPU can reprogram individual
blocks of flash, enabling bootloaders. You can enable an ECC
for high reliability applications. A powerful and flexible protection
model secures the user's sensitive information, allowing
selective memory block locking for read and write protection. Up
to 2 KB of byte-writeable EEPROM is available on-chip to store
application data. Additionally, selected configuration options
such as boot speed and pin drive mode are stored in nonvolatile
memory. This allows settings to activate immediately after POR.
The three types of PSoC I/O are extremely flexible. All I/Os have
many drive modes that are set at POR. PSoC also provides up
to four I/O voltage domains through the V
DDIO
pins. Every GPIO
has analog I/O, LCD drive
[4]
, CapSense
[5]
, flexible interrupt
generation, slew rate control, and digital I/O capability. The SIOs
on PSoC allow Voh to be set independently of V
DDIO
when used
as outputs. When SIOs are in input mode they are high
impedance. This is true even when the device is not powered or
when the pin voltage goes above the supply voltage. This makes
the SIO ideally suited for use on an I
2
C bus where the PSoC may
not be powered when other devices on the bus are. The SIO pins
also have high current sink capability for applications such as
LED drives. The programmable input threshold feature of the
SIO can be used to make the SIO function as a general purpose
analog comparator. For devices with FS USB the USB physical
interface is also provided (USBIO). When not using USB these
pins may also be used for limited digital functionality and device
programming. All of the features of the PSoC I/Os are covered
in detail in the
“I/O System and Routing”
section on page 34 of
this datasheet.
The PSoC device incorporates flexible internal clock generators,
designed for high stability and factory trimmed for high accuracy.
The Internal Main Oscillator (IMO) is the master clock base for
the system, and has 1-percent accuracy at 3 MHz. The IMO can
be configured to run from 3 MHz up to 24 MHz. Multiple clock
derivatives can be generated from the main clock frequency to
meet application needs. The device provides a PLL to generate
system clock frequencies up to 50 MHz from the IMO, external
crystal, or external reference clock. It also contains a separate,
very low-power Internal Low-Speed Oscillator (ILO) for the sleep
and watchdog timers. A 32.768-kHz external watch crystal is
also supported for use in RTC applications. The clocks, together
with programmable clock dividers, provide the flexibility to
integrate most timing requirements.
The CY8C32 family supports a wide supply operating range from
1.71 V to 5.5 V. This allows operation from regulated supplies
such as 1.8 ± 5 percent, 2.5 V ±10 percent, 3.3 V ± 10 percent,
or 5.0 V ± 10 percent, or directly from a wide range of battery
types. In addition, it provides an integrated high efficiency
synchronous boost converter that can power the device from
supply voltages as low as 0.5 V.
Notes
4. This feature on select devices only. See
Ordering Information
on page 106 for details.
5. GPIOs with opamp outputs are not recommended for use with CapSense.
Document Number: 001-56955 Rev. *J
Page 4 of 119
[+] Feedback
PSoC
®
3: CY8C32 Family
Data Sheet
This enables the device to be powered directly from a single
battery or solar cell. In addition, you can use the boost converter
to generate other voltages required by the device, such as a
3.3-V supply for LCD glass drive. The boost’s output is available
on the V
BOOST
pin, allowing other devices in the application to
be powered from the PSoC.
PSoC supports a wide range of low-power modes. These include
a 200-nA hibernate mode with RAM retention and a 1-µA sleep
mode with RTC. In the second mode the optional 32.768-kHz
watch crystal runs continuously and maintains an accurate RTC.
Power to all major functional blocks, including the programmable
digital and analog peripherals, can be controlled independently
by firmware. This allows low-power background processing
when some peripherals are not in use. This, in turn, provides a
total device current of only 1.2 mA when the CPU is running at
6 MHz, or 0.8 mA running at 3 MHz.
The details of the PSoC power modes are covered in the
“Power
System”
section on page 29 of this datasheet.
PSoC uses JTAG (4-wire) or SWD (2-wire) interfaces for
programming, debug, and test. The 1-wire SWV may also be
used for “printf” style debugging. By combining SWD and SWV,
you can implement a full debugging interface with just three pins.
Using these standard interfaces enables you to debug or
program the PSoC with a variety of hardware solutions from
Cypress or third party vendors. PSoC supports on-chip break
points and 4-KB instruction and data race memory for debug.
Details of the programming, test, and debugging interfaces are
discussed in the
“Programming, Debug Interfaces, Resources”
section on page 59 of this datasheet.
2. Pinouts
The Vddio pin that supplies a particular set of pins is indicated
by the black lines drawn on the pinout diagrams in
Figure 2-1
through
Figure 2-4.
Using the Vddio pins, a single PSoC can
support multiple interface voltage levels, eliminating the need for
off-chip level shifters. Each Vddio may sink up to 100 mA total to
its associated I/O pins. On the 68 pin and 100 pin devices each
set of Vddio associated pins may sink up to 100 mA. The 48-pin
device may sink up to 100 mA total for all Vddio0 plus Vddio2
associated I/O pins and 100 mA total for all Vddio1 plus Vddio3
associated I/O pins.
Figure 2-1. 48-pin SSOP Part Pinout
(SIO ) P12[2]
(SIO ) P12[3]
(GPIO) P0[0]
(GPIO) P0[1]
(GPIO) P0[2]
(Extref0, GPIO) P0[3]
Vddio0
(GPIO) P0[4]
(GPIO) P0[5]
(IDAC0, GPIO) P0[6]
(GPIO) P0[7]
Vccd
Vssd
Vddd
(GPIO) P2[3]
(GPIO) P2[4]
Vddio2
(GPIO) P2[5]
(GPIO) P2[6]
(GPIO) P2[7]
Vssb
Ind
Vboost
Vbat
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
Vdda
Vssa
Vcca
P15[3] (GPIO, kHz XTAL: Xi)
P15[2] (GPIO, kHz XTAL: Xo)
P12[1] (SIO, I2C1: SDA)
P12[0] (SIO, I2C1: SCL)
Vddio3
P15[1] (GPIO, MHz XTAL: Xi)
P15[0] (GPIO, MHz XTAL: Xo)
Vccd
Vssd
Vddd
[6]
P15[7] (USBIO, D-, SW DCK)
[6]
P15[6] (USBIO, D+, SW DIO)
P1[7] (GPIO)
P1[6] (GPIO)
Vddio1
P1[5] (GPIO, nTRST)
P1[4] (GPIO, TDI)
P1[3] (GPIO, TDO, SW V)
P1[2] (GPIO, configurable XRES)
P1[1] (GPIO, TCK, SW DCK)
P1[0] (GPIO, TMS, SW DIO)
Lines show
Vddio to I/O
supply
association
SSOP
Note
6. Pins are Do Not Use (DNU) on devices without USB. The pin must be left floating.
Document Number: 001-56955 Rev. *J
Page 5 of 119
[+] Feedback
京公网安备 11010802033920号
EEWORLD
