P10SG-1209EH30: Description3 KV ISOLATED 2W REGULATED SINGLE OUTPUT DIP24; File Size114KB，2 Pages; ManufacturerPEAK; Websitehttp://www.peakf.com/

Download Datasheet View All

P10SG-1209EH30 Overview

3 KV ISOLATED 2W REGULATED SINGLE OUTPUT DIP24

Preview

Download Datasheet

View All

Telefon: +49 (0) 6135 931069

Telefax: +49 (0) 6135 931070

www.peak-electronics.de

info@peak-electronics.de

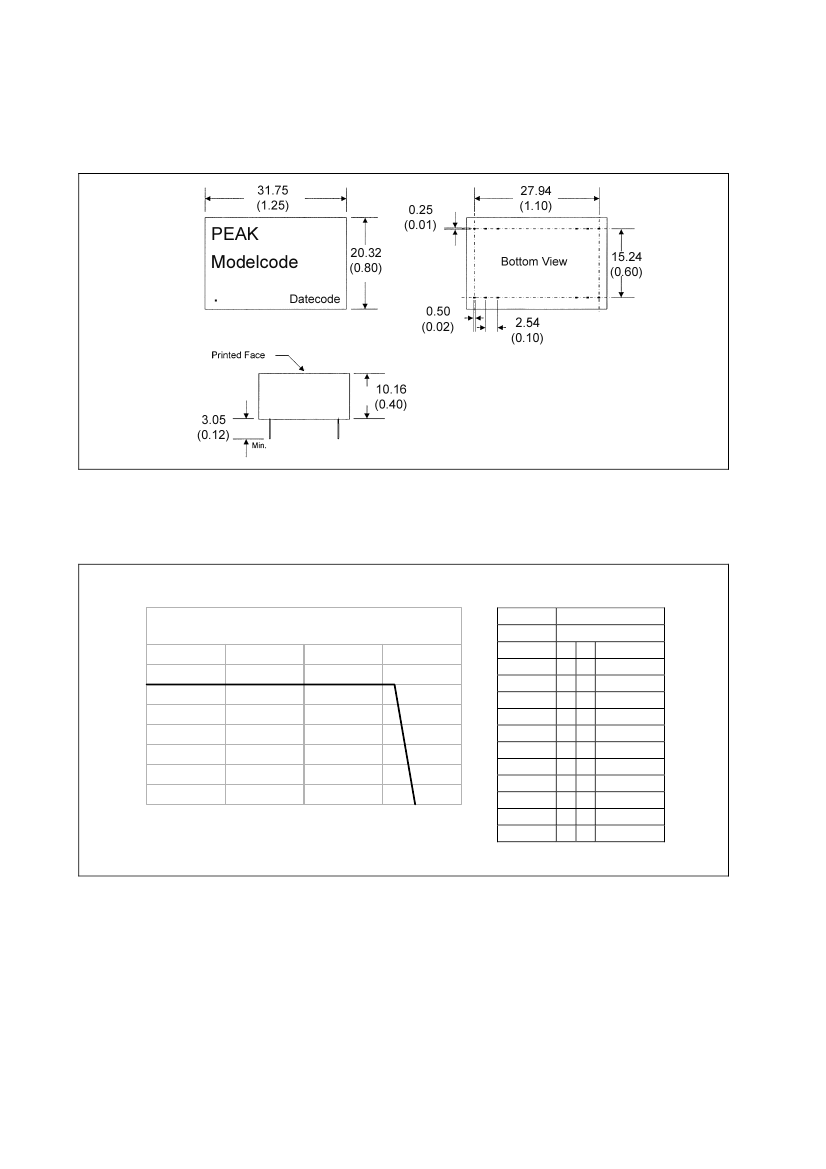

M5 SERIES

P10SG-XXXXEH30 3 KV ISOLATED 2W REGULATED SINGLE OUTPUT DIP24

Available Inputs:

5, 12 and 24 VDC

Available Outputs:

3.6, 5, 7.2, 9, 12, 15 and 18 VDC

Other specifications please enquire.

Electrical Specifications

(Typical at + 25° C, nominal input voltage, rated output current unless otherwise specified)

Input Specifications

Voltage range

Filter

Isolation Specifications

Rated voltage

Leakage current

Resistance

Capacitance

Output Specifications

Voltage accuracy

Ripple and noise (at 20 MHz BW)

Short circuit protection

Line voltage regulation

Load voltage regulation

Temperature coefficient

General Specifications

Efficiency

Switching frequency

Environmental Specifications

Operating temperature (ambient)

Storage temperature

Derating

Humidity

Cooling

Physical Characteristics

Dimensions

Weight

Case material

+/- 10 %

Pi Network

3000 Vdc

1 mA

Ohm

60 pF typ.

+/- 2 %, max.

75 mV p-p, max.

Continuous , restart automatic

+/- 0,5 % max.

+/- 0,02 % / °C

65 % to 85 %

125 KHz, typ.

-40°C to +85°C

- 55 °C to + 125 °C

See graph

Up to 90 %, non condensing

Free air convection

31,75 x 20,32 x 10,16 mm

1,25 x 0,80 x 0,40 inches

12,2 g

Non conductive black plastic

Examples of Partnumbers/Modelcode

PART

NO.

INPUT

VOLTAGE

(VDC)

Nominal

INPUT

CURRENT

NO LOAD

INPUT

CURRENT

FULL

LOAD

OUTPUT

VOLTAGE

(VDC)

OUTPUT

CURRENT

(max. mA)

EFFICIENCY FULL LOAD

(% TYP.)

P10SG-0505EH30

P10SG-0509EH30

P10SG-1205EH30

P10SG-1209EH30

P10SG-1212EH30

P10SG-2405EH30

615

545

252

220

245

128

400

200

400

200

167

400
