940C12W1P5K-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 940C12W1P5K-F

940C12W1P5K-F: Descriptionfilm capacitors 1.5uf 1200v 10%; CategoryPassive components; File Size132KB，6 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

940C12W1P5K-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	940C12W1P5K-F	-	-	View	Buy Now

940C12W1P5K-F Overview

film capacitors 1.5uf 1200v 10%

940C12W1P5K-F Parametric

Parameter Name	Attribute value
Manufacture	Cornell Dubilie
Product Category	Film Capacitors
RoHS	Yes
Produc	Snubber Film Capacitors
Dielectric	Polypropylene (PP)
Capacitance	1.5 uF
Voltage Rating AC	500 V
Voltage Rating DC	1.2 kV
Tolerance	10 %
Termination Style	Axial
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 105 C
Case Diamete	35 mm
Case Length	54 mm
Current Rating	754 A
Dissipation Factor DF	0.1
ESR	4 mOhms
Lead Diamete	1.2 mm
Load Life	2000 h
Packaging	Bulk
Factory Pack Quantity	25

Preview

Download Datasheet

View All

Type 940C, Polypropylene Capacitors, for Pulse, Snubber

High dV/dt for Snubber Applications

Type 940 round, axial leaded film capacitors have polypropylene

film and dual metallized electrodes for both self healing

properties and high peak current carrying capability (dV/dt). This

series features low ESR characteristics, excellent high frequency

and high voltage capabilities.

Highlights

- High dV/dt

- High pulse current

- Low inductance

- Self healing

Specifications

Capacitance Range

Capacitance Tolerance

Rated Voltage

Operating Temperature Range with Ripple

Maximum rms Current

Insulation Resistance

Test Voltage between Terminals @ 25 ºC

Test Voltage between Terminals & Case @ 25 ºC

Life Test

Life Expectancy

0.01 to 4.7 µF

±10% Standard Tolerance

600 to 3000 Vdc (275 to 500 Vac, 60 Hz)

–55 ºC to 105 ºC*

*Full rated voltage at 85 ºC - derated linearly to 50% rated at 105 ºC

Check tables for values

> 100,000 MΩ x µF

160% rated DC voltage for 60 s

3 kVac @ 50/60 Hz for 60 s

2,000 h @ 85 ºC, 125% rated DC voltage

60,000 h @ rated Vdc, 70 ºC

30,000 h @ rated Vac, 70 ºC

RoHS Compliant

Dimensions

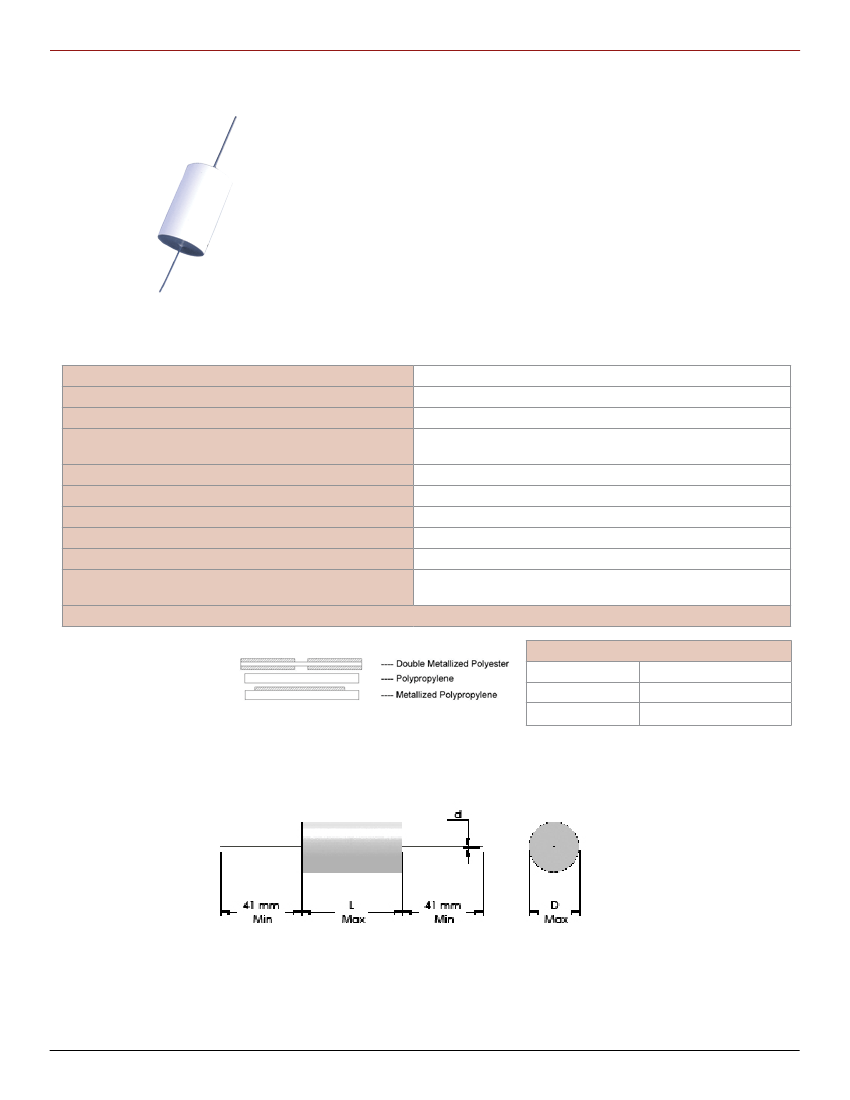

Construction Diagram

Construction Details

Case Material

Resin Material

Terminal Material

UL510 Polyester Tape Wrap

UL94V-0 Epoxy Fill

Tin Plated Copper

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830

Notice and Disclaimer:

All product drawings, descriptions, specifications, statements, information and

data (collectively, the “Information”) in this datasheet or other publication are subject to change. The

customer is responsible for checking, confirming and verifying the extent to which the Information con-

tained in this datasheet or other publication is applicable to an order at the time the order is placed. All

Information given herein is believed to be accurate and reliable, but it is presented without any guaran-

tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability

for certain applications are based on the knowledge that the Cornell Dubilier company providing such

statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards

as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-

tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,

warranty or representation concerning the suitability for a specific customer application, use, storage,

transportation, or operating environment. The Information is intended for use only by customers who

have the requisite experience and capability to determine the correct products for their application. Any

technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference

to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),

and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although

Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design

and manufacturing of its products, in light of the current state of the art, isolated component failures may

still occur. Accordingly, customer applications which require a high degree of reliability or safety should

employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies

or other appropriate protective measures) in order to ensure that the failure of an electrical component

does not result in a risk of personal injury or property damage. Although all product-related warnings,

cautions and notes must be observed, the customer should not assume that all safety measures are indi-

cated in such warnings, cautions and notes, or that other safety measures may not be required.
