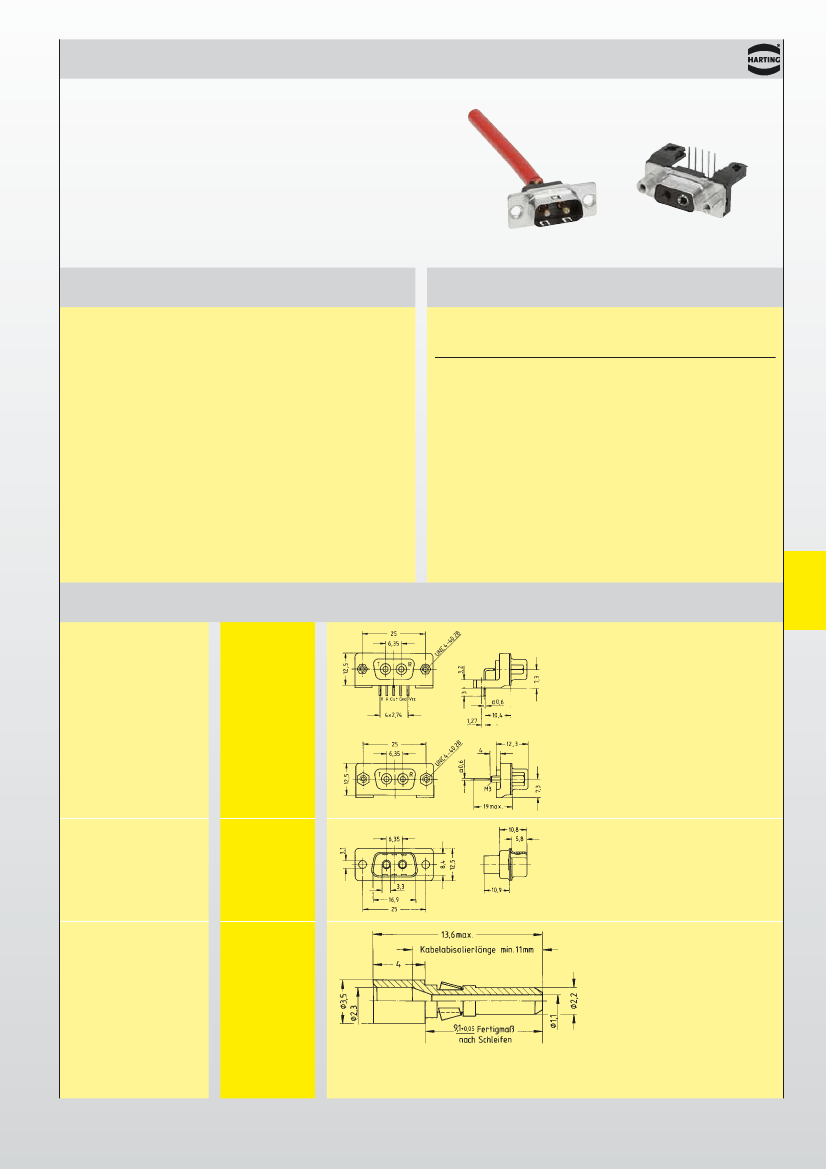

Electro-Optic Converters
in duplex style for short range
transmission with optical fibres
(λ = 660 nm)
Description
•
Electro-optical converters integrated into D-Sub
connector shell housings
Cost-effective solution for fibre optic duplex links
Transmission distance up to 60 m
Standard accessories for D-Sub can be applied
Technical characteristics
General data at T = 25 °C
LED
Operating voltage
Drive current
(max.)
Optical power
70 mA
300 µW (at 20 mA)
600 µW (at 50 mA)
4 µW ... 80 µW
660 nm
TTL, 5 MBit/s
Media
Converter
Receiver
5 V DC ± 5 %
•
•
•
•
Dynamic range
Suitable for 1 mm Ø polymer optical fibres
(λ = 660 nm)
Special housing for heavy duty applications is
available
Part No.
Drawing
Wave-length
Transmission rate
•
Storage temp.
Operating temp.
– 35 ... + 100 °C
– 30 ... + 85 °C
– 55 ... + 100 °C
– 40 ... + 85 °C
Dimensions in mm
Identification
F.O. D-Sub T/E
female connector
angled
20 66 009 3811
straight
(Outer dimensions like
9-pin D-Sub female)
20 66 009 3812
F.O. D-Sub
male connector
20 67 009 3811
(Outer dimensions like
9-pin D-Sub male)
Cavities are designed for HARTING
POF
1)
ferrules.
The mounting/enface-preparation
of the ferrule can be achieved by
crimping, hot-plate technique or
by using adhesive.
Ferrule
1 mm
cladding gauge
2.2 mm
POF
1)
with
20 10 001 3232
The ferrules are snap-mounted into the male connector and can be released with aid
of removal tool 09 99 000 0052 (see catalogue “Heavy Duty Connectors Han
®
”).
1)
F
70
.
03
POF = Polymer-Optical Fibre
Stock items in bold type
