Spec Sheet
Multilayer Ceramic Capacitors (High dielectric type)
EMK063B7103KP-F
Features
Item Summary
0.01uF±10%, 16V,
X7R, 0201/0603 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 15000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
10 GΩ
Yes
Yes
Yes
Reflow
0.01 uF ± 10 %
0201/0603
16 V
5%
X7R
-55 to +125 ℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
0.6 ±0.03 mm
0.3 ±0.03 mm
0.3 ±0.03 mm
0.15 ±0.05 mm
2018.11.30
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Multi Layer Ceramic Capacitor
○EMK063B7103KP
16V 0603 X7R 0.01uF +/- 10% t=0.33mmMAX
16V 0201 X7R 0.01uF +/- 10% t=0.013inchMAX

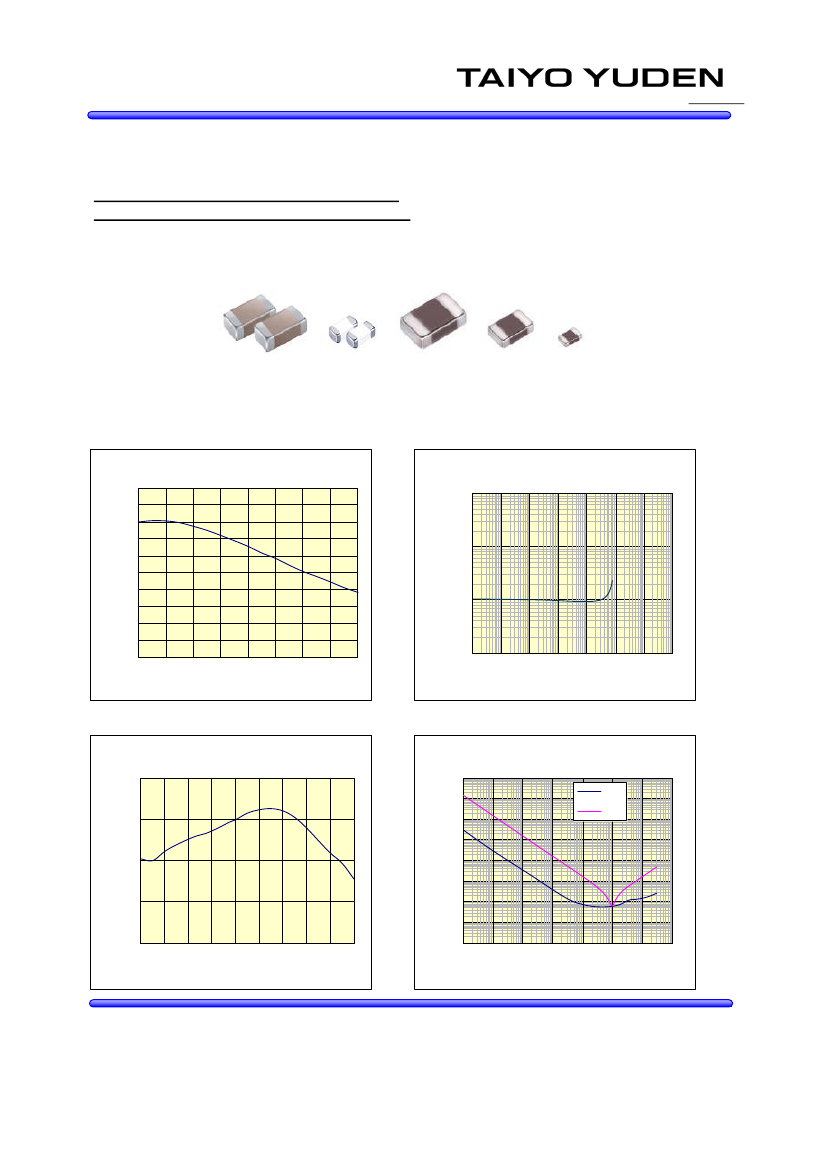

-Electrical Characteristics Data-
16R3A02
RoHS compliance product
20
10
0
-10
-20
-30
-40
-50
-60
-70
-80
0
2
4
EMK063B7103KP
DC Bias Char.
1
EMK063B7103KP
Capacitance Freq.
Capacitance[uF]
0.1
dC/C[%]
0.01
6
8
10 12
DC Bias Voltage[V]
14
16
0.001
0.001 0.01 0.1
1
10
100 100010000
Frequency[MHz]
EMK063B7103KP
Capacitance Temp.
10
100000
10000
0
1000
EMK063B7103KP
Impedance,ESR Freq.
ESR
Z
-10
Z,ESR[OHM]
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
dC/C[%]
100
10
1
0.1
-20
0.01
-30
0.001
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
