1210CC223J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 1210CC223J

1210CC223J: Descriptionmultilayer ceramic capacitors mlcc - smd/smt 630volts 22000pf 5% x7r; CategoryPassive components; File Size56KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

1210CC223J Overview

multilayer ceramic capacitors mlcc - smd/smt 630volts 22000pf 5% x7r

1210CC223J Parametric

Parameter Name	Attribute value
Manufacture	AVX
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
Produc	General Type MLCCs
Type	High Voltage MLCCs for 600 V to 5 kV

Preview

Download Datasheet

View All

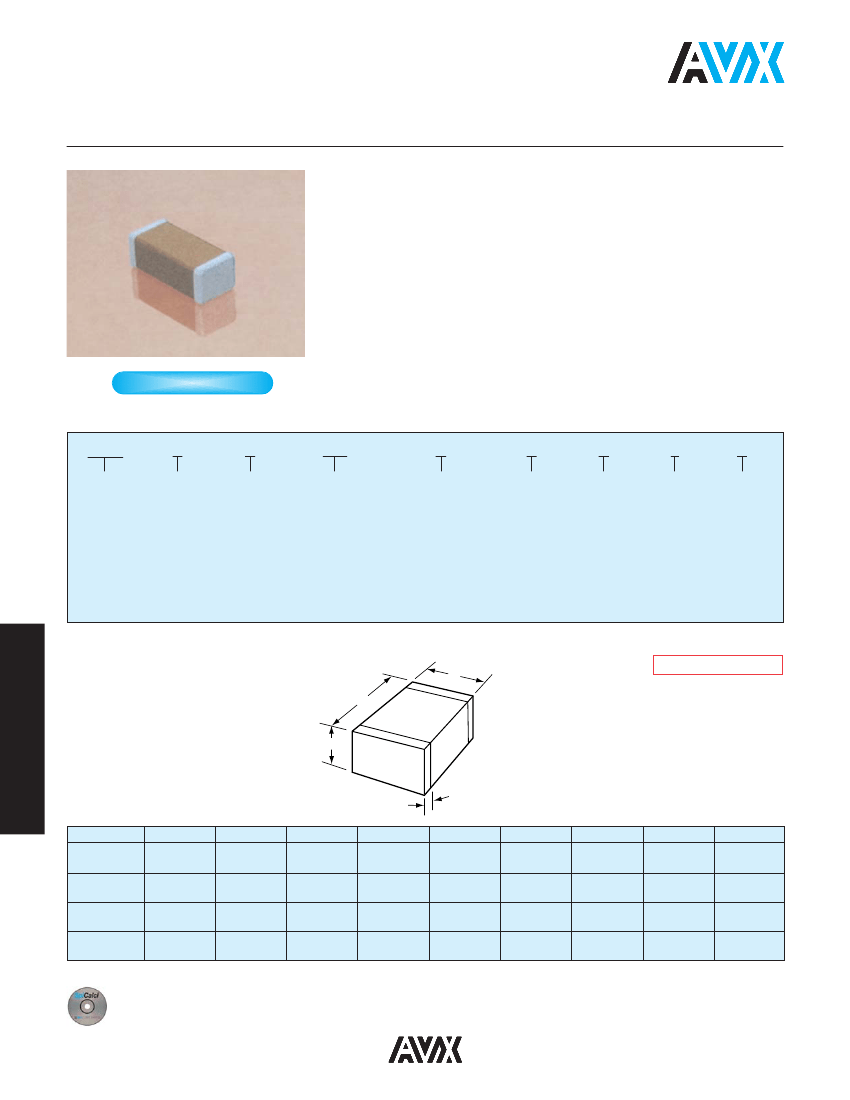

High Voltage MLC Chips

Tin/Lead Termination “B”

For 600V to 5000V Applications

AVX Corporation will support those customers for commercial and military

Multilayer Ceramic Capacitors with a termination consisting of 5% minimum

lead. This termination is indicated by the use of a “B” in the 12th position of the

AVX Catalog Part Number. This fulfills AVX’s commitment to providing a full

range of products to our customers. AVX has provided in the following pages, a

full range of values that we are offering in this “B” termination.

Larger physical sizes than normally encountered chips are used to make high

voltage MLC chip product. Special precautions must be taken in applying these

chips in surface mount assemblies. The temperature gradient during heating or

cooling cycles should not exceed 4ºC per second. The preheat temperature must

be within 50ºC of the peak temperature reached by the ceramic bodies through

the soldering process. Chip sizes 1210 and larger should be reflow soldered only.

Capacitors may require protective surface coating to prevent external arcing.

For 1825, 2225 and 3640 sizes, AVX offers leaded version in either thru-hole or

SMT configurations (for details see section on high voltage leaded MLC chips).

NEW 630V RANGE

HOW TO ORDER

LD08

271

Capacitance Code

(2 significant digits

+ no. of zeros)

Examples:

10 pF = 100

100 pF = 101

1,000 pF = 102

22,000 pF = 223

220,000 pF = 224

1 µF = 105

Capacitance

Tolerance

C0G: J = ±5%

K = ±10%

M = ±20%

X7R: K = ±10%

M = ±20%

Z = +80%, -20%

Voltage

Temperature

AVX

600V/630V = C

Coefficient

Style

1000V = A

C0G = A

LD05 - 0805

1500V = S

X7R = C

LD06 - 1206

2000V = G

LD10 - 1210

2500V = W

LD08 - 1808

3000V = H

LD12 - 1812

4000V = J

LD13 - 1825

5000V = K

LD20 - 2220

LD14 - 2225

LD40 - 3640

***

Test

Termination

Packaging Special Code

Level

B = 5% Min Pb 1 = 7" Reel** A = Standard

A = Standard X = FLEXITERM

3 = 13" Reel

with 5% min. 9 = Bulk

Pb*

Notes: Capacitors with X7R dielectrics are not intended for applications across AC supply mains or AC line filtering with polarity reversal. Contact plant for recommendations.

Contact factory for availability of Termination and Tolerance options for Specific Part Numbers.

FLEXITERM is not available in the LD40 Style

The LD40 Style is not available on 7" Reels.

***

AVX offers nonstandard chip sizes. Contact factory for details.

Not RoHS Compliant

DIMENSIONS

SIZE

(L) Length

millimeters (inches)

LD05 (0805)

LD06 (1206)

LD10* (1210) LD08* (1808) LD12* (1812) LD13* (1825) LD20* (2220) LD14* (2225) LD40* (3640)

2.01 ± 0.20

3.20 ± 0.20

4.57 ± 0.25

4.50 ± 0.30

5.70 ± 0.40

5.72 ± 0.25

9.14 ± 0.25

(0.079 ± 0.008) (0.126 ± 0.008) (0.126 ± 0.008) (0.180 ± 0.010) (0.177 ± 0.012) (0.177 ± 0.012) (0.224 ± 0.016) (0.225 ± 0.010) (0.360 ± 0.010)

(W) Width

1.25 ± 0.20

1.60 ± 0.20

2.50 ± 0.20

2.03 ± 0.25

3.20 ± 0.20

6.40 ± 0.30

5.00 ± 0.40

6.35 ± 0.25

10.2 ± 0.25

(0.049 ±0.008) (0.063 ± 0.008) (0.098 ± 0.008) (0.080 ± 0.010) (0.126 ± 0.008) (0.252 ± 0.012) (0.197 ± 0.016) (0.250 ± 0.010) (0.400 ± 0.010)

(T) Thickness

1.30

1.52

1.70

2.03

2.54

3.30

2.54

Max.

(0.051)

(0.060)

(0.067)

(0.080)

(0.100)

(0.130)

(0.100)

(t) terminal min. 0.50 ± 0.25

0.25 (0.010)

0.76 (0.030)

max. (0.020 ± 0.010) 0.75 (0.030)

0.75 (0.030)

1.02 (0.040)

1.52 (0.060)

* Reflow soldering only.

Performance of SMPS capacitors can be simulated by downloading SpiCalci software program -

http://www.avx.com/SpiApps/default.asp#spicalci

Custom values, ratings and configurations are also available.

104

1210CC223J Related Products

	1210CC223J	2225CC224KAX1A	1825GC122KAX3A	1825HC122KAX3A	2220AC683KAX1A	2220SC393KAX1A	2225CC334KAX1A
Description	multilayer ceramic capacitors mlcc - smd/smt 630volts 22000pf 5% x7r	multilayer ceramic capacitors mlcc - smd/smt 630volts 0.22uf 10% x7r	multilayer ceramic capacitors mlcc - smd/smt 2000volts 1200pf 10% x7r	multilayer ceramic capacitors mlcc - smd/smt 3000volts 1200pf 10% x7r	multilayer ceramic capacitors mlcc - smd/smt 1000volt 68000pf 10% x7r	multilayer ceramic capacitors mlcc - smd/smt 1500volt 39000pf 10% x7r	multilayer ceramic capacitors mlcc - smd/smt 630volts 0.33uf 10% x7r
Manufacture	AVX	AVX	AVX	AVX	AVX	-	AVX
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	Multilayer Ceramic Capacitors MLCC - SMD/SMT	-	Multilayer Ceramic Capacitors MLCC - SMD/SMT
Produc	General Type MLCCs	General Type MLCCs	General Type MLCCs	General Type MLCCs	General Type MLCCs	-	General Type MLCCs
Type	High Voltage MLCCs for 600 V to 5 kV	High Voltage Flexiterm V for 600 V to 3 kV	High Voltage Flexiterm V for 600 V to 3 kV	High Voltage Flexiterm V for 600 V to 3 kV	High Voltage Flexiterm V for 600 V to 3 kV	-	High Voltage Flexiterm V for 600 V to 3 kV
Packaging	-	Reel	Reel	Reel	Reel	-	Reel
Factory Pack Quantity	-	500	4000	4000	1000	-	1000
