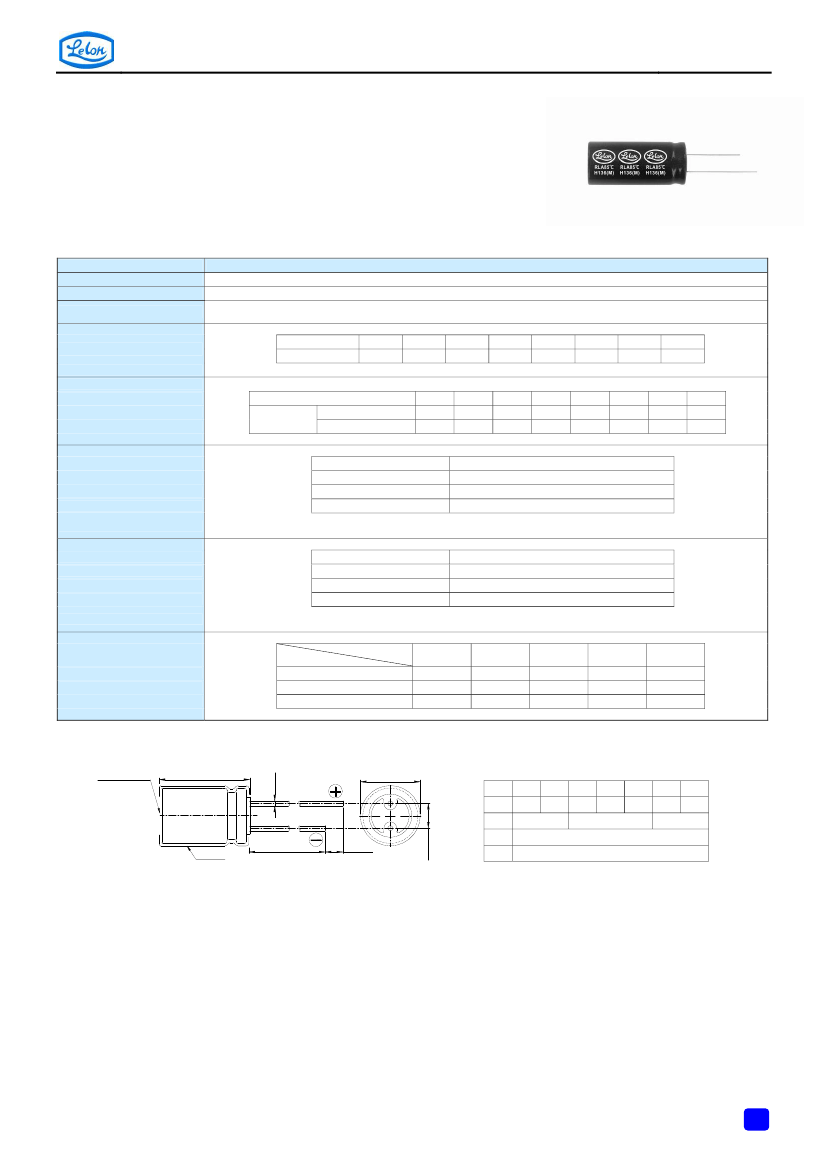

Aluminum Electrolytic Capacitors
RLA Series
Features
‧85℃,
standard low leakage current series
‧2,000
hours assured
‧RoHS
Compliance
RLA
Specifications
Items
Category Temperature Range
Capacitance Tolerance
Leakage Current (at 20℃)
Performance
-40℃ ~ +85℃
±20%
I = 0.002CV or 0.4 (μA) whichever is greater (after 2 minutes)
Where, C = rated capacitance in
μF
V = rated DC working voltage in V
Sleeve & Marking Color: Orange & Black
(at 120Hz, 20℃)
Tanδ (at 120Hz, 20℃)
Rated Voltage
6.3
10
16
25
35
50
63
100
Tanδ (max)
0.24
0.21
0.16
0.14
0.12
0.10
0.09
0.08
When the capacitance exceeds 1,000μF, 0.02 shall be added every 1,000μF increase.
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage
Impedance
Z(-25℃)/Z(+20℃)
Ratio
Z(-40℃)/Z(+20℃)
6.3
5
10
10
4
8
16
2
6
25
2
4
35
2
4
50
2
3
63
2
3
100
2
3
Low Temperature
Characteristics (at 120Hz)
Endurance
Test Time
2,000 Hrs
Capacitance Change
Within ±20% of initial value
Tanδ
Less than 200% of specified value
Leakage Current
Within specified value
* The above Specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage applied with rated
ripple current for 2,000 hours at 85℃.
Test Time
1,000 Hrs
Capacitance Change
Within ±20% of initial value
Tanδ
Less than 200% of specified value
Leakage Current
Within specified value
* The above Specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at
85℃ without voltage applied.
Freq.(Hz)
Cap.(μF)
Under 100
100
＜
C
≦
1,000
1,000 up above
60 (50)
0.70
0.83
0.90
120
1.00
1.00
1.00
500
1.35
1.23
1.10
1k
1.55
1.32
1.12
10k up
2.00
1.50
1.15
Shelf Life Test
Ripple Current &
Frequency Multipliers
Diagram of Dimensions
φ
d
Vent
≧
6.3
φ
L+
α
max
φ
D+
β
max
Lead Spacing and Diameter
φD
P
φd
α
β
5
2.0
0.5
6.3
2.5
8
3.5
10
5.0
0.6
L<20: 1.5, L≧20: 2.0
0.5
12.5
5.0
Unit: mm
16
7.5
0.8
18
7.5
Sleeve
15 min
4 min
P
±
0.5
All product specifications in the catalog are subject to change without notice. (CAT. 2014E1)
115
Aluminum Electrolytic Capacitors
RLA
Dimension:
φD
× L(mm)
Ripple Current: mA/rms at 120 Hz, 85°C
Dimension & Permissible Ripple Current
V. DC
6.3V (0J)
mA
10V (1A)
φD×L
mA
16V (1C)
φD×L
mA
25V (1E)
φD×L
mA
35V (1V)
φD×L
mA
50V (1H)
φD×L
5×11
5×11
mA
29
35
42
65
95
125
150
255
490
650
860
63V (1J)
φD×L
mA
100V (2A)
φD×L
5×11
5×11
mA
33
40
48
80
135
195
255
450
810
990
μF
2.2
3.3
4.7
10
22
33
47
100
220
330
470
1,000
2,200
3,300
4,700
Contents
φD×L
2R2
3R3
4R7
100
220
330
470
101
221
331
471
102
222
332
472
5×11
5×11
5×11
6.3×11
6.3×11
8×11.5
10×12.5
5×11
5×11
5×11
55
79
130
230
280
380
650
5×11
5×11
5×11
6.3×11
8×11.5
8×11.5
10×16
59
84
100
145
250
350
415
790
5×11
5×11
5×11
6.3×11
8×11.5
8×11.5
10×12.5
10×20
16×25
44
75
90
110
180
300
370
520
910
5×11
5×11
5×11
5×11
6.3×11
8×11.5
10×12.5
10×16
16×25
31
54
80
97
115
190
320
470
620
5×11
5×11
5×11
5×11
6.3×11
8×11.5
10×12.5
10×16
10×20
40
58
87
105
145
240
420
570
740
5×11
5×11
5×11
6.3×11
6.3×11
8×11.5
10×16
10×20
12.5×20
16×25
5×11
5×11
6.3×11
6.3×11
8×11.5
10×12.5
10×20
12.5×20
12.5×25
45
70
115
140
190
320
565
765
990
5×11
6.3×11
8×11.5
10×12.5
10×16
12.5×20
16×25
16×25
16×31.5 1,250
12.5×20 1,090 12.5×25 1,300
1,530 16×31.5 1,700
12.5×20 1,150 12.5×20 1,240 12.5×25 1,420
12.5×20 1,380 12.5×25 1,590
16×25
1,880
16×25
1,660 16×31.5 1,890 18×35.5 2,160
18×40
2,690
1,840 16×31.5 2,070 18×35.5 2,340
1,980 16×31.5 2,260 18×35.5 2,520
Part Numbering System
RLA series
470μF
±20%
6.3V
Bulk Package
Gas Type
8φ×11.5L
Pb-free and PET
coating case
Lead Wire and
Coating Type
RLA
Series
471
Capacitance
M
Capacitance
Tolerance
0J
Rated
Voltage
BK
Lead Configuration
& Package
-
Rubber
Type
0811
Case Size
Note: For more details, please refer to “Part Numbering System (Radial Type)” on page 10.
116
All product specifications in the catalog are subject to change without notice. (CAT. 2014E1)
