Part Number

Search

C350PA

Description
Phase Control SCR 115 Amperes Avg 500-1300 Volts
CategoryAnalog mixed-signal IC    Trigger device
File Size247KB,6 Pages
ManufacturerPOWEREX
Websitehttp://www.pwrx.com/Home.aspx
Download Datasheet Parametric Compare View All

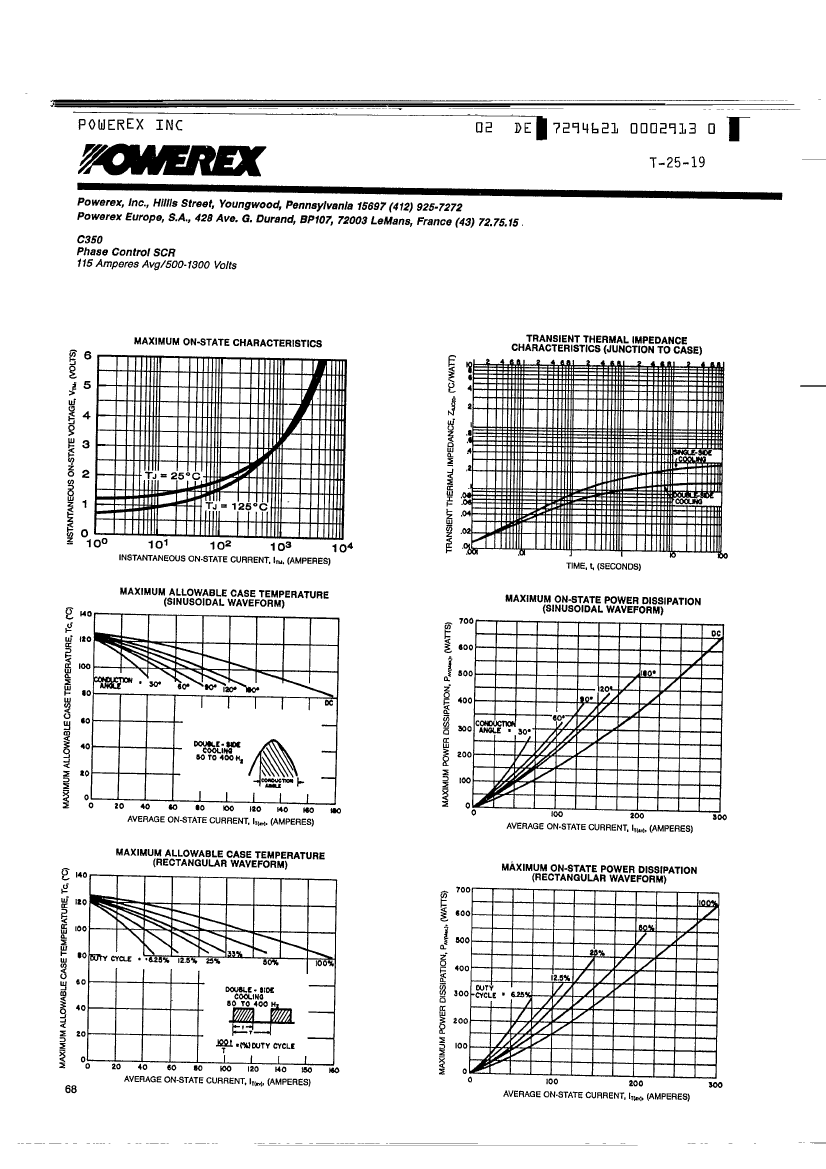

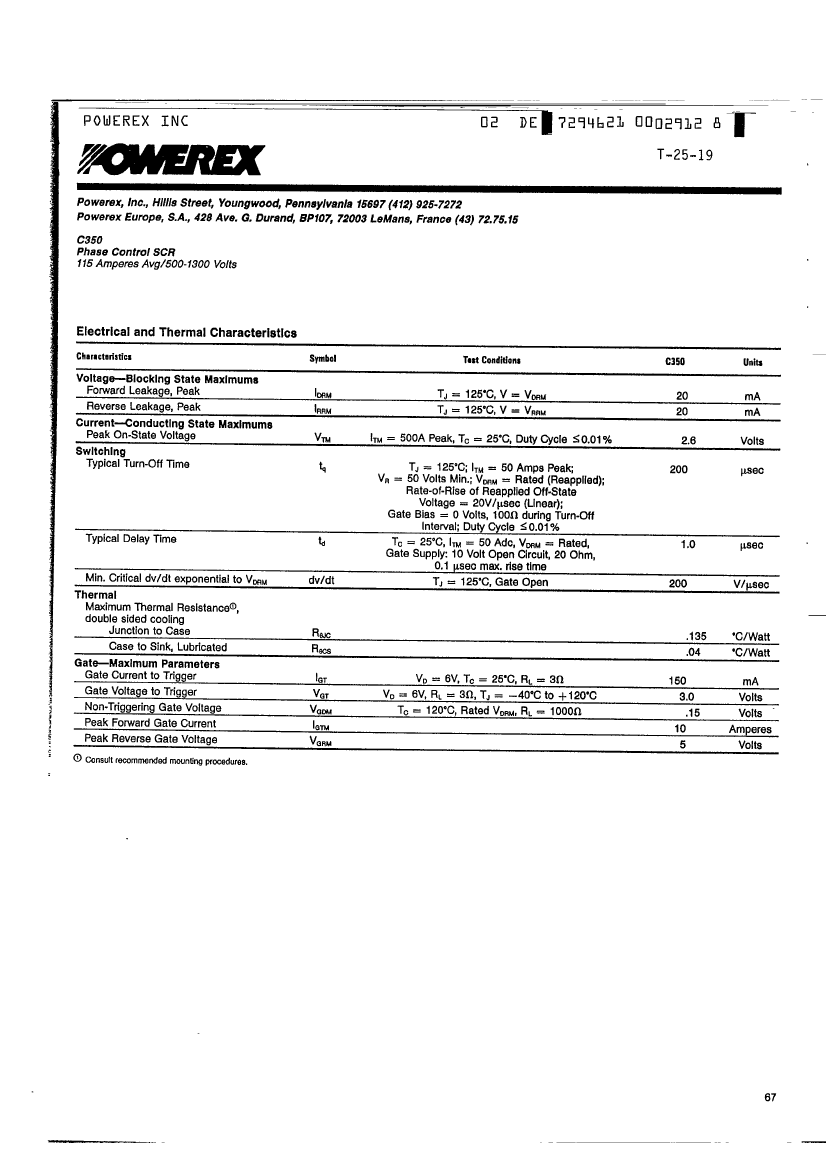

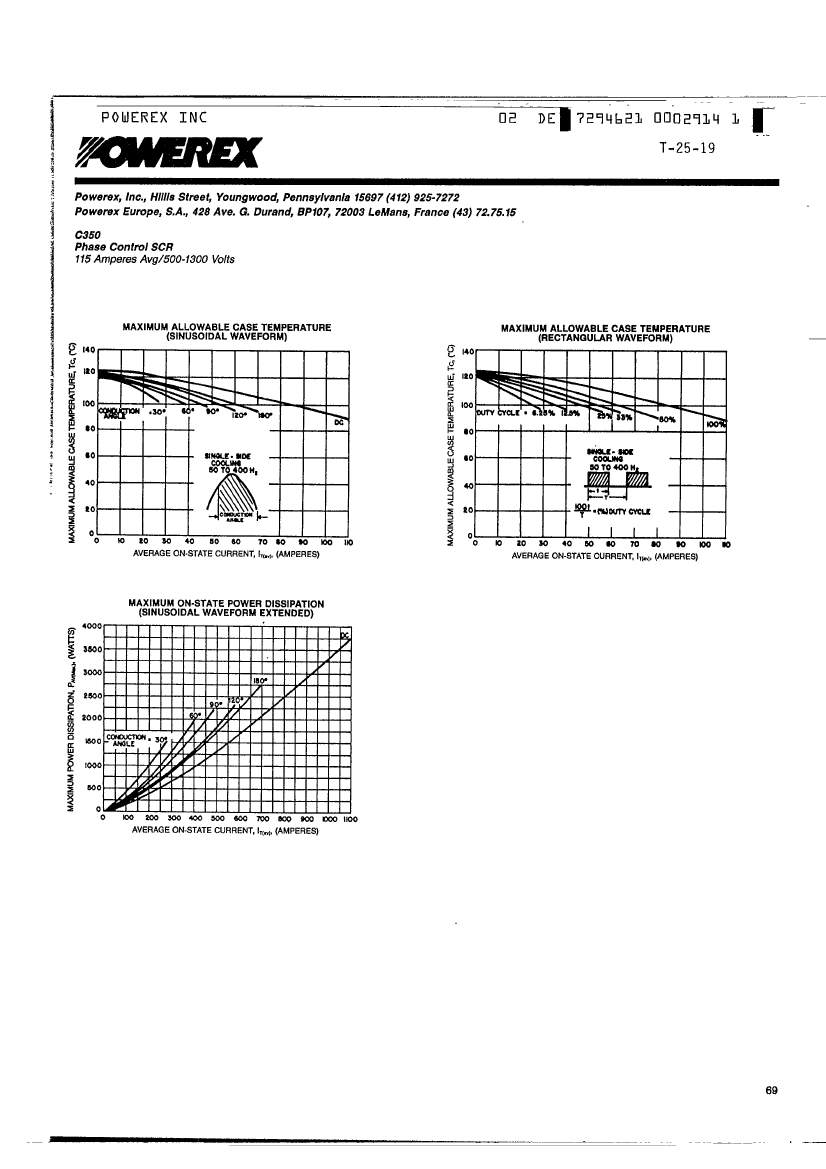

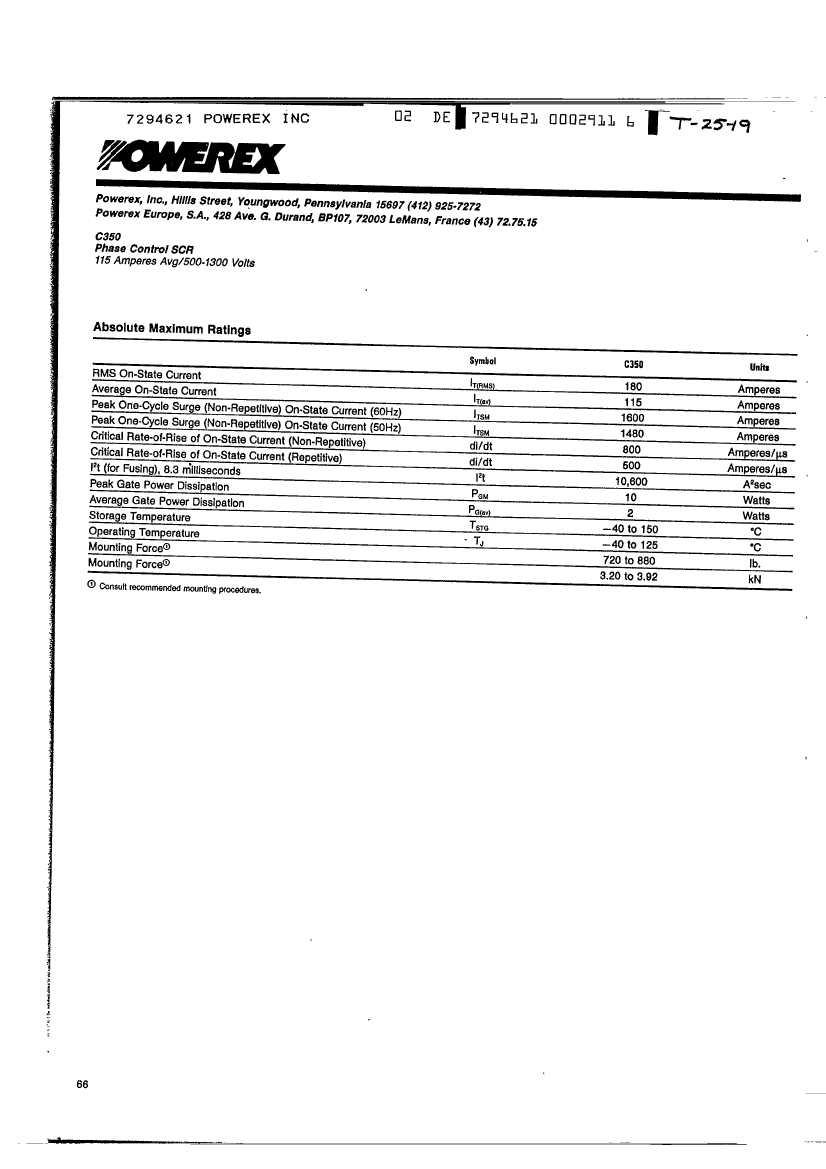

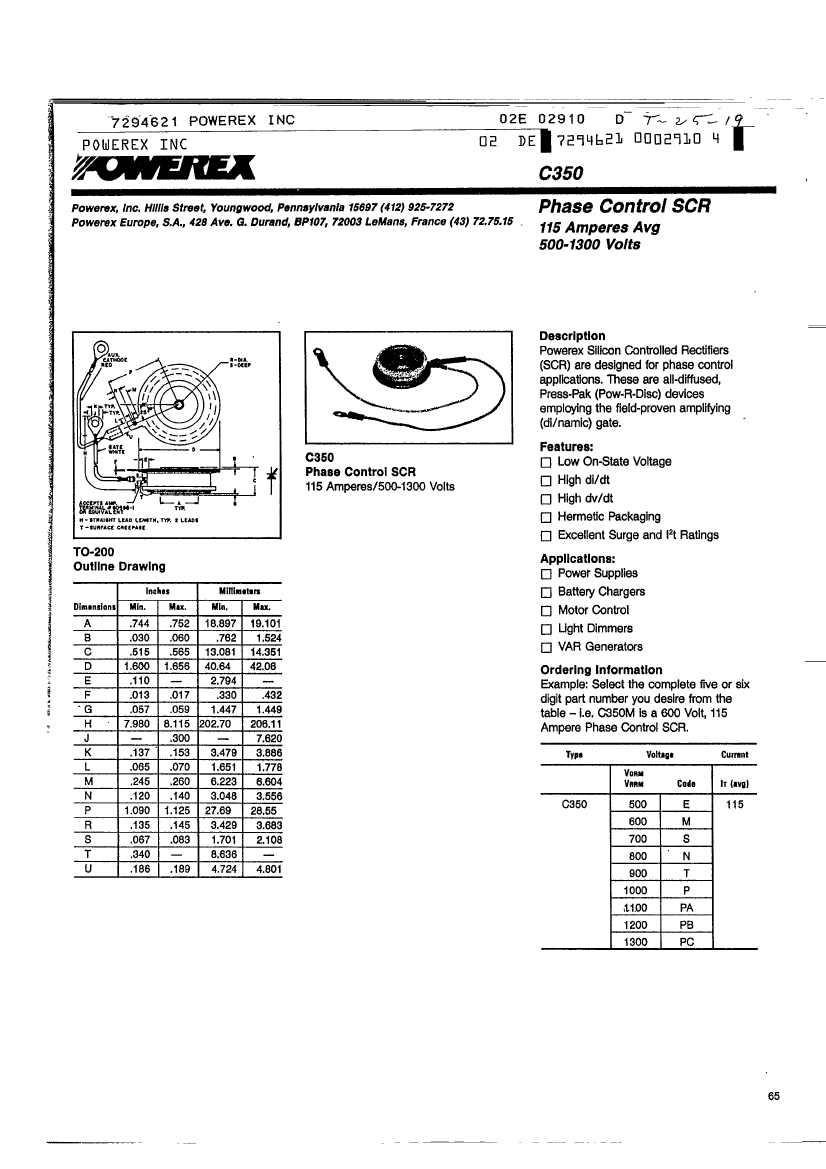

C350PA Overview

Phase Control SCR 115 Amperes Avg 500-1300 Volts

C350PA Parametric

Parameter NameAttribute value
MakerPOWEREX
package instructionDISK BUTTON, O-CEDB-N2
Contacts3
Reach Compliance Codeunknown
Nominal circuit commutation break time200 µs
ConfigurationSINGLE
Critical rise rate of minimum off-state voltage200 V/us
Maximum DC gate trigger current150 mA
Maximum DC gate trigger voltage3 V
Maximum holding current500 mA
JESD-30 codeO-CEDB-N2
Maximum leakage current14 mA
On-state non-repetitive peak current1600 A
Number of components1
Number of terminals2
Maximum on-state current112000 A
Maximum operating temperature125 °C
Minimum operating temperature-45 °C
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeROUND
Package formDISK BUTTON
Certification statusNot Qualified
Maximum rms on-state current180.55 A
Off-state repetitive peak voltage1100 V
Repeated peak reverse voltage1100 V
surface mountYES
Terminal formNO LEAD
Terminal locationEND
Trigger device typeSCR
Base Number Matches1

C350PA Related Products

C350PA C350 C350E C350PC C350S C350T
Description Phase Control SCR 115 Amperes Avg 500-1300 Volts Phase Control SCR 115 Amperes Avg 500-1300 Volts Phase Control SCR 115 Amperes Avg 500-1300 Volts Phase Control SCR 115 Amperes Avg 500-1300 Volts Phase Control SCR 115 Amperes Avg 500-1300 Volts Phase Control SCR 115 Amperes Avg 500-1300 Volts
package instruction DISK BUTTON, O-CEDB-N2 - DISK BUTTON, O-CEDB-N2 DISK BUTTON, O-CEDB-N2 DISK BUTTON, O-CEDB-N2 DISK BUTTON, O-CEDB-N2
Contacts 3 - 3 3 3 3
Reach Compliance Code unknown - unknow unknown unknow unknow
Nominal circuit commutation break time 200 µs - 200 µs 200 µs 200 µs 200 µs
Configuration SINGLE - SINGLE SINGLE SINGLE SINGLE
Critical rise rate of minimum off-state voltage 200 V/us - 200 V/us 200 V/us 200 V/us 200 V/us
Maximum DC gate trigger current 150 mA - 150 mA 150 mA 150 mA 150 mA
Maximum DC gate trigger voltage 3 V - 3 V 3 V 3 V 3 V
Maximum holding current 500 mA - 500 mA 500 mA 500 mA 500 mA
JESD-30 code O-CEDB-N2 - O-CEDB-N2 O-CEDB-N2 O-CEDB-N2 O-CEDB-N2
Maximum leakage current 14 mA - 20 mA 11 mA 20 mA 18 mA
On-state non-repetitive peak current 1600 A - 1600 A 1600 A 1600 A 1600 A
Number of components 1 - 1 1 1 1
Number of terminals 2 - 2 2 2 2
Maximum on-state current 112000 A - 112000 A 112000 A 112000 A 112000 A
Maximum operating temperature 125 °C - 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -45 °C - -45 °C -45 °C -40 °C -45 °C
Package body material CERAMIC, METAL-SEALED COFIRED - CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED
Package shape ROUND - ROUND ROUND ROUND ROUND
Package form DISK BUTTON - DISK BUTTON DISK BUTTON DISK BUTTON DISK BUTTON
Certification status Not Qualified - Not Qualified Not Qualified Not Qualified Not Qualified
Maximum rms on-state current 180.55 A - 180.55 A 180.55 A 180.55 A 180.55 A
Off-state repetitive peak voltage 1100 V - 500 V 1300 V 700 V 900 V
Repeated peak reverse voltage 1100 V - 500 V 1300 V 700 V 900 V
surface mount YES - YES YES YES YES
Terminal form NO LEAD - NO LEAD NO LEAD NO LEAD NO LEAD
Terminal location END - END END END END
Trigger device type SCR - SCR SCR SCR SCR
Base Number Matches 1 - - 1 1 1
