C380NX500 datasheet, PDF - EEWORLD Datasheet

C380NX500: DescriptionPhase Control SCR 310 Amperes Avg 800 Volts; CategoryAnalog mixed-signal IC Trigger device; File Size201KB，4 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric Compare View All

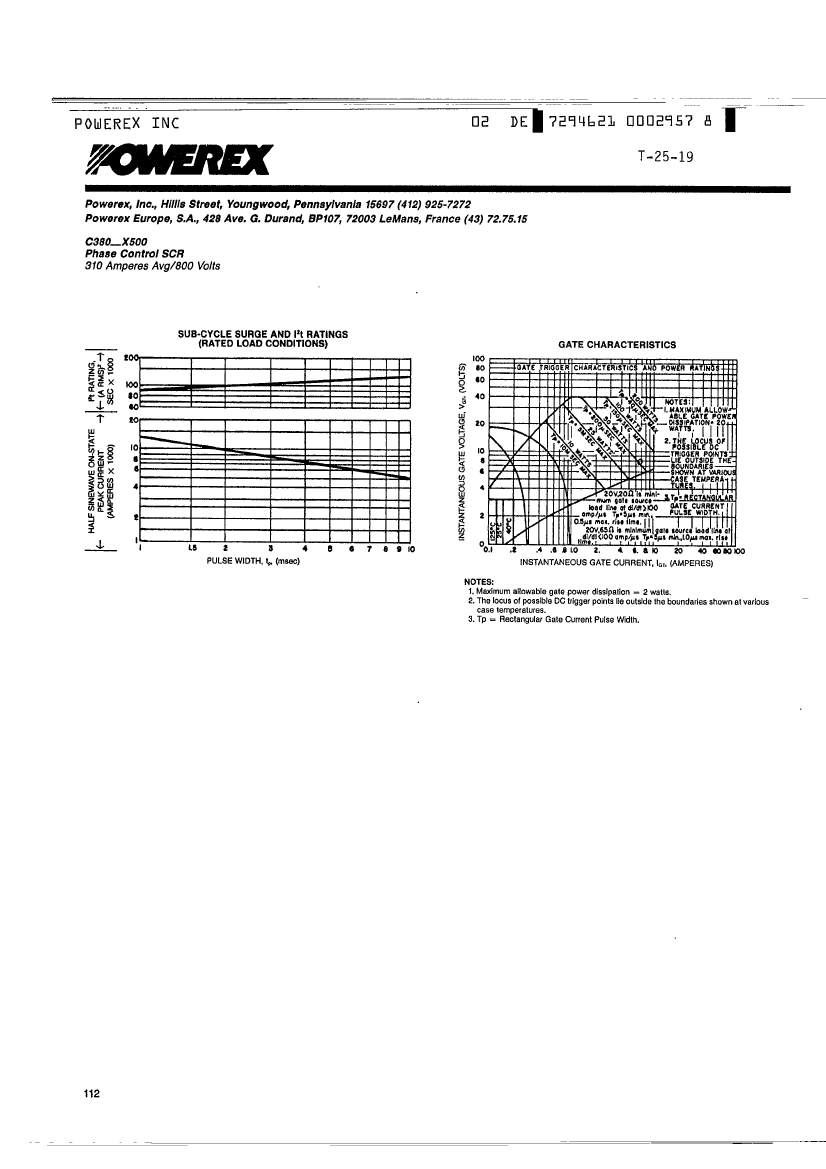

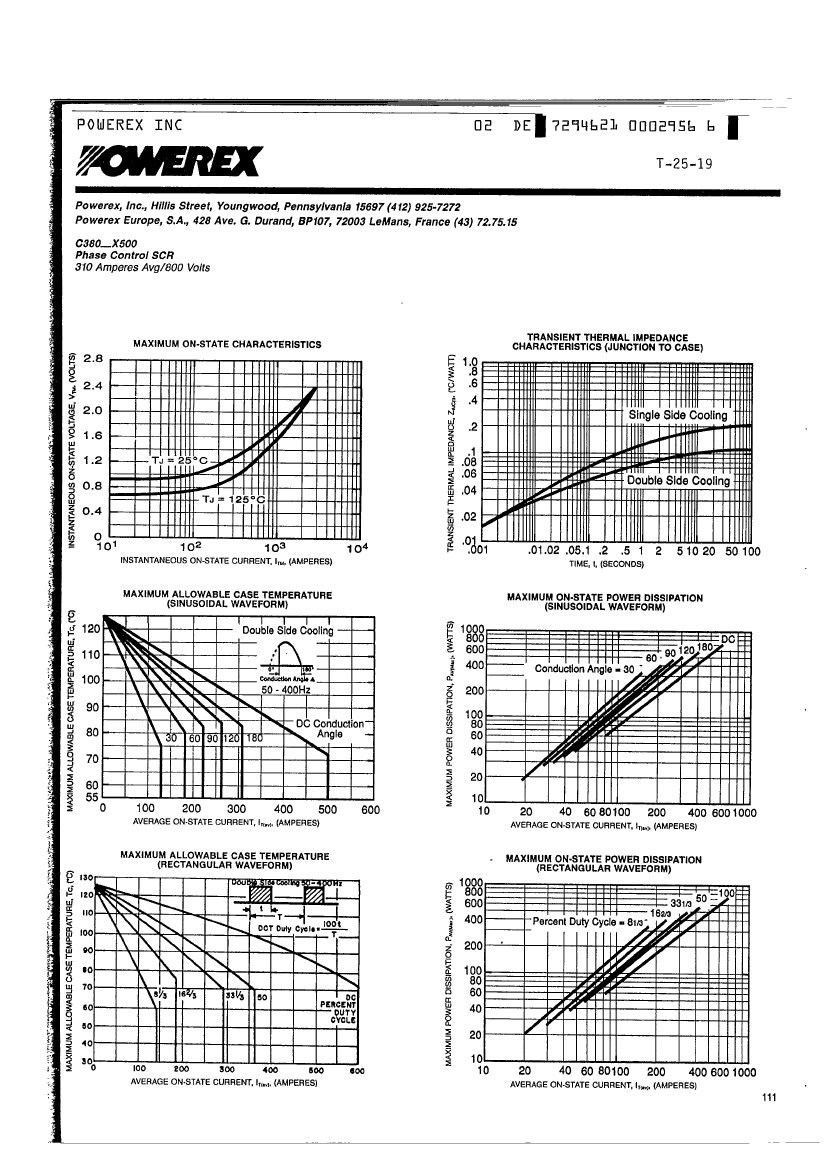

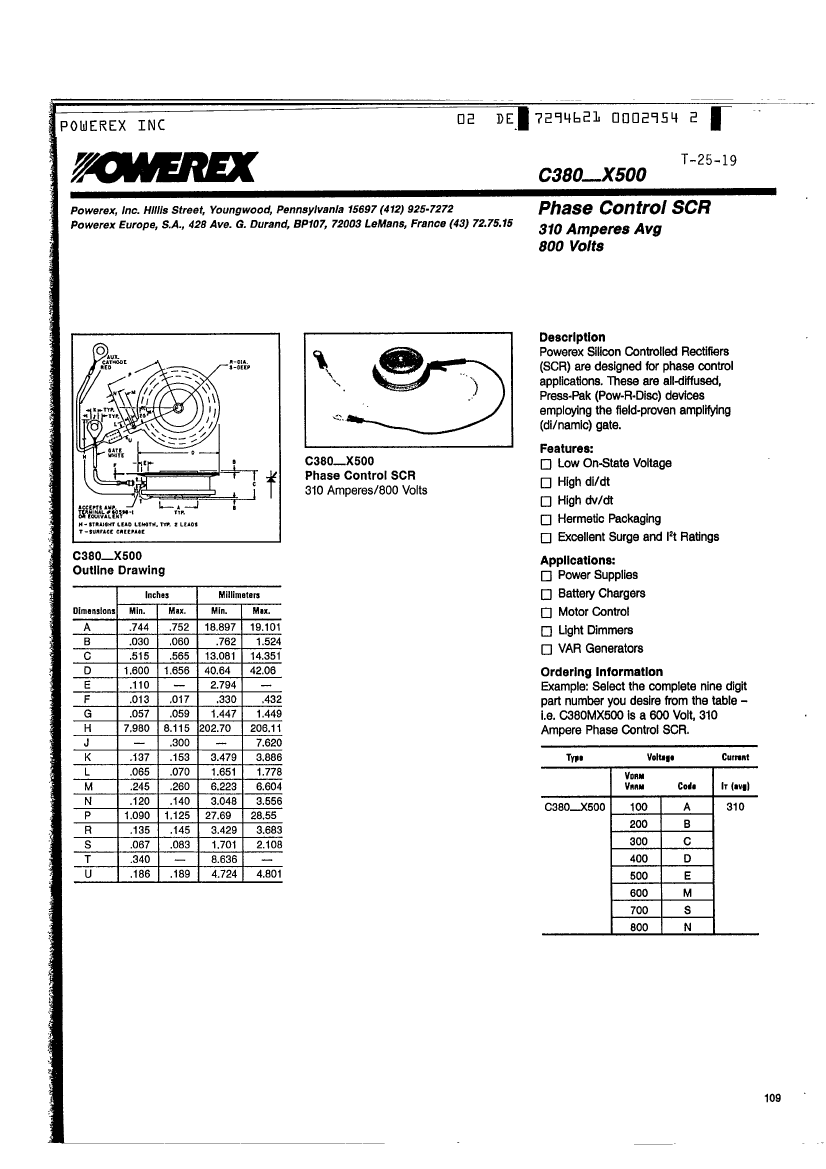

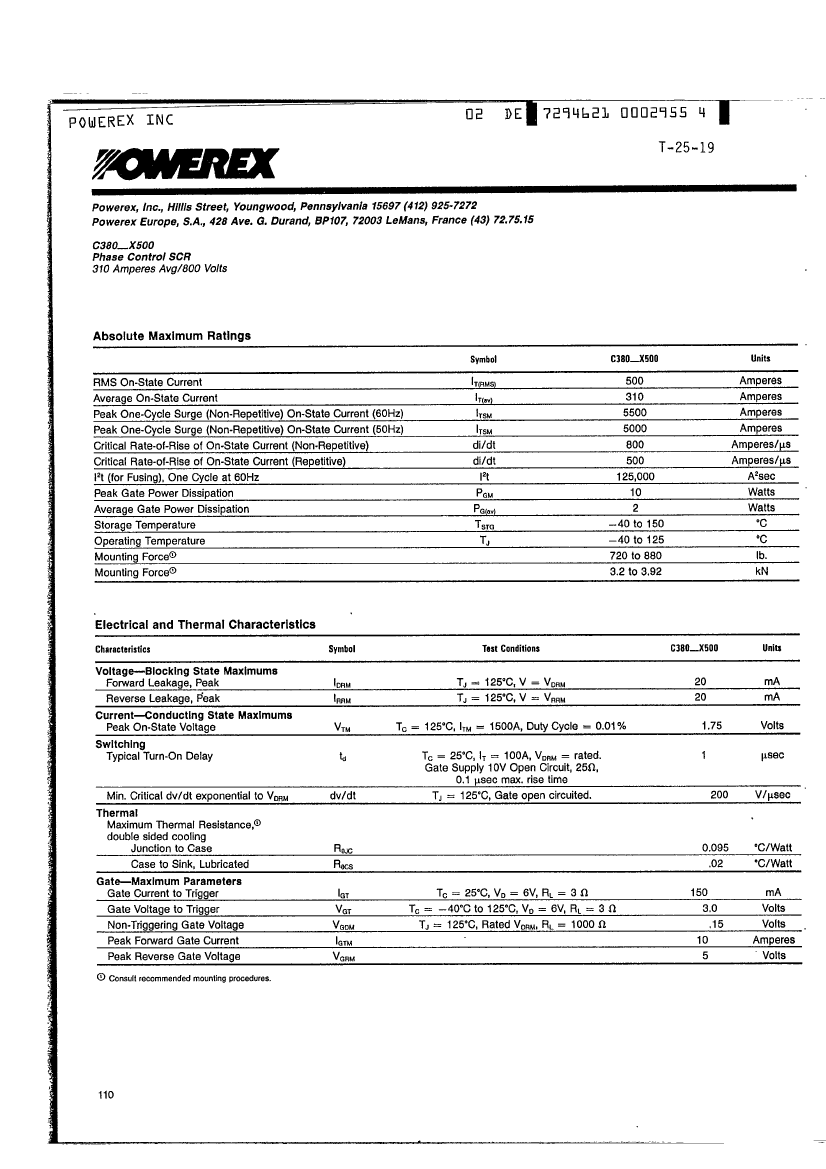

C380NX500 Overview

Phase Control SCR 310 Amperes Avg 800 Volts

Parameter Name	Attribute value
Maker	POWEREX
package instruction	DISK BUTTON, O-CEDB-X3
Reach Compliance Code	unknown
Nominal circuit commutation break time	200 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
JESD-30 code	O-CEDB-X3
Maximum leakage current	20 mA
On-state non-repetitive peak current	5500 A
Number of components	1
Number of terminals	3
Maximum on-state current	310000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum rms on-state current	500 A
Off-state repetitive peak voltage	800 V
Repeated peak reverse voltage	800 V
surface mount	YES
Terminal form	UNSPECIFIED
Terminal location	END
Trigger device type	SCR
Base Number Matches	1

	C380NX500	C380AX500	C380CX500	C380EX500	C380SX500
Description	Phase Control SCR 310 Amperes Avg 800 Volts	Phase Control SCR 310 Amperes Avg 800 Volts	Phase Control SCR 310 Amperes Avg 800 Volts	Phase Control SCR 310 Amperes Avg 800 Volts	Phase Control SCR 310 Amperes Avg 800 Volts
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow
Nominal circuit commutation break time	200 µs	200 µs	200 µs	200 µs	100 µs
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us
Maximum DC gate trigger current	150 mA	150 mA	150 mA	150 mA	150 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V
Maximum leakage current	20 mA	20 mA	20 mA	20 mA	20 mA
On-state non-repetitive peak current	5500 A	5500 A	5500 A	5500 A	5500 A
Maximum on-state current	310000 A	310000 A	310000 A	310000 A	310000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-45 °C	-45 °C	-45 °C	-40 °C
Off-state repetitive peak voltage	800 V	100 V	300 V	500 V	700 V
surface mount	YES	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1
ECCN code	-	EAR99	EAR99	EAR99	EAR99
