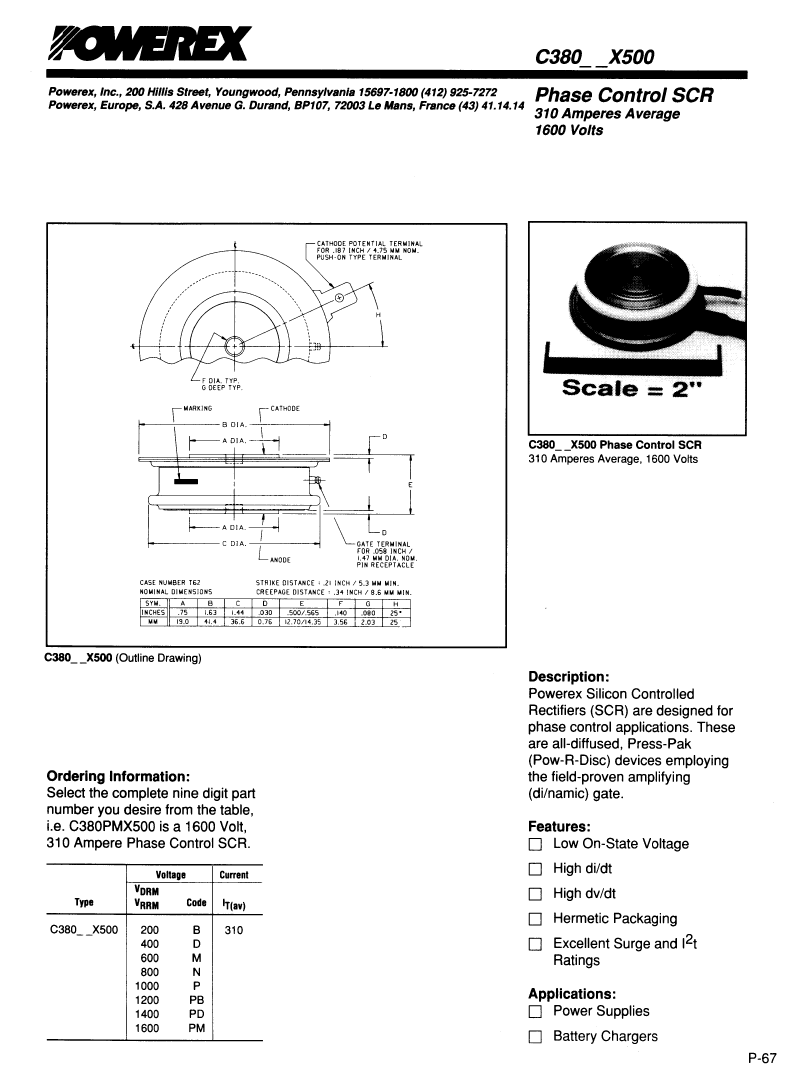

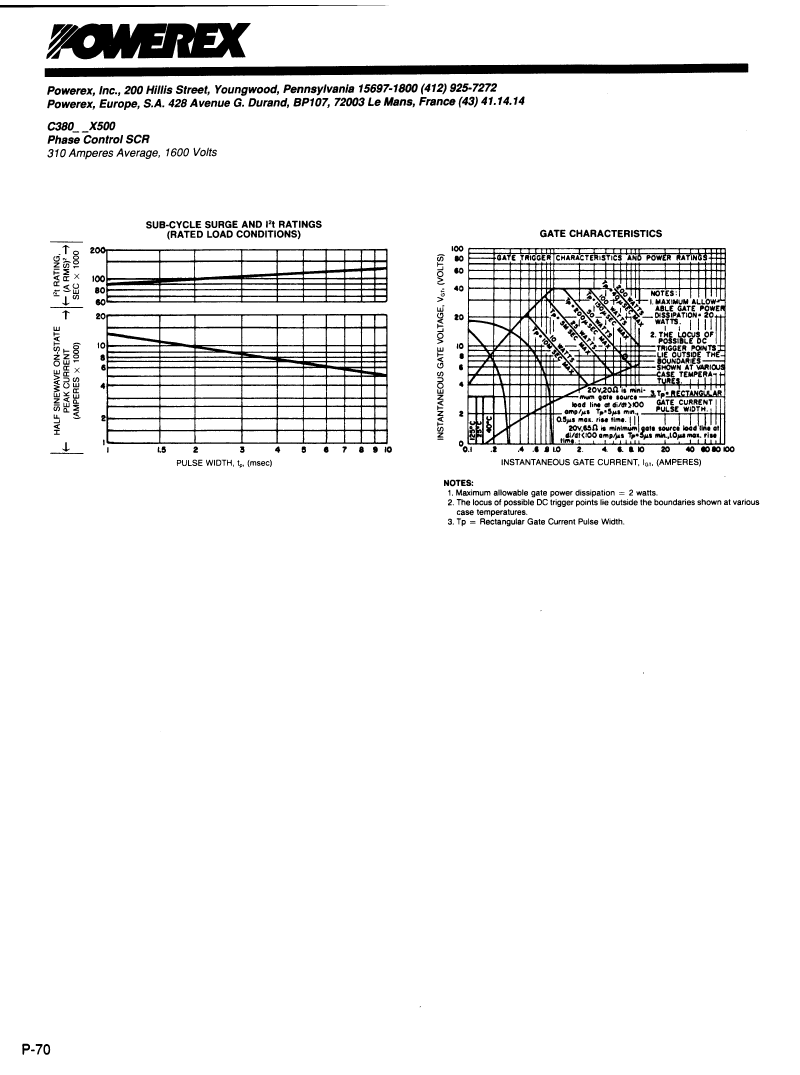

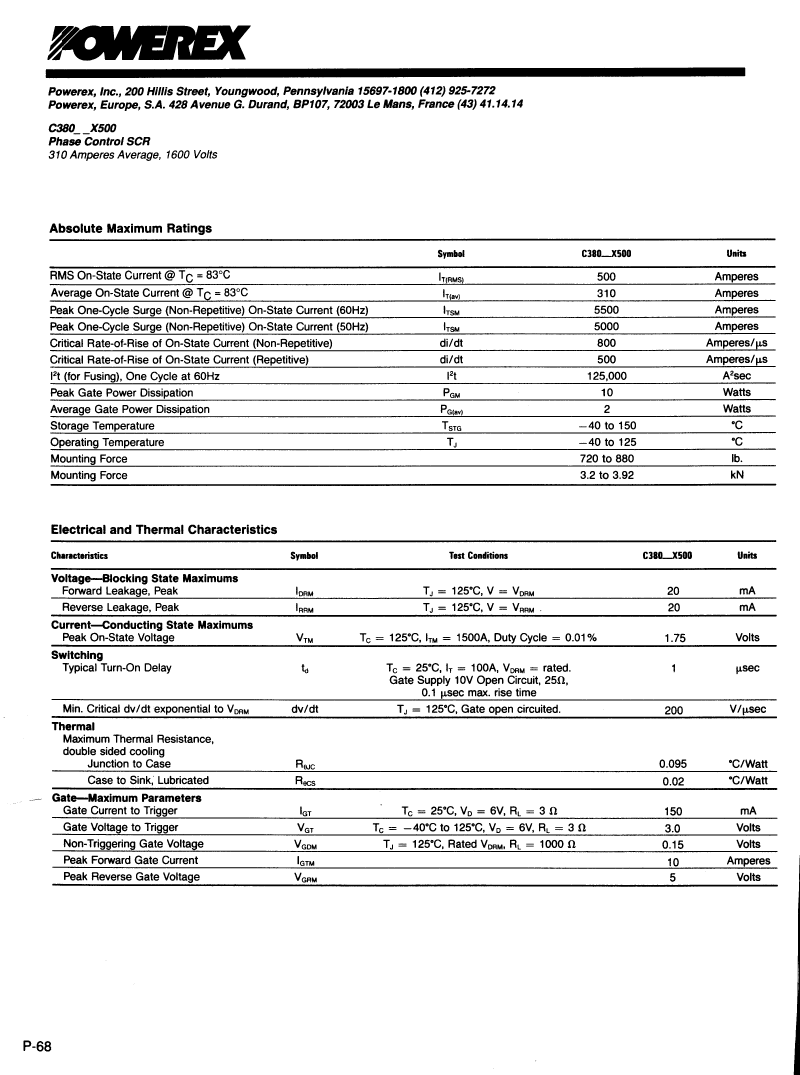

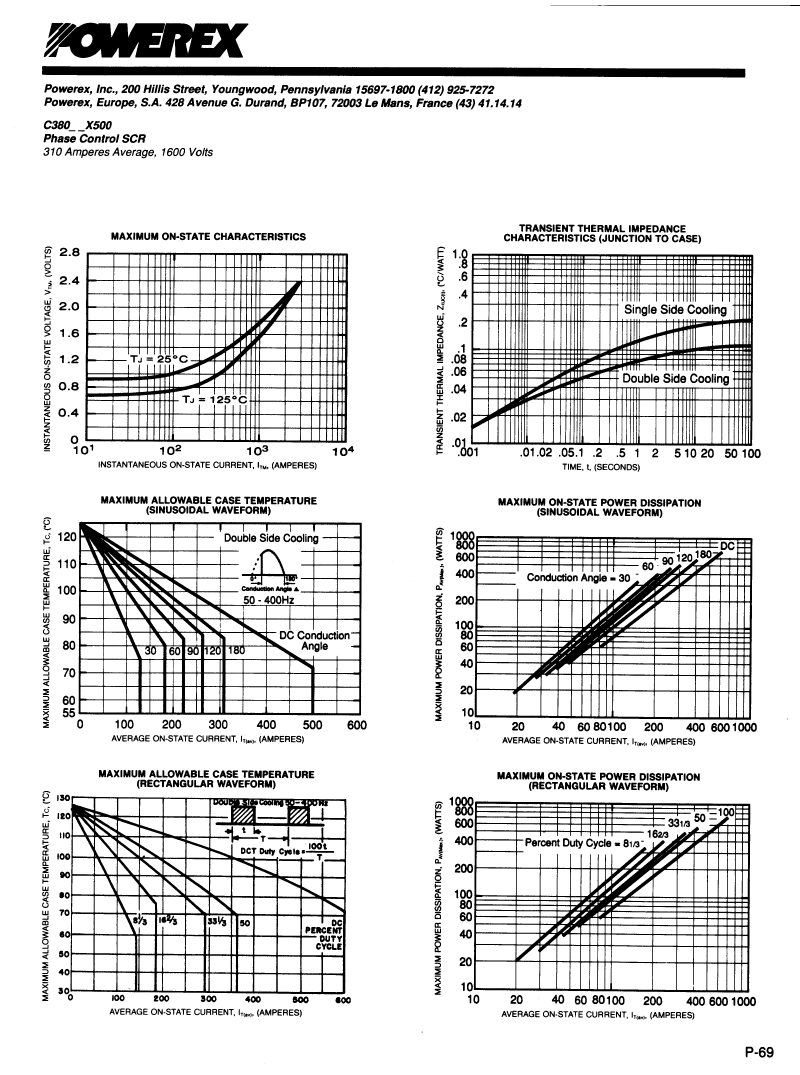

C380PMX500: Description500 A, 1200 V, SCR; CategoryAnalog mixed-signal IC Trigger device; File Size760KB，4 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric Compare View All

C380PMX500 Overview

500 A, 1200 V, SCR

C380PMX500 Parametric

Parameter Name	Attribute value
Maker	POWEREX
package instruction	DISK BUTTON, O-CEDB-X3
Reach Compliance Code	unknown
Nominal circuit commutation break time	200 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
JESD-30 code	O-CEDB-X3
Maximum leakage current	20 mA
On-state non-repetitive peak current	5500 A
Number of components	1
Number of terminals	3
Maximum on-state current	310000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum rms on-state current	500 A
Off-state repetitive peak voltage	1600 V
Repeated peak reverse voltage	1600 V
surface mount	YES
Terminal form	UNSPECIFIED
Terminal location	END
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

C380PMX500 Related Products

	C380PMX500	C380BX500	C380DX500	C380MX500	C380PBX500	C380PDX500	C380PX500	C380X500
Description	500 A, 1200 V, SCR	500 A, 1200 V, SCR	500 A, 1200 V, SCR	500 A, 1200 V, SCR	500 A, 1200 V, SCR	500 A, 1200 V, SCR	500 A, 1200 V, SCR	500 A, 1200 V, SCR
Number of components	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Off-state repetitive peak voltage	1600 V	200 V	400 V	600 V	1200 V	1400 V	1000 V	1200 V
surface mount	YES	YES	YES	YES	YES	YES	YES	Yes
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	END	END	END	END	END	END	END	END
package instruction	DISK BUTTON, O-CEDB-X3	DISK BUTTON, O-CEDB-X3	DISK BUTTON, O-CEDB-X3	DISK BUTTON, O-CEDB-X3	DISK BUTTON, O-CEDB-X3	DISK BUTTON, O-CEDB-X3	DISK BUTTON, O-CEDB-X3	-
Reach Compliance Code	unknown	unknown	unknow	unknow	unknown	unknown	unknow	-
Nominal circuit commutation break time	200 µs	200 µs	200 µs	200 µs	200 µs	200 µs	200 µs	-
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us	-
Maximum DC gate trigger current	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	-
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	-
JESD-30 code	O-CEDB-X3	O-CEDB-X3	O-CEDB-X3	O-CEDB-X3	O-CEDB-X3	O-CEDB-X3	O-CEDB-X3	-
Maximum leakage current	20 mA	20 mA	20 mA	20 mA	20 mA	20 mA	20 mA	-
On-state non-repetitive peak current	5500 A	5500 A	5500 A	5500 A	5500 A	5500 A	5500 A	-
Maximum on-state current	310000 A	310000 A	310000 A	310000 A	310000 A	310000 A	310000 A	-
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	-
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	-
Package form	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum rms on-state current	500 A	500 A	500 A	500 A	500 A	500 A	500 A	-
Repeated peak reverse voltage	1600 V	200 V	400 V	600 V	1200 V	1400 V	1000 V	-
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	-
Base Number Matches	1	1	1	1	1	1	1	-
