CWR15DK226MCLC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> CWR15DK226MCLC

Preview

CWR15DK226MCLC: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 6V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, CHIP; CategoryPassive components capacitor; File Size58KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric View All

CWR15DK226MCLC Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, CHIP

CWR15DK226MCLC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1669735057
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6
capacitance	22 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e0
Manufacturer's serial number	TBC
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

TBC Series

CWR15 Military Approved Microchip

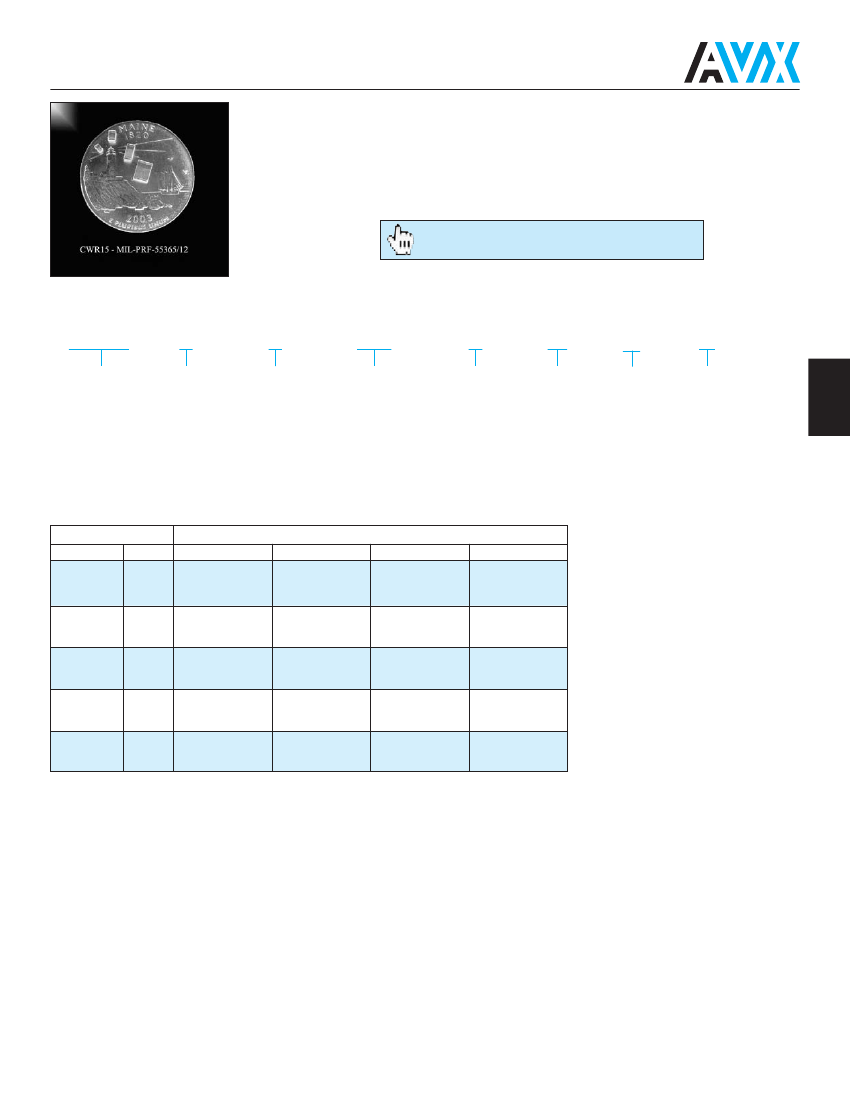

AVX announces the world’s smallest military approved tantalum chip capacitors. The CWR15 offers

0603, 0805 and 1206 case sizes in capacitance/voltage combinations previously only available in

much larger packages. The revolutionary AVX TACmicrochip technology offers designers significant

opportunity to downsize circuits for military and aerospace applications. The product is manufactured

in the AVX Tantalum high reliability facility in Biddeford, Maine which is also home to the CWR09,

CWR11, CWR19 and CWR29 product lines.

Check for up-to-date CV Tables at

http://www.avx.com/docs/catalogs/tbc.pdf

HOW TO ORDER

CWR15

Style

F

Voltage

C = 4Vdc

D = 6Vdc

F = 10Vdc

K

Termination

Finish

Solder Fused

225

Capacitance

Code

pF code: 1st two

digits represent

significant figures

3rd digit represents

number of zeros to

follow

*

Capacitance

Tolerance

J = ±5%

K = ±10%

M = ±20%

–

Product

Level

Designator

Weibull FRL

B = 0.1

C = 0.01

D = 0.001

L

Case

Size

+

Surge

Test

Option

A = +25°C after

Weibull

B = -55°C to +85°C

after Weibull

C = -55°C to +85°C

before Weibull

Tantalum

Surface Mount

Capacitance

µF

Code

0.33

0.47

0.68

1.0

1.5

2.2

3.3

4.7

6.8

10

15

22

33

47

68

334

474

684

105

155

225

335

475

685

106

156

226

336

476

686

4V (C)

Voltage Rating DC (V

R

) at 85°C

6V (D)

10V (F)

L

R

A

15V

L

R

A

R

A

Further extensions of the CWR15 product are planned for later in 2005. A new case size will be added, and the

voltage range will be extended to 20 volts. Ratings of 100µF at 4 volts to 10µF at 20 volts will be included in this

extension of the product line.
