REVISION J
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: .003[0.08] MAX.
3. PARTS TO BE MOLDED TO POSITION.
4. MINIMUM PULLOUT FORCE: 5 lbs [2.22 N].
5. CONTACT MUST BE INSERTED UNTIL RETENTION FEATURE LOCKS
INTO PLACE.
6. ALL FINISHED GOODS ARE TO BE ELECTRICAL TESTED INCLUDING
HI-POT TEST @ 1000 VOLTS DC.
7. TINNED COPPER WIRE CONTAINS LEAD.
8. PARTS ARE TO BE LAYER PACKAGED.
9. CONTACTS OFFSET FOR POLARIZATION.
10. SEE DWLX-02-XX-X-XX.XX-XX-XX FOR CRIMP DIMENSIONS.
11. FOR LENGTHS LESS THAN 12 IN, TOLERANCE SHALL BE ±.125[3.18].
FOR OTHER LENGTHS, TOLERANCES SHALL BE ± 2%.
(No OF POS x .100[2.54])
+ .055[1.40] REF
C
L
.200 5.08
REF
MMSSX-XX-XXX-X-XX.XX-X-X-XXX
TEFLON CABLE OPTION
*
-T: TEFLON
(LEAVE BLANK FOR
STANDARD PVC INSULATION)
OPTION
[MUST BE USED ON -D END OPTION ONLY
& APPLIES TO END 2 HOUSING]
-LUS: LATCH UP, STRAIGHT
-LDS: LATCH DOWN, STRAIGHT
OPTION
-K: KEYED POLARIZATION
(USE IPD1-XX-S-K)
(SEE FIG. 3, SHEET 2)
END OPTION
-S: SINGLE END
-D: DOUBLE END(MUST CHOOSE LUS OR LDS OPTIONS.)
ASSEMBLED LENGTH
SPECIFY IN INCHES [USE DWCX-XX-XX]
(SINGLE END: 03.00[76.2] INCH MINIMUM,
DOUBLE END: 03.25[82.6] INCH MINIMUM)
No OF POSITIONS
-02 THRU -10
WIRE GAUGE (AWG)
-20, -22, -24, -26, -28, -30
COLOR CODE
C (SEE TABLE 2)
(LEAVE BLANK FOR
STANDARD BLACK CABLE)
(NOT AVAILABLE WITH TEFLON OPTION)
PLATING SPECIFICATION
-F: FLASH SELECTIVE (USE C-179-XX-F)
-L: LIGHT SELECTIVE (USE C-179-XX-L)
-S: SELECTIVE (USE C-179-XX-S)
02 01
.300 7.62
REF
.010 0.25 REF
(SEE NOTE 9)
"A"
IPD1-XX-S
*
NOT RELEASED FOR PRODUCTION
.505 12.83
REF
C-179-XX-X
.285 7.24
REF
C1
XX.XX
(SEE NOTE 11)
DWC-XX-10-300
C2
XX.XX
(SEE NOTE 11)
MMSS-05-22-X-XX.XX-S SHOWN
"A"

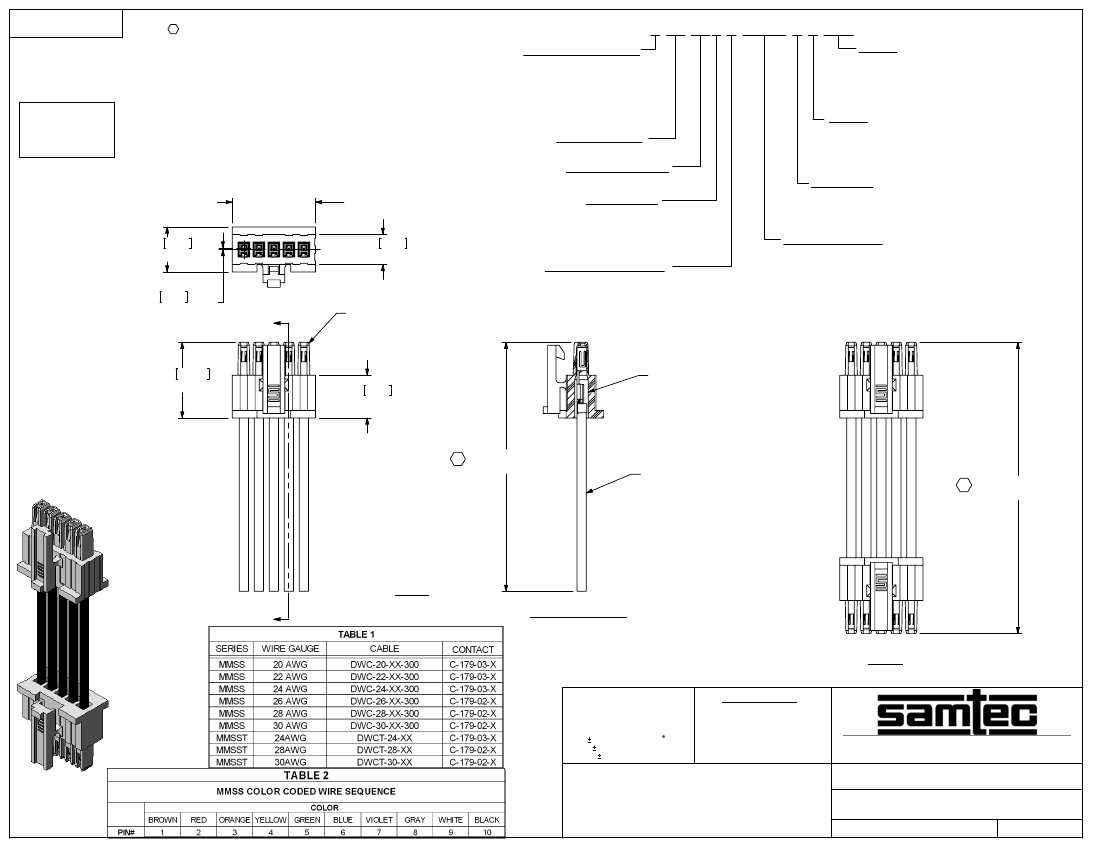

FIG. 1
SECTION "A"-"A"
FIG. 2
MMSS-05-22-X-XX.XX-D-LUS SHOWN
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
*
*
*
DECIMALS
.XX: .01 [0.3]
2
.XXX: .005 [0.13]
.XXXX: .0020 [0.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
HOUSING: NYLON 6/6, COLOR: WHITE
CONTACT: PHOS BRONZE
CABLE; INSULATION: SEE CALLOUT
WIRE: TINNED COPPER
.100[2.54] SOCKET DISCREET CABLE ASSEMBLY
MMSSX-XX-XXX-X-XX.XX-X-X-XXX
BY:
DEAN P
c:\enterprisevault\DWG\MISC\MKTG\MMSSX-XX-XXX-X-XX.XX-X-X-XXX-MKT.SLDDRW
05/03/2005
SHEET
1
OF
2
REVISION J
LATCH-
END 2
LATCH-
END 1
LATCH-
END 1
[LATCH UP- CABLE STRAIGHT]
-LUS
LATCH-
END 2
[LATCH DOWN- CABLE STRAIGHT]
-LDS
-K: KEYED POLARIZATION
(MMSSX-06-XX-X-XX.XX-X-K-XXX SHOWN)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
FIG. 3
.029 0.73 REF
.038 0.96 REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
IPD1-XX-S-K
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
.100[2.54] SOCKET DISCREET CABLE ASSEMBLY
MMSSX-XX-XXX-X-XX.XX-X-X-XXX
BY:
DEAN P
c:\enterprisevault\DWG\MISC\MKTG\MMSSX-XX-XXX-X-XX.XX-X-X-XXX-MKT.SLDDRW
05/03/2005
SHEET
2
OF
2
