ECS-245.76-S-36-A-D-P-TR: DescriptionSeries - Fundamental Quartz Crystal, 24.576MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size235KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-245.76-S-36-A-D-P-TR Overview

Series - Fundamental Quartz Crystal, 24.576MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN

ECS-245.76-S-36-A-D-P-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1736468708
package instruction	ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.25
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.01%
frequency tolerance	25 ppm
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	24.576 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
physical size	L2.5XB2.0XH0.55 (mm)/L0.098XB0.079XH0.022 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

Low Profile

2.5 x 2.0 mm Footprint

Extended Temp. Range Option

RoHS Compliant

ECX-2236

SMD CRYSTAL

The miniature ECX-2236 is a very compact SMD Crystal. The

2.5 x 2.0 x 0.55 mm ceramic package is ideal for today's SMD

manufacturing environment.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency

Frequency Tolerance

Frequency Stability (ref @ 25°C)

Shunt Capacitance

Load Capacitance

Equivalent Series Resistance

Drive Level

Operating Temperature

Storage Temperature

Aging Characteristics (Per Year)

T

opr

T

stg

@ +25°C ± 3°C

-20

-40

Fundamental Mode

8

+25

100

+70

+85

±5

CONDITIONS

F

O

@ +25°C

-20 ~ +70°C

ECX-2236

MIN

16.000

TYP

MAX

80.000

± 50 *

5.0

UNITS

MHz

ppm

pF

Ω

µW

°C

ppm

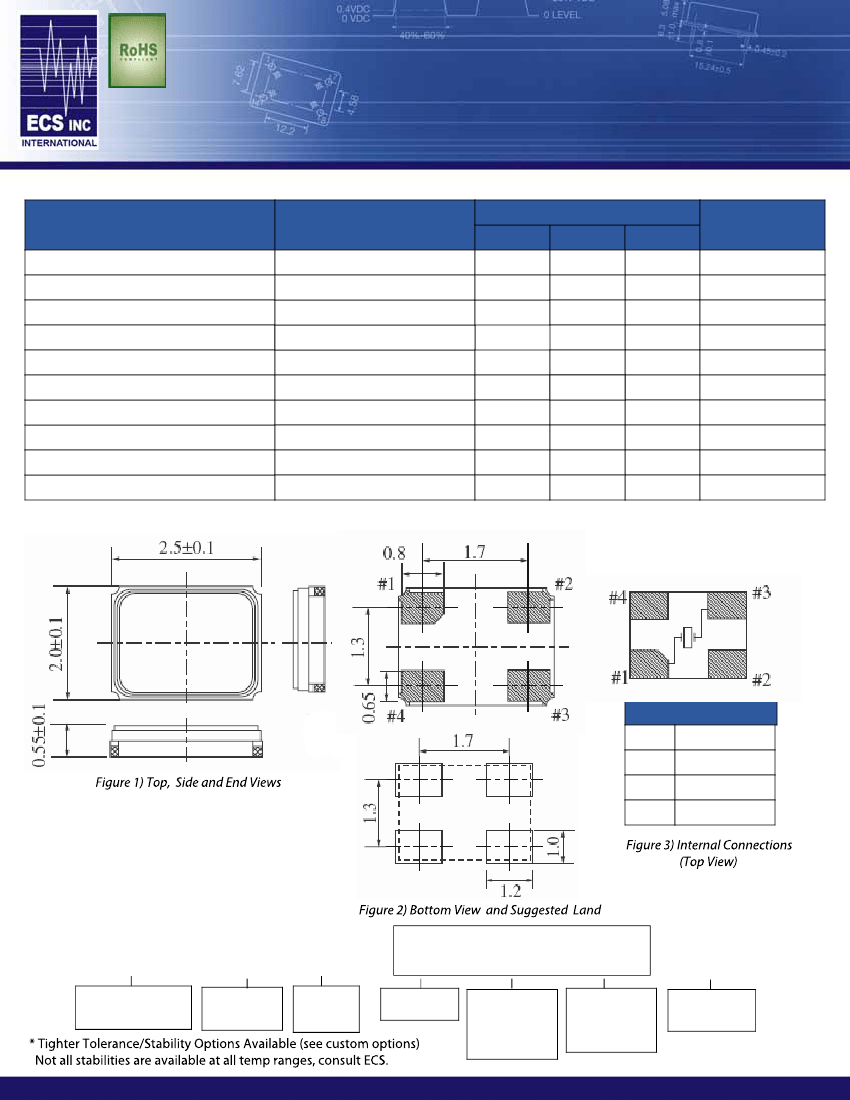

PACKAGE DIMENSIONS (mm)

Pad Connections

1

2

3

4

In/Out

Gnd

In/Out

Gnd

PART NUMBERING GUIDE: Example ECS-160-8-36-TR

ECS - Frequency Abbreviation - Load -

160 = 16.000 MHz

See P/N Guide for

Std Frequencies

8 = 8.0 pF

S = Series

Custom Options

- Tolerance

A = ± 25 ppm

C = ± 10 ppm

Package Type

-36 =

ECX-2236

-

Stability - Temp Range

D = ±100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

K = ± 10 ppm

L = -10 ~ +70°C

M = -20 ~ +70°C

N = -40 ~ +85°C

P = -40~+105°C

-

Packaging

-TR =

Tape & Reel

1K/Reel

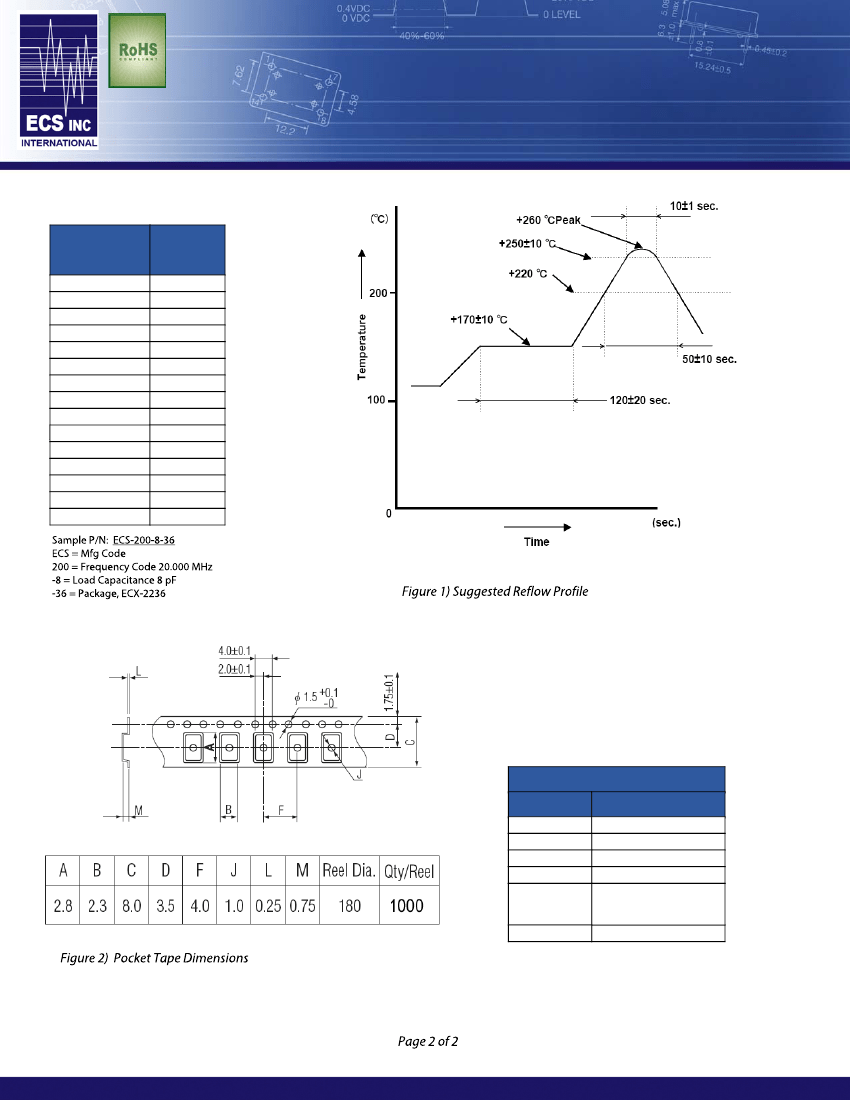

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
