231A1C682F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 231A1C682F

231A1C682F: DescriptionFilm Capacitor, Polyester, 200V, 1% +Tol, 1% -Tol, 0.0068uF, 4229,; CategoryPassive components capacitor; File Size375KB，12 Pages; ManufacturerSeacor Capacitors

Download Datasheet Parametric View All

231A1C682F Overview

Film Capacitor, Polyester, 200V, 1% +Tol, 1% -Tol, 0.0068uF, 4229,

231A1C682F Parametric

Parameter Name	Attribute value
Objectid	842922267
package instruction	, 4229
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.0068 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
high	4.318 mm
length	10.668 mm
negative tolerance	1%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Axial
positive tolerance	1%
Rated (DC) voltage (URdc)	200 V
series	231A(200 VOLT)
size code	4229
width	7.366 mm

Preview

Download Datasheet

View All

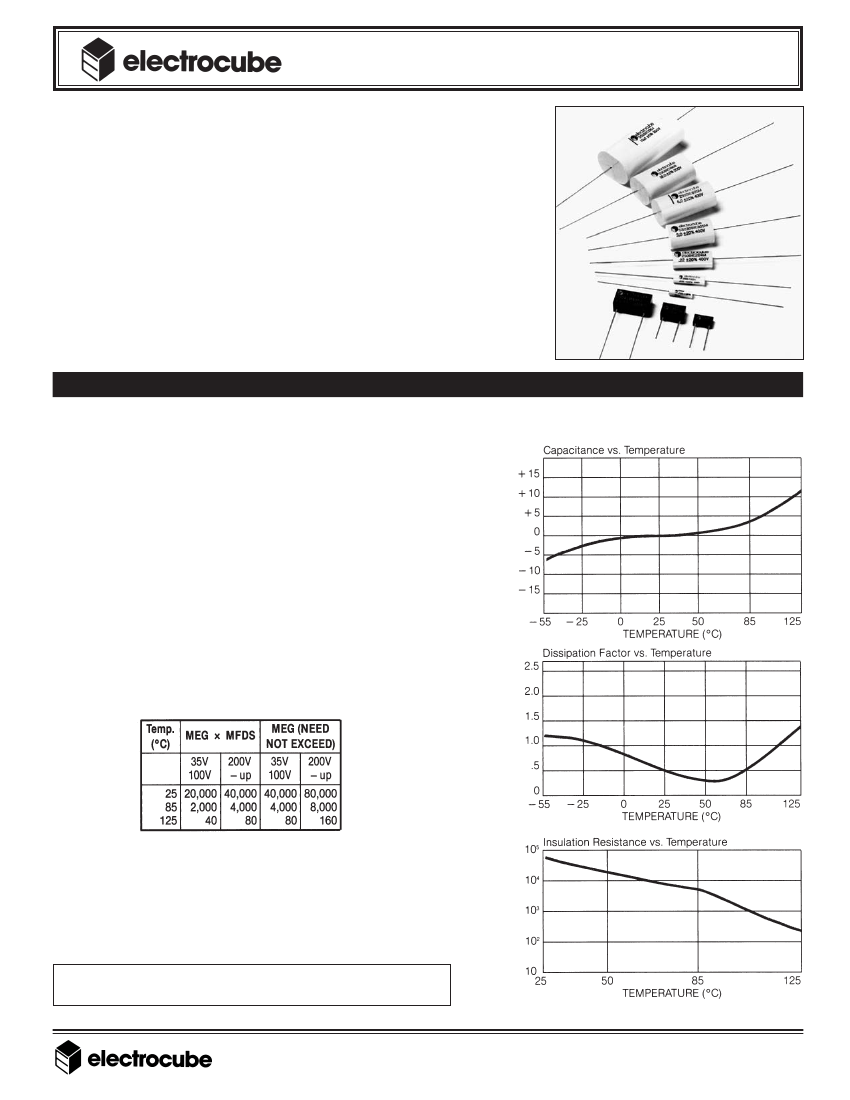

METALLIZED POLYESTER CAPACITORS

230 SERIES

leads are available.

Protective clear wrap is offered on

all wrap and fill units. Please add

.010” to maximum T and W dimen-

sion for protective clear wrap.

The potting material and endfills

of Electrocube’s capacitors meet or

exceed the flammability requirements

of UL94VO.

Dimensional variations for all

MFD values are available with the

same volume to meet your design

requirements.

The unique high performance and

long life characteristics of polyester

account for the varied applications of

this miniature capacitor series. A wide

range of sizes and configurations are

available. You can choose from axial-

lead wrap and fill, oval and round

shapes and rectangular epoxy case

with axial and radial leads.

These capacitors feature extended

foil construction and standard tin-

coated copper-clad steel leads. Nickel,

copper, dumet and other special

SPECIFICATIONS

Temperature:

-55°C to +85°C at rated voltage; to +125°C

with 50% voltage derating.

TYPICAL DIELECTRIC CHARACTERISTIC CURVES

and 25°C for a period not to exceed 1 minute; current limited

to 5 mA.

Life Test:

Will withstand rated voltage for 250 hrs. at +125°C

with not more than 1 failure in 12 permitted.

Dissipation Factor:

Shall not exceed 1.0% at 25°C.

Dielectric Absorption:

Shall not exceed 0.5% at 25°C per

MIL-C-19978.

Acceptance Criteria:

Measurement frequency for capacitance

Insulation Resistance:

At rated voltage or 500V, whichever

is less, units shall meet the minimum values below:

NOTES:

For information regarding insulating sleeves, mountings, special terminals,

non-standard leads, circuit connections and other hardware, please

consult factory.

For styles and ratings not shown, or for unusual requirements necessitated

by special circuit applications (including higher IR or lower DF), consult

the factory direct.

All Electrocube film capacitors have endfills and tape that

meet or exceed the flammability requirements of UL94V0.

1307 S. Myrtle Ave. • Monrovia, CA 91016 • TEL: (626) 301-0122 • FAX: (626) 357-8099

e-mail: sales@electrocube.com • Internet: www.electrocube.com • (IR: 9/99)

INSULATION RESISTANCE

(MEGOHMS TIMES MICROFARADS)

% DISSIPATION FACTOR

and dissipation factor shall be 1000 Hz for values up to 1 mfd

and 120 Hz for values of 1.0 mfd and up.

% CAPACITANCE CHANGE

Dielectric Strength:

Will withstand 150% at rated voltage
