CN1J4KLTD434J: DescriptionArray/Network Resistor, Isolated, 0.063W, 430000ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0612, CHIP; CategoryPassive components The resistor; File Size69KB，2 Pages; ManufacturerKOA

Download Datasheet Parametric View All

CN1J4KLTD434J Overview

Array/Network Resistor, Isolated, 0.063W, 430000ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0612, CHIP

CN1J4KLTD434J Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	2040877117
package instruction	CHIP
Reach Compliance Code	not_compliant
ECCN code	EAR99
structure	Chip
Component power consumption	0.063 W
The first element resistor	430000 Ω
JESD-609 code	e0
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	4
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	3.2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1.6 mm
method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.063 W
Rated temperature	70 °C
resistance	430000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
size code	0612
surface mount	YES
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	50 V

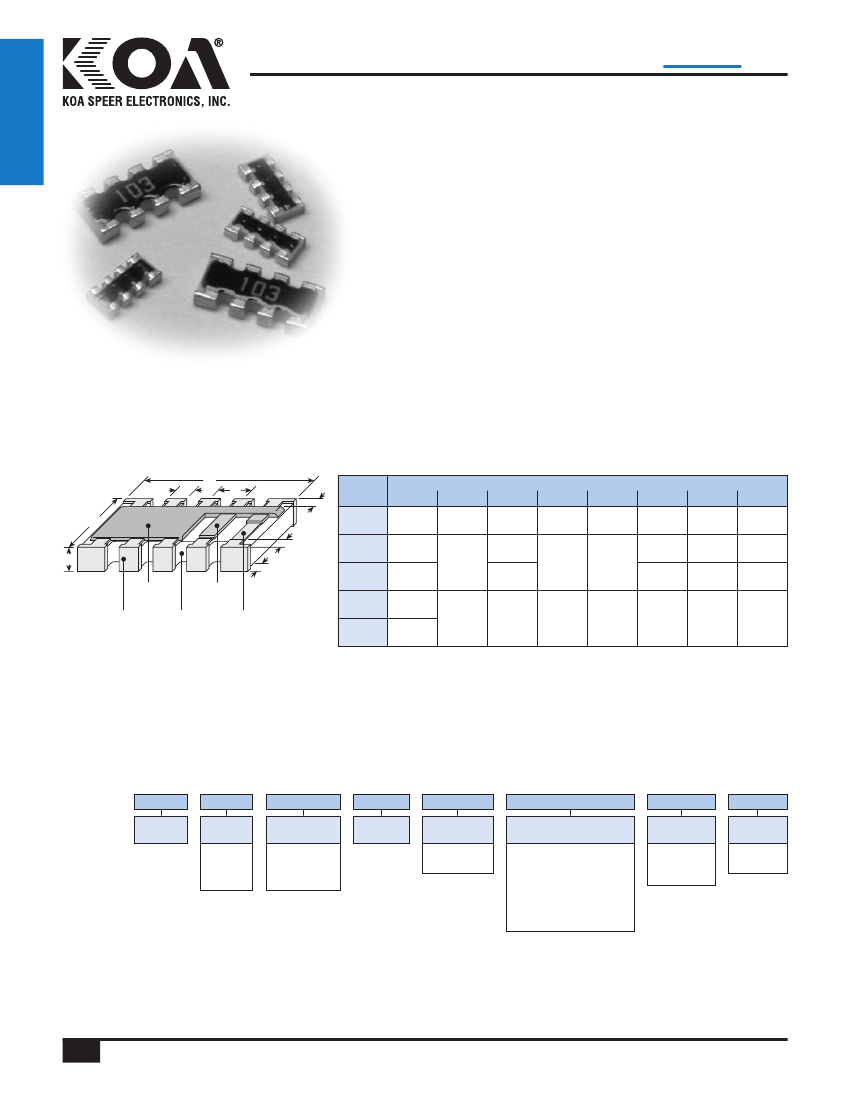

Preview

Download Datasheet

View All

resistors

convex termination with square corners

resistor array

features

•

Manufactured to type RK73 standards

Less board space than individual chips

Isolated resistor elements

Convex terminations with square corners

Marking: Body color black

1E no marking

1J white three-digit marking

dimensions and construction

Protective

Coating

Electrode

Resistive

Film

Inner

Electrode

Size

Code

1F8K

1E2K

1E4K

1J2K

1J4K

Dimensions

inches

(mm)

a (ref.)

—

b (ref.)

p (ref.)

.149±.004 .063±.008 .012±.004

(3.8±0.1) (1.6±0.2) (0.3±0.1)

.039±.004

(1.0±0.1)

.039±.004

.079±.004

(1.0±0.1)

(2.0±0.1)

.017±.004 .012±.004 .012±.004 .020±.004

(0.44±0.1) (0.3±0.1) (0.3±0.1) (0.5±0.1)

.014

(0.35)

.013±.004 .007±.002 .026±.004

(0.33±0.1) (0.17±0.05) (0.65±0.1)

.012±.004 .006±.004

(0.3±0.1) (0.15±0.1)

.020

(0.5)

.012

(0.3)

.020

(0.5)

0.31

(0.8)

.006±.004

(0.15±0.1)

.010±.004

(0.25±0.1)

Ceramic

Substrate

.063±.006

(1.6±0.15)

.063±.006 .012±.008 .010±.004

.126±.006

(1.6±0.15) (0.3±0.2) (0.25±0.1)

(3.2±0.15)

.020

(0.5)

ordering information

New Part #

Type

Size

Elements

Terminal

Convex

Termination

Material

T: Sn

L: SnPb

Packaging

TD: 7" paper tape

TP: 2mm pitch punched

paper (CN1E2K,

1E4K, 1F8K)

TE: 7" embossed plastic

TDD: 10" paper tape

101

Nominal

Resistance

2 significant

figures + 1

multiplier

Tolerance

F: ±1%

J: ±5%

For further information on packaging,

please refer to Appendix A.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

4/20/05

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

.O.
