227781-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 227781-2

227781-2: DescriptionCONNECTOR, CABLE TERMINATED, MALE, SMA CONNECTOR, N/S, PLUG; CategoryThe connector The connector; File Size27KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

227781-2 Overview

CONNECTOR, CABLE TERMINATED, MALE, SMA CONNECTOR, N/S, PLUG

227781-2 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknow
Other features	INSERTION LOSS TESTED AT 6GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.21 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	227781
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	12.4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	N/S
Base Number Matches	1

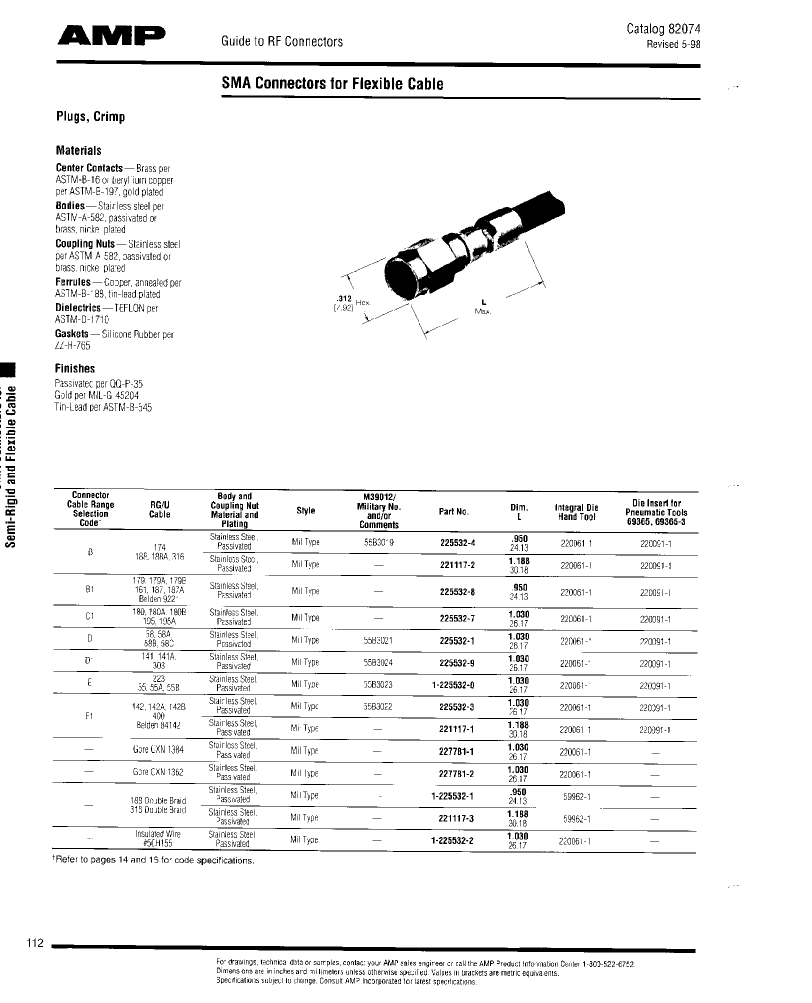

Preview

Download Datasheet

View All

227781-2 Related Products

	227781-2	1-225532-2	225532-7	227781-1	M39012/55B3022	M39012/55B3023	M39012/55B3024	M39012/55B3021	M39012/55B3019
Description	CONNECTOR, CABLE TERMINATED, MALE, SMA CONNECTOR, N/S, PLUG	CONNECTOR, CABLE TERMINATED, MALE, SMA CONNECTOR, N/S, PLUG	CONNECTOR, CABLE TERMINATED, MALE, SMA CONNECTOR, N/S, PLUG	CONNECTOR, CABLE TERMINATED, MALE, SMA CONNECTOR, N/S, PLUG	CABLE TERMINATED, MALE, SMA CONNECTOR, N/S, PLUG	CABLE TERMINATED, MALE, SMA CONNECTOR, N/S, PLUG	CABLE TERMINATED, MALE, SMA CONNECTOR, N/S, PLUG	CABLE TERMINATED, MALE, SMA CONNECTOR, N/S, PLUG	CABLE TERMINATED, MALE, SMA CONNECTOR, N/S, PLUG
Reach Compliance Code	unknow	unknow	unknow	unknow	not_compliant	compliant	compliant	compliant	not_compliant
Other features	INSERTION LOSS TESTED AT 6GHZ	INSERTION LOSS TESTED AT 6GHZ	APPLICABLE CABLES: RG 180/U; RG 180A/U; RG 180B/U; RG 195/U; RG 195A/U	INSERTION LOSS TESTED AT 6GHZ	APPLICABLE CABLES: RG 142/U; RG 142A/U; RG 142B/U; RG 400/U	APPLICABLE CABLES: RG 223/U; RG 55/U; RG 55A/U; RG 55B/U	APPLICABLE CABLES: RG 141/U; RG 141A/U; RG 303/U	APPLICABLE CABLES: RG 58/U; RG 58A/U; RG 58B/U; RG 58C/U	APPLICABLE CABLES: RG 174/U; RG 188/U; RG 188A/U; RG 316/U
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	NOT SPECIFIED	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Insertion loss	0.21 dB	0.21 dB	0.21 dB	0.21 dB	0.21 dB	0.21 dB	0.21 dB	0.21 dB	0.21 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO	NO	NO	YES	YES	YES	YES	YES
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	12.4 GHz	12.4 GHz	12.4 GHz	12.4 GHz	12.4 GHz	12.4 GHz	12.4 GHz	12.4 GHz	12.4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO	NO	NO	NO	NO
Termination type	N/S	N/S	N/S	N/S	N/S	N/S	N/S	N/S	N/S
Maker	TE Connectivity	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	-	GOLD	GOLD	GOLD	Gold (Au)
JESD-609 code	e4	e4	e4	e4	-	e4	e4	e4	e4
Manufacturer's serial number	227781	225532	225532	227781	-	-	M39012	M39012	-
Base Number Matches	1	1	1	1	1	1	1	-	-
Is it Rohs certified?	-	-	-	-	incompatible	conform to	conform to	conform to	incompatible
