Datasheet
Single-Output LDO Regulator
1A Fixed Output LDO Regulators
BD80C0AFPS-LB
General Description
This is the product guarantees long time support in
Industrial market.
The BD80C0AFPS-LB and BD90C0AFPS-LB are
low-saturation regulators. These ICs have built in over
current protection to protect the device when output is
shorted and thermal shutdown circuit to protect the
device during over load conditions.
BD90C0AFPS-LB
Key Specification
Supply Voltage range:
Output voltage
BD80C0AFPS-LB:
BD90C0AFPS-LB:
Output current:
Operating temperature range:
Vo+1.0V to 26.5V
8.0V
9.0V
1A
-40℃≤Ta≤+105℃
Features
Long time support product for Industrial applications
Output Current capability : 1A
High Output Voltage Precision: ±1%
Low saturation with PDMOS output
Built-in over-current protection circuit that prevents
the destruction of the IC due to output short circuits
Built-in thermal shutdown circuit for protecting the IC
from thermal damage due to overloading
Low ESR Capacitor
Package
TO252S-3
W (Typ.) x D (Typ.) x H (Max.)
6.50mm x 9.50mm x 1.30mm
Applications
Industrial Equipment
TO252S-3
Typical Application Circuit
Vcc
Vcc
Cin
Cout
Vo
GND
Figure 1. Typical Application Circuit
Ordering Information
B
D
x
x
C
0
A
F
P
S
- L
B
E
2
Part Number
Output Voltage
80:8.0V Output
90:9.0V Output
Current capacity
C0A:1A
Package
FPS:TO252S-3
Product class
LB: Industrial
applications
Packaging and forming
specification
E2: Embossed tape and reel
Lineup
Maximum Output
Current (Max.)
1A
9.0V
Output Voltage
(Typ.)
8.0V
TO252S-3
Reel of 2000
BD90C0AFPS-LBE2
Package
Orderable Part Number
BD80C0AFPS-LBE2
○Product
structure：Silicon monolithic integrated circuit
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111½14½001
○This
product has no designed protection against radioactive rays.
1/19
TSZ02201-0T2T0AN00100-1-2
27.Feb.2014 Rev.002
BD80C0AFPS-LB
Pin Configuration
BD90C0AFPS-LB
Datasheet
TO252S-3
(TOP VIEW)
Figure 2. Pin Configuration
Pin Description
Pin No.
1
2
3
FIN
Symbol
Vcc
N.C.
Vo
GND
N.C. Pin
Output Pin
GND
Function
Power Supply Pin
※N.C.Pin
can be open. Because it isn't connect it inside of IC.
Block Diagram
VREF: Bandgap Reference
OCP: Over Current Protection Circuit
TSD: Thermal Shut Down Circuit
Driver: Power Transistor Driver
Figure 3. Block Diagram
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
2/19
TSZ02201-0T2T0AN00100-1-2
27.Feb.2014 Rev.002
BD80C0AFPS-LB
BD90C0AFPS-LB
Datasheet
Absolute Maximum Ratings
(Ta=25℃)
Parameter
Supply Voltage
Power Dissipation
Storage Temperature Range
Maximum Junction Temperature
*1
*2
Symbol
V
CC
Pd
Topr
Tstg
Tjmax
Ratings
-0.3 to +35.0
1.2
-40 to +105
-55 to +150
+150
Unit
V
W
℃
℃
℃
Operating Temperature Range
*1 Not to exceed Pd.
*2 TO252S-3:Reduced by 9.6mW / °C over Ta = 25°C, when mounted on glass epoxy board: 70mm×70mm×1.6mm.
Recommended Operating Ratings
(Ta=25℃)
■BD80C0AFPS-LB
Parameter
Supply Voltage
Output Current
■BD90C0AFPS-LB
Parameter
Supply Voltage
Output Current
Symbol
V
CC
Io
Min.
9.0
0
Max.
26.5
1.0
Unit
V
A
Symbol
Vcc
Io
Min.
10.0
0
Max.
26.5
1.0
Unit
V
A
Electrical Characteristics
■BD80C0AFPS-LB
(Unless otherwise specified, Ta=25℃, Vcc=13V, Io=0mA)
Parameter
Circuit Current
Output Voltage
Dropout Voltage
Ripple Rejection
Line Regulation
Load Regulation
Temperature Coefficient of
Output Voltage
*1
ein: Input Voltage Ripple
Symbol
Ib
Vo
ΔVd
R.R.
Reg.I
Reg.L
Tcvo.1
Tcvo.2
Guaranteed Limits
Min.
－
7.92
－
40
－
－
－
－
Typ.
0.6
8.00
0.3
50
20
+0.04
±0.005
Max.
1.0
8.08
0.5
－
60
－
－
Unit
mA
V
V
dB
mV
V
%/℃
%/℃
Conditions
Io=500mA
V
CC
=Vo×0.95, Io=500mA
*1
f=120Hz,ein =1Vrms,
Io=100mA
V
CC
=9→25V
Io=5mA→1A
Io=5mA,Tj=-40℃ to -20℃
Io=5mA,Tj=-20℃ to +105℃
Vo×0.010 Vo×0.015
■BD90C0AFPS-LB
(Unless otherwise specified, Ta=25℃, Vcc=14V, Io=0mA)
Parameter
Circuit Current
Output Voltage
Dropout Voltage
Ripple Rejection
Line Regulation
Load Regulation
Temperature Coefficient of
Output Voltage
*1
ein: Input Voltage Ripple
Symbol
Ib
Vo
ΔVd
R.R.
Reg.I
Reg.L
Tcvo.1
Tcvo.2
Guaranteed Limits
Min.
－
8.91
－
40
－
－
－
－
Typ.
0.6
9.00
0.3
50
20
+0.04
±0.005
Max.
1.0
9.09
0.5
－
60
－
－
Unit
mA
V
V
dB
mV
V
%/℃
%/℃
Conditions
Io=500mA
V
CC
=Vo×0.95, Io=500mA
f=120Hz,ein*
1
=1Vrms,
Io=100mA
V
CC
=10→25V
Io=5mA→1A
Io=5mA,Tj=-40℃ to -20℃
Io=5mA,Tj=-20℃ to +105℃
Vo×0.010 Vo×0.015
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
3/19
TSZ02201-0T2T0AN00100-1-2
27.Feb.2014 Rev.002
BD80C0AFPS-LB
BD90C0AFPS-LB
Datasheet
Typical Performance Curves
BD80C0AFPS-LB (Unless otherwise specified, Ta=25℃, Vcc=13V, Io=0mA)

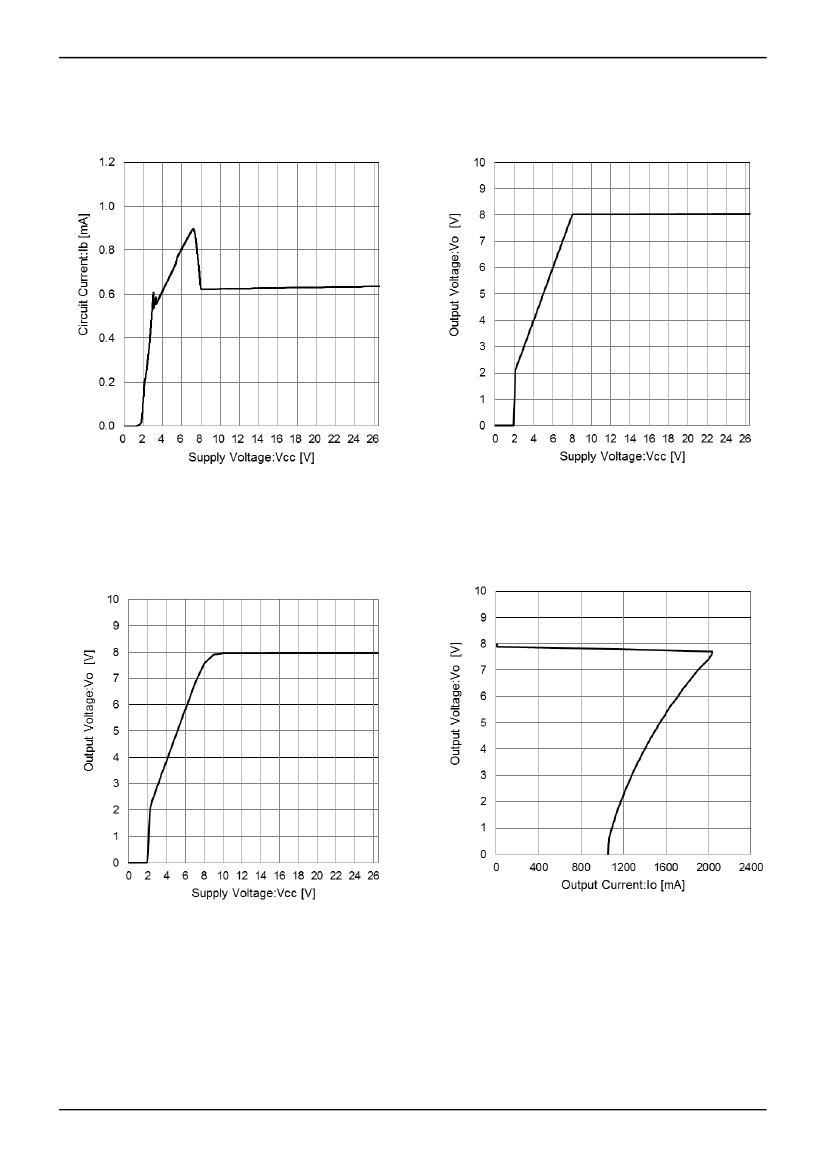

Figure 4. Circuit Current
Figure 5. Line Regulation
(Io=0mA)
Figure 6. Line Regulation
(Io=500mA)
Figure 7. Load Regulation
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
4/19
TSZ02201-0T2T0AN00100-1-2
27.Feb.2014 Rev.002
BD80C0AFPS-LB
BD90C0AFPS-LB
Datasheet
Typical Performance Curves - Continued

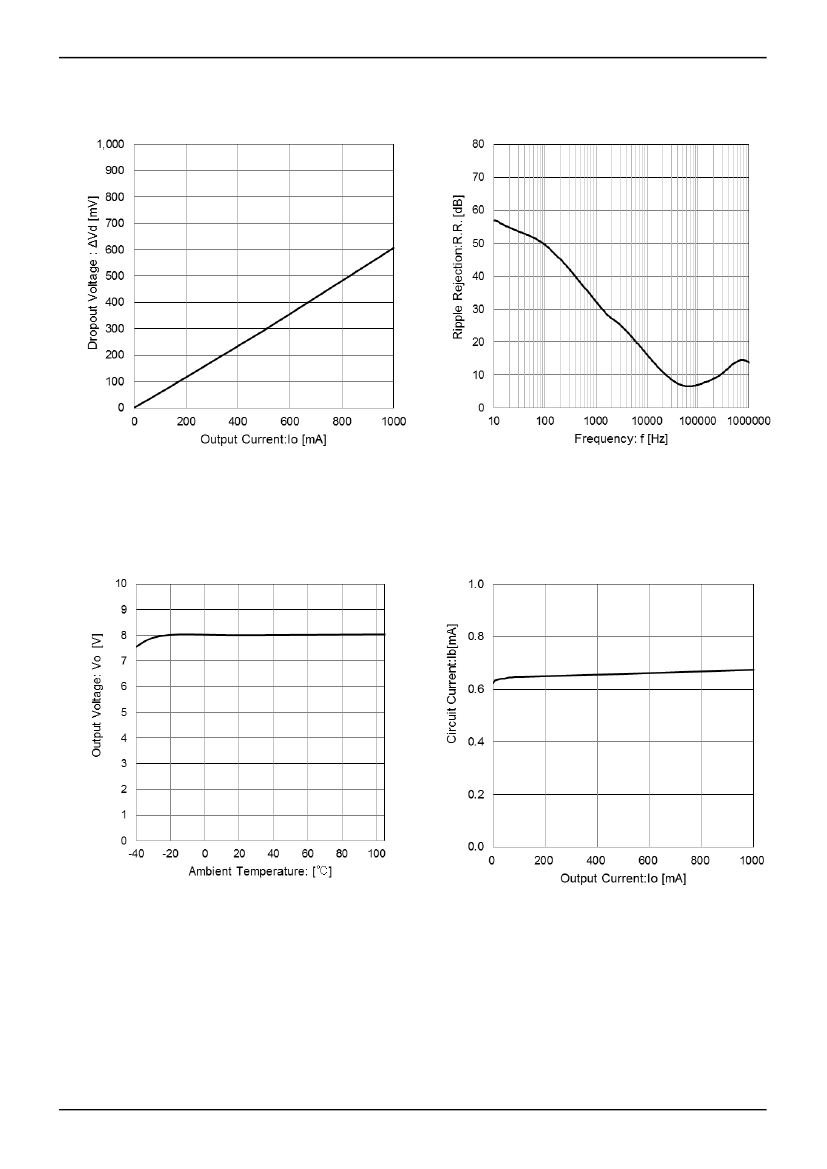

Figure 8. Dropout Voltage
(Vcc=Vo×0.95V)
(lo=0mA→1000mA)
Figure 9. Ripple Rejection
(Io =100mA)
Figure 10. Output Voltage
Temperature Characteristic
Figure 11. Circuit Current
(lo=0mA→1000 mA)
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
5/19
TSZ02201-0T2T0AN00100-1-2
27.Feb.2014 Rev.002
