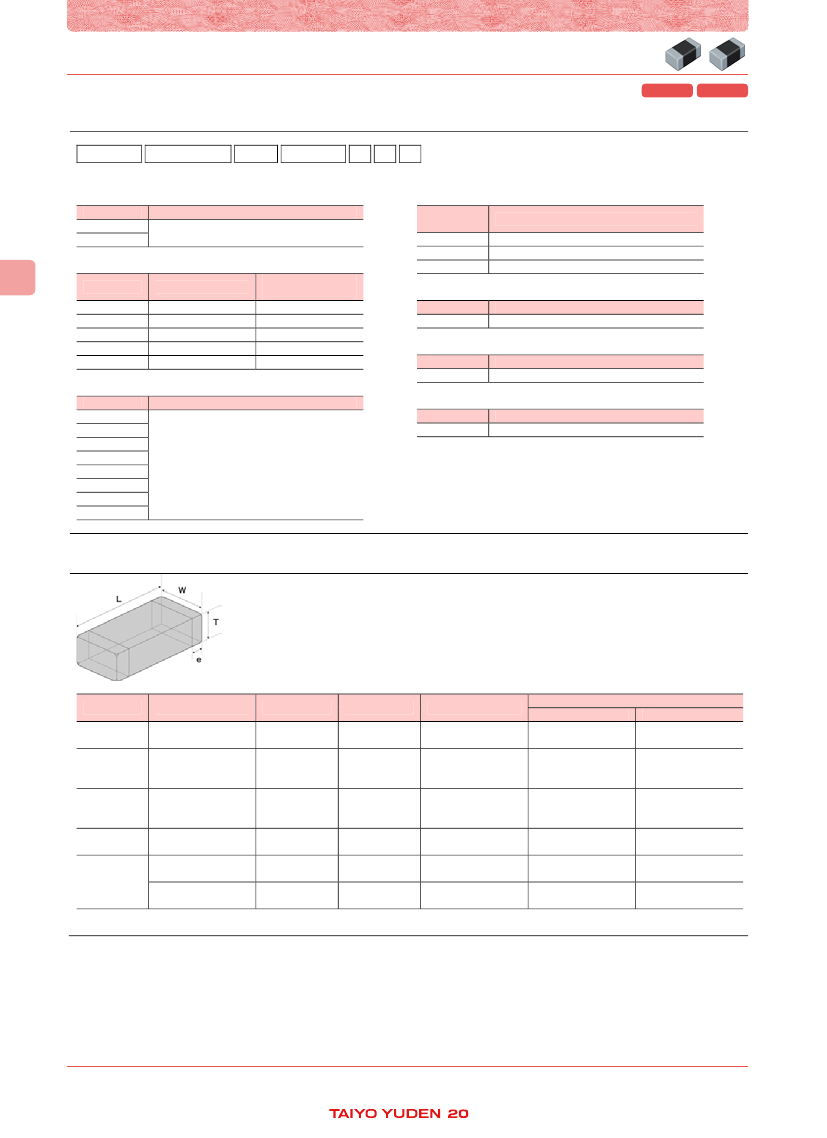

MULTILAYER CHIP BEAD INDUCTORS(BK SERIES)
MULTILAYER CHIP BEAD INDUCTORS (BK SERIES)
■PARTS
NUMBER
*Operating Temp. : -55½+125℃
WAVE＊
REFLOW
＊Except for BK0402, BK0603, BK1005, BKH1005
B
K △
①
1
6
②
0
8
H
③
S
1
2 1
④
－ T △
⑤ ⑥ ⑦
△＝Blank space
①Series name
Code
BK△
BKH
②Dimensions（L×W）
Code
0402
0603
1005
1608
2125
③Material
Code
HW
HS
HR
HM
LM
LL
TS
TM
Series name
Multilayer chip bead inductor
④Nominal impedance
Code
（example）
150
101
102
⑤Characteristics
Code
－
⑥Packaging
Code
T
⑦Internal code
Code
△
Nominal impedance［Ω½
15
100
1000
Type（inch）
0402（01005）
0603（0201）
1005（0402）
1608（0603）
2125（0805）
Dimensions
（L×W）［mm½
0.4×0.2
0.6×0.3
1.0×0.5
1.6×0.8
2.0×1.25
Characteristics
Standard
NOISE SUPPRESSION COMPONENTS FERRITE BEAD INDUCTORS
／
92
Packaging
Taping
Material
Internal code
Standard

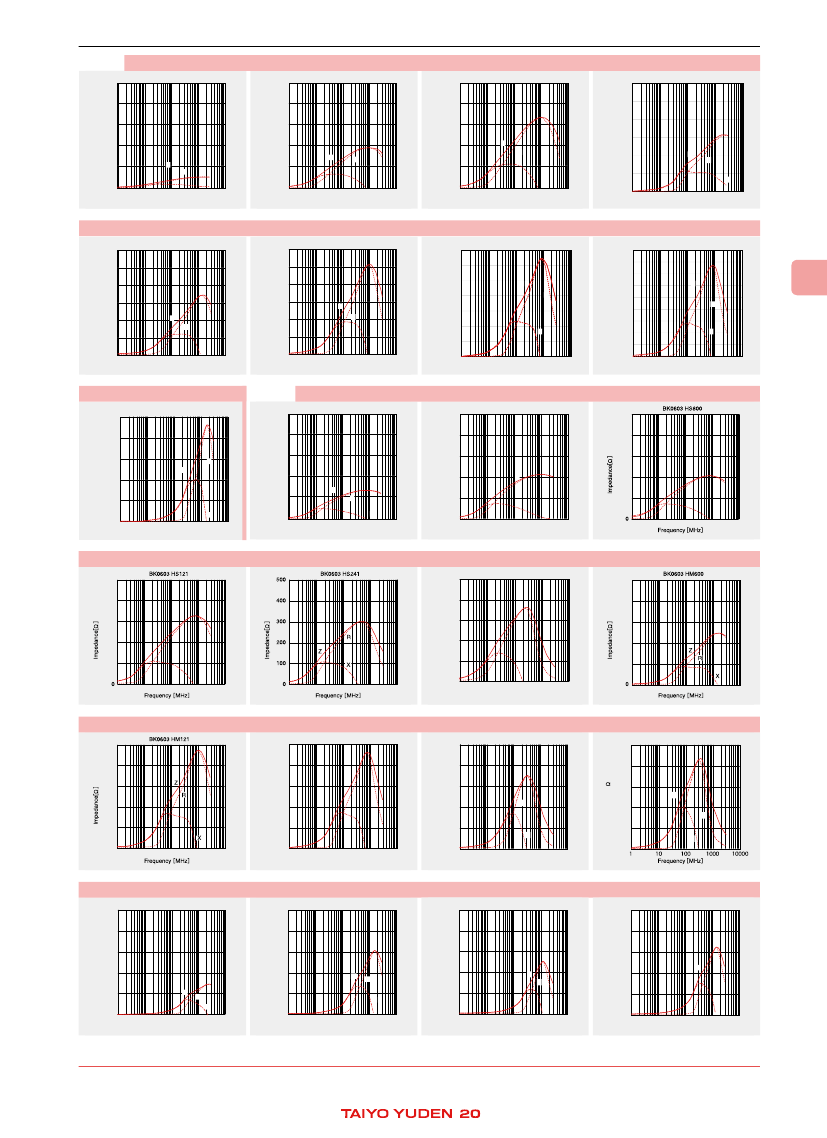

Refer to impedance curves
for material differences
■STANDARD
EXTERNAL DIMENSIONS / STANDARD QUANTITY
Type
BK 0402
（01005）
BK 0603
BKH0603
（0201）
BK 1005
BKH1005
（0402）
BK 1608
（0603）
BK 2125
（0805）
L
0.40±0.02
（0.016±0.001）
0.60±0.03
（0.024±0.001）
1.00±0.05
（0.039±0.002）
1.6±0.15
（0.063±0.006）
2.0＋0.3/－0.1
（0.079＋0.012/－0.004）
2.0＋0.3/－0.1
（0.079＋0.012/－0.004）
W
0.20±0.02
（0.008±0.001）
0.30±0.03
（0.012±0.001）
0.50±0.05
（0.020±0.002）
0.8±0.15
（0.031±0.006）
1.25±0.2
（0.049±0.008）
1.25±0.2
（0.049±0.008）
T
0.20±0.02
（0.008±0.001）
0.30±0.03
（0.012±0.001）
0.50±0.05
（0.020±0.002）
0.8±0.15
（0.031±0.006）
0.85±0.2
（0.033±0.008）
1.25±0.2
（0.049±0.008）
e
0.10＋0.04/－0.03
（0.004＋0.002/－0.001）
0.15±0.05
（0.006±0.002）
0.25±0.10
（0.010±0.004）
0.3±0.2
（0.012±0.008）
0.5±0.3
（0.020±0.012）
0.5±0.3
（0.020±0.012）
Standard quantity [pcs]
Paper tape
Embossed tape
20000
15000
－
－
10000
4000
4000
－
－
－
－
2000
Unit：mm（inch）
i_mlci_BK_e-E02R01
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
