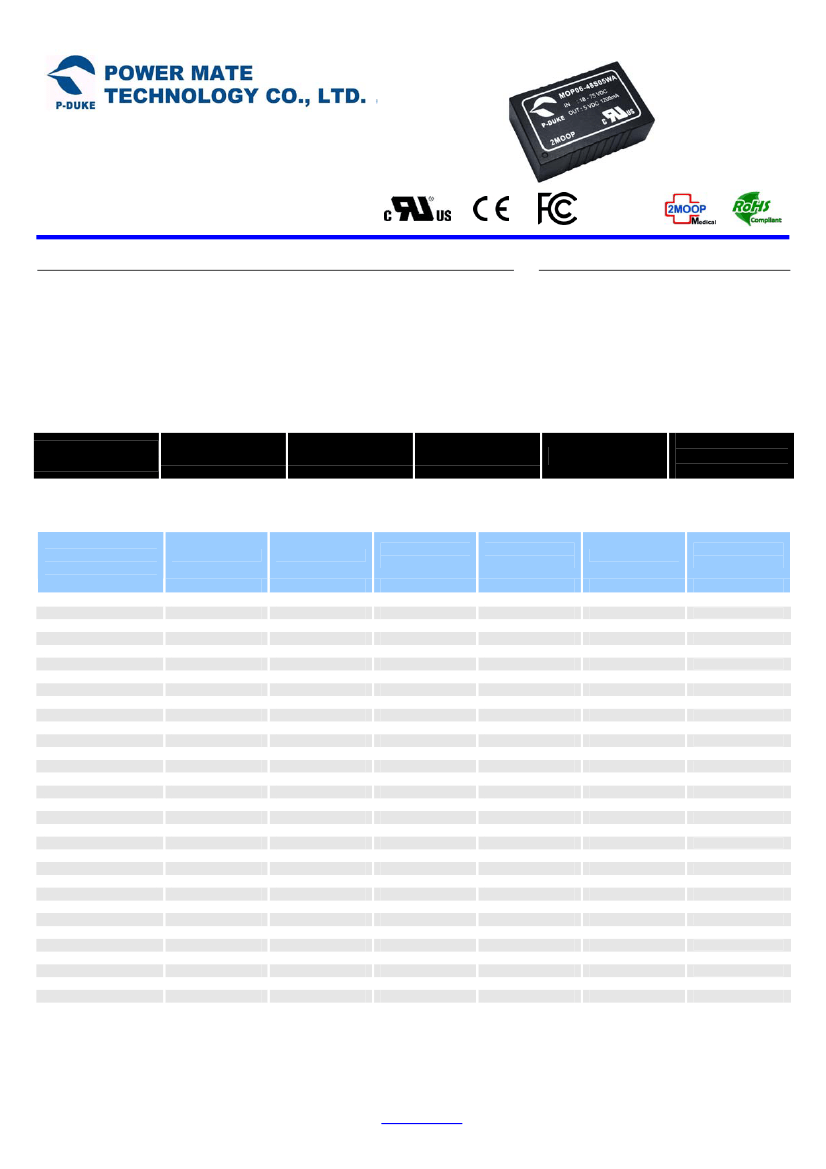

MOP06(W)
MOP06(W) SERIES
DC-DC CONVERTER
2:1 & 4:1 WIDE INPUT RANGE
UP TO 6 WATTS
FEATURES
•
REINFORCED INSULATION FOR 300VAC WORKING VOLTAGE
•
CLEARANCE AND CREEPAGE DISTANCE :6.6mm/2MOOP
•
3000VAC INPUT TO OUTPUT 2MOOP ISOLATION
•
BUILT-IN EMI CLASS A FILTER
•
2µA PATIENT LEAKAGE CURRENT
•
SAFETY MEETS ANSI/AAMI ES60601-1, EN60601-1 AND IEC60601-1
•
CE MARK MEETS 2006/95/EC, 2011/95/EC AND 2004/108/EC
•
COMPLIANT TO RoHS EU DIRECTIVE 2011/65/EU
APPLICATIONS
MEDICAL EQUIPMENT
TELECOM/DATACOM
INDUSTRY CONTROL SYSTEM
MEASUREMENT EQUIPMENT
SEMICONDUCTOR EQUIPMENT
PV POWER SYSTEM
IGBT GATE DRIVER
3000VAC
ISOLATION
UVP
OCP
SCP
OVP
LOW
STANDBY
POWER
TECHNICAL SPECIFICATION
All specifications are typical at nominal input, full load and 25
ºC
otherwise noted
Model
Number
MOP06-05S3P3A/B
MOP06-05S05A/B
MOP06-05S12A/B
MOP06-05S15A/B
MOP06-05S24A/B
MOP06-05D05A/B
MOP06-05D12A/B
MOP06-05D15A/B
MOP06-12S3P3A/B
MOP06-12S05A/B
MOP06-12S12A/B
MOP06-12S15A/B
MOP06-12S24A/B
MOP06-12D05A/B
MOP06-12D12A/B
MOP06-12D15A/B
MOP06-24S3P3A/B
MOP06-24S05A/B
MOP06-24S12A/B
MOP06-24S15A/B
MOP06-24S24A/B
MOP06-24D05A/B
MOP06-24D12A/B
MOP06-24D15A/B
MOP06-48S3P3A/B
MOP06-48S05A/B
MOP06-48S12A/B
MOP06-48S15A/B
MOP06-48S24A/B
MOP06-48D05A/B
MOP06-48D12A/B
MOP06-48D15A/B
Input Range
VDC
4.5 ~9
4.5 ~9
4.5 ~9
4.5 ~9
4.5 ~9
4.5 ~9
4.5 ~9
4.5 ~9
9 ~ 18
9 ~ 18
9 ~ 18
9 ~ 18
9 ~ 18
9 ~ 18
9 ~ 18
9 ~ 18
18 ~ 36
18 ~ 36
18 ~ 36
18 ~ 36
18 ~ 36
18 ~ 36
18 ~ 36
18 ~ 36
36 ~ 75
36 ~ 75
36 ~ 75
36 ~ 75
36 ~ 75
36 ~ 75
36 ~ 75
36 ~ 75
Output Voltage
VDC
3.3
5
12
15
24
±5
±12
±15
3.3
5
12
15
24
±5
±12
±15
3.3
5
12
15
24
±5
±12
±15
3.3
5
12
15
24
±5
±12
±15
Output Current
@ Full Load
mA
1800
1200
500
400
250
±600
±250
±200
1800
1200
500
400
250
±600
±250
±200
1800
1200
500
400
250
±600
±250
±200
1800
1200
500
400
250
±600
±250
±200
Input Current
@ No Load
mA
10
10
15
15
20
25
25
25
10
10
10
10
10
10
10
10
6
6
6
6
6
6
6
6
4
4
4
4
4
4
4
4
Efficiency
%
81.5
86
86
86
87
84
86.5
87.5
83.5
86
89
89
88.5
84
89
88
83
86.0
89
89
88.5
85
88.5
88
82.5
86.5
88
88.5
88
85
88
88
Maximum
Capacitor Load
µF
2100
1500
260
210
75
± 860
± 150
± 110
2100
1500
260
210
75
± 860
± 150
± 110
2100
1500
260
210
75
± 860
± 150
± 110
2100
1500
260
210
75
± 860
± 150
± 110
Page 1 of 4
www.pduke.com
2013/7/9
MOP06(W)
OUTPUT SPECIFICATIONS
Parameter
Voltage accuracy
Line regulation
Load regulation
Cross regulation
Voltage adjustability
(Only for B-type Pin connection option)
Conditions
Low Line to High Line at Full Load
No Load to Full Load
Asymmetrical load 25%/100% FL
Single output
Dual output
Measured by 20MHz bandwidth
With a 10µF/25V X7R MLCC
With a 4.7µF/50V X7R MLCC
Single
Dual
Single
Dual
Dual
3.3Vout, 5Vout, 12Vout
15Vout, 24Vout
±5Vout, ±12Vout, ±15Vout
3.3Vout, 5Vout
12Vout, 15Vout
24Vout
Min.
-1.0
-0.2
-0.5
-0.2
-1.0
-5.0
-10
-10
-10
Typ.
Max.
+1.0
+0.2
+0.5
+0.2
+1.0
+5.0
+10
+20
+10
Unit
%
%
%
%
%
%
mVp-p
Ripple and noise
30
40
50
-0.02
+0.02
250
5.4
7.0
19.6
22.0
32.5
Temperature coefficient
Transient response recovery time
Over voltage protection
25% load step change
3.3Vout
5Vout
12Vout
15Vout
24Vout
3.7
5.6
13.5
18.3
29.1
%/ºC
µs
Continuous clamp
VDC
Over load protection
Short circuit protection
% of Iout rated; Hiccup mode
150
%
Continuous, automatics recovery
GENERAL SPECIFICATIONS
Parameter
Isolation voltage
Isolation capacitance
Leakage current
Switching frequency
Clearance/Creepage
Design meet safety standard
Case material
Base material
Potting material
Dimensions
Weight
MTBF
1 minute
240VAC,60Hz
Conditions
Input to Output
Min.
3000
Typ.
12
Max.
17
2
275
Unit
225
6.6
MIL-HDBK-217F Ta=25ºC, Full load (G/B, controlled environment)
VAC
pF
µA
250
kHz
mm
ANSI/AAMI ES60601-1
IEC60601-1, EN60601-1
Non-conductive black plastic
Non-conductive black plastic
Silicon (UL94-V0)
1.25 X 0.80 X 0.40 Inch
(31.8×20.3×10.2 mm)
14g (0.48oz)
1.115 x 10
6
hrs
ENVIRONMENTAL SPECIFICATIONS
Parameter
Operating ambient temperature
Storage temperature range
Thermal impedance
Thermal shock
Vibration
Relative humidity
Without derating
With derating
Natural convection (20LFM)
Conditions
,
Min.
-40
+88
-55
Typ.
Max.
+88
+105
+125
Unit
18
ºC
ºC
ºC
ºC/W
MIL-STD-810F
MIL-STD-810F
5% to 95% RH
EMC SPECIFICATIONS
Parameter
EMI
(1)
ESD
Radiated immunity
Fast transient
(2)
Surge
(2)
Conducted immunity
Conditions
EN55011,EN55022 and FCC Part 18
Air ± 8kV
EN61000-4-2
Contact ± 6kV
EN61000-4-3
10 V/m
EN61000-4-4
± 2kV
EN61000-4-5
± 2kV
EN61000-4-6
10 Vr.m.s
Level
Class A ,Class B
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Note:
The MOP06 (W) series can meet EMI Class A with no external filter. And Class B only with external components.
For more detail information, please contact with P-DUKE.
2. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5.
The MOP06-05S
recommended an aluminum electrolytic capacitor (Nippon Chemi-con KY series, 1000µF/25V).
And a reverse diode (Vishay V10P45) to connect in parallel.
The MOP06-12&24S
recommended an aluminum electrolytic capacitor (Nippon Chemi-con KY series, 470µF/50V).
The MOP06-48S
recommended an aluminum electrolytic capacitor (Nippon Chemi-con KY series, 330µF/100V)
.
CAUTION:
This power module is not internally fused. An input line fuse must always be used.
1.
Page 3 of 4
www.pduke.com
2013/7/9
MOP06(W)

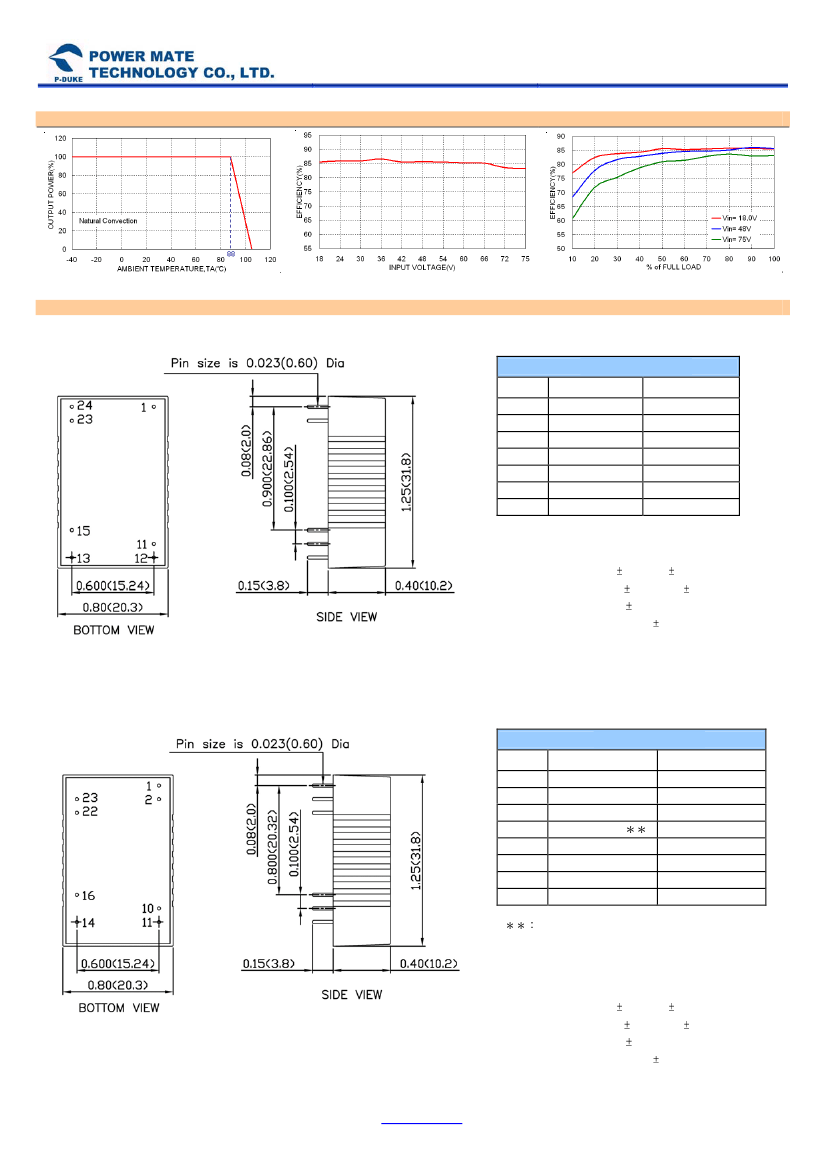

CHARACTERISTIC CURVE
