Datamate Connectors
If you are unable to specify the connectors you require from our Off-The-Shelf range of Datamate Mix-Tek (pages 76 to 81),
then customise your own Mix-Tek part number.
All items in this range are made-to-order, and may be subject to minimum order quantities and current availability conditions.
PArT NuMBErINg SySTEM
M80 - X #X XX XX #X - XX - XXX - XX - XXX
DATAMATE MIx-TEK
PRoDUCt RAnGe
GenDeR
4
5
Female (Socket)
Male (Plug)
PARt nUMBeR oF
sPeCiAL ContACts AFteR
FinAL siGnAL ContACt

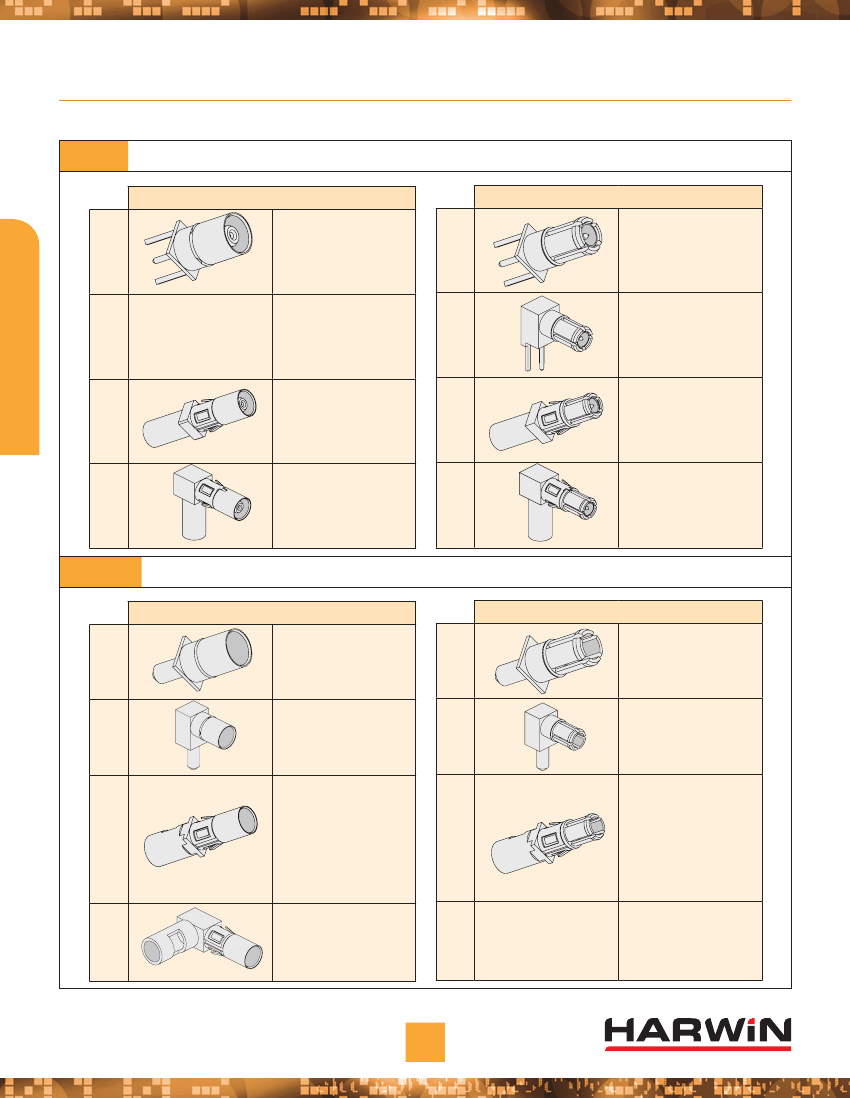

See page 86, or 000
if none loaded
siGnAL ContACt styLe
00
t1
t2
L1
L2
C1
No Signal Contacts
Vertical PC Tail, 3mm tail
Vertical PC Tail, 4.5mm tail
Horizontal PC Tail, 3mm tail (Male only)
Horizontal PC Tail, 4.5mm tail (Male only)
Crimp 24-28 AWG (Small Bore)
nUMBeR oF sPeCiAL ContACts
AFteR FinAL siGnAL ContACt
00 to 12
PARt nUMBeR oF sPeCiAL ContACts
BeFoRe siGnAL ContACt no. 1
See page 86, or 000 if none loaded
D1
Crimp 22 AWG (Large Bore)
e1
s1
s2
Crimp 28-32 AWG (Extra Small Bore)
Vertical Surface Mount
Horizontal Surface Mount (Male only)
nUMBeR oF sPeCiAL ContACts BeFoRe
siGnAL ContACt no. 1
00 to 12
JACksCReW VARiAnt
00
Fx
Mx
None assembled

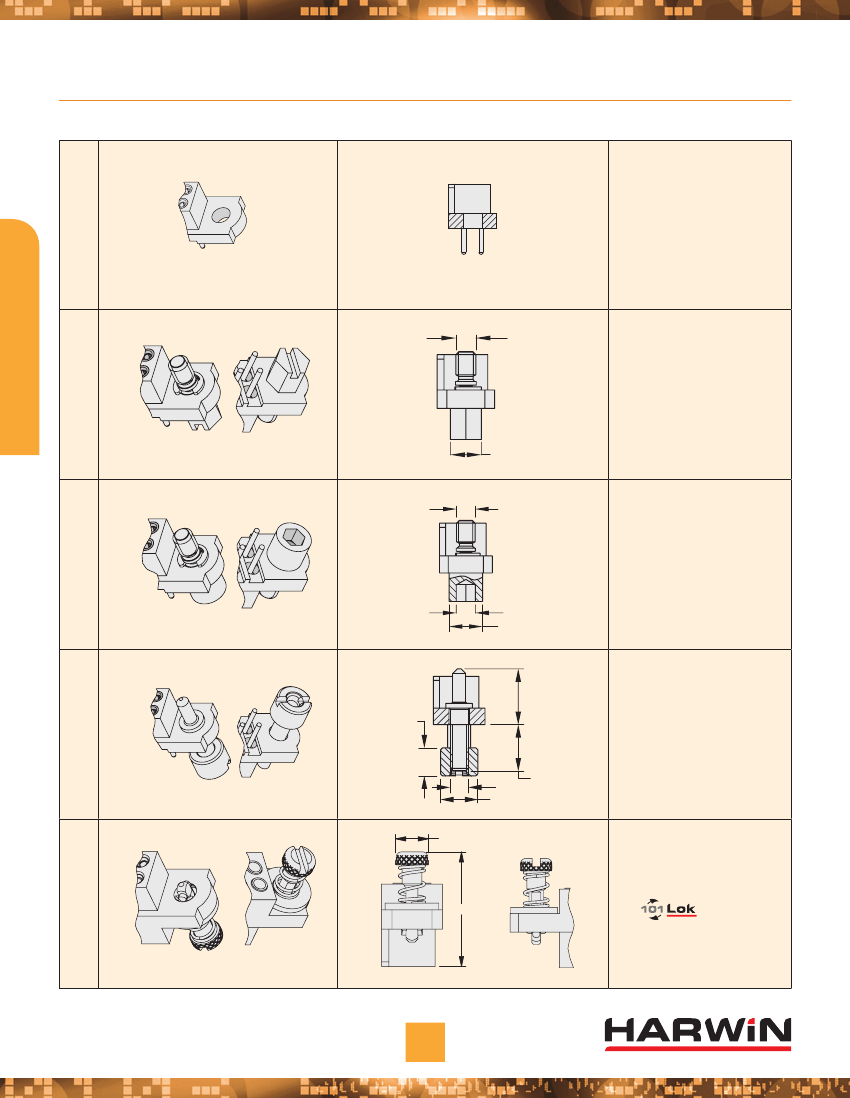

Female Jackscrews – see page 84

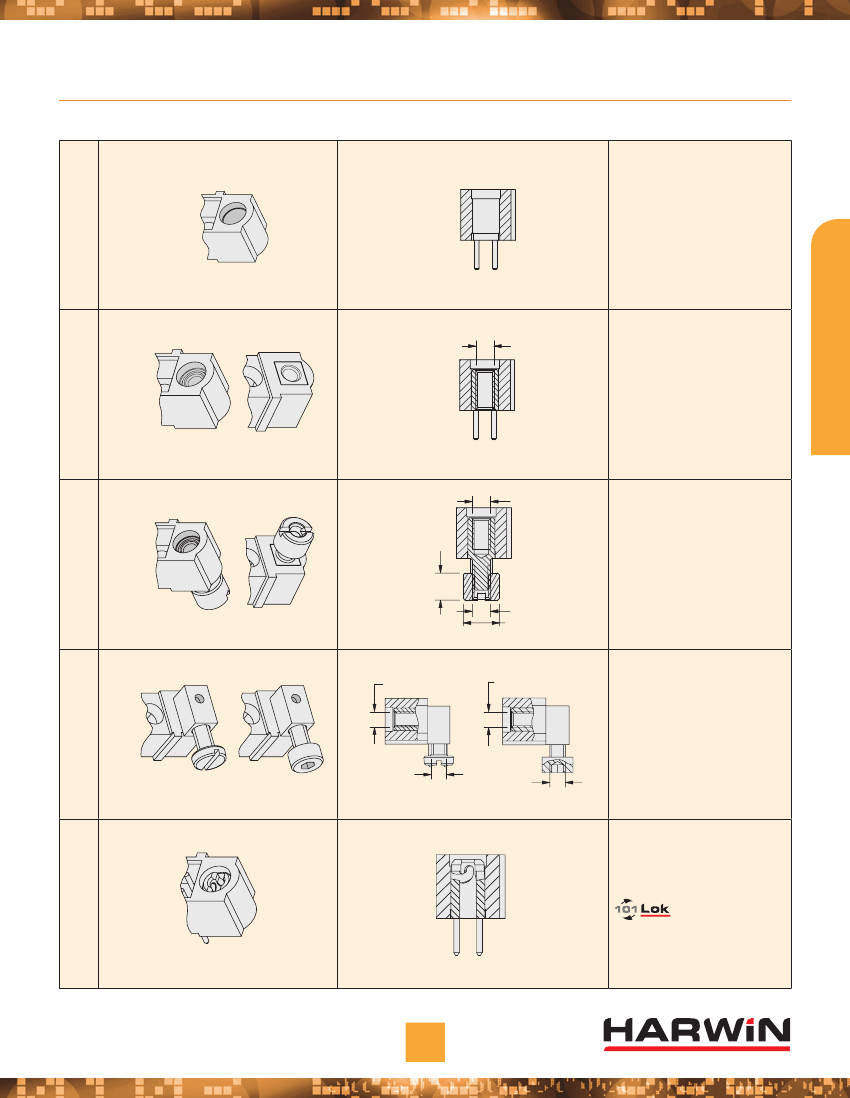

Male Jackscrews – see page 85
no. oF siGnAL ContACts
00, 02 to 50
(Must be even number)
siGnAL ContACt Finish
00
01
05
22
42
No Signal Contacts
Gold + Tin/Lead
Gold
Gold + Tin/Lead
Gold + Tin
Male PC Tail only
All PC Tail & Female Crimp
Female PC Tail only
Note: If special contacts are being ordered separately, and cavities in mould are to be left empty, then the Special Contact part numbers should be 000.
eXAMPLes:
M80-5t11422M1-02-311-02-311
DIL Male Vertical with Jackscrew, no Board Mount,
3mm PC Tail – 2 Coax, 14 Signal, 2 Coax.
M80-4D11042F2-04-305-02-308
DIL Female Crimp with Hex Socket Jackscrews,
Large Bore – 4 Special cavity, 10 Signal, 2 Special cavity.
Supplied with 4-off Female Straight Crimp Coax for Ø2mm cable,
and 2-off Female 90° Crimp Coax for Ø2mm cable.
M80-4C12005F1-04-326-00-000
DIL Female Crimp with Slotted Hex Jackscrews,
Small Bore – 4 Power (for 14 AWG), 20 Signal.
Max. number of contacts per connector: Special contacts only – 12 off, Signal contacts only – 50 off.
All dimensions in mm.
www.harwin.com
82
Datamate Connectors

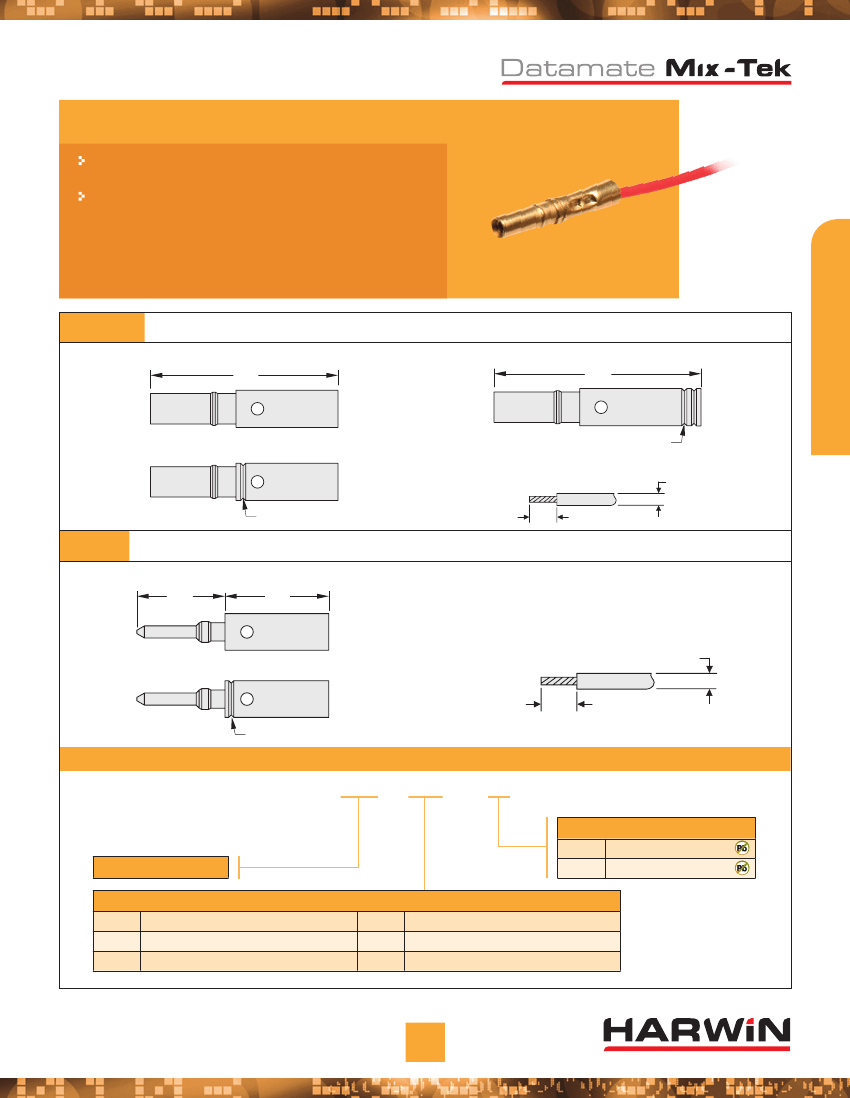

Spare Signal Crimp Contacts
Crimp contacts are supplied with all Mix-Tek connectors –
use the order codes below for extra crimp contacts.
For crimp and insertion tools, see pages 87 to 89.
FEMALE
Large Bore (22 AWG):
7.45
7.45
Extra Small Bore (28 – 32 AWG):
7.45
Small Bore (24 – 28 AWG):
Extra Small Bore Ident Groove
wire Stripping Details
Small Bore Ident Groove
Small Bore Ident Groove
2.00 nominal
Ø1.10 max (Ø0.75 max
for Extra Small Bore)
MALE
Large Bore (22 AWG):
3.50
3.50
4.15
4.10
4.15
4.10
wire Stripping Details
Small Bore (24 – 28 AWG):
Ø1.10 max
2.00 nominal
Small Bore Ident Groove
Small Bore Ident Groove
HOw TO OrDEr
M80 - XXX 00 XX
Finish
01
Gold + Tin (Female only)
Gold
seRies CoDe
tyPe
011
013
019
All dimensions in mm.
05
Female Large Bore (22 AWG)
Female Small Bore (24-28 AWG)
Female Extra Small Bore (28-32 AWG)
194
195
Male Large Bore (22 AWG)
Male Small Bore (24-28 AWG)
www.harwin.com
83
