05.2214.195 datasheet, PDF - EEWORLD Datasheet

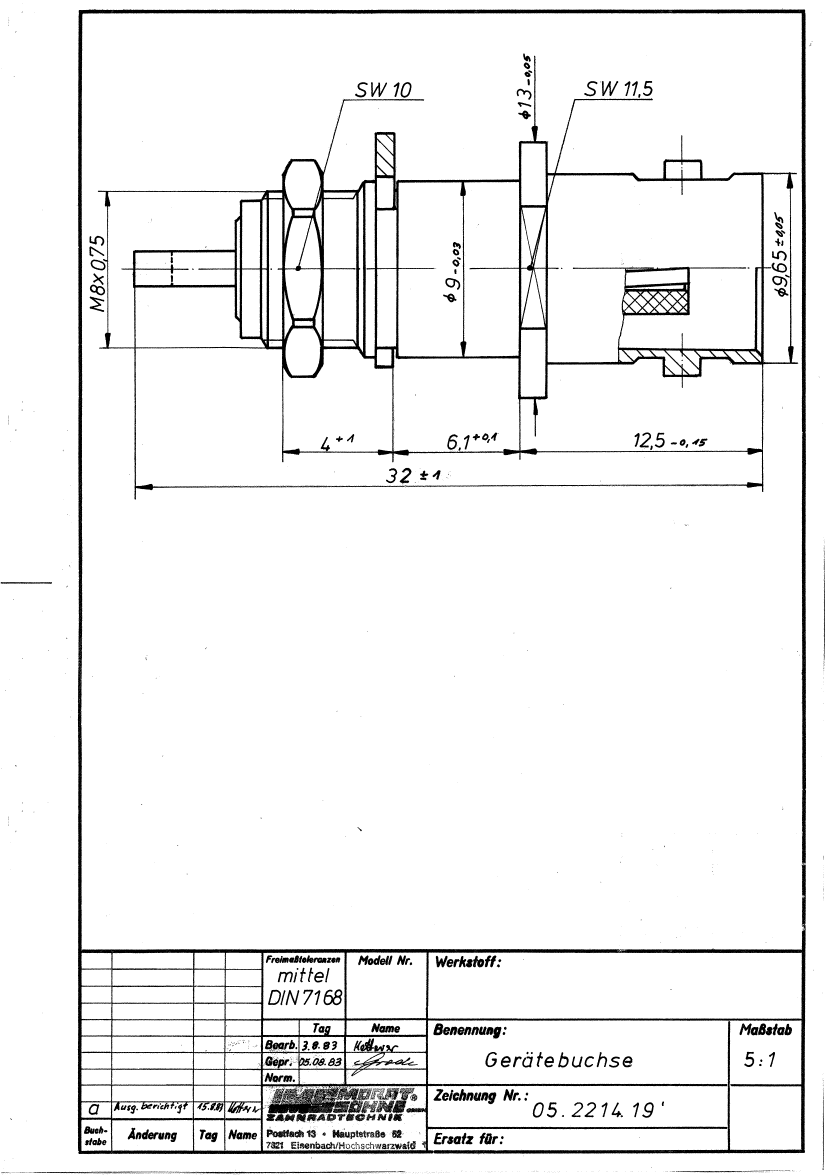

05.2214.195: DescriptionRF BNC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Jack; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerIMS Connector Systems Gmbh

Download Datasheet Parametric View All

05.2214.195 Overview

RF BNC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Jack

Parameter Name	Attribute value
Maker	IMS Connector Systems Gmbh
Reach Compliance Code	compli
Other features	ROHS COMPLIANT
subject depth	0.89 inch
Body diameter	0.38 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	FEMALE
Contact resistance	2.5 mΩ
Contact style	COAX
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
MIL compliance	YES
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	4 GHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
reliability	MIL-C-39012
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.1
Base Number Matches	1
