DIAMOND
Fiber Optic Components

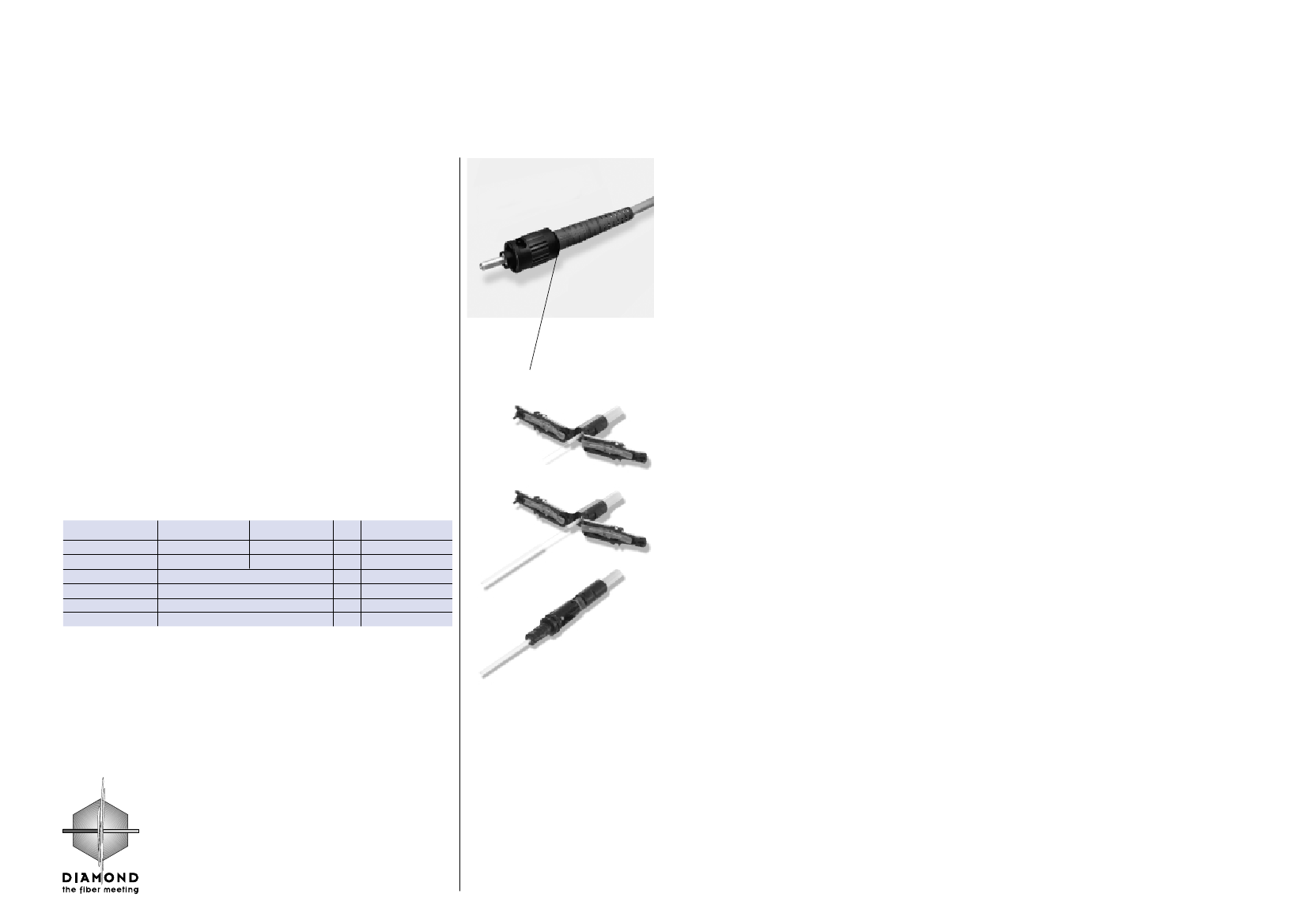

The ST FUSION allows you to quickly and easily make field terminations with
the performance you expect from Diamond-quality ST connectors.
The key to this system is DIAMOND's advanced "crocodile alberino" fusion
field ferrule assembly. The ferrule assembly consists of a factory-terminated
fiber endface, fiber stub, and integrated splice protection. The fiber endface
is core-centered via Diamond’s well-known Active Core Alignment process
and factory-polished to the company’s exacting specifications. The ST FU-
SION is then field terminated via a low loss fusion splice using the Diamond
Fusion Field Termination Kit. The ST FUSION is available for SM and MM fiber
(250 & 900
µm)
and cable (2.1-to 3.1 mm) in 0° PC version.
Other fiber types can also be accommodated upon request.
FEATURES AND BENEFITS
•
•
•
Simple, fast and reliable field termination
reduces operator error and cost per termination
Outstanding optical performance
consistent and repeatable low IL / high RL
No polishing
eliminates the need for costly consumables
operator independent performance
Fusion spliced pigtail performance and reliability without the cost and
space associated with splice enclosures, trays and protectors
ST FUSION
SINGLE MODE/
MULTIMODE
Crocodile Alberino
•
Initial condition
SPECIFICATIONS
Multimode
Insertion loss (IL)
Reflectance (RL)
Repeatability of IL
Service life
Operating temperature
Storage temperature
*
May be further limited by cable specifications
Single mode 0° PC
typ 0.25 max 0.5
min 50
max
±0.1
Units Test conditions
dB
dB
dB
°C
°C
IEC 61300-3-4; l= 1300/1550nm
IEC 61300-3-6; l= 1300/1550nm
Spliced
typ 0.2 max 0.5
min 40
1000 mate/demate cycles
-25 / +70*
-25 / +70*
Closed before housing assembly
DIAMOND SA
Via dei Patrizi 5
CH-6616 LOSONE
Tel. ++41-91/785 45 45
Fax ++41-91/785 45 00
e-mail: info@diamond-fo.com
ST
™
is a registered trademark of AT&T
Specifications subject to change
without notice
002-037-204P006083
CONNECTORS
FUSION SINGLE MODE PC
Type designation:
Ferrule material:
External parts:
Polish geometry:
Dimensions Fiber/Cable
DIAMOND FUSION MARKINGS
HST-S0.86 Alb
Zirconia/copper-nickel alloy insert (Pilzferrule)
Plastic black
Convex (PC)
Order Number
211 - 003 - 001 L 000
211 - 003 - 006 L 000
211 - 003 - 002 L 000
211 - 003 - 003 L 000
211 - 003 - 004 L 000
210
201
MM TB OM3 50
µm
MM TB GI 62.5
µm
Standard components are preterminated with 50/125
µm
OM3 type and GI 62.5/125
µm
fiber stubs.
Please contact your DIAMOND sales office if another fiber type is required.
DIAMOND
XXX XX
KW
JJ
Reference SM or MM
Production date
9/125/900
9/125/900/1800
9/125/900/2000
9/125/900/2500
9/125/900/3000
Codes for preterminated standard fiber stubs
100
SMF-28 9
µm
Standard components are preterminated with Corning SMF - 28 fiber stubs.
Please contact your DIAMOND sales office if another fiber type is required.
Connectors for other fiber and cable dimensions available upon request
FUSION MULTIMODE
Type designation:
Dimensions
Fiber/Cable
50-62.5/125/900
50-62.5/125/900/1800
50-62.5/125/900/2100
50-62.5/125/900/2500
50-62.5/125/900/3000
HST-M0.86 Alb
Order Number
Gl 50/125
212 - 003 - 001 L 000
212 - 003 - 006 L 000
212 - 003 - 002 L 000
212 - 003 - 003 L 000
212 - 003 - 004 L 000
Gl 62.5/125
212 - 003 - 011 L 000
DIAMOND
212 - 003 - 016 L 000
212 - 003 - 012 L 000
212 - 003 - 013 L 000
212 - 003 - 014 L 000
Connectors for other fiber and cable dimensions available upon request
Material
Mating sleeve
Zirconia
External parts
Plastic
Order Number
121 - 301 - 901 V 001
16.1
9.6
10.6
Type designation:
MST-S0.25
Ø 2.5
1.3
MATING ADAPTER
3/8"x24 UNF-2A
TERMINATION KIT
29.5
Type designation:
Material
Mating sleeve
Zirconia
MST-M0.25
12.7

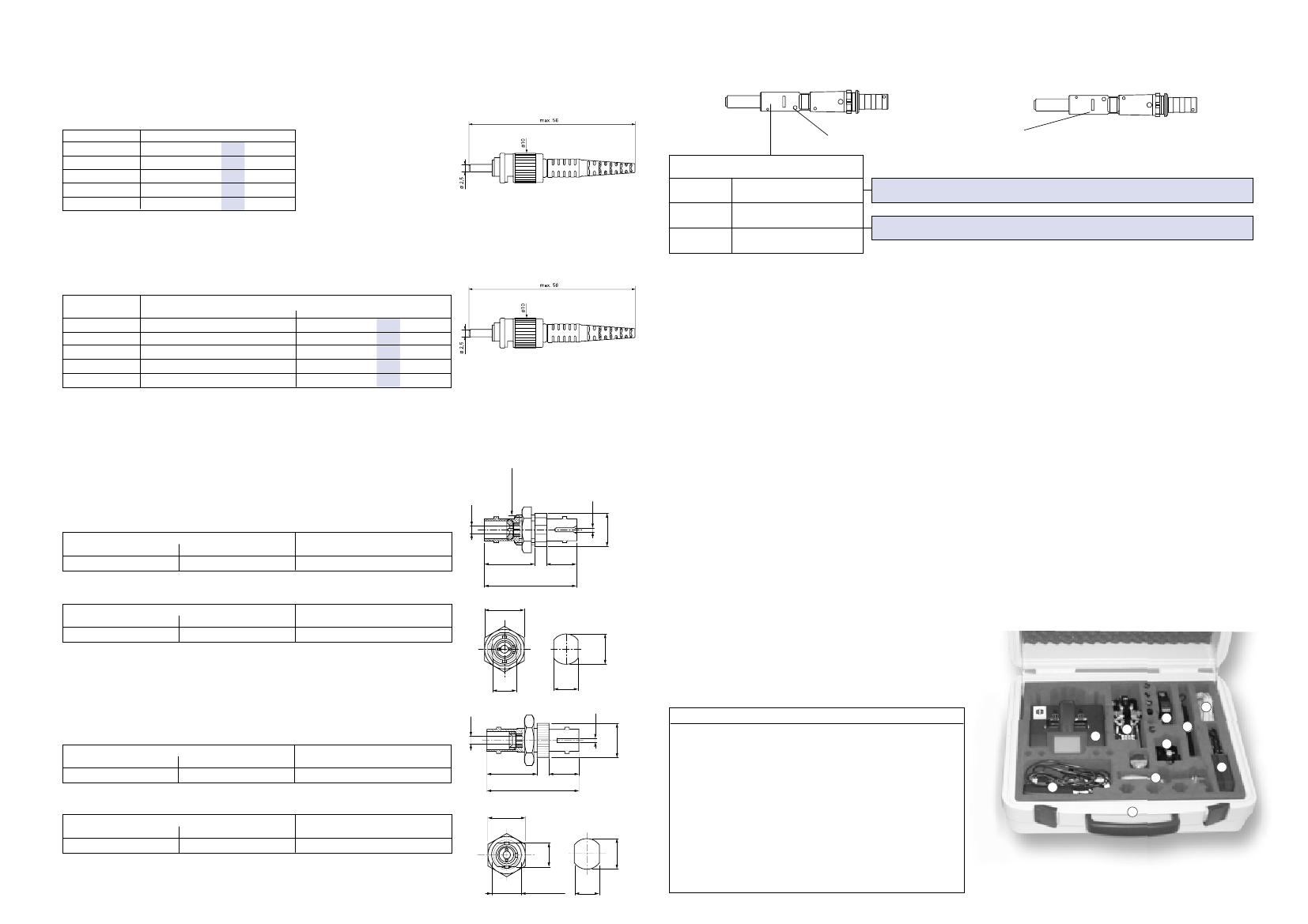

DIAMOND`s Fusion Field Termination Kit provides all the tools and instructions necessary for high performance
field terminations of DIAMOND's FUSION connectors.
ORDER INFORMATION
±0.1
External parts
Plastic
Order Number
121 - 301 - 902 V 001
7.6
7.8
+0.1
0
Ø 9.7
Fusion Field Termination Kit:
241-100-050V001
KIT CONTENTS
1.3
Ø 2.5
10
Description
4
2
6
5
9
7
8
1
3
Material
Mating sleeve
Zirconia
External parts
Ni-plated Zamak
Order Number
16.1
9.6
29.5
Ø 10.9
Type designation:
MST-S0.2
1 Rugged carrying case
2 Diamond Fusion Splicer (DFS)
3 DFS battery
4
5
6
7
8
9
10
Fiber stripper
Precision cleaver
"Crocodile alberino" closing tool
E-2000, SC, FC ans ST connector assembly tools
Power supply 120/240 V
Battery charger 120/240 V
RJ-45 crossed interface cable
120 - 301 - 901 V 002
Type designation:
Material
Mating sleeve
Zirconia
MST-M0.2
12
max panel thickness:
3.5 mm
External parts
Ni-plated Zamak
Order Number
Ø 9.7
120 - 301 - 904 V 002
7.6
±0.1
3/8"x24 UNF-2A
7.8
+0.1
0
Space requirement: ca. 540 x 430 x 210 mm
Weight:
ca. 12.5 Kg
