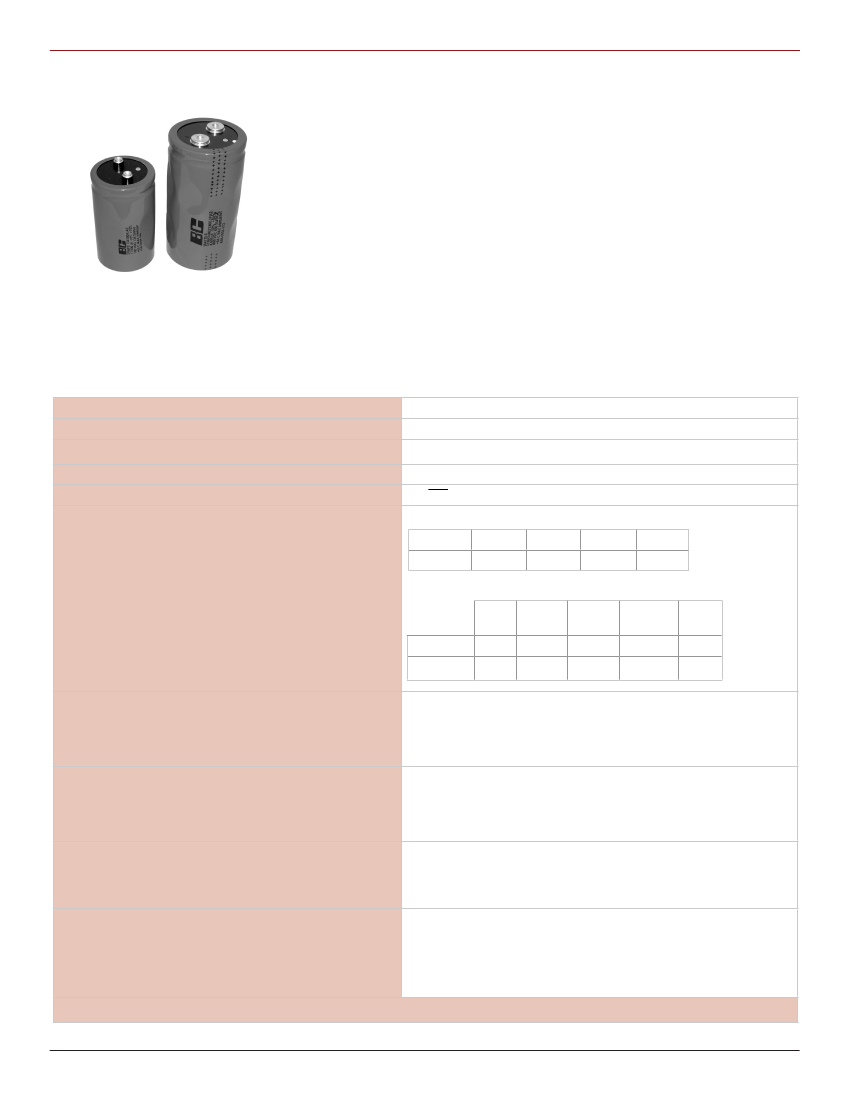

Type 3191, Aluminum Electrolytic Screw Terminal
Screw Terminal Capacitors for Power Output Filtering
The low ESR of Type 3191 capacitors makes them a great choice for
output filtering in switching and audio power supplies. It’s available
with the capacitor element potted in place for lowest cost or secured
by rill, spoon shaped dimples in the side of the can. Rilled construction
offers high vibration and shock withstanding and excellent heat
transfer for higher ripple current.
Highlights
- Stud mount available
- High current application
- Industrial applications
- Smoothing and filtering
- Audio power supplies
Specifications
Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
Ripple Current Multipliers
–40 ºC to +85 ºC
7.5 Vdc to 55 Vdc
2700 µF to 150000 µF
–10 to + 30%; –10 to +50%; ±20%
≤6√CV µA (6 mA max.) at 5 minutes
Ambient Temperature
45 °C
2.24
Frequency
60 Hz 120 Hz
16 – 100 V
0.90
1.00
1.00
200 – 500 V
0.90
300 Hz
1.15
1.25
1000 Hz
1.25
1.40
≥10
kHz
1.30
1.50
55 °C
2.00
65 °C
1.73
75 °C
1.41
85 °C
1.00
Low Temperature Characteristics
Impedance ratio: Z
–20 ⁰C
∕ Z
+25 ⁰C
≤ 8 (16–50 Vdc)
≤ 4 (63–100 Vdc)
≤ 3 (150–500 Vdc)
1,500 h @ full load at 85 °C
∆Capacitance ±10%
ESR 200% of limit
DCL 100% of limit
500 h @ 85 °C
∆Capacitance ±10%
ESR 175% of limit
DCL 100% of limit
10 to 500 Hz, 0.75 mm or 10 g* if less,
3 directions, 2 h ea
Δ Capacitance: ±5%
no visible damage or leakage
*15 g if rilled construction
RoHS Compliant
Endurance Life Test
Shelf Life Test
Vibration
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 3191, Aluminum Electrolytic Screw Terminal
Screw Terminal Capacitors for Power Output Filtering
Part Numbering System
3191
BA
153
Capacitance
153=15000 µF
223=22000 µF
272=2700 µF
T
Tolerance
M= ±20%
S= –10 +30%
T= –10 +50%
U= –10 +75%
7R5
Voltage
7R5=7.5 Vdc
020=20 Vdc
B
Terminal
A=high post
B=low post
D=high current
low post
K=high current
P
Insulation
P=0.008” PVC
H=0.012” PVC
N=none
with mounting
R=0.008” PVC
A1
Type
Case Code
Construction*
A1=potted
R1=rilled
S1=stud & potted
T1=stud & rilled**
* Construction code is also a sequence number, e.g., A1, A2,---,A9, B1,B2,---, for customer
specifications. Sequence number 1 in A1, R1, S1 and T1 denotes the standard catalog
capacitor with no special requirements.
** Mounting stud not available for 1.375” diameter cases, case codes BA, BC and BE.
Outline Drawing
H
A
L
0.63 (16)
+
D
P
Optional Stud
Insulation Dimensions
Code
Clamp
Bracket
P
H
N
R
J
X
no
no
no
yes
yes
yes
Insulation
Type
0.008" PVC
0.012" PVC
none
0.008" PVC
0.012" PVC
none
Dimension Adders
D
L
H
Dimensions in Inches
+0.02 +0.032 +0.024
+0.03
–
+0.02
+0.03
–
+0.062
–
+0.032
+0.062
–
+0.045
–
+0.024
+0.045
–
Terminal Dimensions
For Case
Terminal Style
Low Post
High Post
High Current, Low
High Current, High
M5 Post, Small
M6 Low Post
Diameters
1
3/8
to 3
1
3/8
to 3
2
1/2
& 3
2
1/2
& 3
1
3/8
to 2
2
1/2
& 3
Code
B
A
D
K
M
J
Post Diameter
in
0.314
0.314
0.684
0.684
0.314
0.684
mm
8.0
8.0
17.4
17.4
8.0
17.4
in
0.094
0.281
0.125
0.281
0.281
0.125
H max
mm
2.4
7.1
3.2
7.1
7.1
3.2
Thread
10–32
10–32
¼–28
¼–28
M5
M6
min Full Thread
in
0.218
0.375
0.344
0.469
0.375
0.344
mm
5.5
9.5
8.7
11.9
9.5
8.7
Torque
in∙lb
25
25
60
60
25
60
N∙m
2.82
2.82
6.78
6.78
2.82
6.78
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 3191, Aluminum Electrolytic Screw Terminal
Screw Terminal Capacitors for Power Output Filtering
Case Dimensions, Uninsulated Bare Can
Case
Code
BA
BB
BC
BD
BE
BF
BG
BH
DA
DB
DC
DD
DE
DF
DG
DH
EA
EB
EC
ED
EE
EF
EG
EH
FB
FC
FD
FE
FF
FG
FH
GC
GD
GE
GF
GG
GH
GJ
GN
Diameter (D)
±0.031
(Inches)
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.75
1.75
1.75
1.75
1.75
1.75
1.75
1.75
2
2
2
2
2
2
2
2
2.5
2.5
2.5
2.5
2.5
2.5
2.5
3
3
3
3
3
3
3
3
±0.79
(mm)
34.9
34.9
34.9
34.9
34.9
34.9
34.9
34.9
44.5
44.5
44.5
44.5
44.5
44.5
44.5
44.5
50.8
50.8
50.8
50.8
50.8
50.8
50.8
50.8
63.5
63.5
63.5
63.5
63.5
63.5
63.5
76.2
76.2
76.2
76.2
76.2
76.2
76.2
76.2
Length (L)
±0.062
(Inches)
2.125
2.625
3.125
3.625
4.125
4.625
5.125
5.625
2.125
2.625
3.125
3.625
4.125
4.625
5.125
5.625
2.125
2.625
3.125
3.625
4.125
4.625
5.125
5.625
2.625
3.125
3.625
4.125
4.625
5.125
5.625
3.125
3.625
4.125
4.625
5.125
5.625
5.825
8.625
±1.157
(mm)
54.0
66.7
79.4
92.1
104.8
117.5
130.2
142.9
54.0
66.7
79.4
92.1
104.8
117.5
130.2
142.9
54.0
66.7
79.4
92.1
104.8
117.5
130.2
142.9
66.7
79.4
92.1
104.8
117.5
130.2
142.9
79.4
92.1
104.8
117.5
130.2
142.9
148.0
219.1
Pitch (P)
±0.014
(Inches)
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.750
0.750
0.750
0.750
0.750
0.750
0.750
0.750
0.875
0.875
0.875
0.875
0.875
0.875
0.875
0.875
1.125
1.125
1.125
1.125
1.125
1.125
1.125
1.250
1.250
1.250
1.250
1.250
1.250
1.250
1.250
±0.356
(mm)
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
19.1
19.1
19.1
19.1
19.1
19.1
19.1
19.1
22.2
22.2
22.2
22.2
22.2
22.2
22.2
22.2
28.6
28.6
28.6
28.6
28.6
28.6
28.6
31.8
31.8
31.8
31.8
31.8
31.8
31.8
31.8
Plug (A)
A
(Inches)
0.390
0.390
0.390
0.390
0.390
0.390
0.390
0.390
0.453
0.453
0.453
0.453
0.453
0.453
0.453
0.453
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.625
0.625
0.625
0.625
0.625
0.625
0.625
0.750
0.750
0.750
0.750
0.750
0.750
0.750
0.750
A
(mm)
9.9
9.9
9.9
9.9
9.9
9.9
9.9
9.9
11.5
11.5
11.5
11.5
11.5
11.5
11.5
11.5
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
15.9
15.9
15.9
15.9
15.9
15.9
15.9
19.1
19.1
19.1
19.1
19.1
19.1
19.1
19.1
Typical
Weight
(oz)
2.53
3.17
3.70
4.22
4.75
5.98
7.74
9.50
5.63
6.16
6.34
7.22
7.74
8.27
8.80
9.50
5.98
6.34
6.69
7.74
8.98
10.21
11.26
8.80
10.56
13.02
14.08
15.66
21.12
22.88
21.12
18.30
20.06
21.12
25.34
29.92
34.14
36.96
51.39
Weight
(g)
72
90
105
120
135
170
220
270
160
175
180
205
220
235
250
270
170
180
190
220
255
290
320
250
300
370
400
445
600
650
600
520
570
600
720
850
970
1050
1460
Optional
Bracket
Part No.
115058-06
115058-06
115058-06
115058-06
115058-06
115058-06
115058-06
115058-06
115058-15
115058-15
115058-15
115058-15
115058-15
115058-15
115058-15
115058-15
115058-09
115058-09
115058-09
115058-09
115058-09
115058-09
115058-09
115058-09
115058-14
115058-14
115058-14
115058-14
115058-14
115058-14
115058-14
115058-11
115058-11
115058-11
115058-11
115058-11
115058-11
115058-11
115058-11
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 3191, Aluminum Electrolytic Screw Terminal
Screw Terminal Capacitors for Power Output Filtering
Type 3191
Cap
(µF)
Catalog
Part Number
ESR max
120 Hz 25 ºC
(mΩ)
16.7
14.2
11.7
11.3
9.8
9.8
8.4
8.4
7.6
7.6
9.1
7.8
7.1
6.4
5.9
18.2
15.1
14.2
11.9
11.0
9.3
9.3
8.0
8.0
7.3
7.3
7.9
7.0
6.4
5.9
5.6
23.4
22.5
19.0
17.5
15.0
12.7
11.2
11.2
Ripple max
120 Hz 85 ºC
potted (A) rilled(A)
8.2
9.2
10.8
12.1
12.8
12.5
15.4
14.7
17.2
16.1
15.7
17.4
19.0
21.2
22.8
7.8
8.9
9.6
11.1
12.5
13.9
13.5
16.0
15.5
18.0
17.0
16.7
19.6
21.9
22.3
24.6
6.6
7.0
7.5
8.3
10.1
11.4
12.7
12.4
9.3
10.4
12.1
13.5
14.2
14.2
16.8
16.8
18.4
18.4
17.9
19.7
21.5
23.5
25.3
8.9
10.1
10.8
12.4
13.9
15.4
15.4
17.4
17.4
19.4
19.4
18.9
21.7
23.9
24.8
27.1
7.5
7.9
8.5
9.4
11.3
12.7
14.1
14.1
Case Size
DxL
(in)
Cap
(µF)
ESR max
Ripple max
Case Size
120 Hz 25 ºC
120 Hz 85 ºC
DxL
(mΩ)
potted (A) rilled(A)
(in)
28 Vdc (36.4 Surge)
3191BF183M028BPA1
9.9
14.6
15.9 1.375x4.625
3191EB183M028BPA1
9.9
14.2
15.9 2.00x2.625
3191BG223M028BPA1
8.6
7.0
7.5 1.375x5.125
3191EC223M028BPA1
8.6
6.6
7.5 2.00x3.125
3191ED273M028BPA1
8.1
16.9
19.1 2.00x3.625
3191EE333M028BPA1
7.3
19.2
21.7 2.00x4.125
3191EF393M028BPA1
6.6
21.5
23.9 2.00x4.625
3191EG473M028BPA1
6.0
22.8
25.3 2.00x5.125
35 Vdc (45.5 Vdc Surge)
3191BA392M035BPA1
25.4
6.8
7.7 1.375x2.125
3191BB472M035BPA1
21.2
7.9
8.9 1.375x2.625
3191BB562M035BPA1
19.1
8.2
9.3 1.375x2.625
3191BC682M035BPA1
17.2
8.8
9.9 1.375x3.125
3191BD822M035BPA1
14.7
10.7
11.9 1.375x3.625
3191BD103M035BPA1
12.9
11.7
13 1.375x3.625
3191EA103M035BPA1
12.9
11.4
13 2.00x2.125
3191BF123M035BPA1
11.4
13.1
14.3 1.375x4.625
3191EB123M035BPA1
11.4
12.8
14.3 2.00x2.625
3191BG153M035BPA1
9.6
14.8
15.8 1.375x5.125
3191EC153M035BPA1
9.6
14.1
15.8 2.00x3.125
3191ED183M035BPA1
8.8
16.7
18.9 2.00x3.625
3191ED223M035BPA1
8.1
17.9
20.2 2.00x3.625
3191EF273M035BPA1
6.9
20.2
22.8 2.00x4.125
3191EG333M035BPA1
6.4
22.2
24.6 2.00x5.125
3191EH393M035BPA1
6.0
24.4
26.8 2.00x5.625
55 Vdc (71.5 Vdc Surge)
3191BA272M055BPA1
33.2
6.3
7.2 1.375x2.125
3191BB392M055BPA1
23.3
8.0
9 1.375x2.625
3191BC472M055BPA1
19.4
9.1
10.2 1.375x3.125
3191BD562M055BPA1
16.4
10.5
11.6 1.375x3.625
3191BE682M055BPA1
15.2
11.6
12.9 1.375x4.125
3191EA682M055BPA1
15.2
11.3
12.9 2.00x2.125
3191BF822M055BPA1
12.7
13.5
14.7 1.375x4.625
3191EB822M055BPA1
12.7
12.9
14.7 2.00x2.625
3191BH103M055BPA1
10.9
16.1
17.2 1.375x5.625
3191EC103M055BPA1
10.9
15.1
17.2 2.00x3.125
3191ED123M055BPA1
9.9
16.5
18.6 2.00x3.625
3191EE153M055BPA1
8.9
18.0
20.3 2.00x4.125
3191EF183M055BPA1
7.8
19.6
21.8 2.00x4.625
3191EG223M055BPA1
7.1
21.7
24.1 2.00x5.125
Type 3191
Catalog
Part Number
16 Vdc (20.8 Vdc Surge)
10000 3191BA103M016BPA1
12000 3191BB123M016BPA1
15000 3191BC153M016BPA1
18000 3191BC183M016BPA1
22000 3191BD223M016BPA1
22000 3191EA223M016BPA1
27000 3191BF273M016BPA1
27000 3191EB273M016BPA1
33000 3191BG333M016BPA1
33000 3191EC333M016BPA1
39000 3191EC393M016BPA1
47000 3191ED473M016BPA1
56000 3191EE563M016BPA1
68000 3191EF683M016BPA1
82000 3191EG823M016BPA1
8200 3191BA822M020BPA1
10000 3191BB103M020BPA1
12000 3191BB123M020BPA1
15000 3191BC153M020BPA1
18000 3191BD183M020BPA1
22000 3191BE223M020BPA1
22000 3191EA223M020BPA1
27000 3191BF273M020BPA1
27000 3191EB273M020BPA1
33000 3191BH333M020BPA1
33000 3191EC333M020BPA1
39000 3191ED393M020BPA1
47000 3191EE473M020BPA1
56000 3191EF563M020BPA1
68000 3191EG683M020BPA1
82000 3191EH823M020BPA1
4700 3191BA472M028BPA1
5600 3191BB562M028BPA1
6800 3191BB682M028BPA1
8200 3191BB822M028BPA1
10000 3191BC103M028BPA1
12000 3191BD123M028BPA1
15000 3191BE153M028BPA1
15000 3191EA153M028BPA1
1.375x2.125 18000
1.375x2.625 18000
1.375x3.125 22000
1.375x3.125 22000
1.375x3.625 27000
2.00x2.125 33000
1.375x4.625 39000
2.00x2.625 47000
1.375x5.125
2.00x3.125
2.00x3.125
2.00x3.625
2.00x4.125
2.00x4.625
2.00x5.125
1.375x2.125
1.375x2.625
1.375x2.625
1.375x3.125
1.375x3.625
1.375x4.125
2.00x2.125
1.375x4.625
2.00x2.625
1.375x5.625
2.00x3.125
2.00x3.625
2.00x4.125
2.00x4.625
2.00x5.125
2.00x5.625
1.375x2.125
1.375x2.625
1.375x2.625
1.375x2.625
1.375x3.125
1.375x3.625
1.375x4.125
2.00x2.125
3900
4700
5600
6800
8200
10000
10000
12000
12000
15000
15000
18000
22000
27000
33000
39000
2700
3900
4700
5600
6800
6800
8200
8200
10000
10000
12000
15000
18000
22000
20 Vdc (26 Vdc Surge)
28 Vdc (36.4 Surge)
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Notice and Disclaimer:
All product drawings, descriptions, specifications, statements, information and
data (collectively, the “Information”) in this datasheet or other publication are subject to change. The
customer is responsible for checking, confirming and verifying the extent to which the Information con-
tained in this datasheet or other publication is applicable to an order at the time the order is placed. All
Information given herein is believed to be accurate and reliable, but it is presented without any guaran-
tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability
for certain applications are based on the knowledge that the Cornell Dubilier company providing such
statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards
as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-
tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,
warranty or representation concerning the suitability for a specific customer application, use, storage,
transportation, or operating environment. The Information is intended for use only by customers who
have the requisite experience and capability to determine the correct products for their application. Any
technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference
to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),
and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although
Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design
and manufacturing of its products, in light of the current state of the art, isolated component failures may
still occur. Accordingly, customer applications which require a high degree of reliability or safety should
employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies
or other appropriate protective measures) in order to ensure that the failure of an electrical component
does not result in a risk of personal injury or property damage. Although all product-related warnings,
cautions and notes must be observed, the customer should not assume that all safety measures are indi-
cated in such warnings, cautions and notes, or that other safety measures may not be required.
/3191ba153m7r5bpa1_pdf/pg_0001.png)
京公网安备 11010802033920号
EEWORLD/3191ba153m7r5bpa1_pdf/1.png)
/3191ba153m7r5bpa1_pdf/2.png)
/3191ba153m7r5bpa1_pdf/3.png)
/3191ba153m7r5bpa1_pdf/4.png)
/3191ba153m7r5bpa1_pdf/5.png)
/3191ba153m7r5bpa1_pdf/pg_0002.png)
/3191ba153m7r5bpa1_pdf/pg_0003.png)
/3191ba153m7r5bpa1_pdf/pg_0004.png)
