1812CC124KAZ1A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 1812CC124KAZ1A

1812CC124KAZ1A: Descriptionmultilayer ceramic capacitors mlcc - smd/smt .12uf 600 volts 10% tol; CategoryPassive components; File Size50KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

1812CC124KAZ1A Overview

multilayer ceramic capacitors mlcc - smd/smt .12uf 600 volts 10% tol

1812CC124KAZ1A Parametric

Parameter Name	Attribute value
Manufacture	AVX
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
RoHS	Yes
Capacitance	0.12 uF
Voltage Rating	600 V
Tolerance	10 %
Temperature Coefficient / Code	X7R
Case Code - i	1812
Case Code - mm	4532
Operating Temperature Range	- 55 C to + 125 C
Produc	General Type MLCCs
Case Heigh	2.54 mm
Case Length	4.5 mm
Case Width	3.2 mm
Package / Case	1812 (4532 metric)
Packaging	Reel
Factory Pack Quantity	1000
Termination Style	SMD/SMT
Type	High Voltage Flexiterm V for 600 V to 3 kV

Preview

Download Datasheet

View All

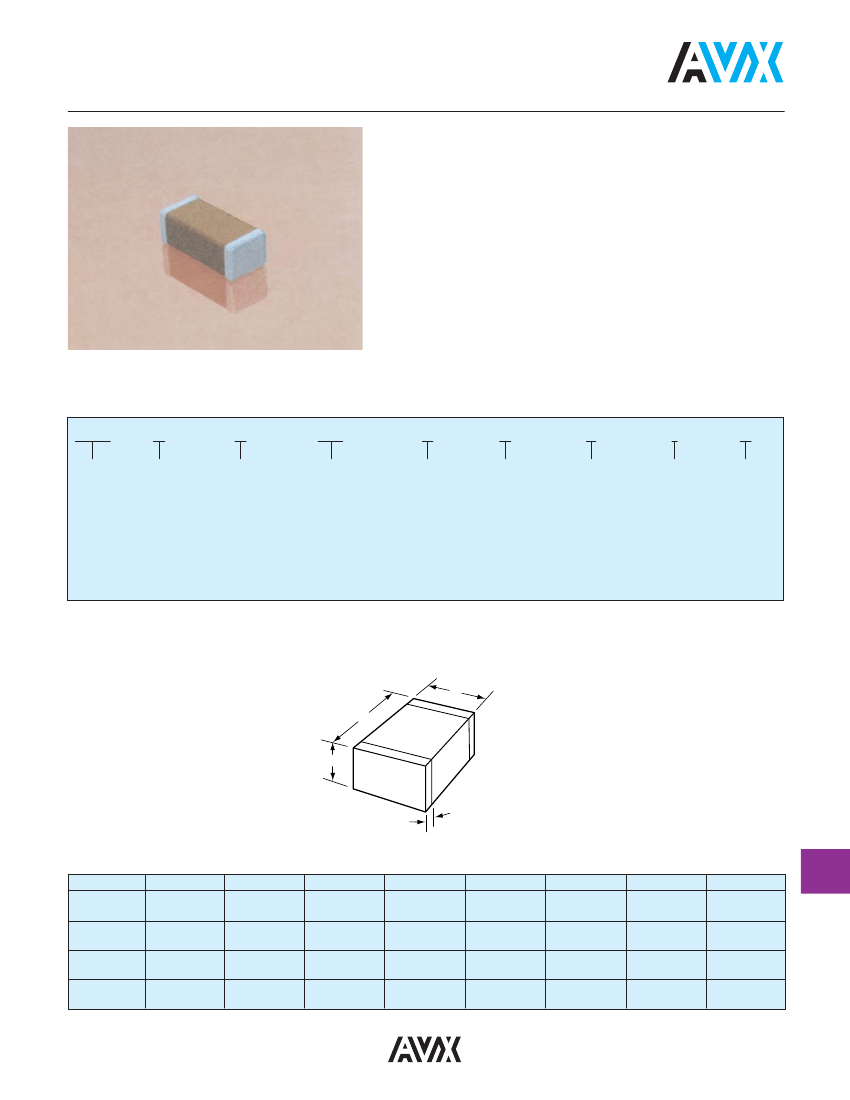

High Voltage MLC Chips FLEXITERM

For 600V to 3000V Applications

High value, low leakage and small size are difficult parameters to obtain

in capacitors for high voltage systems. AVX special high voltage MLC

chips capacitors meet these performance characteristics and are de-

signed for applications such as snubbers in high frequency power con-

verters, resonators in SMPS, and high voltage coupling/DC blocking.

These high voltage chip designs exhibit low ESRs at high frequencies.

To make high voltage chips, larger physical sizes than are normally en-

countered are necessary. These larger sizes require that special precau-

tions be taken in applying these chips in surface mount assemblies. In

response to this, and to follow from the success of the FLEXITERM

range of low voltage parts, AVX is delighted to offer a FLEXITERM

high

voltage range of capacitors, FLEXITERM

The FLEXITERM

layer is designed to enhance the mechanical flexure

and temperature cycling performance of a standard ceramic capacitor,

giving customers a solution where board flexure or temperature cycle

damage are concerns.

HOW TO ORDER

1808

AVX

Style

0805

1206

1210

1808

1812

1825

2220

2225

***

272

Test Level

Voltage

Temperature Capacitance Code Capacitance

600V/630V = C

Coefficient

(2 significant digits

Tolerance

C0G: J = ±5%

1000V = A

C0G = A

+ no. of zeros)

K = ±10%

1500V = S

X7R = C

Examples:

M = ±20%

2000V = G

10 pF = 100

2500V = W

100 pF = 101 X7R: K = ±10%

M = ±20%

1,000 pF = 102

3000V = H

Z = +80%,

22,000 pF = 223

-20%

220,000 pF = 224

1 µF = 105

Termination*

Packaging

Special

Z = FLEXITERM

1 = 7" Reel

Code

100% Tin

3 = 13" Reel A = Standard

(RoHS Compliant) 9 = Bulk

Notes: Capacitors with X7R dielectrics are not intended for applications across AC supply mains or AC line filtering with polarity reversal. Contact plant for recommendations.

Contact factory for availability of Termination and Tolerance options for Specific Part Numbers.

***

AVX offers nonstandard chip sizes. Contact factory for details.

DIMENSIONS

SIZE

(L) Length

0805

1206

3.20 ± 0.20

(0.126 ± 0.008)

1.60 ± 0.20

(0.063 ± 0.008)

1.52

(0.060)

0.25 (0.010)

0.75 (0.030)

1210*

3.20 ± 0.20

(0.126 ± 0.008)

2.50 ± 0.20

(0.098 ± 0.008)

1.70

(0.067)

0.25 (0.010)

0.75 (0.030)

1808*

4.57 ± 0.25

(0.180 ± 0.010)

2.03 ± 0.25

(0.080 ± 0.010)

2.03

(0.080)

0.25 (0.010)

1.02 (0.040)

1812*

4.50 ± 0.30

(0.177 ± 0.012)

3.20 ± 0.20

(0.126 ± 0.008)

2.54

(0.100)

0.25 (0.010)

1.02 (0.040)

1825*

4.50 ± 0.30

(0.177 ± 0.012)

6.40 ± 0.30

(0.252 ± 0.012)

2.54

(0.100)

0.25 (0.010)

1.02 (0.040)

2.01 ± 0.20

(0.079 ± 0.008)

(W) Width

1.25 ± 0.20

(0.049 ± 0.008)

(T) Thickness

1.30

Max.

(0.051)

(t) terminal min. 0.50 ± 0.25

max. (0.020 ± 0.010)

*Reflow Soldering Only

millimeters (inches)

2220*

5.7 ± 0.40

(0.224 ± 0.016)

5.0 ± 0.40

(0.197 ± 0.016)

3.30

(0.130)

0.25 (0.010)

1.02 (0.040)

2225*

5.72 ± 0.25

(0.225 ± 0.010)

6.35 ± 0.25

(0.250 ± 0.010)

2.54

(0.100)

0.25 (0.010)

1.02 (0.040)
