UG8JT-E3/45 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> UG8JT-E3/45

UG8JT-E3/45: Descriptionrectifiers 8 amp 600 volt; CategoryDiscrete semiconductor diode; File Size125KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

UG8JT-E3/45 Overview

rectifiers 8 amp 600 volt

UG8JT-E3/45 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	TO-220AC
package instruction	R-PSFM-T2
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
application	EFFICIENCY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.75 V
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
JESD-609 code	e3
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT APPLICABLE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	30 µA
Maximum reverse recovery time	0.05 µs
Reverse test voltage	480 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT APPLICABLE
Base Number Matches	1

Preview

Download Datasheet

View All

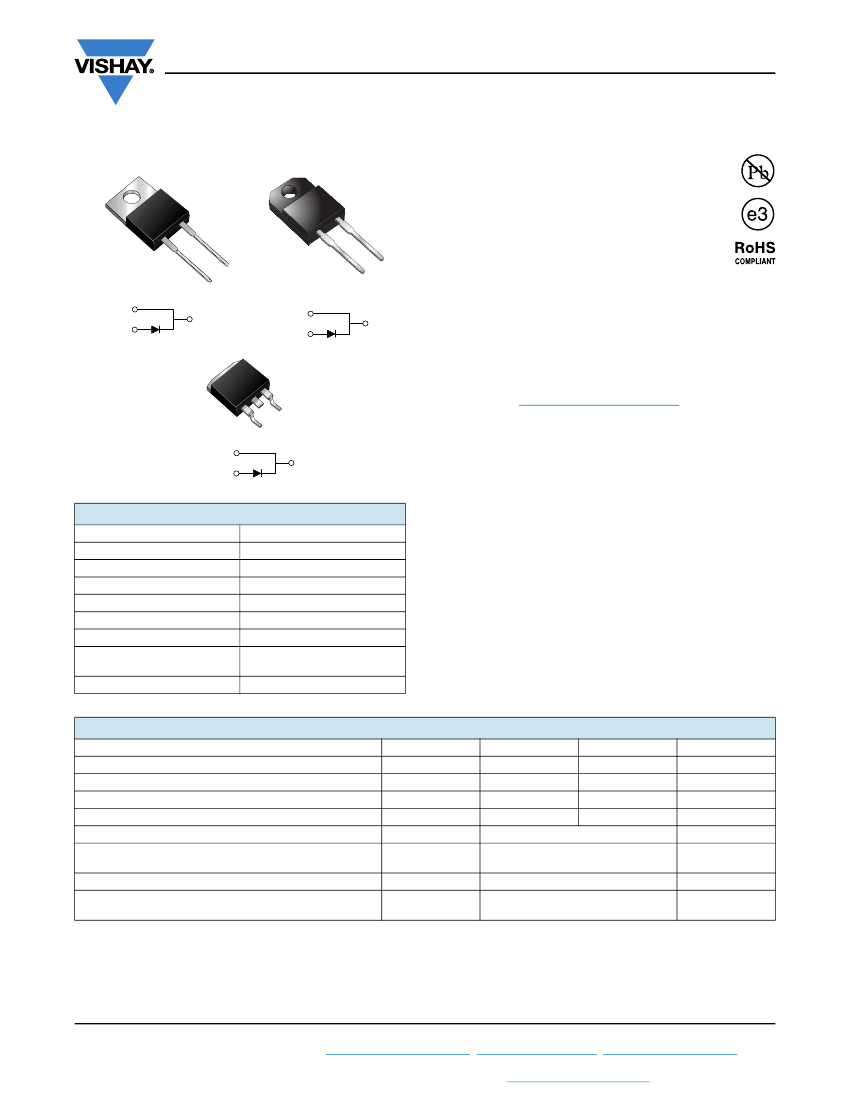

UG8xT, UGF8xT, UGB8xT

www.vishay.com

Vishay General Semiconductor

High Voltage Ultrafast Rectifier

TO-220AC

ITO-220AC

FEATURES

• Power pack

• Glass passivated chip junction

• Ultrafast recovery time

• Soft recovery characteristics

• Low switching losses, high efficiency

• High forward surge capability

• Meets MSL level 1, per J-STD-020, LF maximum peak of

245 °C (for TO-263AB package)

• Solder dip 275 °C max., 10 s per JESD 22-B106

(for TO-220AC and ITO-220AC package)

• AEC-Q101 qualified

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

UG8xT

PIN 1

PIN 2

UGF8xT

PIN 1

CASE

PIN 2

TO-263AB

UGB8xT

PIN 1

PIN 2

HEATSINK

TYPICAL APPLICATIONS

For use in high voltage and high frequency power factor

correction application.

MECHANICAL DATA

PRIMARY CHARACTERISTICS

F(AV

)

RRM

FSM

at I

= 8 A

max.

Package

Diode variation

8.0 A

500 V to 600 V

100 A

25 ns

500 ns

1.5 V

150 °C

TO-220AC, ITO-220AC,

TO-263AB

Single die

Case:

TO-220AC, ITO-220AC, TO-263AB

Molding compound meets UL 94V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD22-B102

E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix

meets JESD 201 class 2 whisker test

Polarity:

As marked

Mounting Torque:

10 in-lbs max.

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Max. repetitive peak reverse voltage

Max. working reverse voltage

Max. RMS voltage

Max. DC blocking voltage

Max. average forward rectified current

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load

Operating junction and storage temperature range

Isolation voltage (ITO-220AB only)

from terminals to heatsink t = 1 min

SYMBOL

RRM

RWM

RMS

F(AV)

FSM

, T

STG

UG8HT

500

400

350

500

8.0

100

- 55 to + 150

1500

UG8JT

600

480

420

600

UNIT

°C

Revision: 21-Aug-13

Document Number: 88767

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please

contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the

definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council

of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that

all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free

requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference

to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21

conform to JEDEC JS709A standards.

Revision: 02-Oct-12

Document Number: 91000
