1.8V CMOS COMPATIBLE SMD
CRYSTAL CLOCK OSCILLATOR
ASFL3
FEATURES:
• Tri-state function
• Suitable for high density SMT
• Available tight stability
option, +/-20ppm
• Seam sealed package
assures high reliability
• Suitable for RoHS reflow
APPLICATIONS:
• CCD clock for VTR camera
• Equipment connected to
PC or PC cards
Pb
RoHS
Compliant
5.0 x 3.2 x 1.1 mm
| | | | | | | | | | | | | |
|
• Thin equipment
• Wireless communication

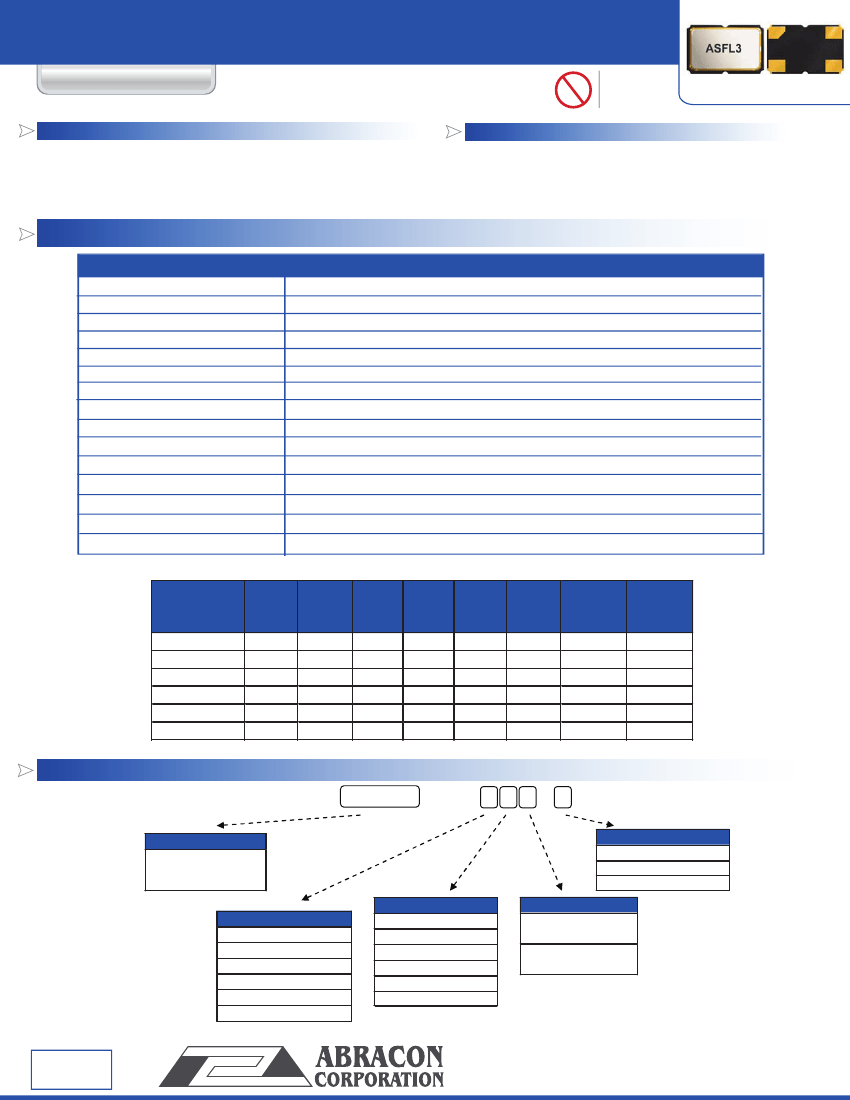

STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N:
Frequen cy:
Operating te mpe rature:
Storage te mperature:
Overall Frequen cy Stabilit y:
Suppl
y voltage (Vdd):
Suppl y Current (Idd ):
S
ymm e try at 1/2 Vdd:
Ris e and
Fall
Time s (Tr/Tf):
Output load:
Outpu t Voltage :
Tri-state
Fun
ction:
Start-up-ti me :
Aging (First year):
Period Jitter:
ASFL3 Series
0.5 MHz to 125 MHz
-10°C to +70°C (see option)
- 55°C to + 125°C
±100 ppm max. (see option)
1.8 Vdc ± 10%
See table below
40/60% max. (see option)
See table below
15pF max.*
VOH = 0.9*Vdd min., VOL = 0.1 *Vdd max.
"1" or open;: Oscillation; VIH > 0.7*Vdd, "0": Output disabled (HI-Z); VIL < 0.3*Vdd
See table below
±3 ppm max. @25°C
See table below
* 30pF max is available.Please contact ABRACON.
Table:
Fre qu e nc y
rang e
(MHz)
0.5~9.999
10.000~29.999
30.000~49.999
50.000~69.999
70.000~99.999
100.000~125.000
Idd
mA
(Typ)
2
5
8
5
8
12
Idd
mA
(Max)
5
8
10
10
15
20
Tr/Tf
ns
(Typ)
5
3
3
2
2
2
Tr/Tf
ns
(max)
10
6
6
5
5
4
S tart-up
time
ms
(Typ)
3
3
3
3
4
4
S tart-up
time
ms
(Max)
5
5
5
5
10
10
Pe riod
Jitter RMS
ps (Typ)
2
2
2
2
2
2
Period
Jitter RMS
ps (Max)
3
3
3
3
3
3
(Left blank if standard)
OPTIONS AND PART IDENTIFICATION:
ASF L3
-
MHz -
-
Pack aging
Bla
nk:
Bulk
T: Tape & ree l (1kpcs )
T2 Tape & ree l (250pcs )
Frequenc y in MHz
e.g. 0.312 MHz
14.31 818
MHz
125.0
00MHz
Operating Temp.
I: 0°C
~
+50 °C
D: -10°C
~
+60 °C
E: -20° C
~
+70° C
F:
-30 °C
~
+70 °C
N: -30°C
~
+85 °C
L:
-40°C
~
+85°C
Freq . S tability
J*:
±
20 ppm
R:
±
25 ppm
K: ± 30
ppm
H:
± 35
ppm
B: ± 40
ppm
C:
± 50
ppm
Duty Cycle
Blan
k:
40/60%
@
1/2Vdd
S
:
45/55%
@
1/2Vdd
*: Tempe rature option I, D,
E a nd -10°C
~
+70°C only
ABRACON IS
ISO9001:2008
CE RTIFIED
Revised: 09.05.12
30332 Esperanza, Rancho
Santa
Margarita, California 92688
tel
949-546-8000|
fax
949-546-800
|
www.abracon.com
1
Visit www.abracon.com for Terms & Conditions of Sale
1.8V CMOS COMPATIBLE SMD
CRYSTAL CLOCK OSCILLATOR
ASFL3

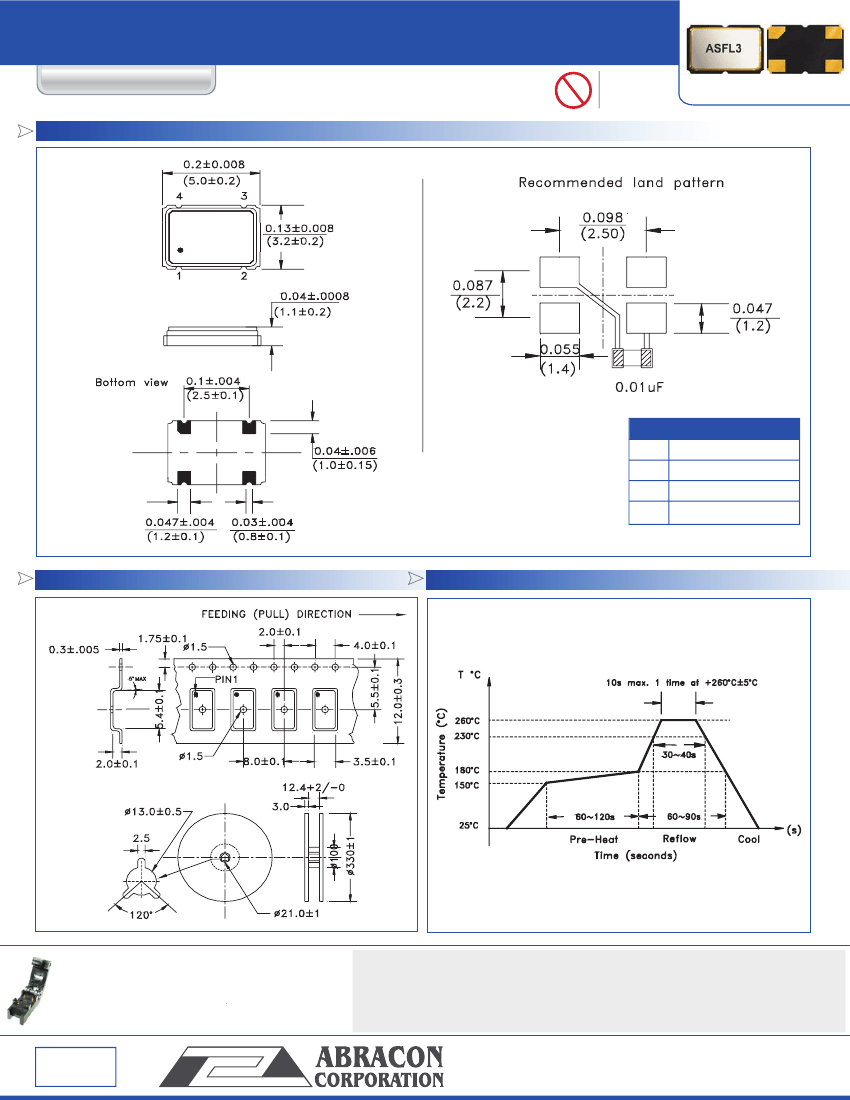

OUTLINE DRAWING:
Pb
RoHS
Compliant
5.0 x 3.2 x 1.1 mm
| | | | | | | | | | | | | |
|
Dimensions:
Inch (mm)
Note
: It is recommended to use
an approximately 0.01uF bypass
capacitor between PIN 2 and 4.
PIN
1
2
3
4
FUNCTION
Tri-State
GND
Output
VDD
TAPE & REEL:
and reel 1,000pcs/reel
Tape
Dimensions: mm
REFLOW PROFILE:
Need a test socket for the ASFL3 Series? To view
compatible
PRECISION TEST & BURN-IN
SOCKETS
for these parts,
click here.
ABRACON IS
ISO9001:2008
CE RTIFIED
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for
Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically
designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high
reliability where component failure could result in loss of life and/or property. For applications requiring high
reliability and/or presenting an extreme operating environment, written consent and authorization from
Abracon Corporation is required. Please contact Abracon Corporation for more information.
Revised: 09.04.12
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
