ASFLK-32.768KHZ-F-K-S datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASFLK-32.768KHZ-F-K-S

ASFLK-32.768KHZ-F-K-S: DescriptionOscillator, 0.032768MHz Nom; CategoryPassive components oscillator; File Size943KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASFLK-32.768KHZ-F-K-S Overview

Oscillator, 0.032768MHz Nom

ASFLK-32.768KHZ-F-K-S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	109280394
package instruction	DILCC4,.12
Reach Compliance Code	compliant
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.12
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	1 mA
Nominal supply voltage	3.3 V
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

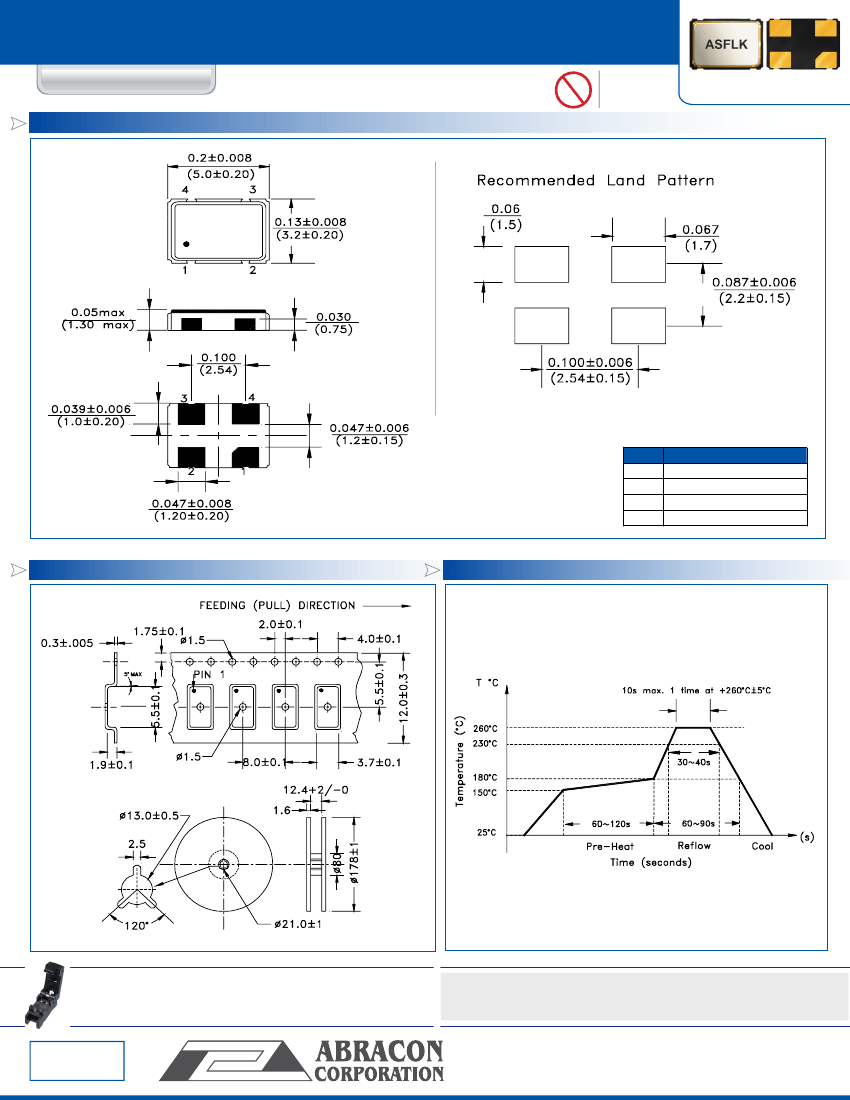

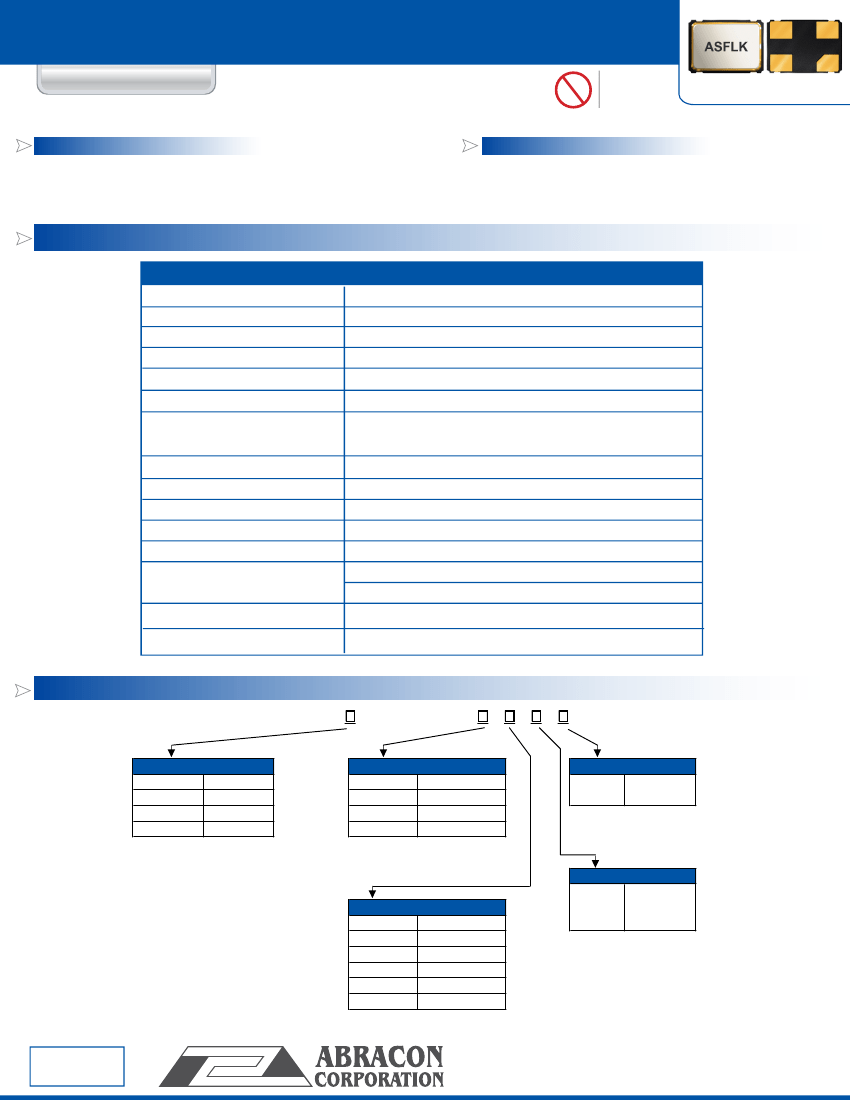

32.768kHz CERAMIC SMD CRYSTAL OSCILLATOR

ASFLK SERIES

FEATURES:

• Pb-Free/RoHS Compliant

• Tri state function

• Suitable for high density SMT

• IR reflow capable

• Seam sealed ceramic

package

RoHS

Compliant

APPLICATIONS:

• CCD clock for VTR camera

• Computers and peripherals

• Portable MP3 players and games

5.0 x 3.2 x 1.3mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Frequency range:

Operating temperature:

Storage temperature:

Overall Frequency Stablilty:

Supply Voltage (Vdd):

Supply current:

Symmetry:

Rise and fall time (Tr/Tf):

Output Load:

Output Voltage:

Start-up-time

Tristate function:

Aging at 25°C/year :

Phase jitter:

ASFLK Series

32.768kHz

0°C to + 70°C (see options)

-55°C to +125°C

± 100ppm max. (see options)

3.3 Vdc ± 10% (see options)

Vdd = 2.5 ~ 3.3V, 0.5mA typ. 1.0mA max.

Vdd = 5.0V, 1.5mA typ. 5.0mA max.

40/60 % max.@ 1/2Vdd (see options)

250 ns max.

15pF or 10TTL max.

VOH = 2.97V min. VOL = 0.33V max.

30ms max.

Logic "1" or open: Oscillation

Logic "0" (VIL < 0.8 Vdc) : Hi Z

± 3ppm/year max.

1ps RMS max.

OPTIONS AND PART IDENTIFICATION:

(Left blank if standard)

ASFLK-

- 32.768kHz -

Packaging

Tape and

Reel

Supply Voltage

Blank

3.3V±10%

3.0V±10%

2.5V±10%

5.0V±10%

Operating Temp.

-20°C to +70°C

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

*Contact ABRACON for extended.

temperature range.

Symmetry

45/55% max

at 1/2Vdd

Freq. Stability

±20ppm

±25ppm

±30ppm

±35ppm

±40ppm

±50ppm

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 09.14.09

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
