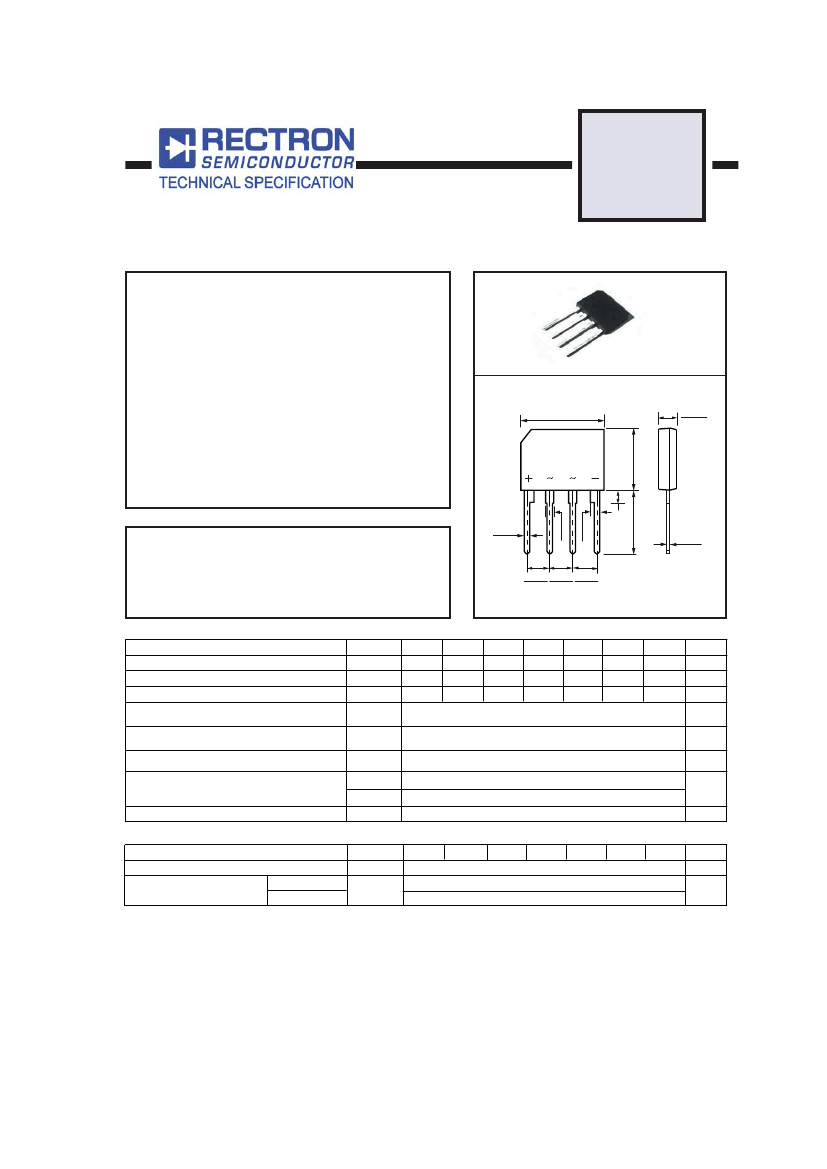

VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Amperes
FEATURES
*
*
*
*
Low leakage
Low forward voltage
Low cost
Mounting position: Any
SINGLE-PHASE GLASS PASSIVATED
SILICON BRIDGE RECTIFIER
2RS101M
THRU
2RS107M
RS-1M
MECHANICAL DATA
.582 (14.8)
* Epoxy: Device has UL flammability classification 94V-O
.559 (14.2)
.146 (3.7)
.130 (3.3)
.421 (10.7)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
resistive or inductive load.
o
.043 (0.9)
.035 (0.6)
.059 (1.5)
.043 (1.1)
.059 (1.5)
.043 (1.1)
.582 (14.8)
.543 (13.8)
.09 (2.3)
.406 (10.3)
.024 (0.6)
.016 (0.4)
.165 (4.2) .165 (4.2) .165 (4.2)
.149 (3.8) .149 (3.8) .149 (3.8)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(@ T
A
=25
O
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at T
A
= 105
o
C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Typical Current Squarad Time
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
I
2
t
R
JC
R
JA
Operating and Storage Temperature Range
T
J
, T
STG
2RS101M 2RS102M 2RS103M 2RS104M 2RS105M 2RS106M 2RS107M
50
35
50
100
70
100
200
140
200
400
280
400
2.0
60
14.9
15
50
-55 to + 150
0
UNITS
Volts
Volts
Volts
Amps
Amps
A
2
/Sec
0
600
420
600
800
560
800
1000
700
1000
Typical Thermal Resistance (Note 1)
C/ W
C
ELECTRICAL CHARACTERISTICS
(@T
A
=25
O
C unless otherwise noted)
CHARACTERISTICS
Maximum Instantaneous Forward Voltage at 2.0A DC
Maximum DC Reverse Current
at Rated DC Blocking Voltage
@T
A
= 25 C
@T
A
= 100 C
o
o
SYMBOL
V
F
I
R
2RS101M 2RS102M 2RS103M 2RS104M 2RS105M 2RS106M 2RS107M
1.1
2.0
50
UNITS
Volts
uAmps
2011-11
REV:C
NOTES : 1. Thermal Resistance : Heat-sink case mounted or if PCB mounted.
2. "Fully ROHS compliant", "100% Sn plating (Pb-free)".
3. Available in Halogen-free epoxy by adding suffix -HF after the part nbr.

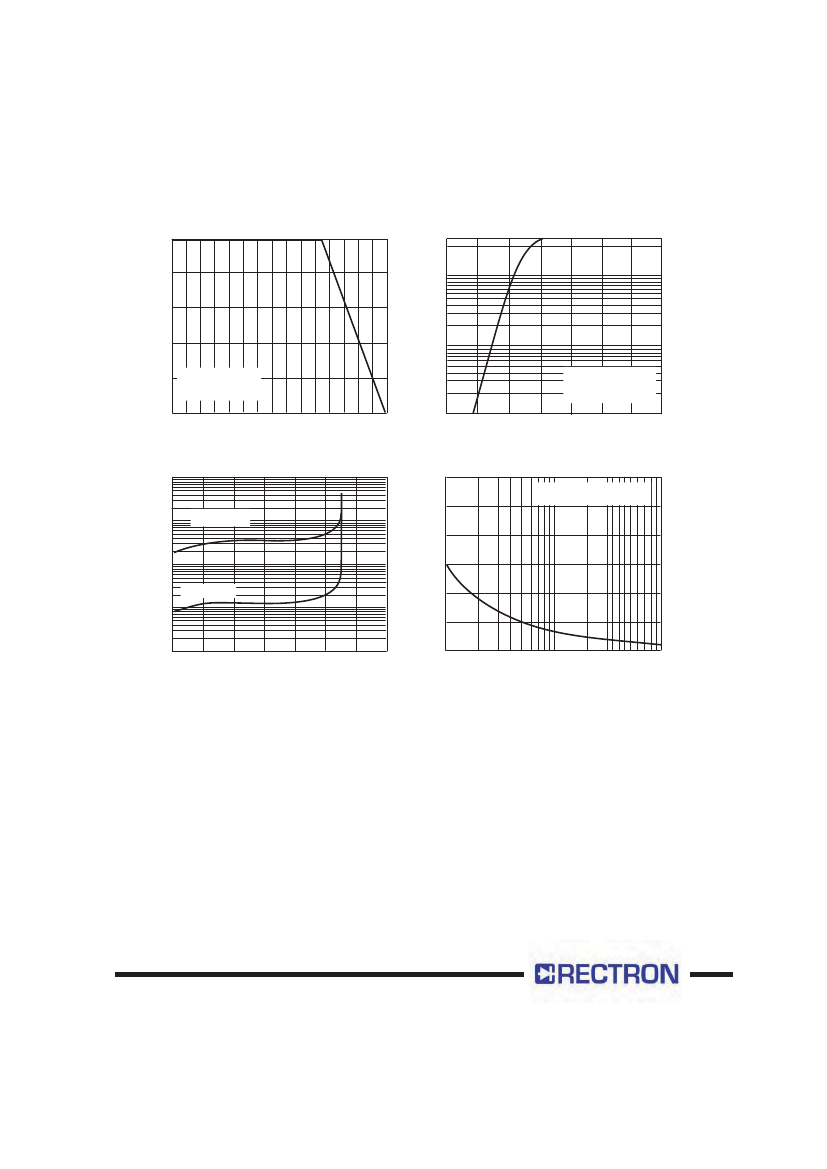

RATING AND CHARACTERISTICS CURVES ( 2RS101M THRU 2RS107M )
Single Phase Half Wave
60 Hz Inductive or
Resistive Load
IN STA N TA N EOUS FORWA RD CURREN T, (A )
AVERA GE FO RWA RD CU RREN T, (A )
= 25
Pulse Width = 300
Duty Cycle
AMBIENT TEMPERATURE, (
INSTANTANEOUS FORWARD VOLTAGE, (V)
1000
FIG.1 TYPICAL FORWARD CURRENT
DERATING CURVE
FIG.2 TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
8.3mS Single Half Sine-Wave
JEDEC Method
IN STA N TA N EOUS REVERSE CURREN T, (u A)
= 100
= 25
PERCENT RATED PEAK REVERSE VOLTAGE, (%)
PEA K FORWA RD SURGE CURREN T, (A )
NUMBER OF CYCLES AT 60Hz
FIG.3 TYPICAL REVERSE CHARACTERISTICS
FIG.4 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
Marking Description
Rectron Logo
2RS10XM
V Y WW
1-------50V
2-------100V
3-------200V
4-------400V
Part No.
Voltage-code
5-------600V
6-------800V
7-------1000V
Year – code:
(Y:Last digit of year&
A:2010, B:2011……)
Week – code:
(WW:01~52)
PACKAGING OF DIODE AND BRIDGE RECTIFIERS
BULK PACK
PACKAGE
RS-1M
PACKING CODE
-B
EA PER BOX
660
INNER BOX SIZE
(mm)
240*239*35
CARTON SIZE
(mm)
510*293*131
EA PER CARTON
5,280
GROSS
WEIGHT(Kg)
9.58
TUBE PACK
PACKAGE
RS-1M
PACKING CODE
-C
EA PER BOX
1,700
INNER BOX SIZE
(mm)
540*118*118
CARTON SIZE
(mm)
560*259*144
EA PER CARTON
3,400
WEIGHT(Kg)
15.25
