1-11269 datasheet, PDF - EEWORLD Datasheet

1-11269: DescriptionDatacom Transformer, GENERAL PURPOSE Application(s), 1.66:1; 1.25:1,; CategoryPower management transformer; File Size2MB，4 Pages; ManufacturerPascall Electronics Ltd

Download Datasheet Parametric View All

1-11269 Overview

Datacom Transformer, GENERAL PURPOSE Application(s), 1.66:1; 1.25:1,

Parameter Name	Attribute value
Maker	Pascall Electronics Ltd
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	HEIGHT DIM INCLUDES TERMINALS ALSO
application	GENERAL PURPOSE
high	4.5 mm
length	28.71 mm
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

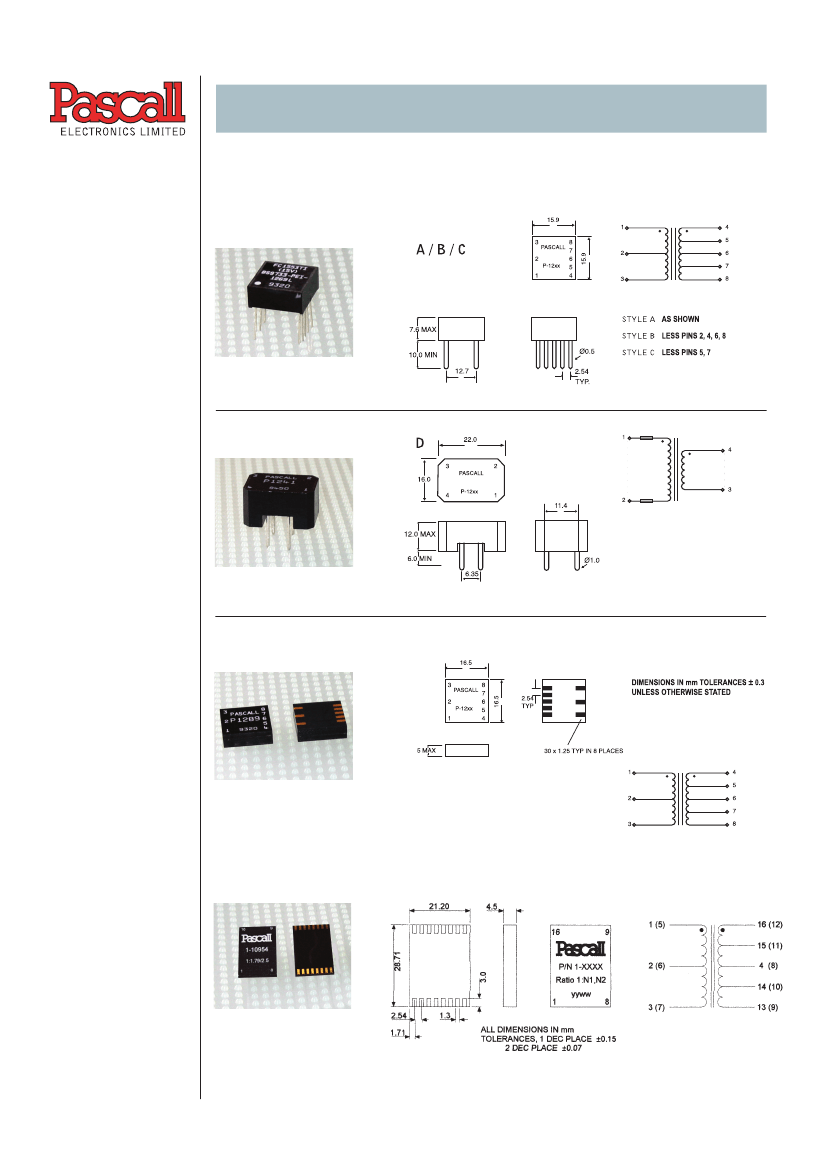

physical size	L28.71XB21.2XH4.5 (mm)
Maximum pulse rise time	250 ns
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1.66:1; 1.25:1
width	21.2 mm
Base Number Matches	1

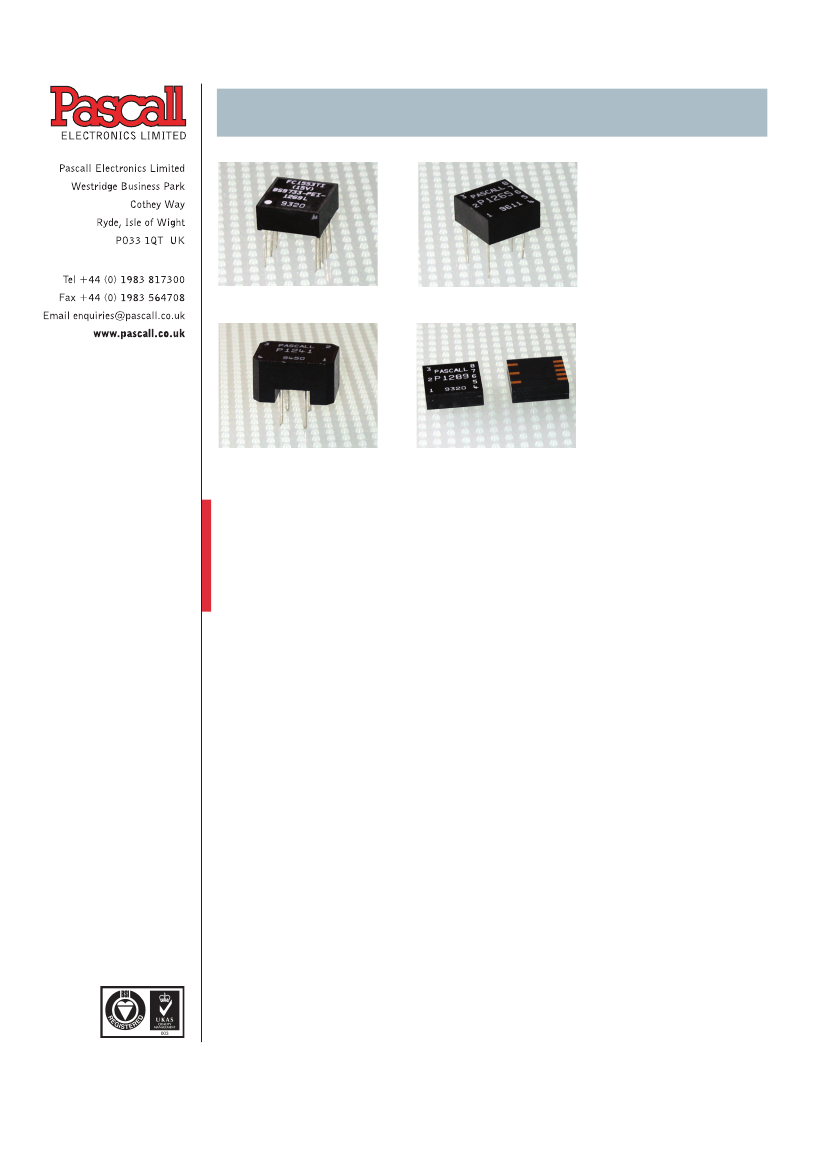

MIL-STD 1553 SINGLE & DUAL DATA BUS TRANSFORMERS

3Kohms minimum impedance at -55ºC

Can be tested in accordance with BS9000

Available in both leaded and surface mount packages

Extended range giving wide choice of turns ratios

Upper operating temperature limit to +125ºC

The Pascall P1200 Series of Data Bus Transformers is designed to satisfy

the requirements of MIL-STD-1553A/B (DEF. STAN. 00-18 (Part 2) /1) and

may be used in either the bus coupling or isolation configurations.

The Transformers are compatible with currently available transceivers and

integrated terminals, meeting all the electrical requirements of Manchester

II serial bi-phase data transmission including MACAIR specifications. They

are also designed to meet the requirements of MIL-T-21038 Grades 5 & 7 /

Class S / Life X.

10/07
