EQUA35E5H1H-27.120M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EQUA35E5H1H-27.120M

EQUA35E5H1H-27.120M: DescriptionCMOS, Temperature Compensated Voltage Controlled Quartz Crystal Clock Oscillators TCVCXO LVCMOS (CMOS) 3.0Vdc 6 Pad 2.5mm x 3.2mm Ceramic Surface Mount (SMD) 27.120MHz ±1.5ppm over -30°C to +60°C; CategoryPassive components oscillator; File Size877KB，12 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EQUA35E5H1H-27.120M Overview

CMOS, Temperature Compensated Voltage Controlled Quartz Crystal Clock Oscillators TCVCXO LVCMOS (CMOS) 3.0Vdc 6 Pad 2.5mm x 3.2mm Ceramic Surface Mount (SMD) 27.120MHz ±1.5ppm over -30°C to +60°C

EQUA35E5H1H-27.120M Parametric

Parameter Name	Attribute value
Brand Name	Ecliptek
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	7028738674
Parts packaging code	SMD 2.5mm x 3.2mm
Contacts	6
Manufacturer packaging code	SMD 2.5mm x 3.2mm
Reach Compliance Code	not_compliant
Other features	ENABLE/DISABLE FUNCTION; BULK
Ageing	1 PPM/YEAR
Maximum control voltage	2.5 V
Minimum control voltage	0.5 V
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	8 ppm
frequency stability	1.5%
Installation features	SURFACE MOUNT
Number of terminals	6
Nominal operating frequency	27.12 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-30 °C
Oscillator type	CMOS
Output load	15 pF

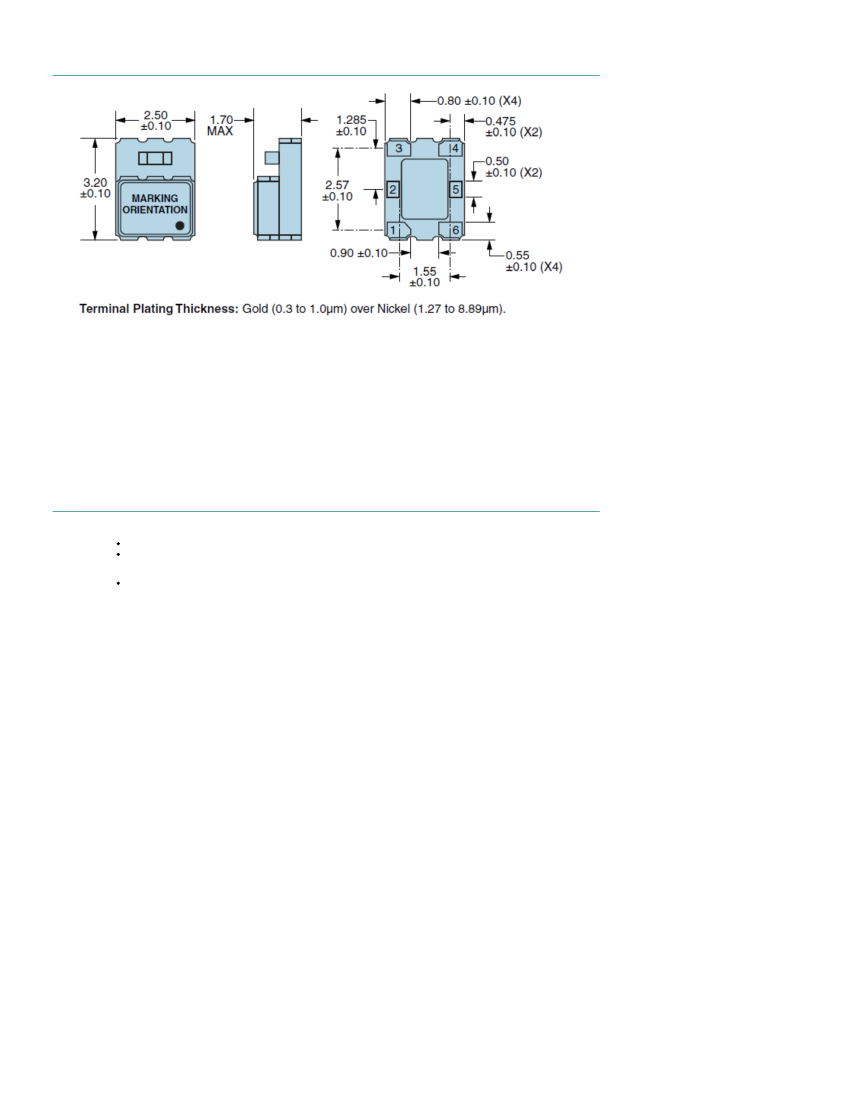

physical size	3.2mm x 2.5mm x 1.7mm
longest rise time	3 ns
Maximum supply voltage	3.15 V
Minimum supply voltage	2.85 V
Nominal supply voltage	3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

Ecliptek | EQUA35 Series Oscillator

http://www.ecliptek.com/oscillators/EQUA35/

Log On

Email Customer Support

Home

Products

Quick Quote

My Parts List

Site Map

EQUA35 Series Oscillator

Temperature Compensated Voltage Controlled Quartz Crystal Clock Oscillators TCVCXO LVCMOS (CMOS) 3.0Vdc 6 Pad 2.5mm

x 3.2mm Ceramic Surface Mount (SMD)

Revision A 09/09/2015

Electrical Specifications

Nominal Frequency

10.000MHz to 200.000MHz

Some frequencies within this range may not be available.

Frequency Stability

Inclusive of Operating Temperature Range, at V

V =1.5V

=3.0V

, at

±5.0ppm

±3.0ppm

±2.5ppm

±2.0ppm

±1.5ppm

±1.0ppm

Frequency Stability vs. Frequency

Tolerance

Maximum

=3.0V

, at V =1.5V

At 25°C ±2°C, at V

±0.1V

, Pre-Reflow

±2.0ppm Maximum

±1.5ppm Maximum

±1.0ppm Maximum

±0.2ppm Maximum (±5%)

±0.2ppm Maximum (±2pF)

±1.0ppm Maximum (at 25°C, 24 hours after reflow, 1 time)

±1ppm/Year Maximum (at 25°C)

0°C to +50°C

-10°C to +60°C

0°C to +70°C

-20°C to +70°C

-30°C to +60°C

-30°C to +75°C

-30°C to +85°C

-40°C to +85°C

3.0V

±5%

Frequency Stability vs. Input Voltage

Frequency Stability vs. Load

Frequency Stability vs. Reflow

Frequency Stability vs. Aging

Operating Temperature Range

Supply Voltage

Input Current

Unloaded

20mA Maximum over Nominal Frequency of 10MHz to 50MHz

25mA Maximum over Nominal Frequency of 50.000001MHz to 100MHz

30mA Maximum over Nominal Frequency of 100.000001MHz to

200MHz

IOH = -4mA

90% of V

Minimum

Output Voltage Logic High (Voh)

Output Voltage Logic Low (Vol)

IOL = +4mA

10% of V

Maximum

Rise/Fall Time

Measured at 10% to 90% of Waveform

3nSec Maximum

1 of 12

22-Dec-2015 11:35 AM
