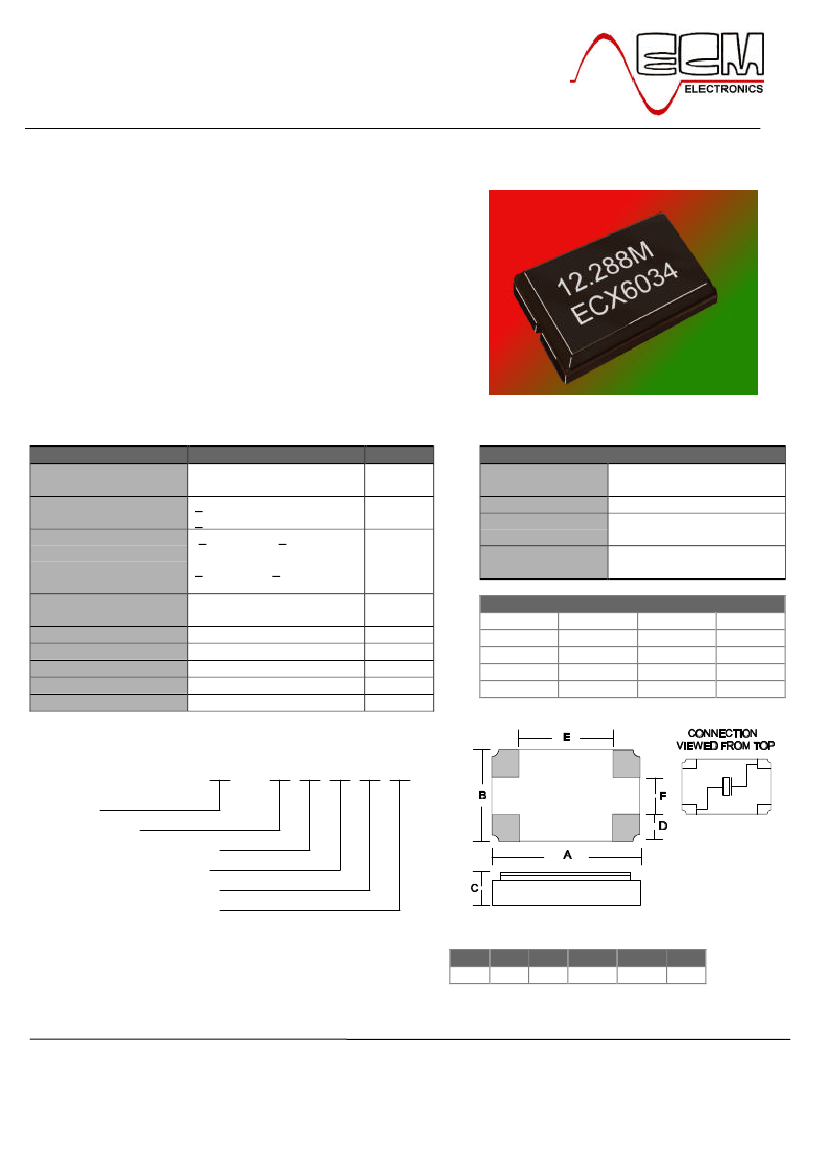

ECM Surface Mount Crystal
ECX6034 Series
§
§
§
§
§
§
Low Profile
Heat resistant glass seal
Excellent frequency stability
Tape & Reel or Bulk Packaging
Highly Competitive Prices for Volume users
Custom options available
Parameter
Frequency Range
CalibrationTolerance
0
@25 C
Temperature
Tolerance
ECX6034
10.0MHz to 40.0MHz
+30ppm (A)
+50ppm (B)
+30ppm (A) +50ppm (B)
0
0
-10 C to +70 C
+50ppm (C) +100ppm (D)
0
0
-40 C to +85 C
0
0
-10 C to +70 C (C)
0
0
-40 C to +85 C (E)
16pf 18pF 20pF 30pF
60Ω max
7pf max
10
µW
(100µW max)
+/-5ppm First year
Fund
AT Cut
Specify
Specify
Specify
Specify
Specify
Environmental & Mechanical
-8
Hermetic Seal
Leak rate less than 1x10
Atoms of Helium
Shock
MIL-STD-202 30G 11ms
Vibration
MIL-STD-202 5G to
2000Hz
0
Soldering
Lead Temperature 260 C
Condition
10s x 2max
Standard Frequencies in MHz
12.60
16.00
19.80
12.80
16.80
20.00
13.00
19.20
20.40
14.40
19.44
20.945
15.36
19.68
21.25
Operating
Temperature
Load Capacitance
ESR
Shunt Capacitance
Drive Level
Aging
24.0
24.5535
26.00
27.00
Part Numbering: ECX6034 12.80 A
Type
Frequency
Adjustment Tolerance
Temp Tolerance
Temperature Range
Load Capacitance
A
C
16
A
B
C
D
6.0
3.5 1.3 1.0
Dimmensions in mm
E
3.0
F
1.5
ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK
Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: ecm@ecmelectronics.co.uk
Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to
discontinue any product or make design changes we believe necessary. Issue 1
