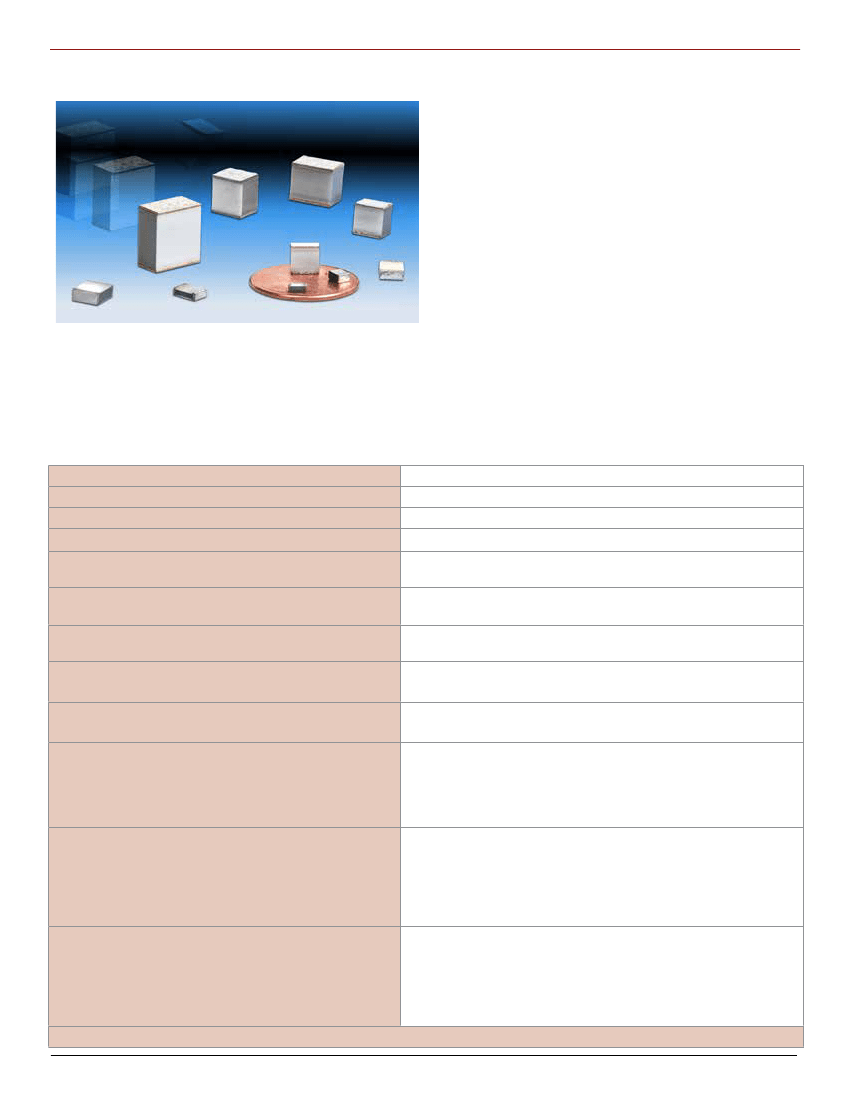

Type FCN Surface Mount Film Capacitors
Stable Stacked Metallized Film (PEN) Chips for Reflow Soldering
Type FCN capacitors are designed for applications requiring a
general purpose SMT capacitor with stable temperature and
frequency characteristics similar to polyester film capacitors.
They are ideal for applications such as EMI noise filtering, power
supply input/output filters, audio or signal coupling, and IC
power bus bypassing or decoupling. FCN SMT capacitors have
a non-inductive stacked metallized PEN film construction which
results in a low ESR and excellent high frequency performance.
Highlights
T
ype FCN SMT capacitors are the general purpose line of CDE’s
surface mount product offerings. They range in capacitance from
.001 µF to 1.0 µF, and they are available in voltage ratings up to
400 Vdc.
•
•
•
•
•
Designed for reflow soldering
Withstands 150% of rated voltage for 60 seconds
Stacked metallized polyethylene naphthalate (PEN) film
Performs like polyester capacitors
Nonmagnetic and lead-free
Specifications
Capacitance Range
Capacitance Tolerance
Rated Voltage
Dissipation Factor (Tan δ)
Operating Temperature Range
Surface Temperature
Insulation Resistance
Construction
Withstand Voltage
Life Test
1000 pF to 1.0 µF (1kHz at ≤5 Vrms)
±5% (J), ±10% (K) (See Ratings
16, 50, 100, 250 & 400 Vdc
1.0% Max. (1 kHz at 5 Vrms)
16, 50, 100Vdc (<0.012 µF); –55 ºC to +105 ºC
100 Vdc (≥ 0.012 µF), 250, 400 Vdc; –40 ºC to +85 ºC
16 V & 50 V & 100 V ≤ 0.01 µF: 240 ºC max
100 V ≥ 0.012 µF, 250 V & 400 V: 230 ºC max
C >0.33 µF: IR = 1000 MΩ•µF Min.
C ≤0.33 µF: IR ≥ 3000 MΩ
Stacked metallized polyphenylene sulfide (PPS) film. Terminations are lead
free with a Sn-Ag-Cu solder finish.
16 V & 50 V, 100 V ≤ 0.01 µF: 175% rated voltage, 5 s
100 V ≥ 0.012 µF, 250 V and 400 V: 150% rated voltage, 5 s
1000 h at rated temp. & 125% rated voltage
∆ Capacitance: +1%, –6% max
Dissipation Factor: 1.1% max
IR: 1000 MΩmin (C>0.33 µF, 300 MΩ•µF min)
No significant visual damage
5 s at max capacitor surface temperature
∆ Capacitance: ±5% max
Dissipation Factor: 1.1% max
IR: 1000 MΩ min (C >0.33 µF, 300 MΩ•µF min)
Voltage withstanding: 1.5 times rated voltage, 1 min.
No significant visual damage.
500 h at 85 ºC and 85% RH
∆ Capacitance: ±10% max
Dissipation Factor: 2% max
IR: 10 MΩ min (C >0.33 µF, 3 MΩ·µF min)
Voltage withstanding: 1.3 times rated voltage,1 min.
No significant damage
RoHS Compliant
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.
cde.com
Resistance to Soldering Heat
Moisture Resistance
Type FCN Surface Mount Film Capacitors
Part Numbering System
FCN
1206
A
102
J
H2
Tape
Packaging
Type
FCN
Case Size
1206
1913
2416
2420
2820
3022
3925
3931
6031
6040
Voltage
C
= 16 Vdc
H
= 50 Vdc
A
= 100 Vdc
E
= 250 Vdc
G
= 400 Vdc
Capacitance
102
= 0.001 µF
223
= 0.022 µF
474
= 0.47 µF
Tolerance
J
= ±5%
K
= ±10%
Code
K1
J1, J2
H1, H2
H3
G1, G2, G3
E1, E2
E3, E4
D1, D2
D3, D4, D5
B, Z
U, V, X, Y
S, T
=
=
=
=
=
=
=
=
=
=
=
=
Width
(mm)
8
8
8
8
8
12
12
12
12
12
16
24
Tape
Diameter
[in.(mm)]
7 (178)
7 (178)
7 (178)
7 (178)
7 (178)
13 (330)
13 (330)
13 (330)
13 (330)
13 (330)
13 (330)
13 (330)
Reel
Quantity
4000
3000
3000
2000
2000
3000
2000
3000
2000
1500
1000
750
Outline Drawing
L
T
t
W
t = 0.014 ± 0.008 in. (0.35 ±0.2 mm)
For 0.001 µF – 0.01 µF, 100 V, t = 0.026 ±0.012 in. (0.62 ± 0.3 mm)
Ratings
Rated Voltage:
Capacitance Range:
Capacitance Tolerance:
D.F. (20°C, 1 kHz):
16 Vdc (12 Vac)
0.12 to 0.47 µF
± 5% (J)
≤
1%
OBSOLETE
Operating Temperature Range:
Dielectric Withstand Voltage:
Insulation Resistance (20°C,10 Vdc, 60 Seconds);
L ±.008 (±0.2)
[in.(mm)]
0.189
0.189
0.189
0.189
0.236
0.236
0.236
0.236
(4.8)
(4.8)
(4.8)
(4.8)
(6.0)
(6.0)
(6.0)
(6.0)
W ±.012 (±0.3)
[in.(mm)]
0.130
0.130
0.130
0.130
0.161
0.161
0.161
0.161
(3.3)
(3.3)
(3.3)
(3.3)
(4.1)
(4.1)
(4.1)
(4.1)
-55 to +105°C
28 Vdc for 5 seconds
For C
≤
0.33 µF:I.R.
≥
3000 MegΩ
For C > 0.33 µF:I.R. = 1000 MegW•µF
Min.
T ±.008 (±0.2)
[in.(mm)]
0.055
0.079
0.079
0.094
0.071
0.079
0.094
0.110
(1.4)
(2.0)
(2.0)
(2.4)
(1.8)
(2.0)
(2.4)
(2.8)
Max. capacitor surface temperature: 240°C
Capacitance (µF)
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
CDE P.N.
FCN1913C124J-E1
FCN1913C154J-E2
FCN1913C184J-E2
FCN1913C224J-E4
FCN2416C274J-D1
FCN2416C334J-D2
FCN2416C394J-D3
FCN2416C474J-D4
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.
cde.com
Type FCN Surface Mount Film Capacitors
Rated Voltage:
Capacitance Range:
Capacitance Tolerance:
D.F. (20°C, 1 kHz):
50 Vdc (40 Vac)
Operating Temperature Range:
-55 to +105°C
87.5 Vdc for 5 seconds
0.056 to 0.22 µF Dielectric Withstand Voltage:
± 5% (J)
≤
1%
Insulation Resistance (20°C, 50 Vdc, 60 Seconds);
I.R.
≥
3000 MegΩ
Max. capacitor surface temperature: 240°C
L ±.008 (±0.2)
[in.(mm)]
0.189
W ±.012 (±0.3)
[in.(mm)]
0.130
(3.3)
(3.3)
(3.3)
(3.3)
(4.1)
(4.1)
(4.1)
(4.1)
T ±.008 (±0.2)
[in.(mm)]
0.079
0.079
0.094
0.110
0.071
0.079
0.094
0.110
(2.0)
(2.0)
(2.4)
(2.8)
(1.8)
(2.0)
(2.4)
(2.8)
Capacitance (µF)
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
OBSOLETE
FCN1913H563J-E2
(4.8)
FCN1913H683J-E2
0.189
(4.8)
FCN1913H823J-E4
0.189
(4.8)
FCN1913H104J-E3
FCN2416H124J-D1
FCN2416H154J-D2
FCN2416H184J-D3
FCN2416H224J-D4
0.189
0.236
0.236
0.236
0.236
(4.8)
(6.0)
(6.0)
(6.0)
(6.0)
100 Vdc (63 Vac)
0.001 to 0.010 µF
± 5% (J)
≤ 1%
CDE P.N.
0.130
0.130
0.130
0.161
0.161
0.161
0.161
Rated Voltage:
Capacitance Range:
Capacitance Tolerance:
D.F. (20°C, 1 kHz):
Operating Temperature Range:
Dielectric Withstand Voltage:
-55 to +105°C
175 Vdc for 5 seconds
Insulation Resistance (20°C, 100 Vdc, 60 Seconds);
I.R. ≥ 3000 MegΩ
Max. capacitor surface temperature: 240°C
L ±.008 (±0.2)
[in.(mm)]
0.126
0.126
0.126
0.126
0.126
0.126
0.126
0.126
0.126
0.126
0.126
0.126
0.126
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
W ±.008 (±0.2)
[in.(mm)]
0.063
0.063
0.063
0.063
0.063
0.063
0.063
0.063
0.063
0.098
0.098
0.098
0.098
(1.6)
(1.6)
(1.6)
(1.6)
(1.6)
(1.6)
(1.6)
(1.6)
(1.6)
(2.5)
(2.5)
(2.5)
(2.5)
T ±.008 (±0.2)
[in.(mm)]
0.043
0.043
0.043
0.043
0.043
0.043
0.059
0.059
0.059
0.059
0.059
0.083
0.083
(1.1)
(1.1)
(1.1)
(1.1)
(1.1)
(1.1)
(1.5)
(1.5)
(1.5)
(1.5)
(1.5)
(2.1)
(2.1)
Capacitance (µF)
0.001
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.01
CDE P.N.
FCN1206A102J-H2
FCN1206A122J-H2
FCN1206A152J-H2
FCN1206A182J-H2
FCN1206A222J-H2
FCN1206A272J-H2
FCN1206A332J-H3
FCN1206A392J-H3
FCN1206A472J-H3
FCN1210A562J-G2
FCN1210A682J-G2
FCN1210A822J-G3
FCN1210A103J-G3
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.
cde.com
