LQG15HZ1N1S02B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LQG15HZ1N1S02B

Preview

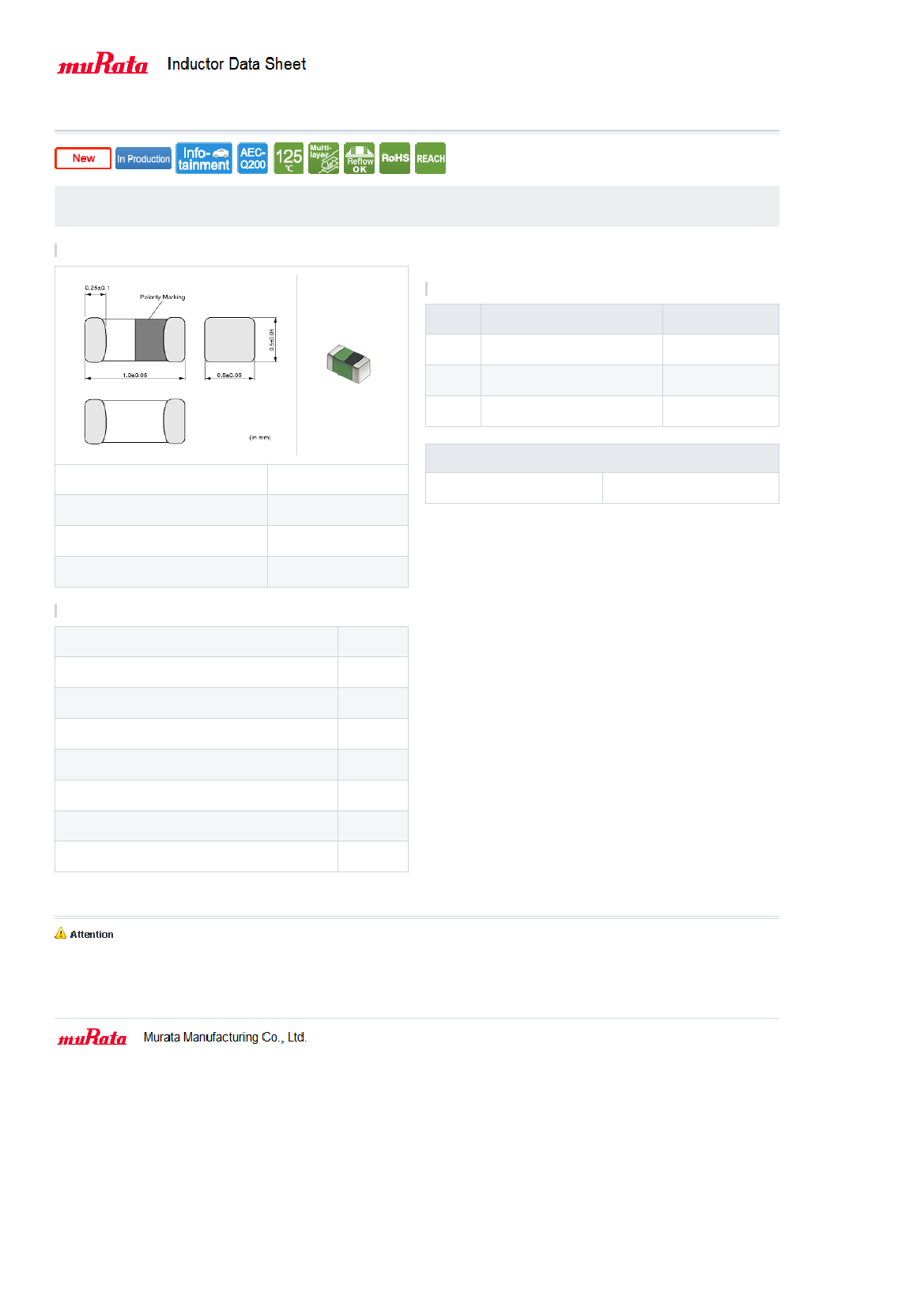

LQG15HZ1N1S02B: DescriptionInductance; File Size66KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet View All

LQG15HZ1N1S02B Overview

Inductance

Preview

Download Datasheet

View All

LQG15HZ1N1S02#

# indicates a package specification code.

< List of part numbers with package codes >

LQG15HZ1N1S02D , LQG15HZ1N1S02J , LQG15HZ1N1S02B

Shape

References

Packaging

code

Specifications

φ180mm Paper taping

φ330mm Paper taping

Packing in bulk

Minimum quantity

10000

50000

1000

Mass (Typ.)

L size

W size

T size

Size code in inch (mm)

1.0 ±0.05mm

0.5 ±0.05mm

0402 (1005)

1 piece

0.001g

Specifications

Inductance

Inductance test frequency

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Q (min.)

Q test frequency

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise is not included)

1.1nH ±0.3nH

100MHz

1000mA

0.07Ω

100MHz

6000MHz

-55∼125℃

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/04/21
