Features
* High luminous intensity output.
* Low power consumption.
* High efficiency.
* Versatile mounting on P.C. board or panel.
* I.C. Compatible/low current requirements.
* Popular T-1
3/4
diameter.

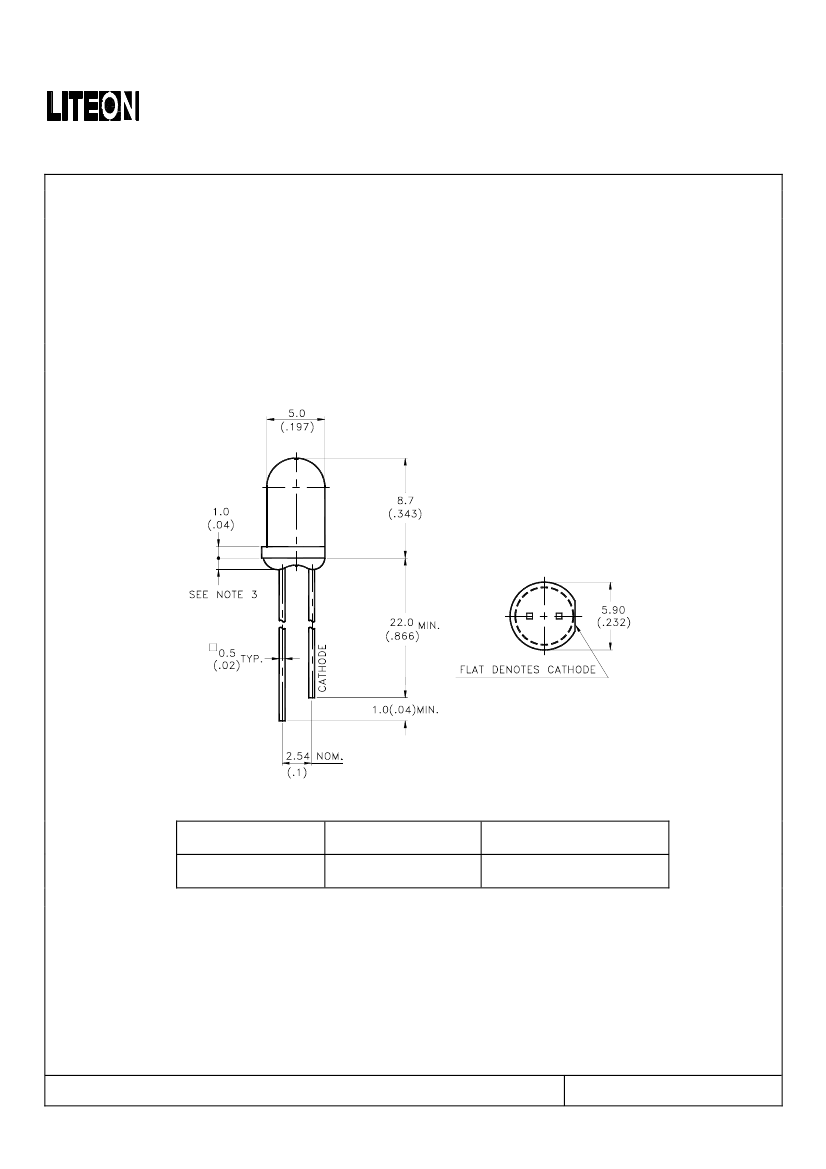

Package Dimensions
Part No.
LTL2R3KY
Lens
Yellow Diffused
Source Color
AlInGaP Amber Yellow
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25mm(.010")
unless otherwise noted.
3. Protruded resin under flange is 1.0mm(.04") max.
4. Lead spacing is measured where the leads emerge from the package.
5. Specifications are subject to change without notice.
Part
No. : LTL2R3KY
Page :
1
of
10
BNS-OD-C131/A4
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only
Absolute Maximum Ratings at T
A
=25
℃
Parameter
Power Dissipation
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
DC Forward Current
Derating Linear From 50℃
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature
[1.6mm(.063") From Body]
60
30
0.4
5
-40℃ to + 100℃
-55℃ to + 100℃
260℃ for 5 Seconds
mA
mA
mA/℃
V
Maximum Rating
75
Unit
mW
Part
No. : LTL2R3KY
Page :
2
of
10
BNS-OD-C131/A4
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only
Electrical / Optical Characteristics at T
A
=25
℃
Parameter
Symbol
Min.
Typ.
Max.
Unit
Test Condition
I
F
= 20mA
Note 1
Note 2 (Fig.5)
Measurement
@Peak (Fig.1)
Note 4
Luminous Intensity
I
V
140
380
mcd
Viewing Angle
2θ
1/2
λ
P
λ
d
Δλ
50
deg
Peak Emission Wavelength
595
nm
Dominant Wavelength
592
nm
Spectral Line Half-Width
15
nm
Forward Voltage
V
F
2.05
2.5
V
μA
I
F
= 20mA
Reverse Current
I
R
100
V
R
= 5V
Capacitance
C
40
pF
V
F
= 0 , f = 1MHz
NOTE: 1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE
eye-response curve.
2.
θ
1/2
is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
3. Iv classification code is marked on each packing bag.
4. The dominant wavelength,
λd
is derived from the CIE chromaticity diagram and represents the single
wavelength which defines the color of the device.
Part
No. : LTL2R3KY
Page :
3
of
10
BNS-OD-C131/A4
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only

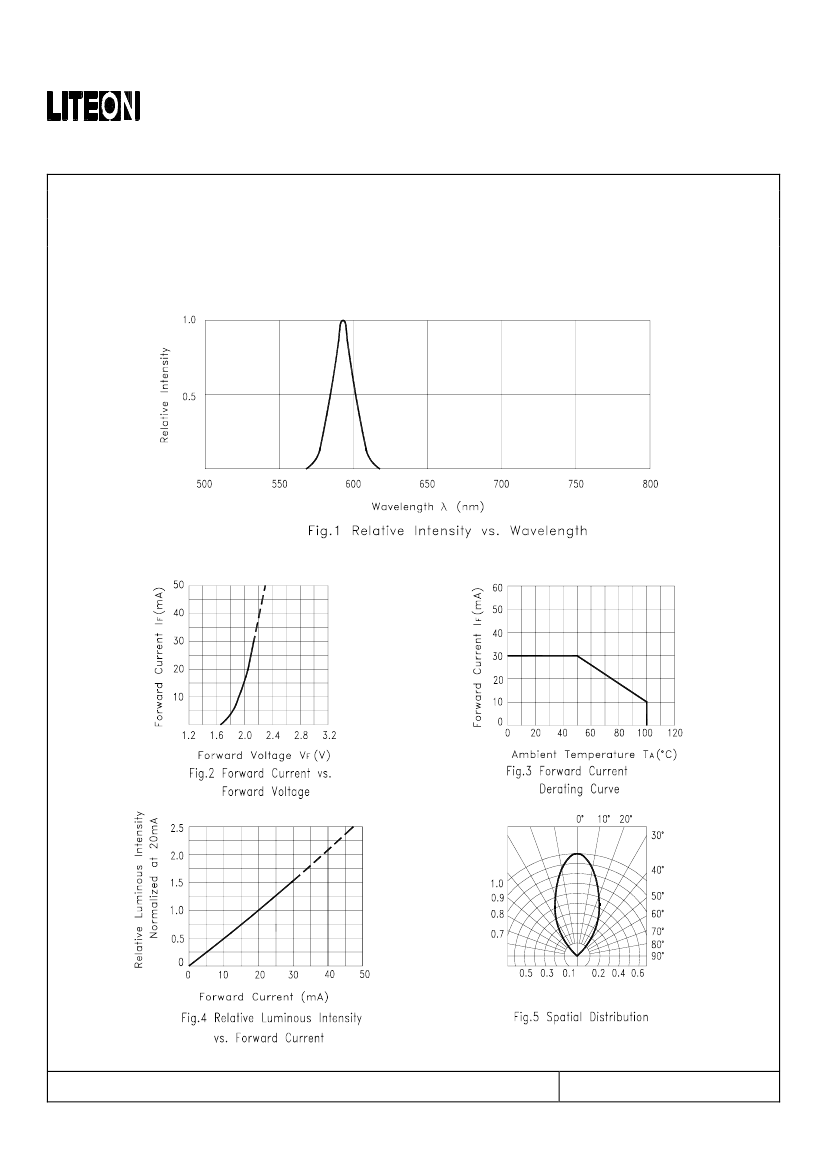

Typical
(25℃
Electrical
Ambient
/
Optical
Characteristics
Otherwise
Curves
Temperature
Unless
Noted)
Part
No. : LTL2R3KY
Page :
4
of
10
BNS-OD-C131/A4
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only

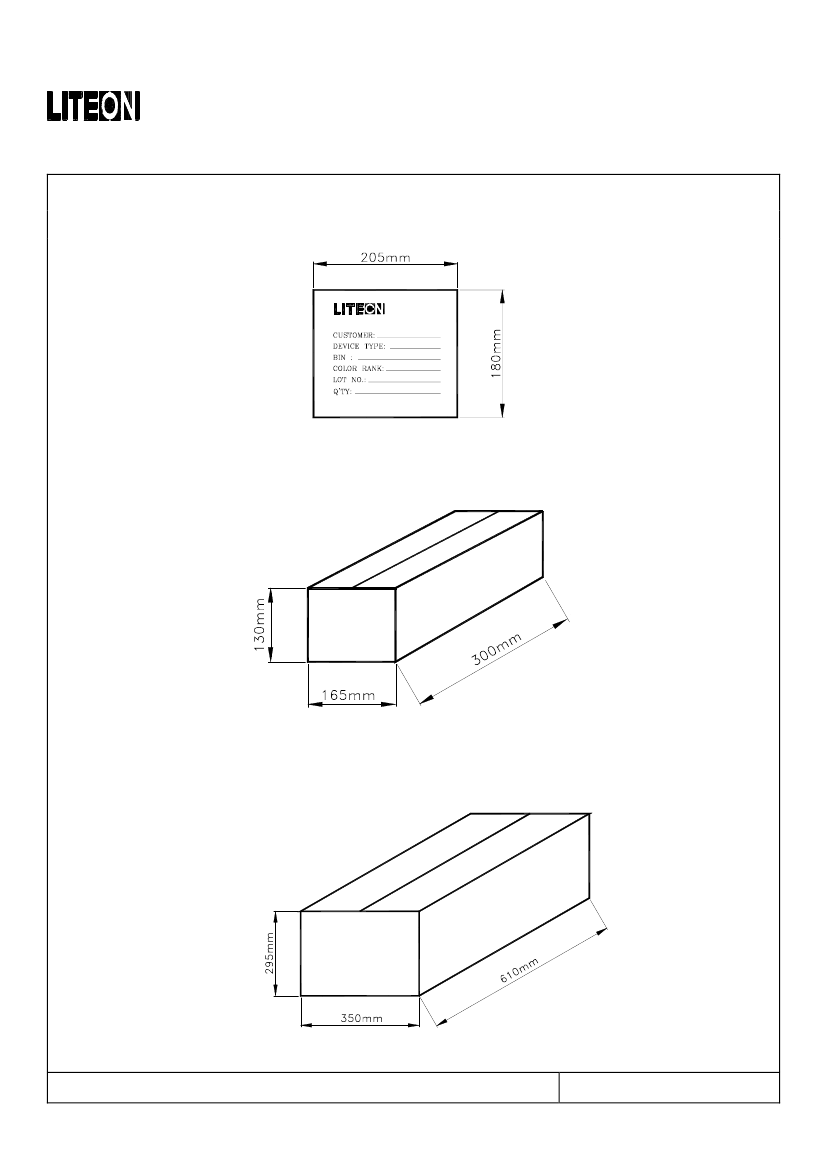

Packing Spec
1000, 500 or 250 pcs per packing bag
8 packing bags per inner carton
total 8000 pcs per inner carton
8 Inner cartons per outer carton
total 64000 pcs per outer carton
In every shipping lot, only the last pack will be non-full packing.
Part
No. : LTL2R3KY
Page :
5
of
10
BNS-OD-C131/A4
