LITE-ON TECHNOLOGY CORPORATION
Property of LITE-ON Only
FEATURES
1. This specification shall be applied to photocoupler. Model No. LTV-817 as an option.
2. Applicable Models (Business dealing name)
* Dual-in-line package :
LTV702V-V
* Wide lead spacing package :
LTV702VM-V
* Surface mounting package :
LTV702VS-V
* Tape and reel packaging :
LTV702VSTA1-V
3. The relevant models are the models Approved by VDE
according to DIN VDE 0884:1992-06
Approved Model No.: LTV-702V / LTV-702VM / LTV-702VS
VDE approved No.: 094722
(According to the specification DIN VDE 0884:1992-06)
* Operating isolation voltage V
IORM
: 700V (Peak)
* Transient voltage V
TR
: 6000V (Peak)
* Pollution : 2 (According to VDE 0110-1 : 1997-04)
* Clearances distance (Between input and output) : 7.0mm (MIN.)
* Creepage distance (Between input and output) : 7.0mm (MIN.)
* Isolation thickness between input and output : 0.4mm (MIN.)
* Safety limit values Current (Isi) : 400mA (Diode side)
Power (Psi) : 700mW (Phototransistor side)
Temperature(Tsi) : 175
o
C
In order to keep safety electric isolation of photocoupler, please set the protective
circuit to keep within safety limit values when the actual application equipment
troubled.
* Indication of VDE 0884 approval prints "
" on sleeve package.
Part No. : LTV702V ( M, S, STA1 )-V
BNS-OD-C131/A4
Page :
1 of 12
LITE-ON TECHNOLOGY CORPORATION
Property of LITE-ON Only

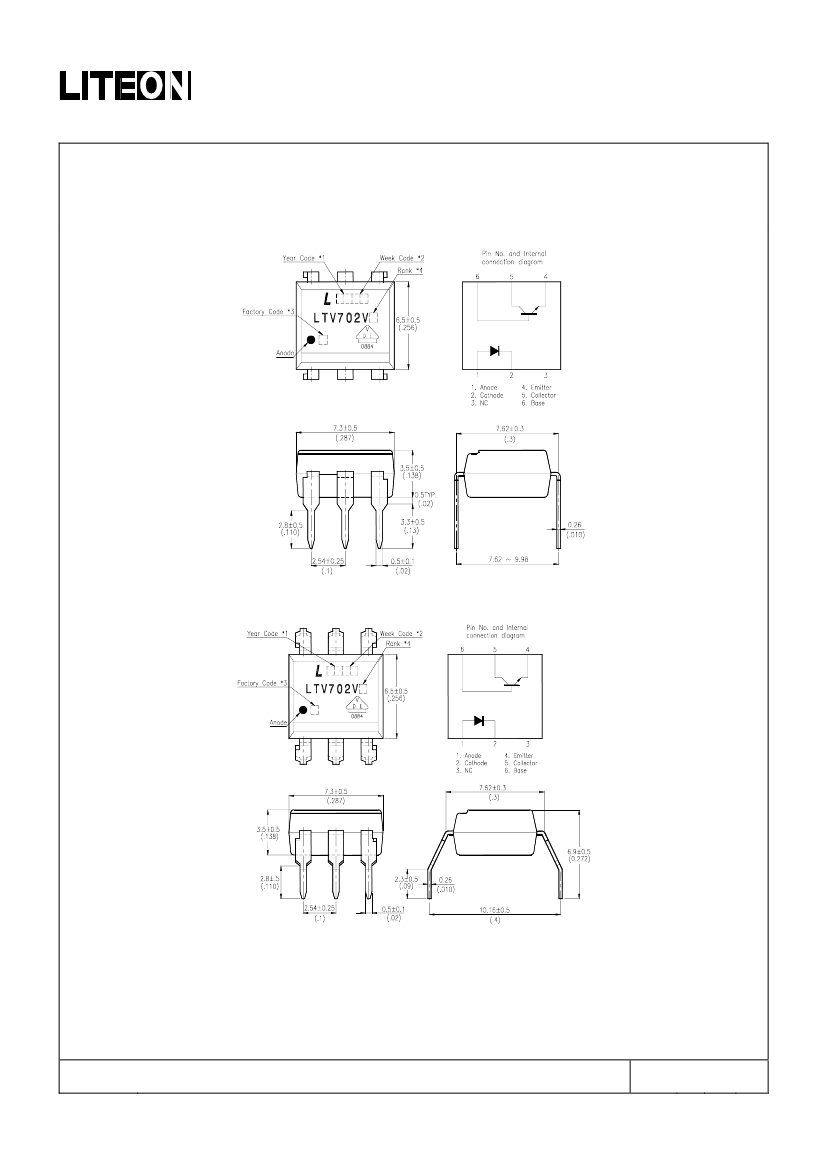

OUTLINE DIMENSIONS
LTV702V-V :
LTV702VM-V :
*1.
*2.
*3.
*4.
Year date code.
2-digit work week.
Factory identification mark shall be marked (Z : Taiwan, Y : Thailand, X : China).
Rank shall be or shall not be marked.
Page
:
2 of 12
Part No.
:
LTV702V ( M, S, STA1 )-V
BNS-OD-C131/A4
LITE-ON TECHNOLOGY CORPORATION
Property of LITE-ON Only

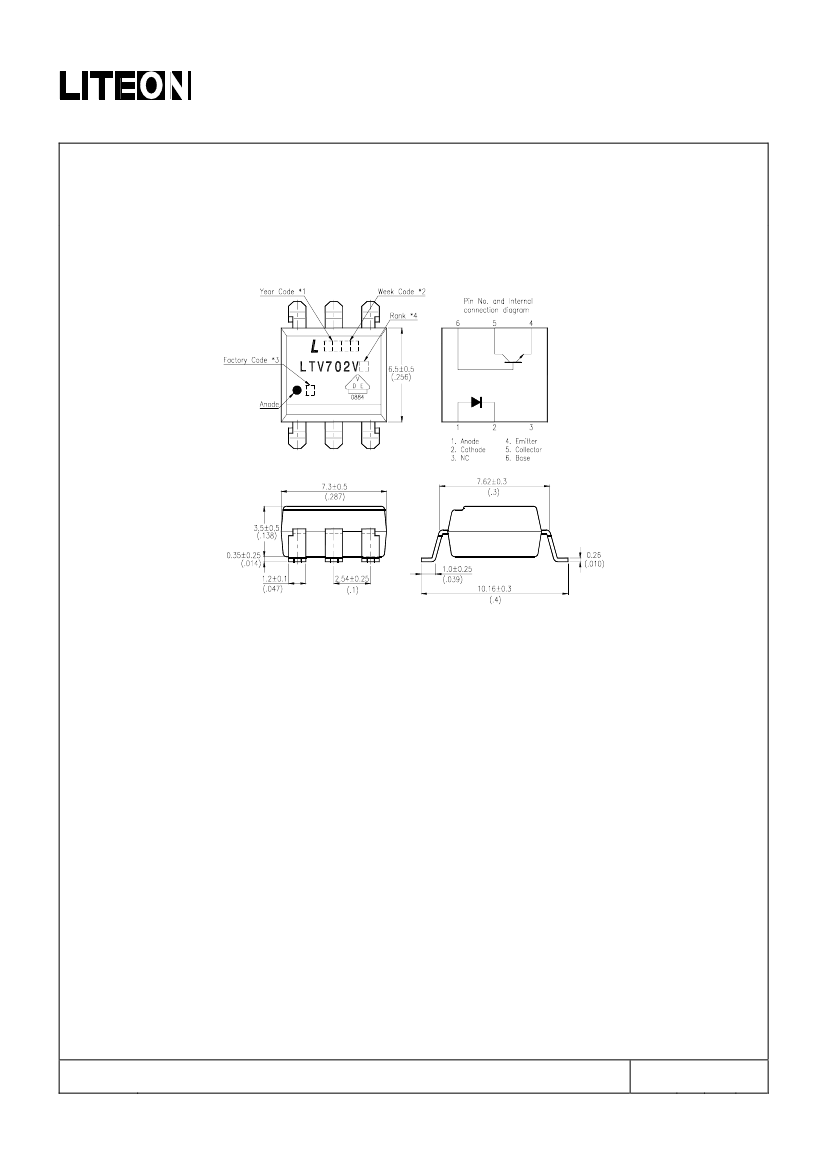

OUTLINE DIMENSIONS
LTV702VS-V :
*1.
*2.
*3.
*4.
Year date code.
2-digit work week.
Factory identification mark shall be marked (Z : Taiwan, Y : Thailand, X : China).
Rank shall be or shall not be marked.
Part No.
:
LTV702V ( M, S, STA1 )-V
BNS-OD-C131/A4
Page
:
3 of 12

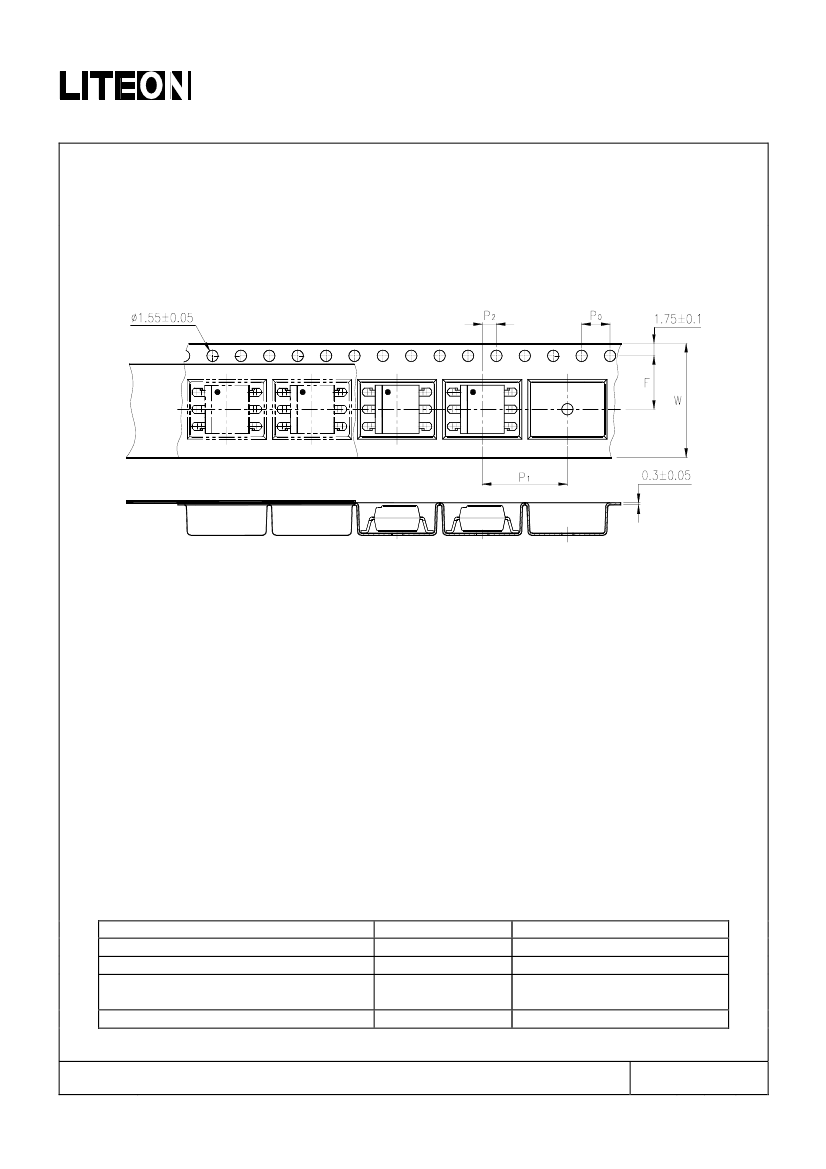

LITE-ON TECHNOLOGY CORPORATION
Property of LITE-ON Only
ABSOLUTE MAXIMUM RATING
( Ta = 25°C )
PARAMETER
Forward Current
INPUT
Reverse Voltage
Power Dissipation
Collector - Emitter Voltage
Emitter - Collector Voltage
Collector - Base Voltage
OUTPUT
Emitter - Base Voltage
Collector Current
Collector Power Dissipation
Total Power Dissipation
*1 Isolation Voltage
Operating Temperature
Storage Temperature
*2 Soldering Temperature
V
EBO
I
C
P
C
P
tot
V
iso
T
opr
T
stg
T
sol
6
50
160
200
5,000
-55 ~ +100
-55 ~ +150
260
V
mA
mW
mW
Vrms
°C
°C
°C
SYMBOL
I
F
V
R
P
V
CEO
V
ECO
V
CBO
RATING
60
6
105
70
6
70
UNIT
mA
V
mW
V
V
V
*1. AC For 1 Minute, R.H. = 40 ~ 60%
Isolation voltage shall be measured using the following method.
(1) Short between anode and cathode on the primary side and between collector,
emitter and base on the secondary side.
(2) The isolation voltage tester with zero-cross circuit shall be used.
(3) The waveform of applied voltage shall be a sine wave.
*2. For 10 Seconds
Part No.
:
LTV702V ( M, S, STA1 )-V
BNS-OD-C131/A4
Page
:
5 of 12
